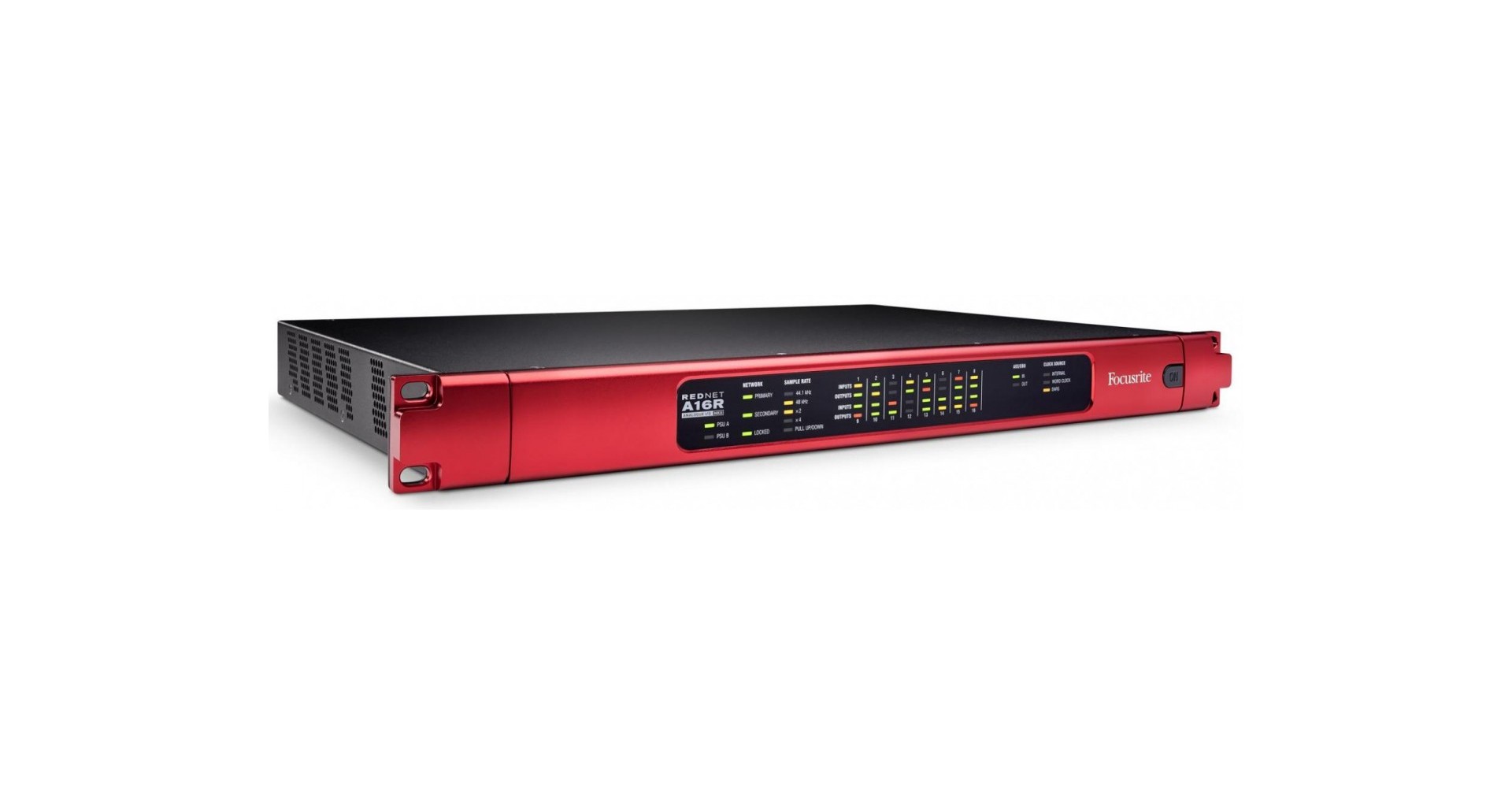

Focusrite RedNet A16R MkII

RedNet Control v2.13 Update

• Focusrite ofera extinderea capacitatii RedNet PCIeNX de la 128x128 la 256x256 canale (pana la 96kHz) prin actualizarea RedNet Control la v2.13 si achizitionarea unei licente de upgrade de la Audinate.
• Detalii si descarcare: RedNet PCIeNX

Caracteristici:

•  Interfata analogica bi-directionala pentru retelele Dante, cu 2 canale I/O AES3.
•  Conversie AD/DA de precizie cu gama dinamica de 119dB, 20 - 20000 Hz flat (+/- 0.15 dB)
•  Control individual al nivelului I/O folosind software-ul RedNet Control
•  Doua PSU cu admisie IEC
•  Doi connectori etherCON pentru conexiuni de retea primara si secundara
•  Redundanta ethernet si alimentare cu auto switchover in cazul unui esec
•  Indicatori LED pentru PSU, retea, sample rate, semnal si clock pe panoul frontal
•  Conversia Sample Rate pe intrarile AES3 permit echipamentului extern sa ruleze la orice sample rate
•  I/O analogice pe 4 conectori DB25 standard AES59
•  I/O digitale pe o pereche de conectori XLR (AES3)
•  Conectorul XLR de pe panoul din spate ce poate fi folosit atat ca intrare DARS cat si ca intrare audio AES3
•  Conectori BNC intrare si iesire World Clock
•  Sasiu compact 1U ce permite functionalitate maxima intr-un spatiu minimal de rack
•  In conformitate cu AES67 si AES70
•  In conformitate cu SMPTE ST 2110 cand este folosit cu Dante Domain Manager (vandut separat)
•  Operabilitate completa cu interfetele Focusrite RedNet si Red, polus toate dispozitivele Dante de la sute de producatori
•  Control de la distanta cu RedNet Control si rutare cu Dante Control

Continut cutie:

•  RedNet A16R MkII
•  2 cabluri IEC AC
•  2 clapete de retinere IEC
•  informatii importante Focusrite Pro cu legaturi catre:
•  RedNet Control
•  Drivere RedNet PCIe
•  Audinate Dante Controller

Specificatii:

Input / Output Trim

•  Input Trim: -78 to 0dB in 1dB steps (per channel)
•  Output Trim: -78 to 0dB in 1dB steps (per channel)

Line Inputs

• All measurements taken at +24dBu reference level, Rs = 50 Ohm
•  0dBFS Reference Levels: +18 or +24dBu (switchable)
•  Frequency Response: 20h &ndash. 20kHz + / - 0.1dB
•  THD + N: <.-105dB (0.0005623%) unweighted, 20Hz &ndash. 20kHz. -1dBFS input
•  EIN: -95dBu "A"-Weighted (typical)
•  Signal-to-Noise Ratio: 119dB "A"-Weighted (typical)
•  Converter Dynamic Range: 120dB "A"-Weighted (typical), 10Hz &ndash. 20kHz

Line Outputs

• All measurements taken at +24dBu reference level, RL = 100k Ohm
•  0 dBFS Reference Levels: +18 or +24dBu (switchable)
•  Frequency Response: 20Hz &ndash. 20kHz + / - 0.1dB
•  THD + N: <.-100dB (0.001%) unweighted, 20Hz &ndash. 20kHz. +23dBu input
•  Noise in Presence of Signal: -94dBu "A"-Weighted (typical)
•  Dynamic Range: 118dB "A"-Weighted (typical)
•  Converter Dynamic Range: 120dB "A"-Weighted (typical), 10Hz &ndash. 20kHz

Crosstalk

•  Input to Output or Input : <.-100dB unweighted, 20Hz &ndash. 20kHz. +23dBu input
•  Output to Input or Output: <.-100dB unweighted, 20Hz &ndash. 20kHz. -1dBFS input

Digital Input Sample Rate Converters

•  Sample Rate Range: 32kHz to 216kHz
•  Gain Error: -0.3dB
•  Dynamic Range: >.138dB
•  THD + N: <.-130dB (0.00003%)
•  Latency : 11 to 45 samples (network and sample rate dependent)

Digital Performance

•  Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
•  Clock Sources: Internal, Word Clock, DARS or from Dante Network Master.
•  External Word Clock Range: Nominal sample rate + / -7.5%

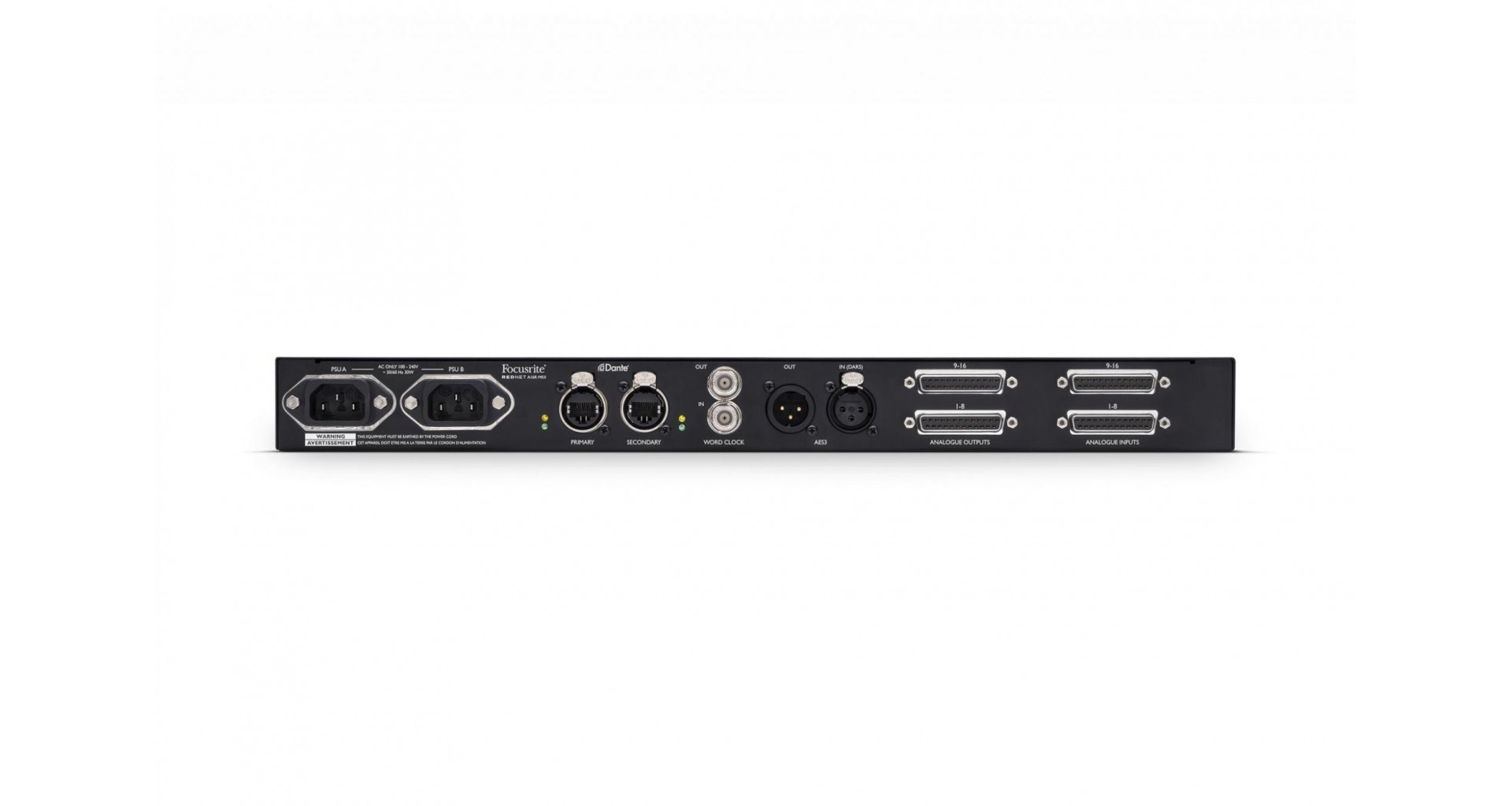

Rear Panel Connectivity

• Analogue Inputs
•  Line Inputs: 2 x DB-25 connectors

Analogue Outputs

•  Line Outputs: 2 x DB-25 connectors

AES3

•  Channel Count: 2 x 2 AES3 channels
•  Input (optional DARS): 1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates)
•  Output: 1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates)

Word Clock

•  Word Clock Input: 1 x BNC 75 Ohm port (switchable termination)
•  Word Clock Output: 1 x BNC 75 Ohm port

PSU & Network Connections

•  PSU: 2 x IEC Inputs with retaining clips.
•  Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors (Accomodates rugged etherCON NE8MC*. Does not intermate with Cat 6 cable connector NE8MC6-MO and NKE65* cable)

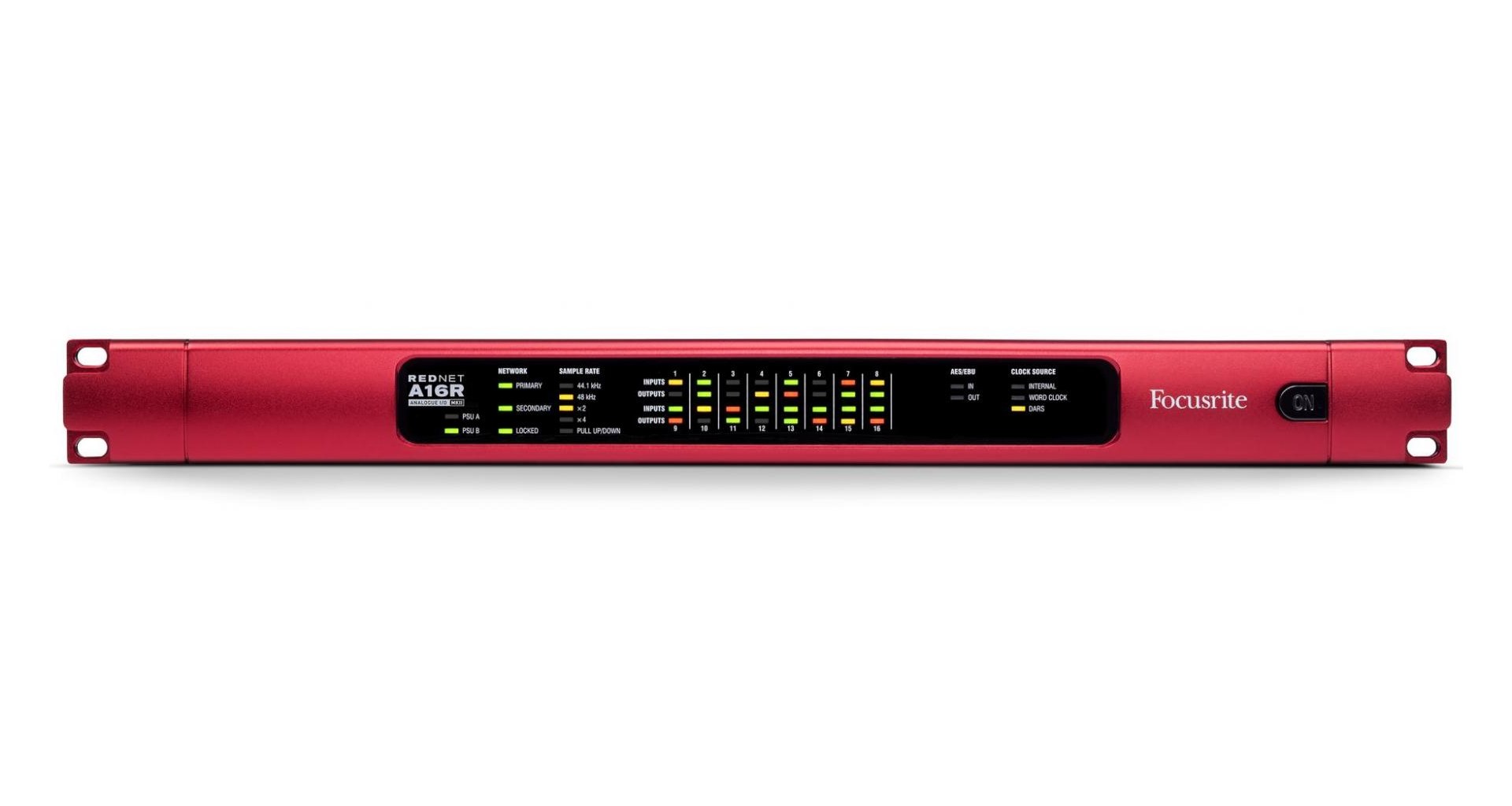

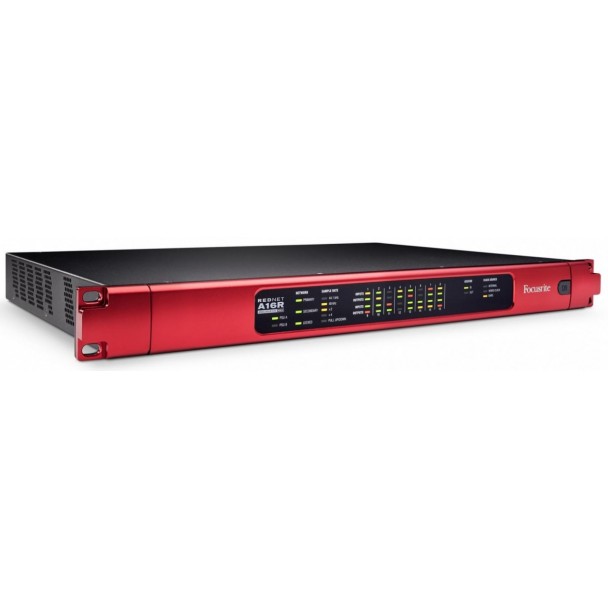

Front Panel Indicators

•  Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
•  Secondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
•  Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or secondary network port will cause this LED to illuminate.
•  Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode.
•  Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master, shows lock to internal clock.
•  Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4.
•  Pull Up/Down: Orange LED. Indicates that the unit is set to operate on a Dante pull up/down domain.
•  Channel Signal Level: 16 Input and 16 Output tri-state signal level LEDs: Green LED (>. -42dB), Orange LED (>. -6dB) and Red (>. 0dB)
•  AES3 signal indicators: 2 I/O signal indicator LEDs (one input, one output). Green LED illuminates >.-127dBFS
•  Clock Source: Orange LED for each: Internal, Word Clock and DARS

Network Modes

•  Redundant: Allows unit to connect to two independent networks.
•  Switched: Connects both ports to integrated network switch allowing daisy-chaining of devices.

Power

•  PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 30W

Heat Performance

•  Operating Temperature: Operates at up to an ambient temperature of 50 degrees Celcius
•  Fan: Two-step Dual Fans which increase in speed when reaching temperatures towards 50 degrees ambient temperature
