Rane Four

Specificatii tehnice:

Audio Digital:
Convertoare: Cirrus Logic, 24 de biti PCM, 48 kHz
Procesare semnal digital: 32 de biti, punct flotant, dubla precizie

Dinamica:
ADC (Conversie Analog-Digital): 113 dB
DAC (Conversie Digital-Analog): 113 dB
Intrare CD catre Iesire Analogica: 110 dB
Intrare CD catre Iesire USB: 113 dB
Intrare USB catre Iesire Analogica: 113 dB

Intrari:
Microfon 1/2 (Combo XLR/1/4" [6.35 mm] TRS):
Castig Analogic: 25 dB
Intrare Maxima: 110 mV
Gain: dezactivat pana la +26 dB (unitate in centru)
Control de Ton: 2 benzi
Intrari Linie/Phono 3/4 (perechi stereo RCA, comutabile):

Linie
Intrare Maxima: 4 Vrms
Reglare Castig: Dezactivat pana la +12 dB
Control de Ton: 3 benzi, taiere completa pana la +10 dB
THD+N (20 kHz BW @ 1 kHz): 0.004%
Phono: RIAA
Curba RIAA: +/-0.25 dB
Castig (@ 1 kHz): 31.5 dB
Intrare Maxima (@ 1 kHz): 106 mV
Dinamica: 102 dB

Iesiri:
Iesiri Principale (XLR):
Reglare Castig: Dezactivat pana la 0 dB
Iesire Maxima: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Raspuns in Frecventa: Plat - 20-20 kHz

Iesiri Principale (pereche stereo RCA):
Iesire Maxima: 4 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Raspuns in Frecventa: Plat - 20-20 kHz

Iesiri Booth (1/4”):
Reglare Castig: Dezactivat pana la 0 dB
Iesire Maxima: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Raspuns in Frecventa: Plat - 20-20 kHz

Iesiri pentru Casti (1/4"/6.35 mm si 1/8"/3.5 mm TRS):

Iesire Maxima: 4 Vrms Tensiune: (fara sarcina)
Putere de Iesire: 50 mW (50 ohmi)
Dinamica (ponderata A): 108 dB
Pad-uri: 16 pad-uri cu iluminare din spate cu on/off (8 per deck, 9 moduri fiecare)
Ecrane Rotative: 2 Ecrane color LCD 320 x 240
Ecrane Pad & FX: 9 Ecrane OLED monocrom 128 x 32

Fadere:
1 x Crossfader MAG FOUR cu reglare a tensiunii si contur
4 x Fadere de canal standard

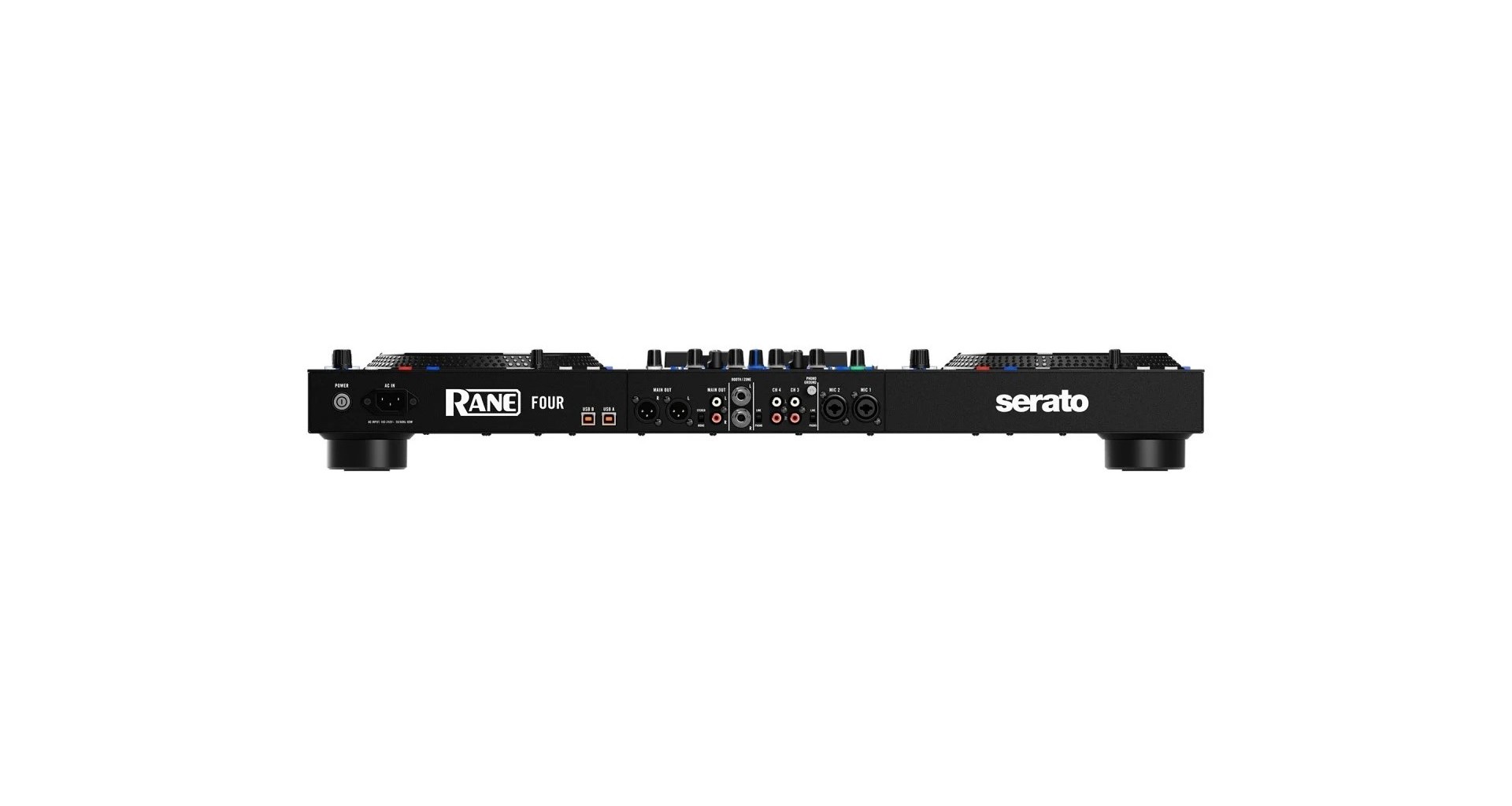

Conexiuni:
2 x Iesiri XLR (Principale)
2 x Iesiri 1/4” (Booth)
1 x Pereche stereo RCA (Principale)
2 x Intrari XLR / 1/4” (6.35 mm) TRS (Mic 1–2)
2 x Perechi stereo RCA (Deck 3-4)
1 x Iesire 1/4” (6.35 mm) TRS (Casti)
1 x Iesire 1/8” (3.5 mm) TRS (Casti)
2 x Porturi USB tip-B
1 x Intrare cablu de alimentare IEC

Alimentare:
Conexiune: IEC
Tensiune: 100–240 V, 50/60 Hz
Consum: 20 W

Dimensiuni: 782.32 x 403.8 x 106.6 mm
Greutate: 8.27 kg
