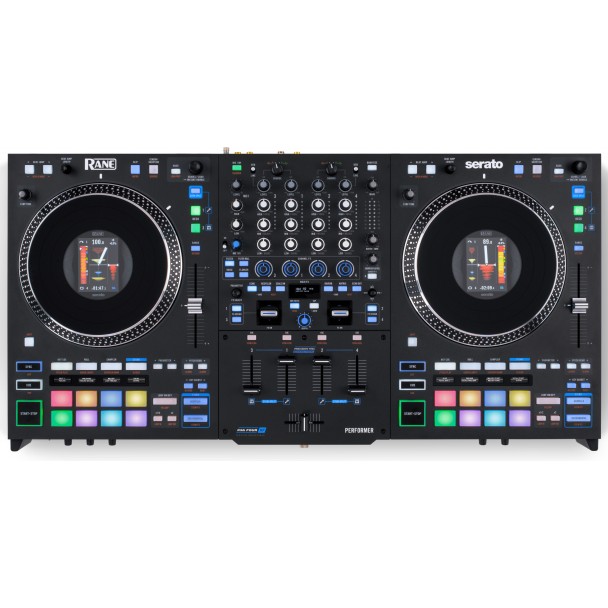

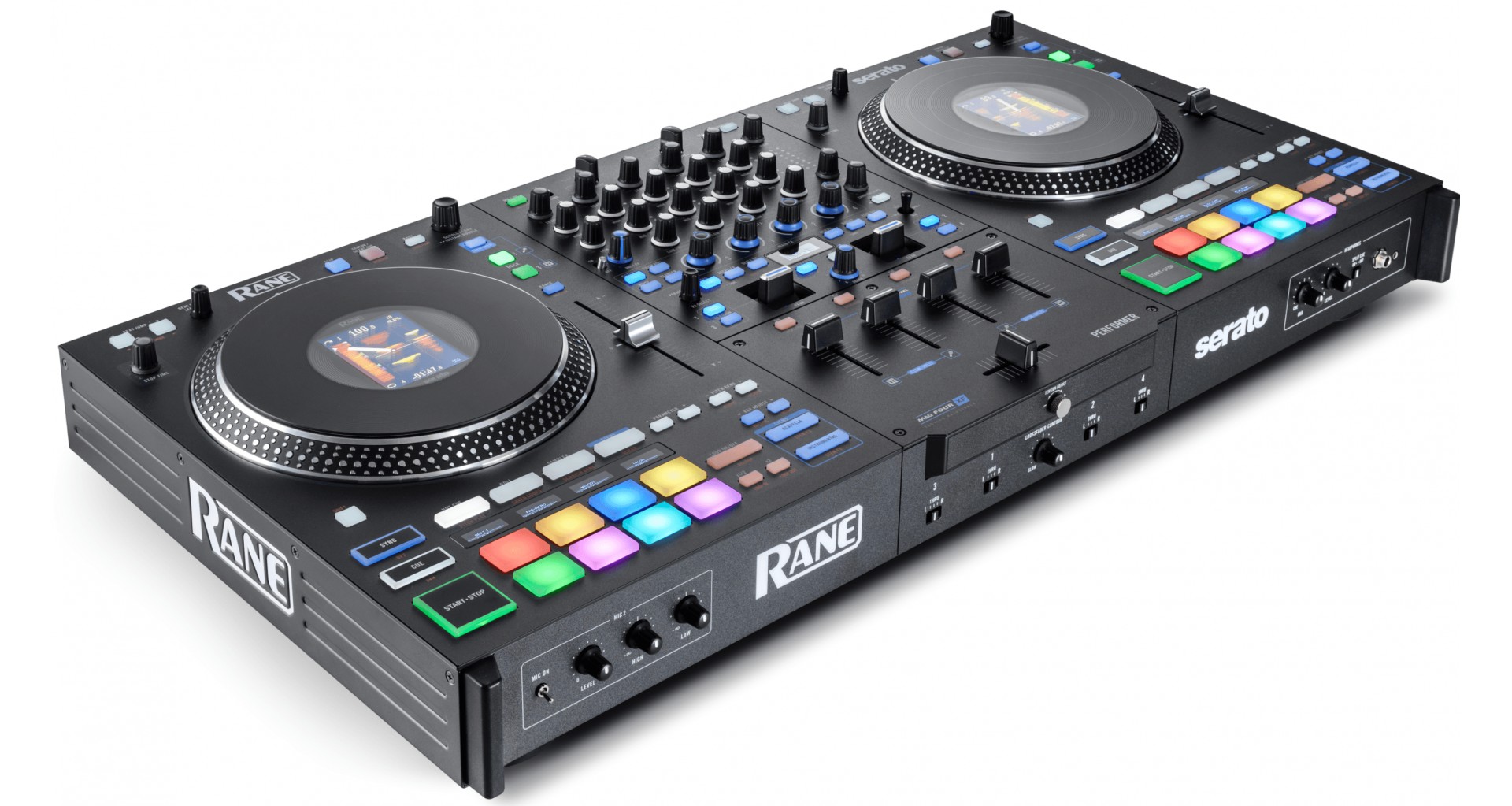

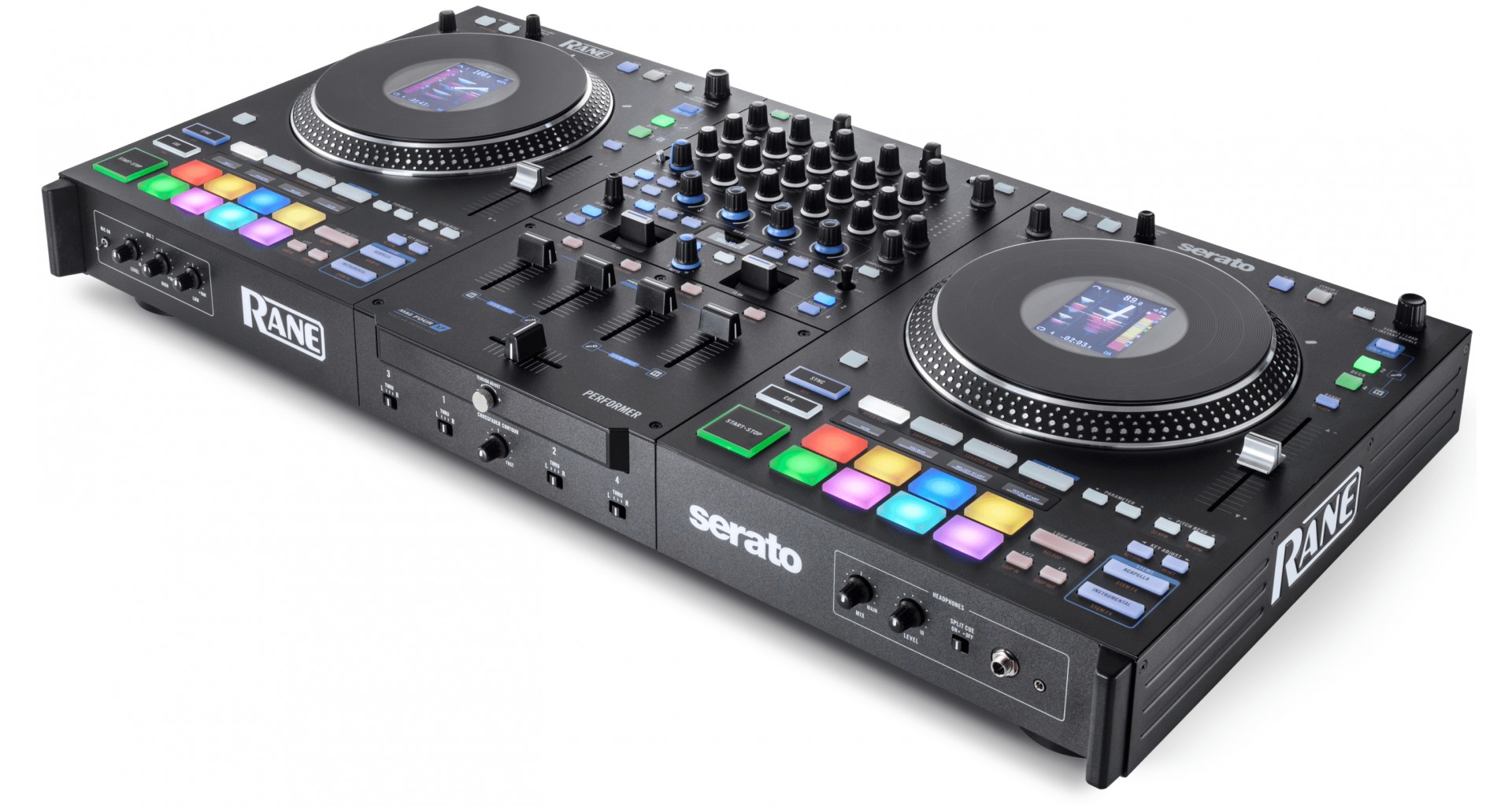

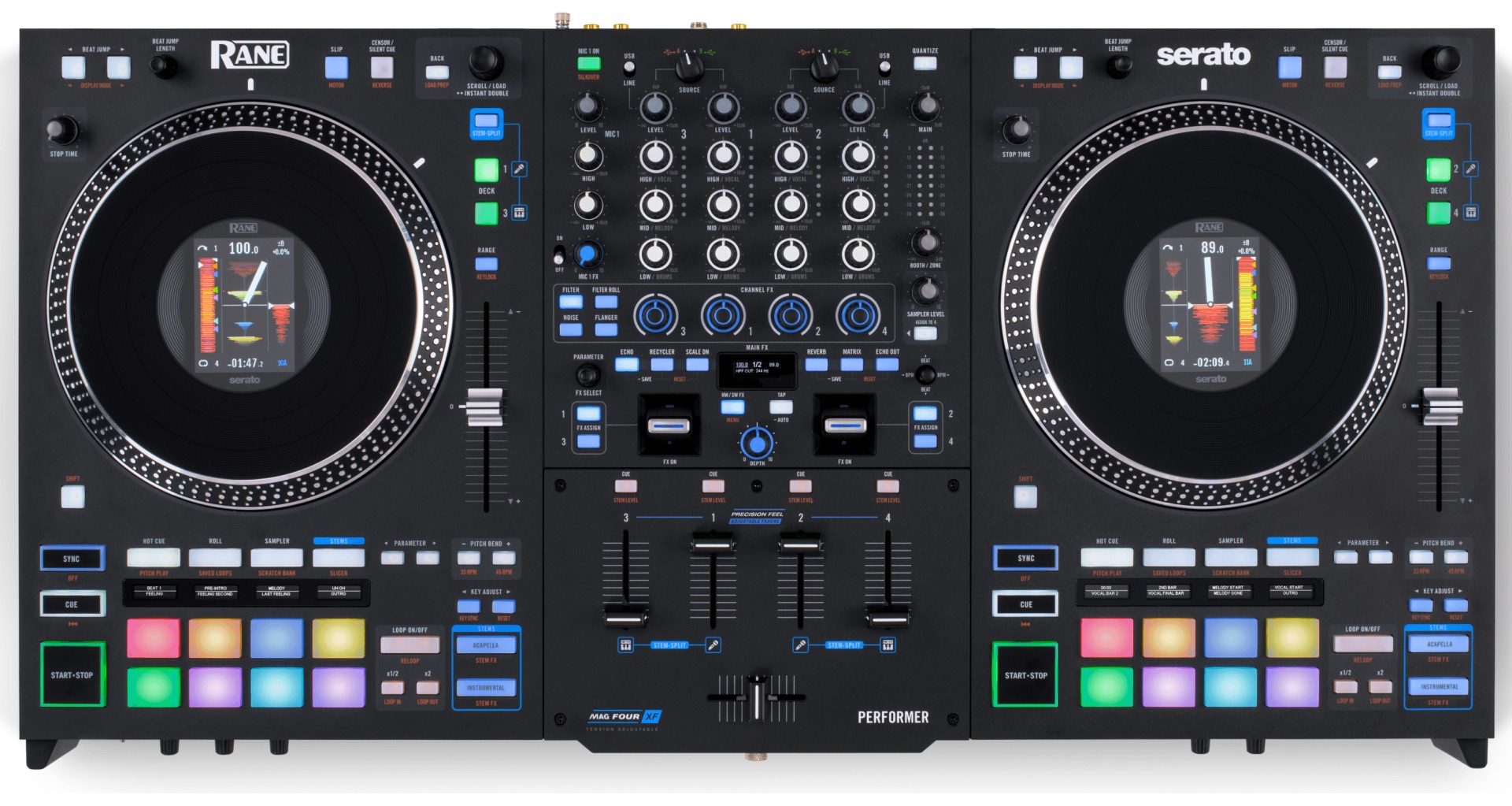

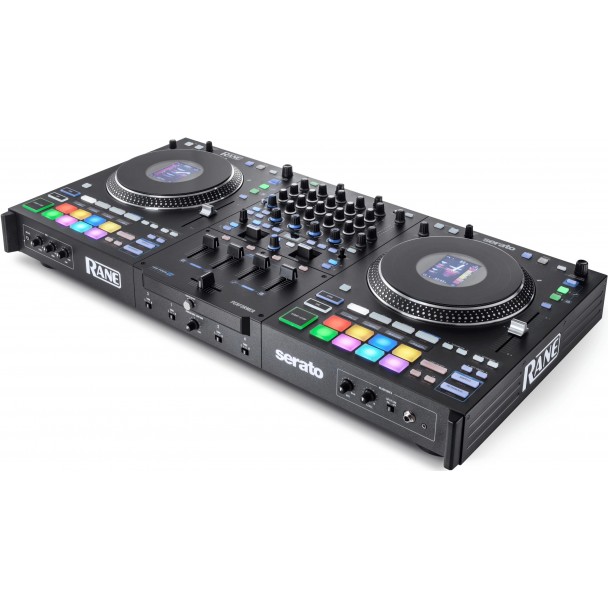

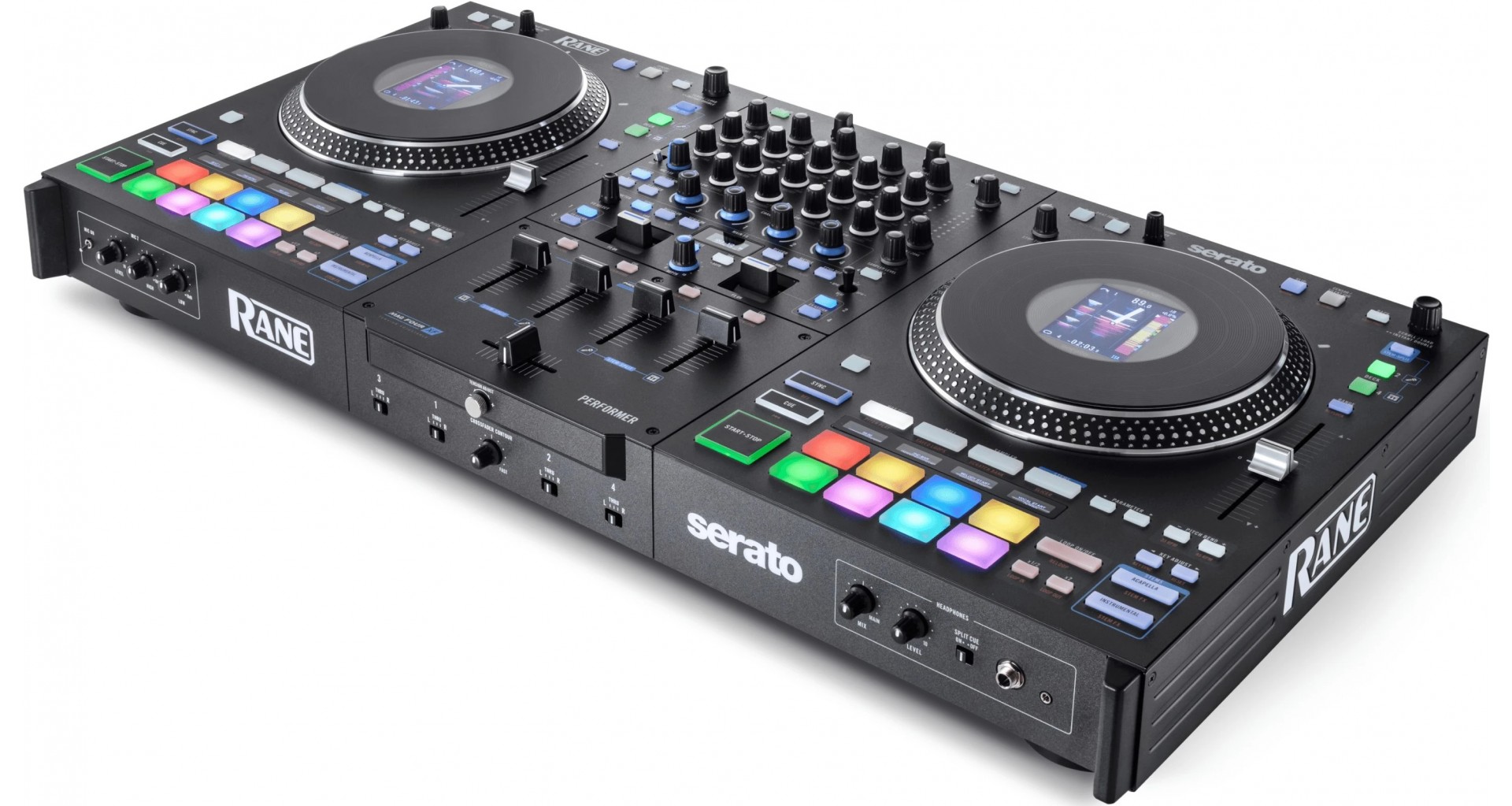

Rane Performer

Specificatii tehnice

Audio digital

• Convertori: Cirrus Logic, 24-bit PCM, 48 kHz
• Procesare semnal digital: 32-bit, floating point, dubla precizie

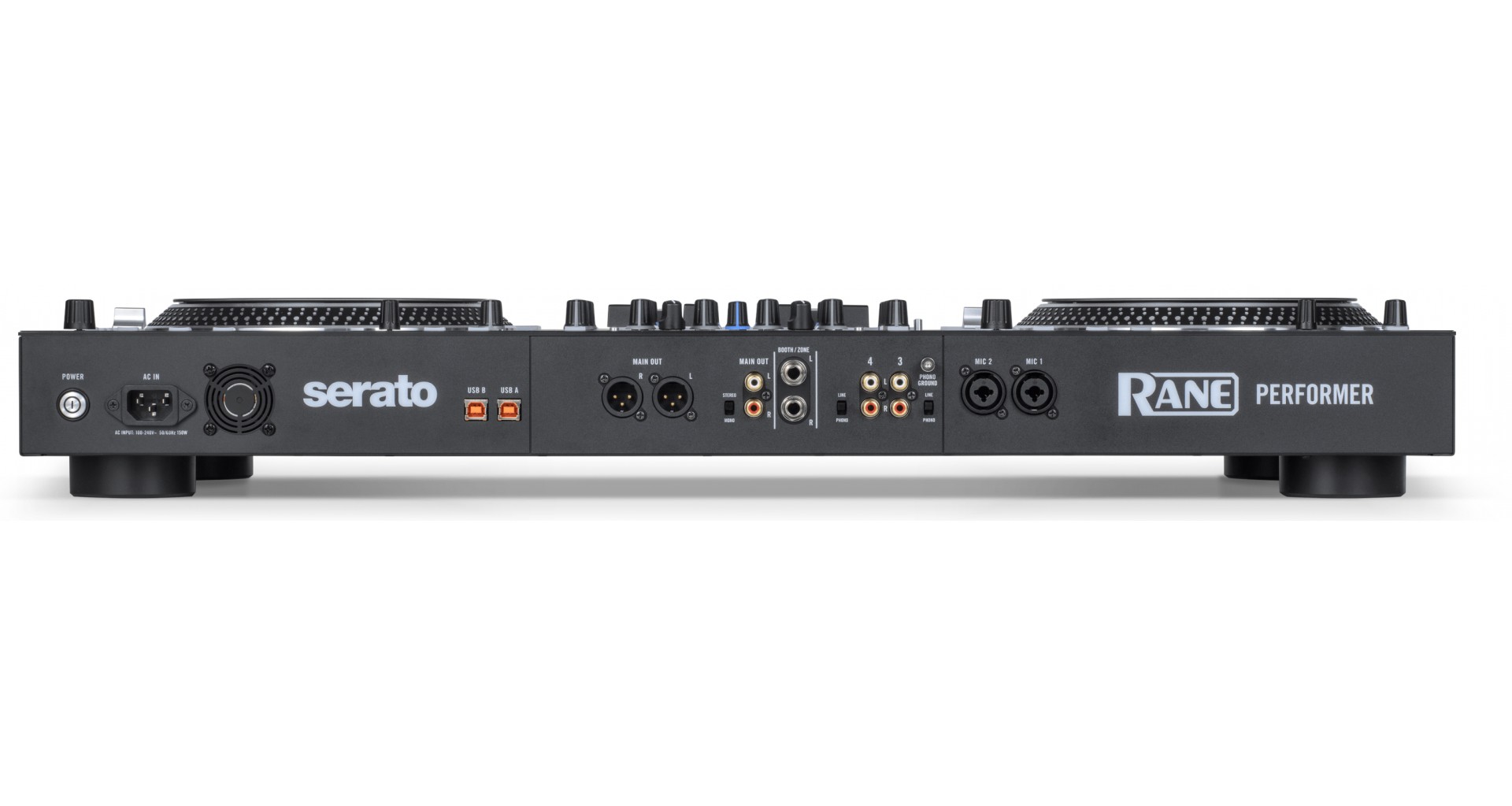

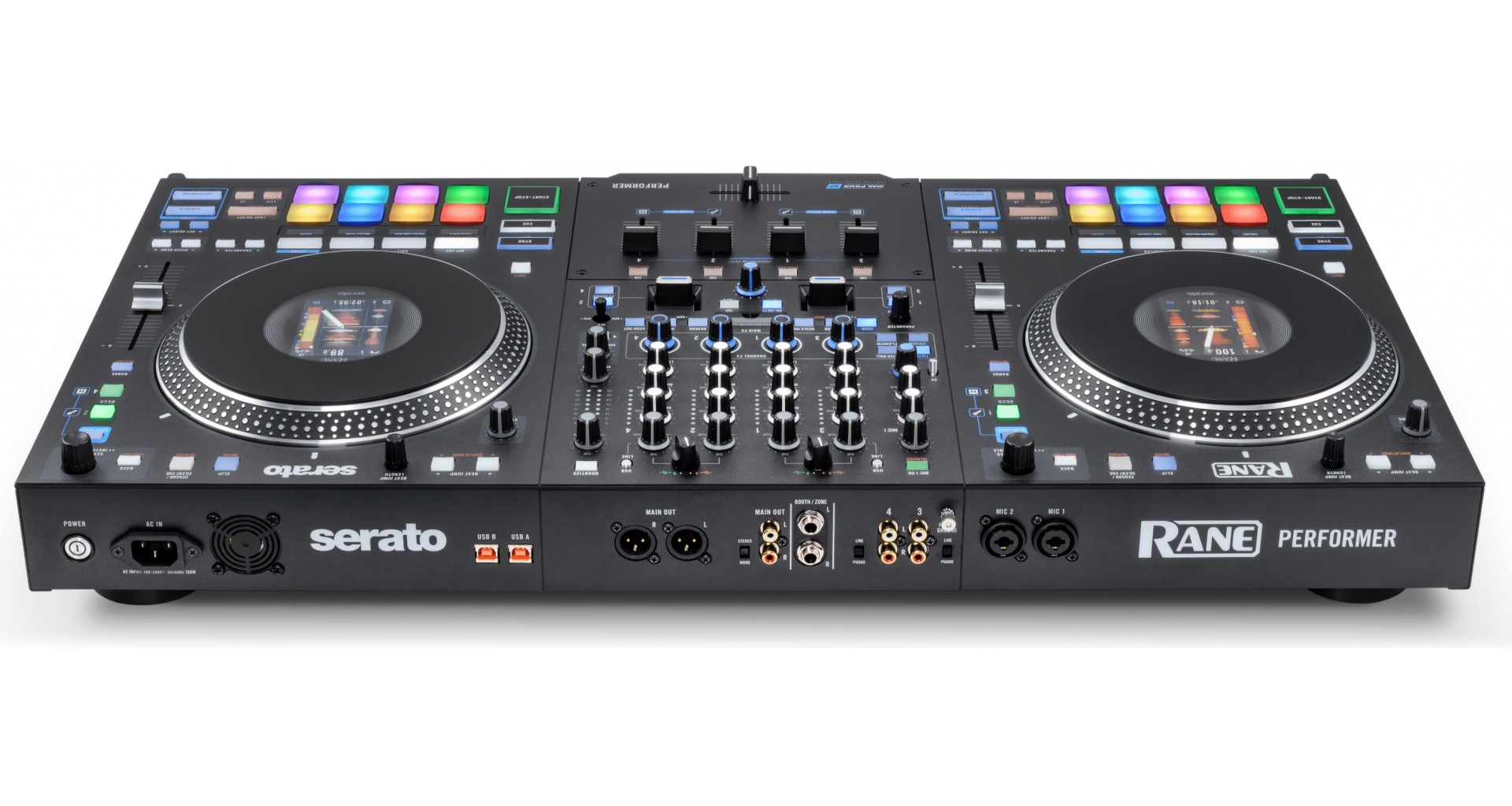

Conexiuni:

• 2 iesiri XLR (Main)
• 2 iesiri 1/4” (Booth)
• 1 pereche de iesiri RCA stereo (Main)
• 2 intrari XLR / 1/4” TRS (Mic 1-2)
• 2 perechi de intrari RCA stereo (Deck 3-4)
• 1 iesire 1/4” TRS (Casti)
• 1 iesire 1/8” TRS (Casti)
• 2 porturi USB Tip-B
• 1 intrare cablu alimentare IEC

Iesiri audio

• Main Outputs (XLR)
• Gain trim: Off la 0 dB
• Putere maxima: 8 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Raspuns in frecventa: Flat - 20-20kHz
• Main Outputs (RCA)
• Putere maxima: 4 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Raspuns in frecventa: Flat - 20-20kHz
• Booth Outputs (1/4")
• Gain trim: Off la 0 dB
• Putere maxima: 8 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Raspuns in frecventa: Flat - 20-20kHz
• Headphone Outputs (1/4" si 1/8" TRS)
• Putere maxima: 4 Vrms (fara sarcina)
• Putere de iesire: 50 mW (50Ω)
• Dynamic Range (A-weighted): 108 dB

Intrari audio

• Microfon 1/2 (XLR / 1/4" TRS combo)
• Gain analogic: 25 dB
• Intrare maxima: 110 mV
• Gain trim: Off la +26 dB (unity la centru)
• Control ton: 2 benzi
• Intrari Line/Phono 3/4 (RCA, comutabil)

Line:

• Intrare maxima: 4 Vrms
• Gain trim: Off la +12 dB
• Control ton: 3 benzi, full-cut la +10 dB
• THD+N (20 kHz BW @ 1 kHz): 0.004%

Phono (RIAA):

• Curba RIAA: +/-0.25 dB
• Gain (@ 1 kHz): 31.5 dB
• Intrare maxima (@ 1 kHz): 106 mV
• Dynamic Range (A-weighted): 102 dB

Pads si Ecrane

• Pads: 16 pads multi-color (8 per deck, 9 moduri fiecare)
• Display-uri rotative: 2 LCD-uri color de 3.5”
• Display-uri Pad & FX: 9 OLED-uri monocrome 128 x 32

Fadere

• Crossfader MAG FOUR reglabil cu tensiune
• 4 fadere Precision Feel pentru canale

Alimentare:

• Conexiune: IEC
• Tensiune: 100-240 V, 50/60 Hz
• Consum: 150 W

Dimensiuni

• Dimensiuni: 78.33 x 40.23 x 10.97 cm
• Greutate: 12.79 kg
