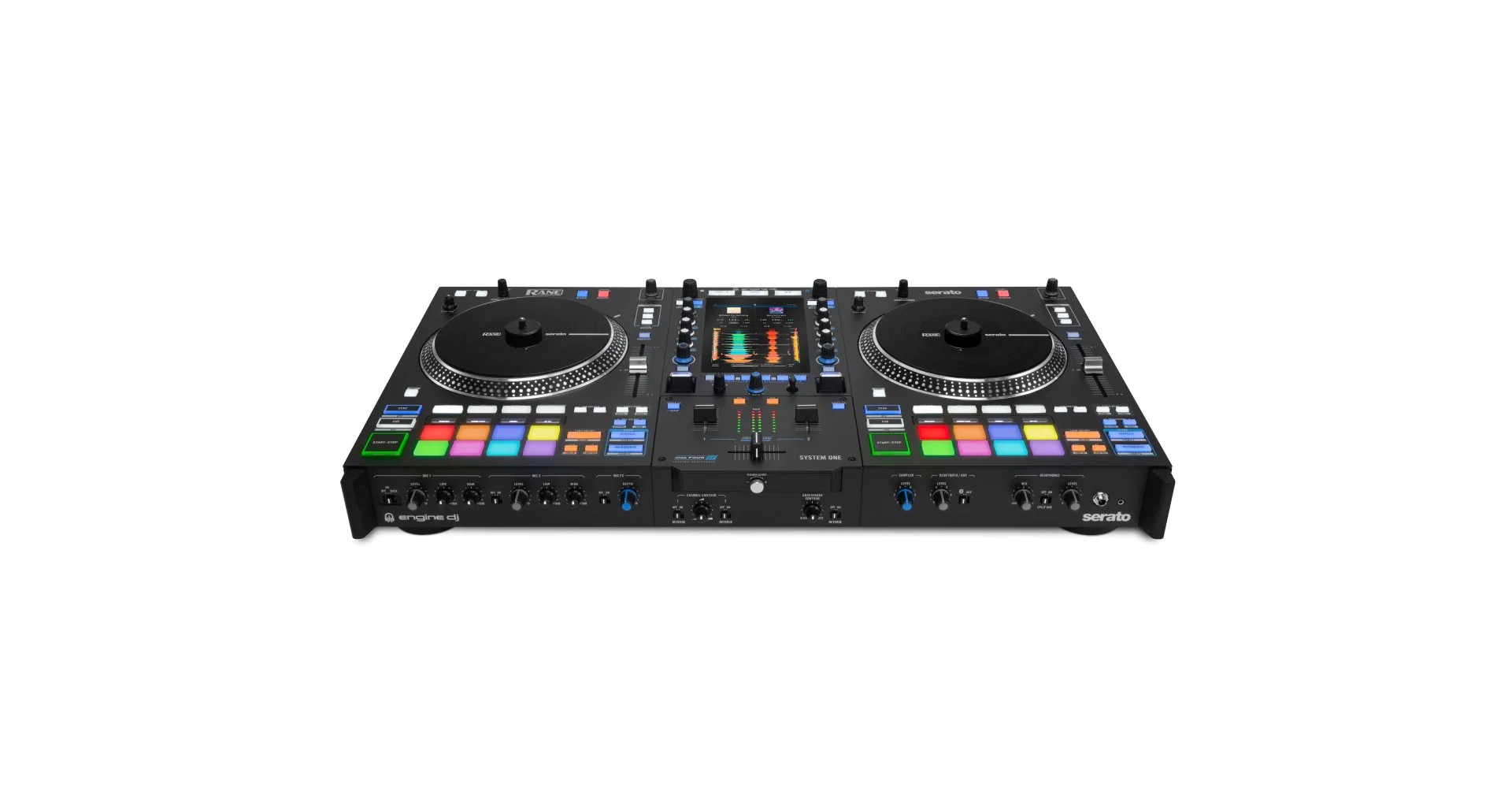

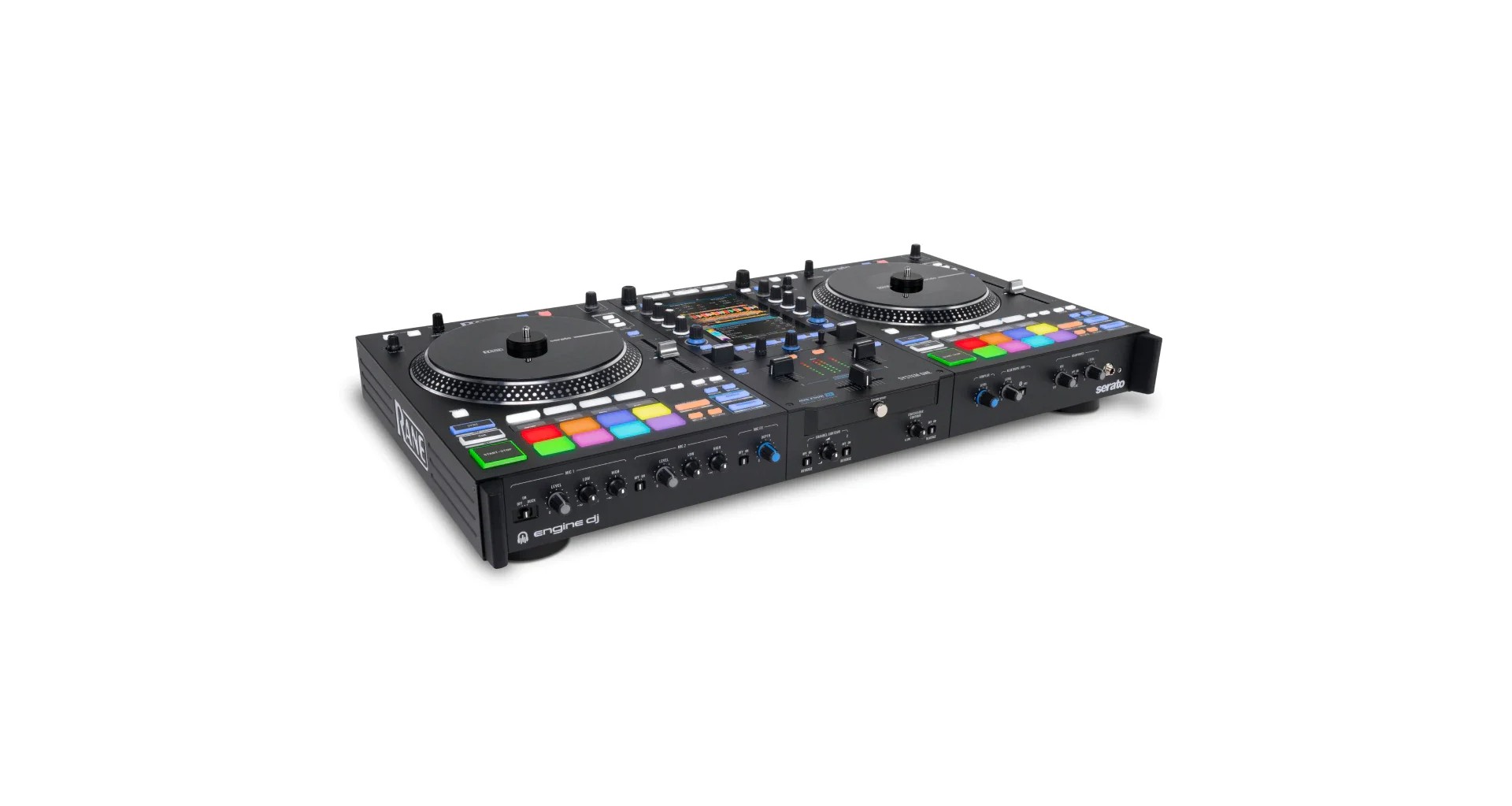

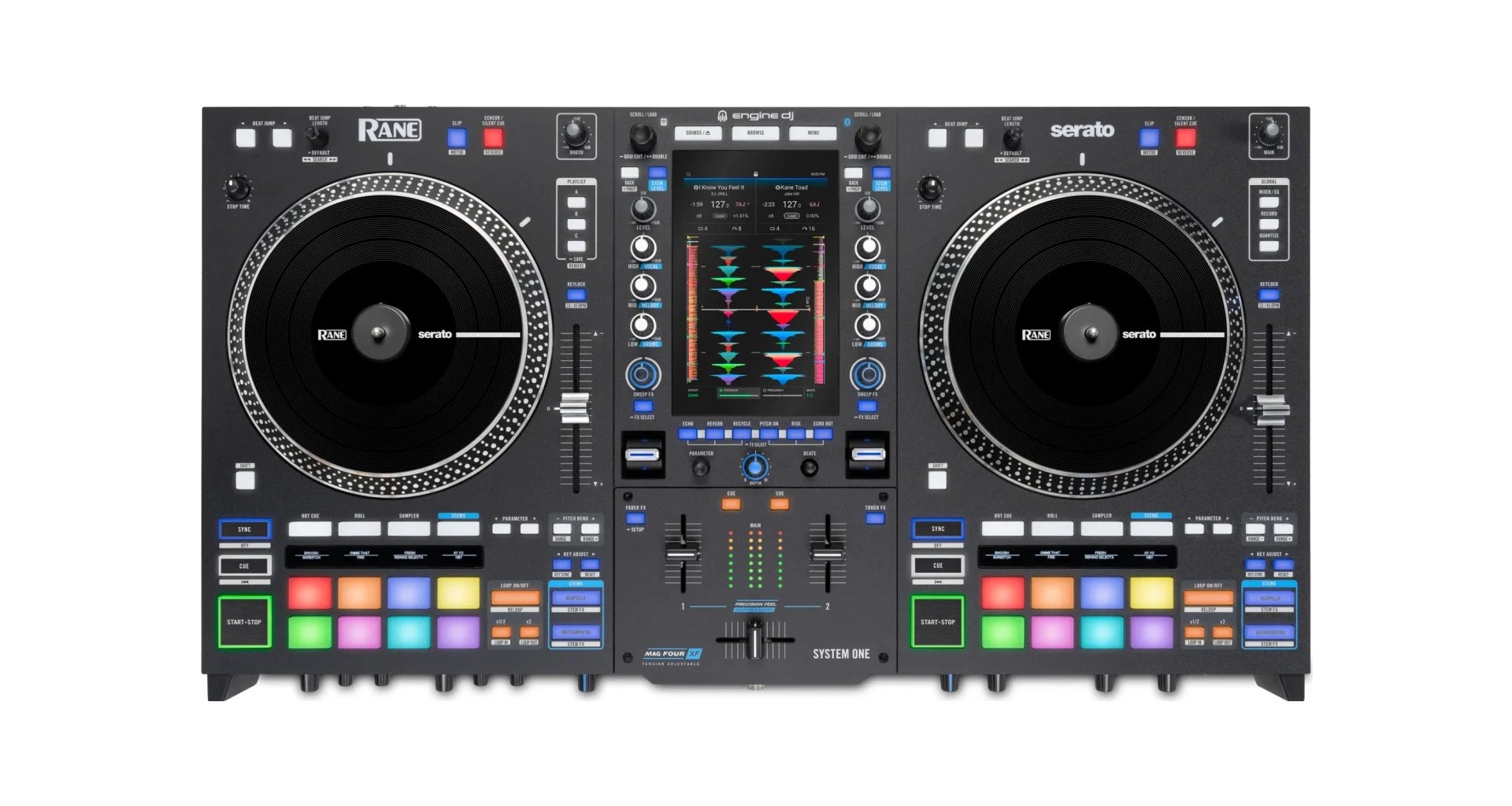

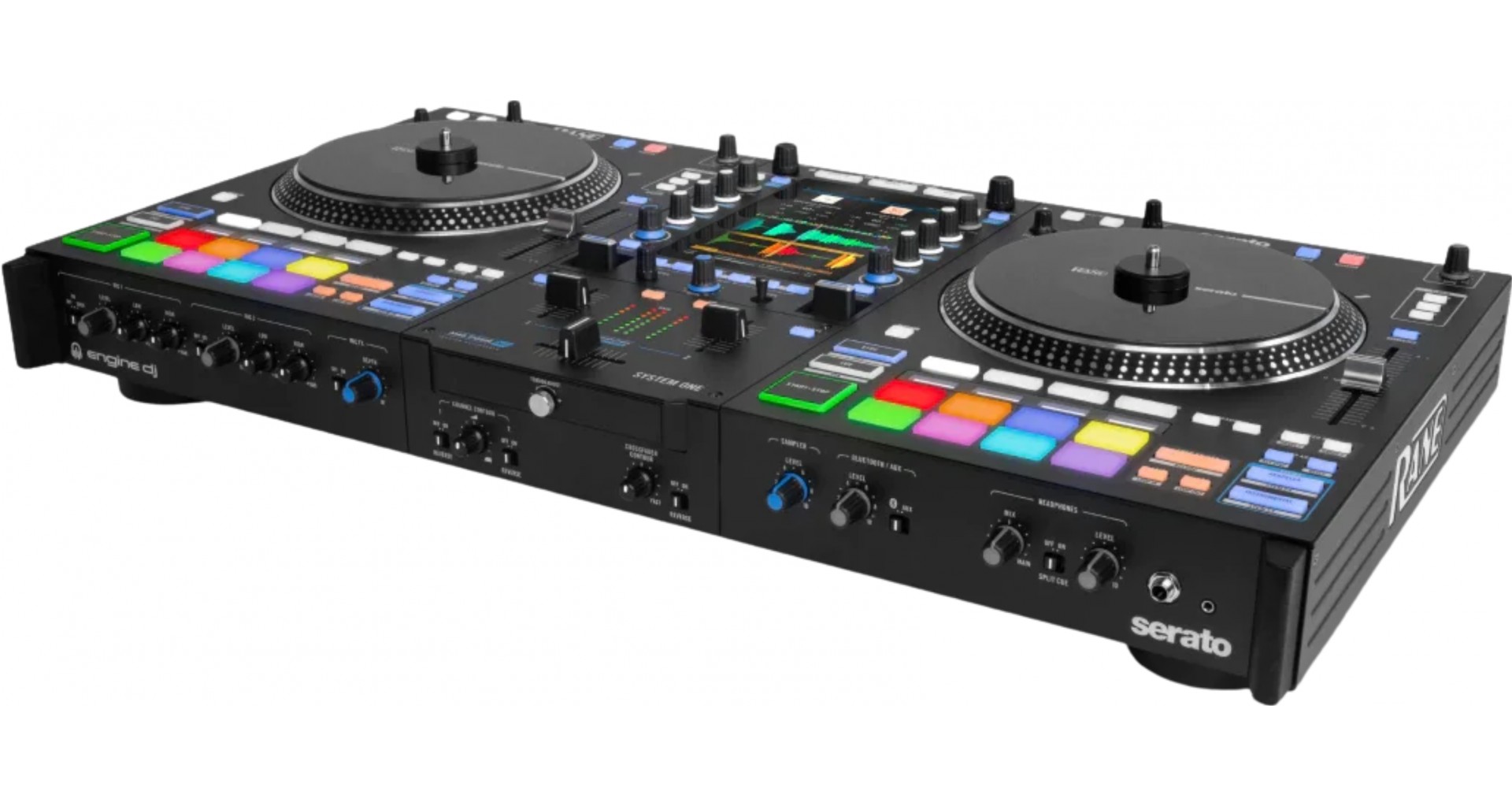

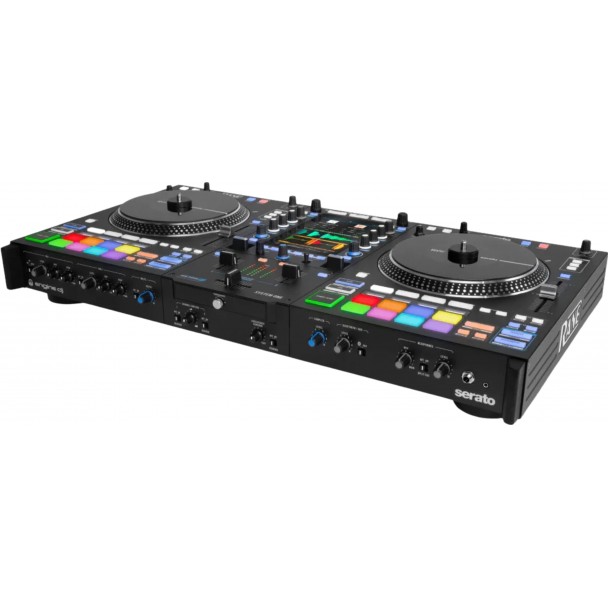

Rane System One

Specificatii:

• Convertori audio digital: Cirrus Logic, 24-bit PCM, 44.1 kHz
• Procesare semnal digital: 32-bit, floating point, double precision

Iesiri audio principale (XLR, RCA):

- DAC: 24-bit
- Dynamic Range:  117 dB  
- Tip iesire: XLR, balansat    
- Nivel maxim de iesire (XLR): 8 Vrms 
- Nivel maxim de iesire (RCA): 4 Vrms
- Raspuns frecvente: 20 Hz - 20 kHz: +0, -1 dB  
- THD+N: 0.002% @ 1 kHz, 4 Vrms  
- Separare canale: > 80 dB 
- Trim range gain de intrare: Off pana la +12 dB  
- Range nivel de iesire: Off pana la 0 dB  

Iesire booth (6.35 mm TRS):

- DAC: 24-bit
- Dynamic Range:  117 dB  
- Tip iesire: TRS, balansat    
- Nivel maxim de iesire:  8 Vrms 
- Raspuns frecvente: 20 Hz - 20 kHz: +0, -1 dB  
- THD+N: 0.002% @ 1 kHz, 4 Vrms  
- Separare canale: > 80 dB 
- Trim range gain de intrare: Off pana la +12 dB  
- Range nivel de iesire: Off pana la 0 dB  

Iesire casti (6.35 mm si 3.5 mm TRS):

- DAC: 24-bit
- Dynamic Range:  117 dB  
- Tip iesire: Stereo TRS
- Feature-uri Cue: Cue / split cue
- Nivel maxim de iesire (fara load): 4 Vrms
- Putere maxima de iesire @ 50 ohmi: 150 mW
- Raspuns frecvente: 20 Hz - 20 kHz: +0, -1 dB
- THD+N @ 1 kHz, 4 Vrms (fara load): 0.002%
- THD+N @ 1 kHz, full power @ 50 ohmi: 0.08%  
- Separare canale: > 80 dB
- Range control nivel: Off pana la 0 dB

Intrari (combo XLR / 6.35 mm TRS):

- ADC: 24-bit, 115 dB DR
- Tip intrare: Combo XLR/TRS, balansat
- Nivel maxim de intrare: 110 mV
- Gain analogic: 25 dB
- Gain maxim sistem: 60 dB
- Raspuns frecvente @ 20 Hz: -2.5 dB
- Raspuns frecvente @ 20 kHz: -5 dB
- THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz-20 kHz)
- DR (A-weighted), Gain = 25 dB: 102 dB
- DR (A-weighted), Gain = 60 dB: 72 dB
- IRN (A-weighted), Gain = 60 dB: -132 dB
- IRN (20 Hz - 20 kHz), Gain = 60 dB: -130 dB

Intrare aux (pereche stereo RCA):

- ADC: 24-bit, 115 dB DR (A-weighted)
- Tip intrare: RCA, nebalansat
- Nivel maxim de intrare: 4 Vrms
- Raspuns frecvente: 20 Hz - 20 kHz: +0, -1 dB
- THD+N @ 3 Vrms, unity gain: 0.005% (20 Hz-20 kHz) 
- Range gain: Off pana la +12 dB
- DR (A-weighted), unity gain: 108 dB
- Crosstalk:  ≤ -90 dB

Pad-uri: 16, on/off multi-color back-lit (8 per deck)

Fadere:

- Fadere canale: 2, Precision Feel cu tensiune ajustabila, contur si reverse
- Crossfader: 1, Mag Four cu tensiune ajustabila, contur si reverse

Display-uri:

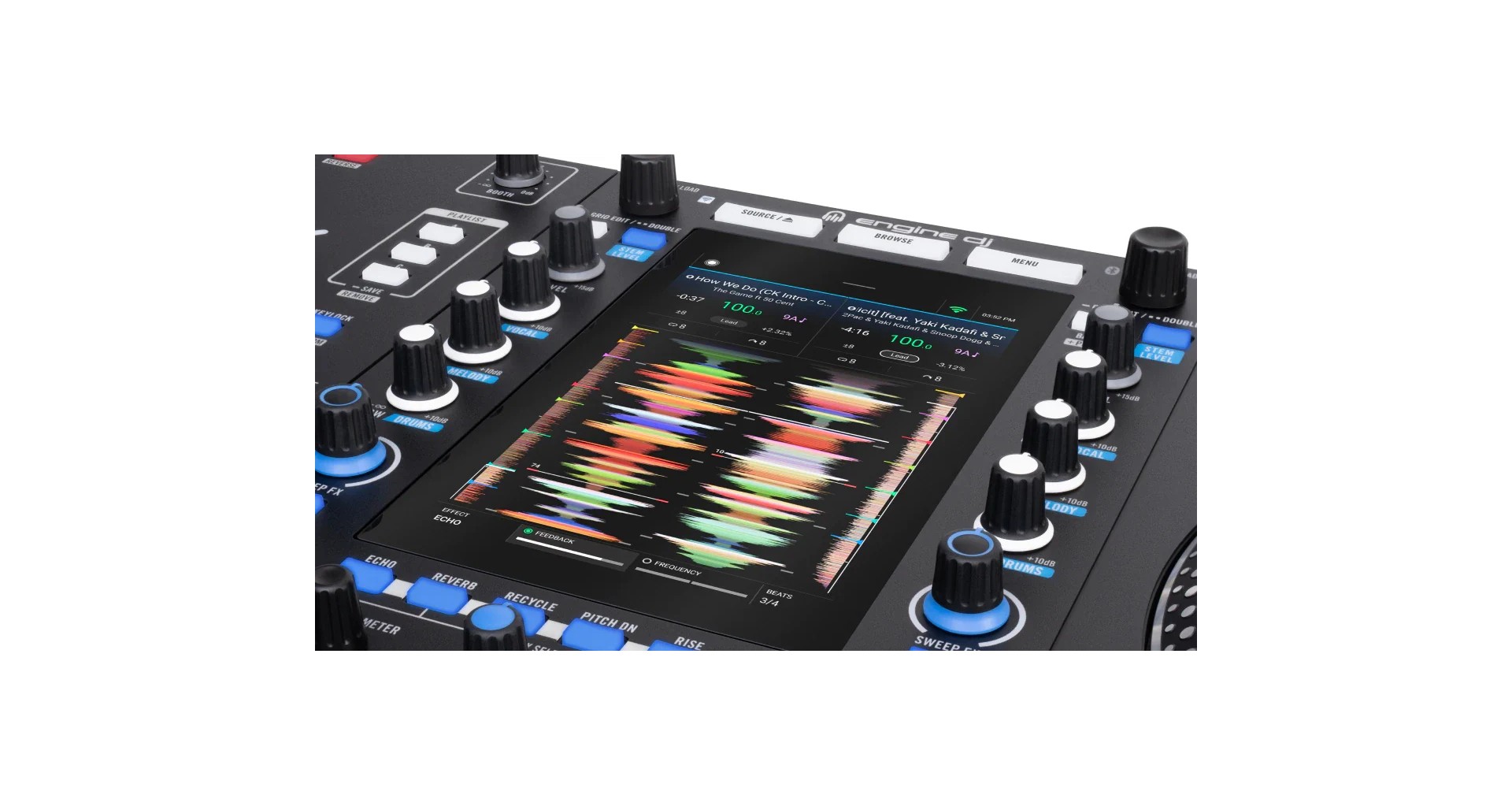

- Main: 7 inchi/178 mm (diagonala),  full-color LED-backlit , cu interfata tactila
- Pad: 8, 128 x 32 monocromatic OLED

• CPU: Quad-core ARM, 4 GB RAM
• Wi-fi: 2.4GHz/5GHz, 802.11a/b/g/n/ac, Wi-Fi 5
• Bluetooth: v5.4

Format media:

- Sistem fisiere: exFAT (recomandat), FAT32
- Format muzica: AAC/M4A, AIF/AIFF (44.1-192 kHz, 16-32-bit), ALAC, FLAC, MP3 (32-320 kbps), MP4, Ogg Vorbis, WAV (44.1-192 kHz, 16-32-bit)
- Servicii streaming: Servicii onboard (subscriptie necesara), Amazon Music Unlimited, Apple Music, Beatport, Beatsource, SoundCloud Go+, TIDAL

Iluminare:

- Onboard smart lighting: Philips Hue, Nanoleaf
- DMX suportat: SoundSwitch DMX Micro, SoundSwitch Control One

Alimentare:

- Tip intrare: IEC, locking
- Tensiune de intrare: 100-240 VAC
- Frecventa: 50/60 Hz
- Consum putere: 150 W

• Dimensiuni (latime x adancime x inaltime): 73.66 x 40.30 x 14.47 cm
• Greutate: 13.33 kg

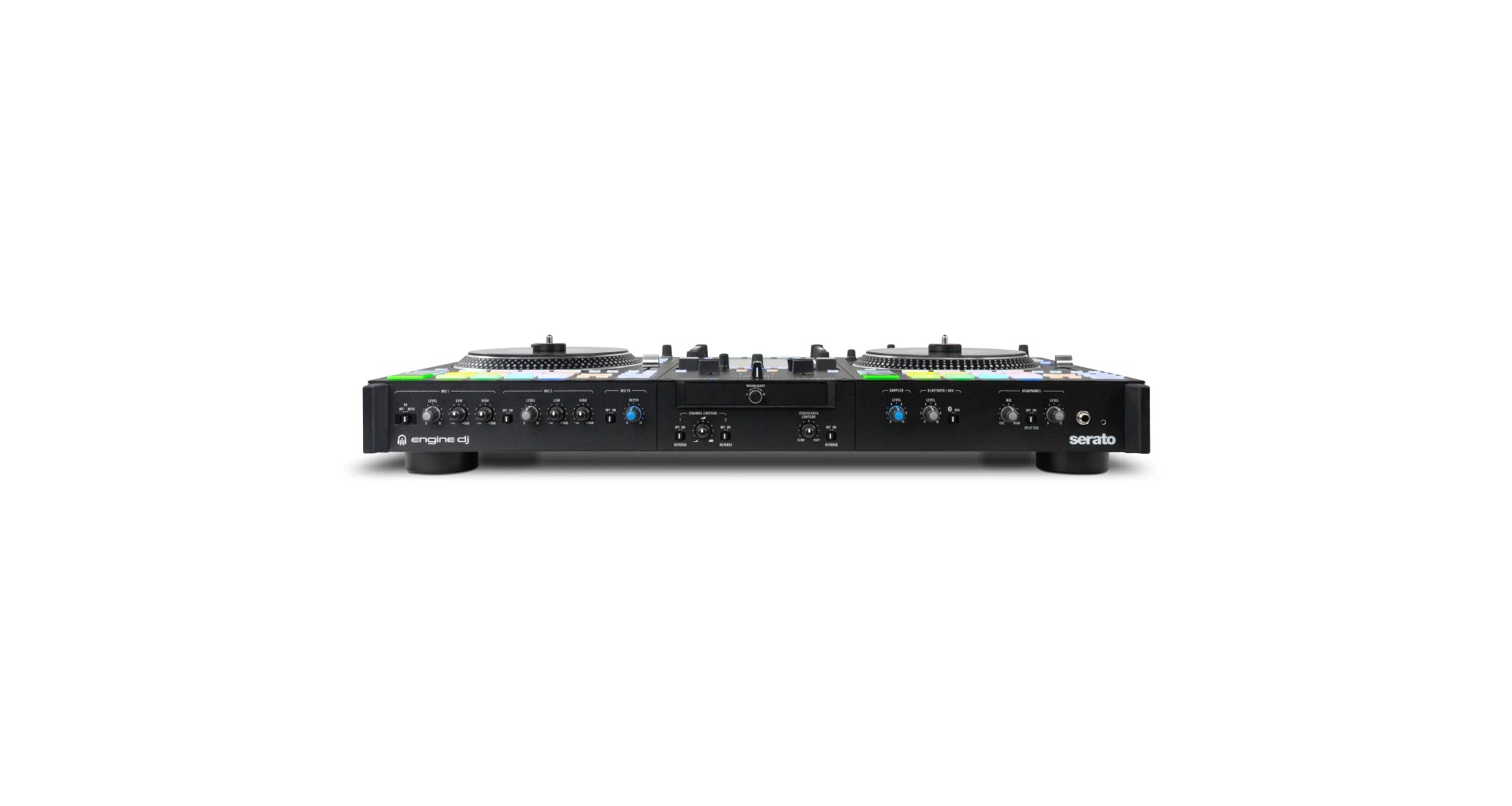

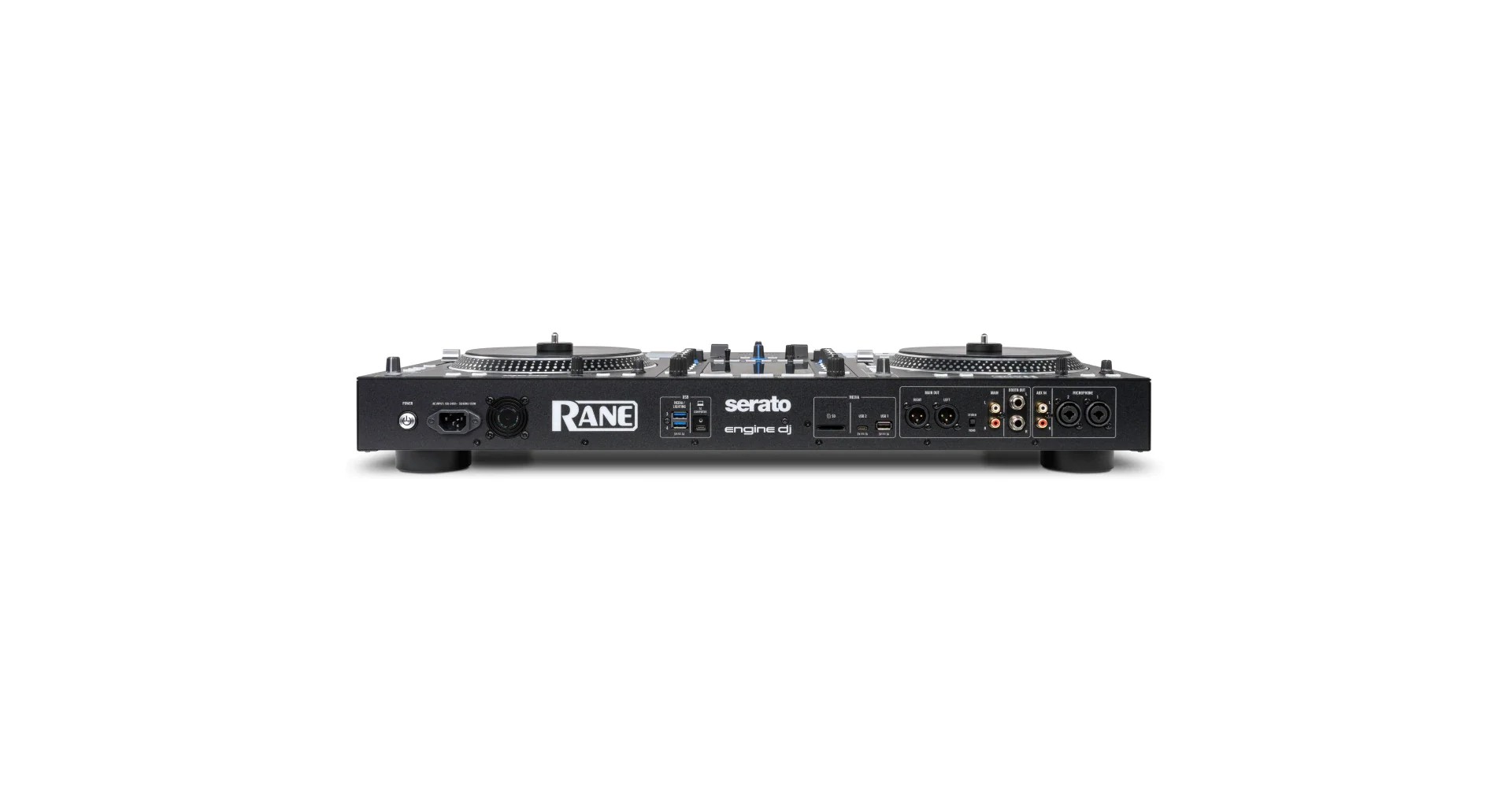

Conexiuni:

- Intrari microfon: 2 x Combo XLR/jack 6.35 mm
- Intrare aux: Pereche stereo RCA
- Iesiri main: 2 x XLR, pereche stereo RCA
- Iesiri booth: 2 x jack 6.35 mm TRS
- Iesiri casti: Jack 6.35 mm stereo, mini-jack 3.5 mm stereo

Intrari media:

- USB: USB 1: Type-A, USB 2.0 High Speed; USB 2: Type-C, USB 3.0 SuperSpeed; USB 3: Type-A, USB 3.0 SuperSpeed; USB 4: Type-A, USB 3.0 SuperSpeed; USB to Computer: Type-C, USB 3.0 SuperSpeed
- SD media: SD, SDHC, SDXC
- HD intern: SATA 3.0
