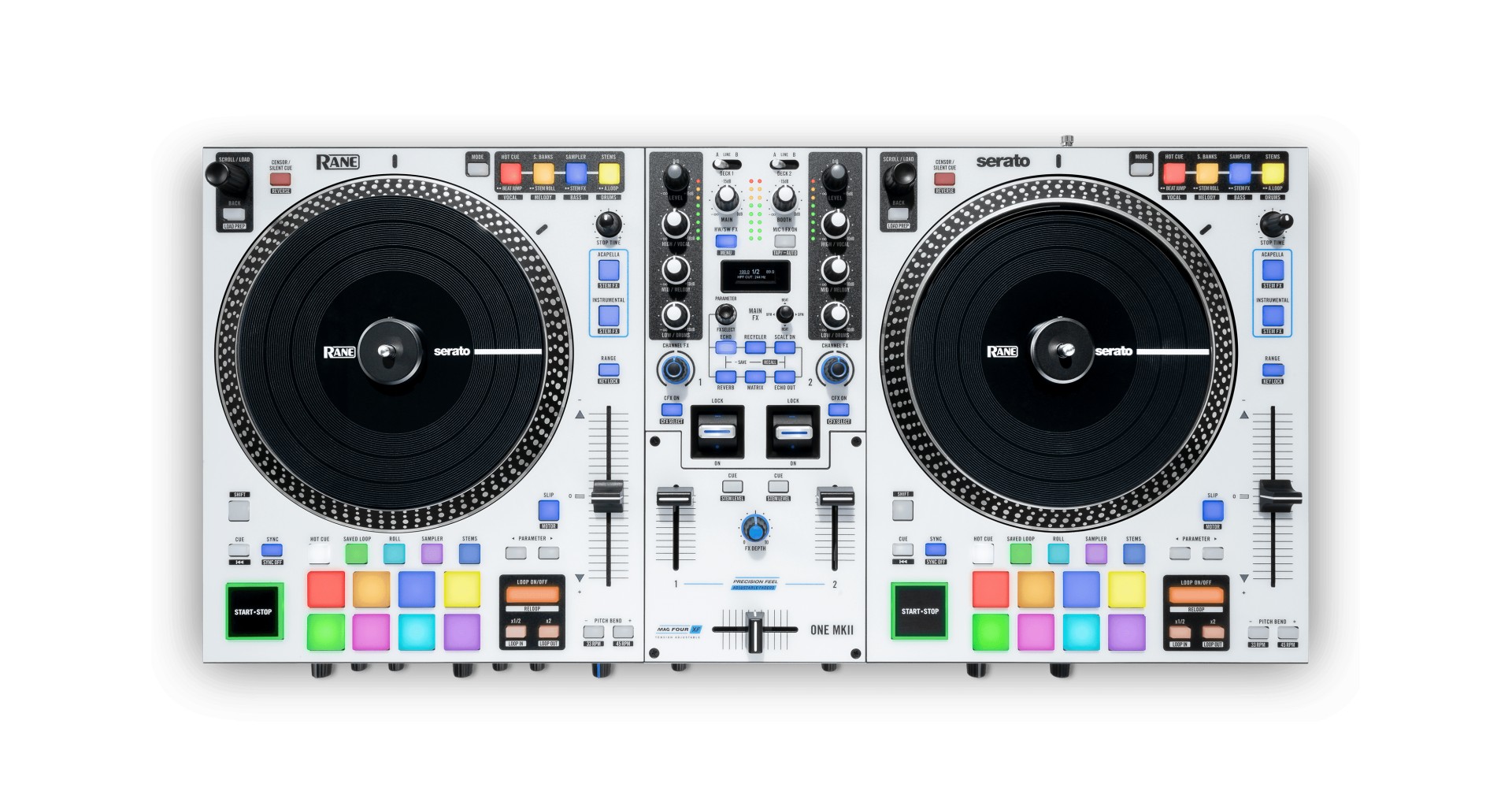

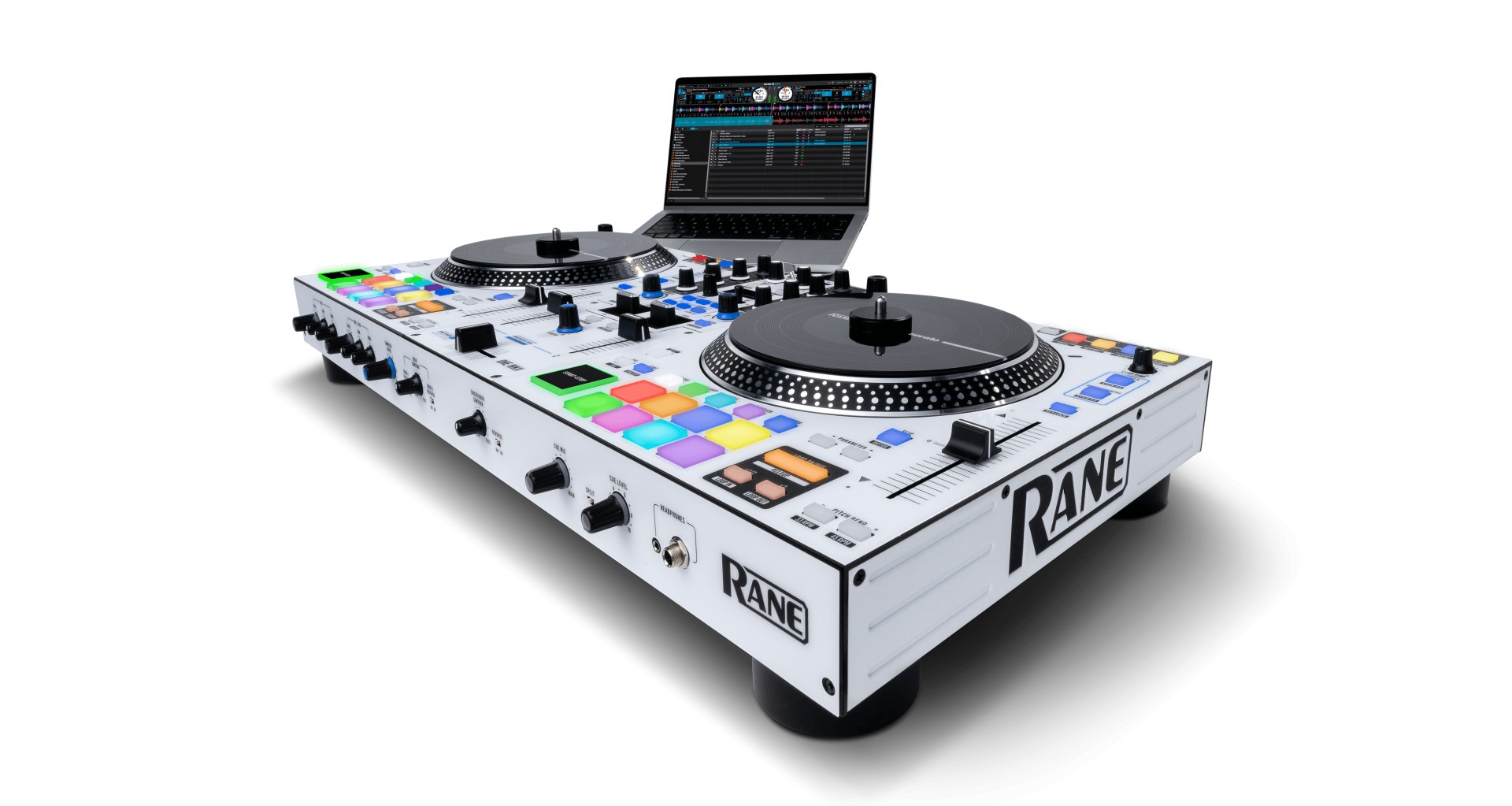

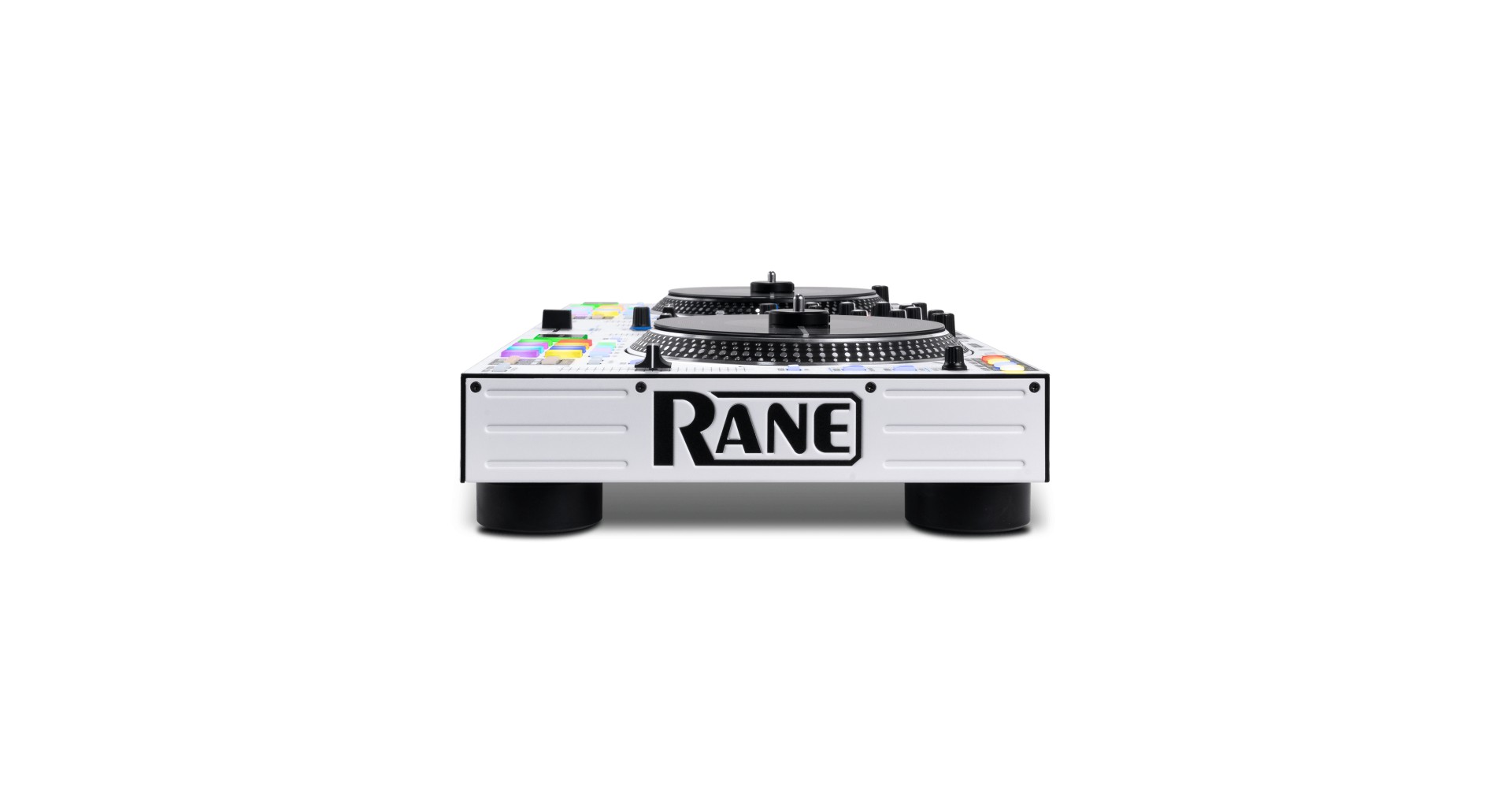

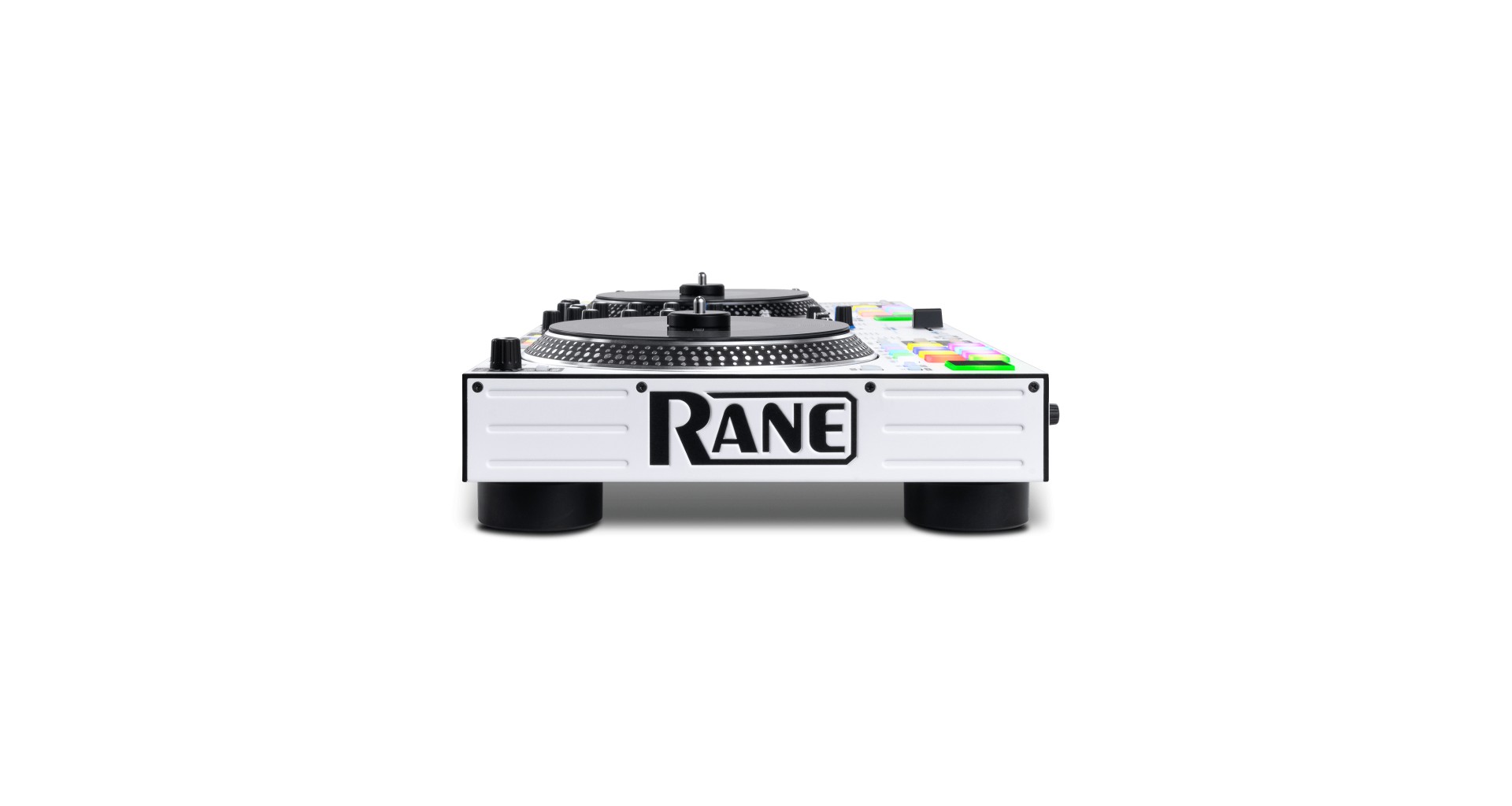

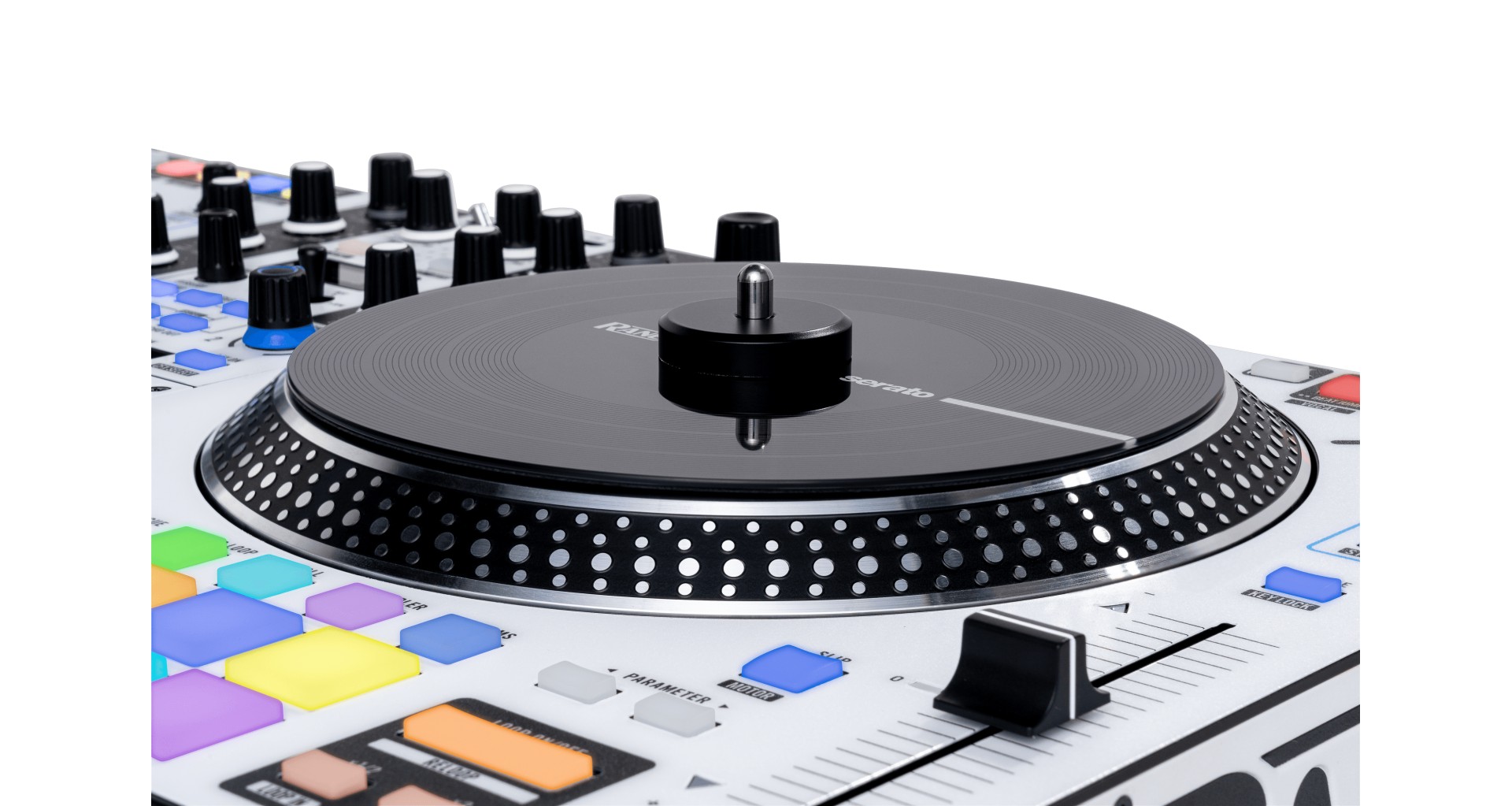

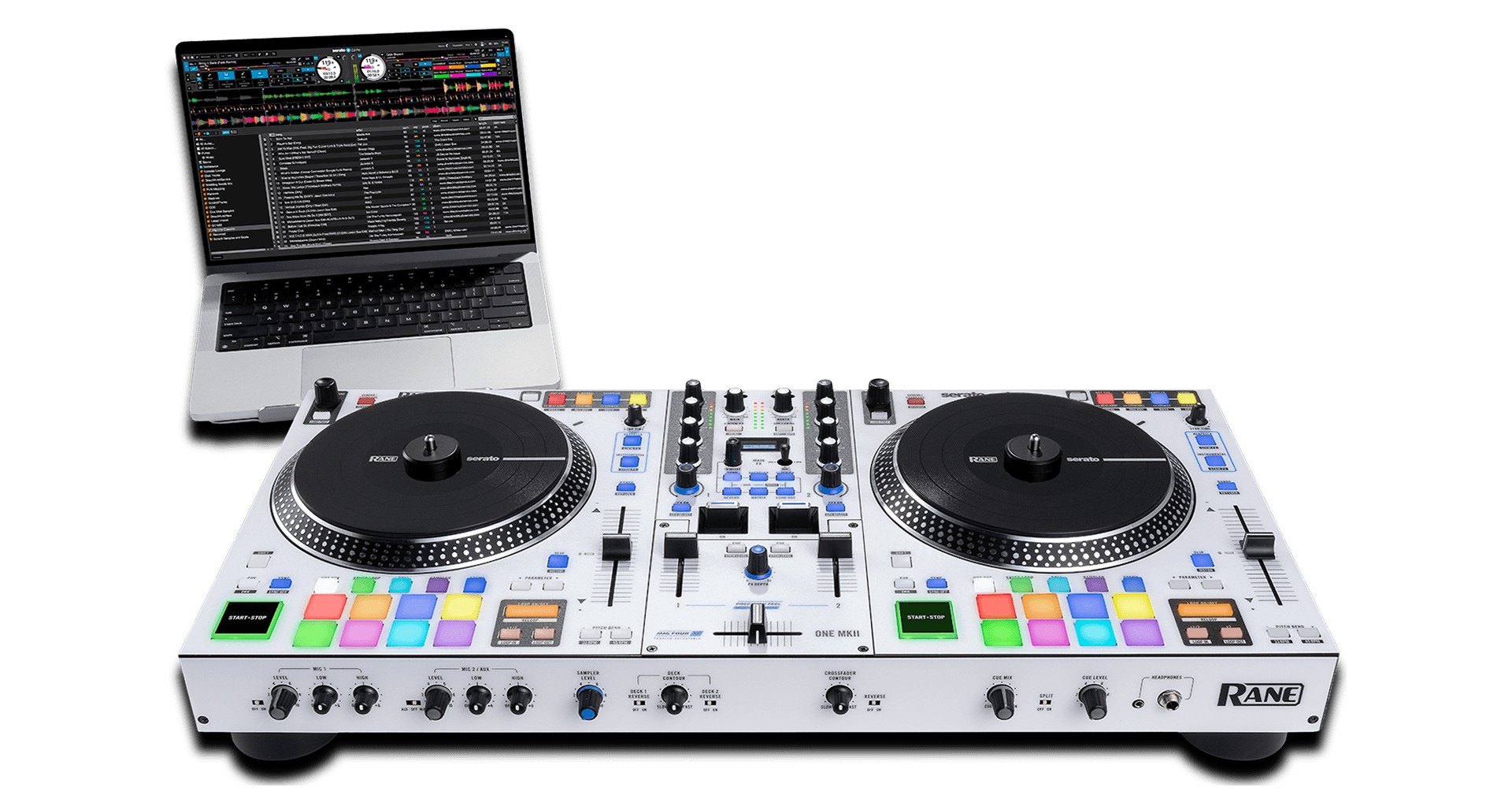

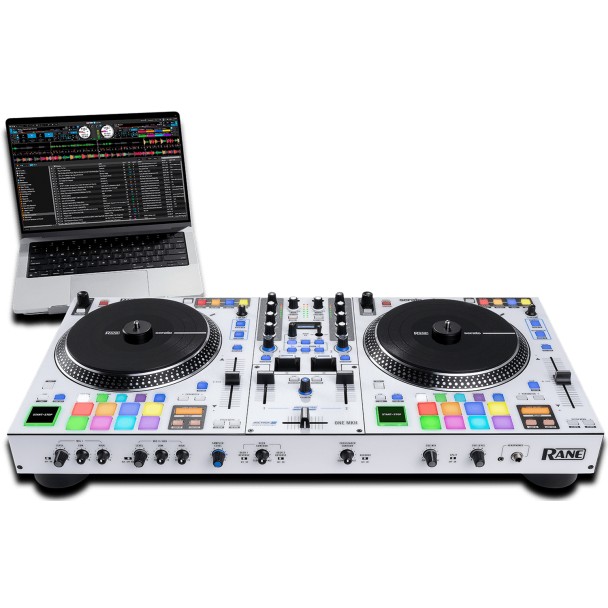

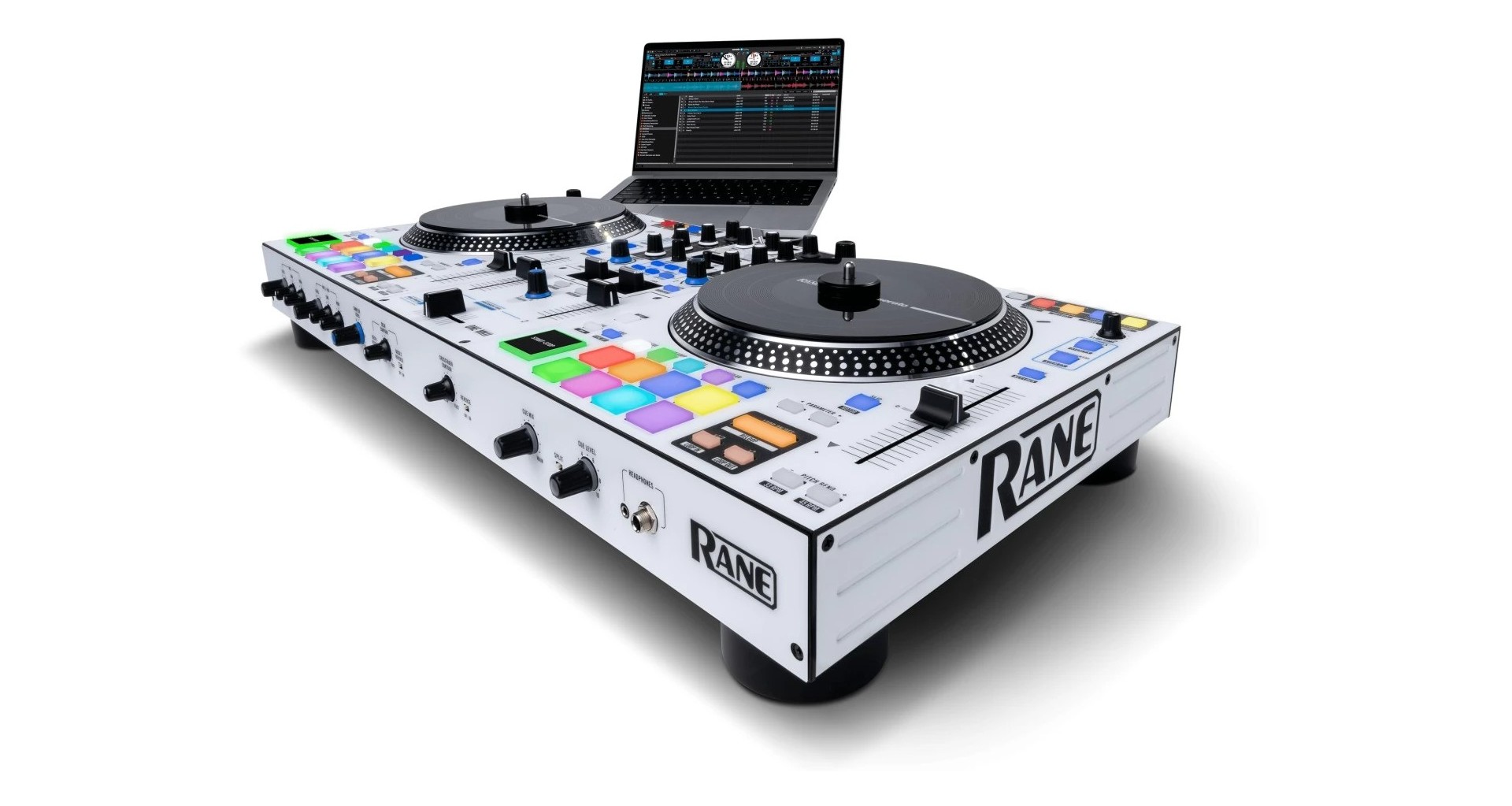

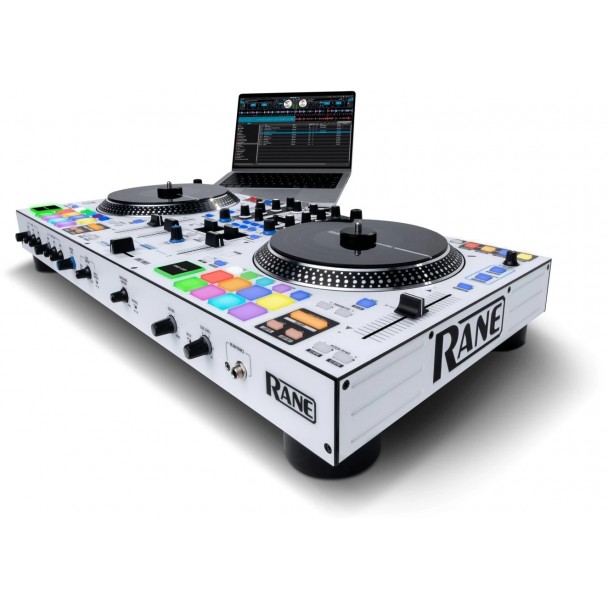

Rane One MKII

Digital Audio:

• Convertori: Cirrus Logic, 24-bit PCM, 48 kHz
• Procesare digitala de semnal: 32-bit, floating point, double precision
• Gama dinamica (A-weighted, unity gain):
• ADC: 113 dB
• DAC: 113 dB
• CD Input catre Analog Output: 110 dB
• CD Input catre USB Output: 113 dB
• USB Input catre Analog Output: 113 dB

Intrari:

Microfon 1/2 (Combo XLR/1/4" [6.35 mm] TRS)

• Gain analogic: 25 dB
• Input maxim: 110 mV
• Trim gain: Pana la +26 dB (unity at center)
• Control ton: 2 benzi

Intrare aux (pereche stereo RCA)

• CD
• Gama dinamica (A-weighted): 114 dB
• Trim gain: Pana la +12 dB
• Control ton: 2 benzi

Intrari CD/Phono 1/2 (perechi stereo RCA, comutabile)

• Input maxim: 4 Vrms (CD)
• Trim gain: Pana la +12 dB (CD)
• Control ton: 3 benzi, full-cut pana la +10 dB (CD)
• THD+N (20 kHz BW @ 1 kHz): 0.004% (CD)
• RIAA Curve: +/- 0.25 dB (Phono)
• Gain (@ 1 kHz): 31.5 dB (Phono)
• Input maxim (@ 1 kHz): 106 mV
• Gama dinamica (A-weighted): 102 dB

Iesiri:

Iesiri main (XLR)

• Trim gain: Pana la 0 dB
• Output maxim: 8 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Raspuns frecvente: Flat

Iesiri booth (XLR)

• Trim gain: Pana la 0 dB
• Output maxim: 8 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Raspuns frecvente: Flat

Iesiri master (pereche RCA stereo)

• Output maxim: 4 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Raspuns frecvente: Flat

Iesiri casti (1/4"/6.35 mm si 1/8"/3.5 mm TRS)

• Tensiune maxima de iesire: 4 Vrms (fara load)
• Putere output: 50 mW (50 ohmi)
• Gama dinamica (A-weighted): 108 dB

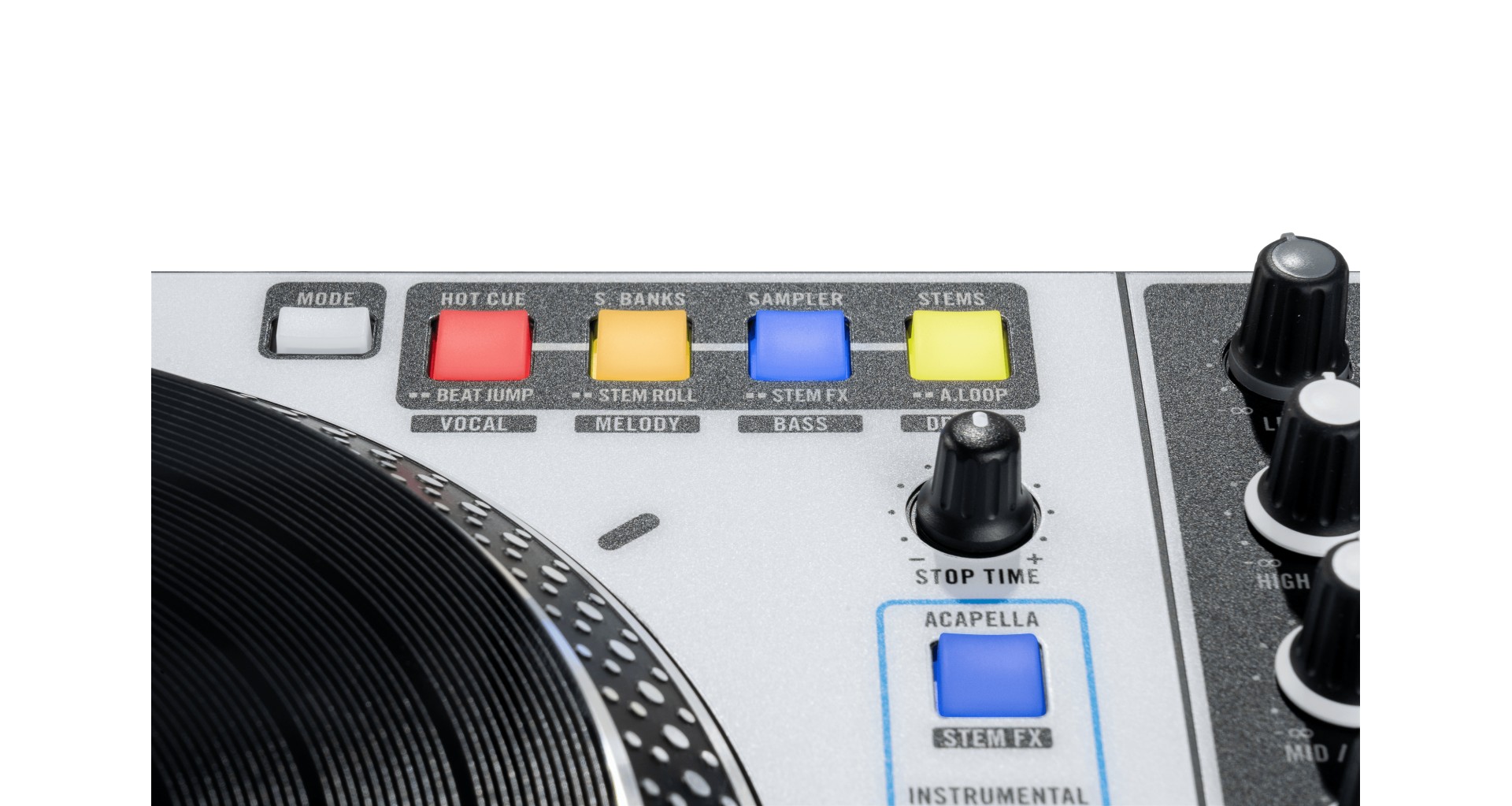

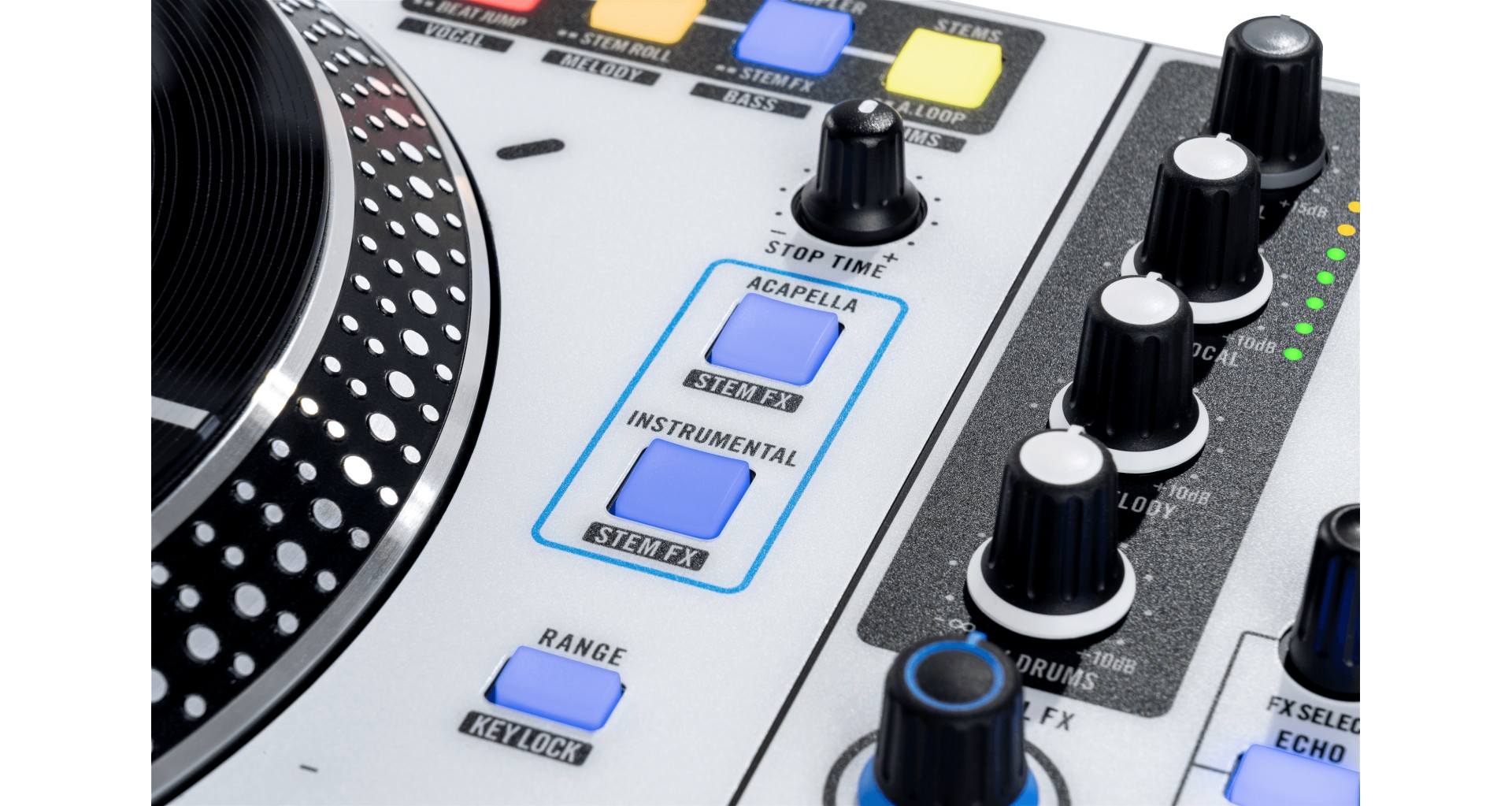

• Pad-uri: 16, multi-color, back-lit

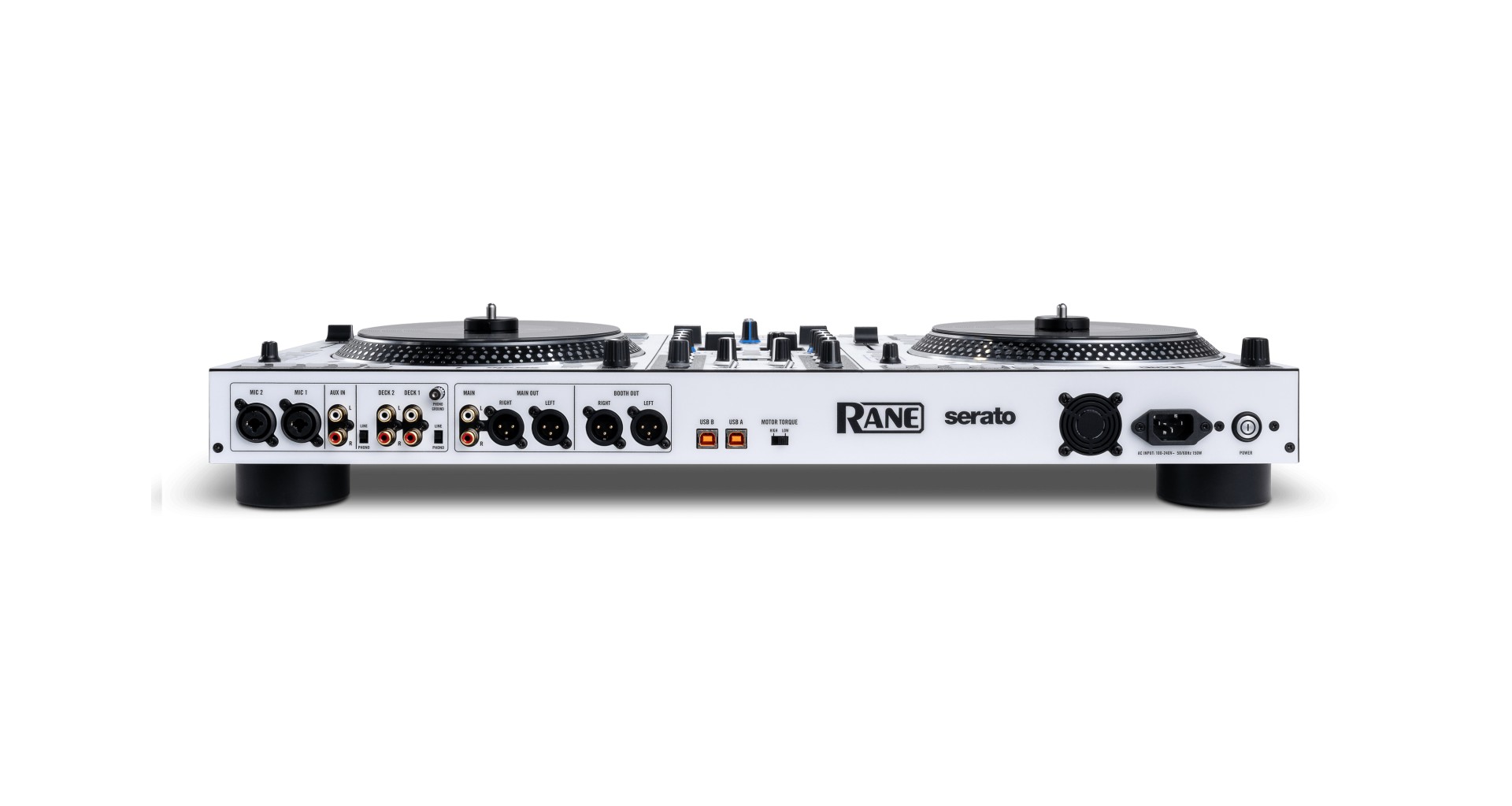

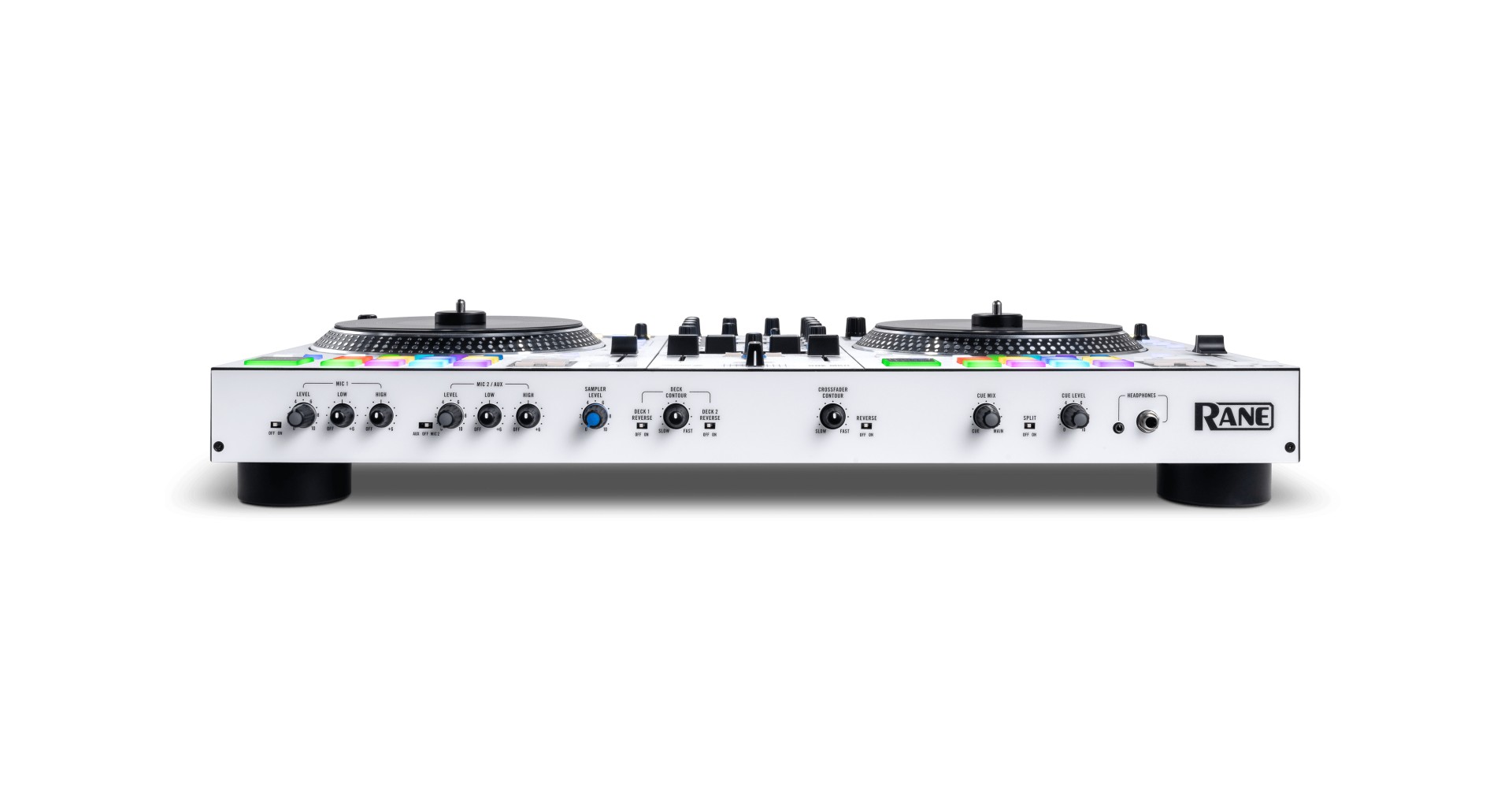

• Conectori: 2 x iesiri XLR (main). 2 x iesiri XLR (booth). 1 x iesire pereche stereo RCA (master). 2 x intrari XLR / 1/4&rdquo. TRS (mic 1-2). 2 x intrari perechi stereo RCA (deck 1-2). 1 x intrare pereche stereo RCA (aux). 1 x iesire casti 1/4" TRS. 1 x iesire casti 3.5 mm TRS. 2 x porturi USB type-B. 1 x intrare de alimentare IEC
• Tensiune alimentare: 100-240V, 50/60 Hz
• Dimensiuni: 674 x 345 x 124.3 mm
• Greutate: 11.14 kg
