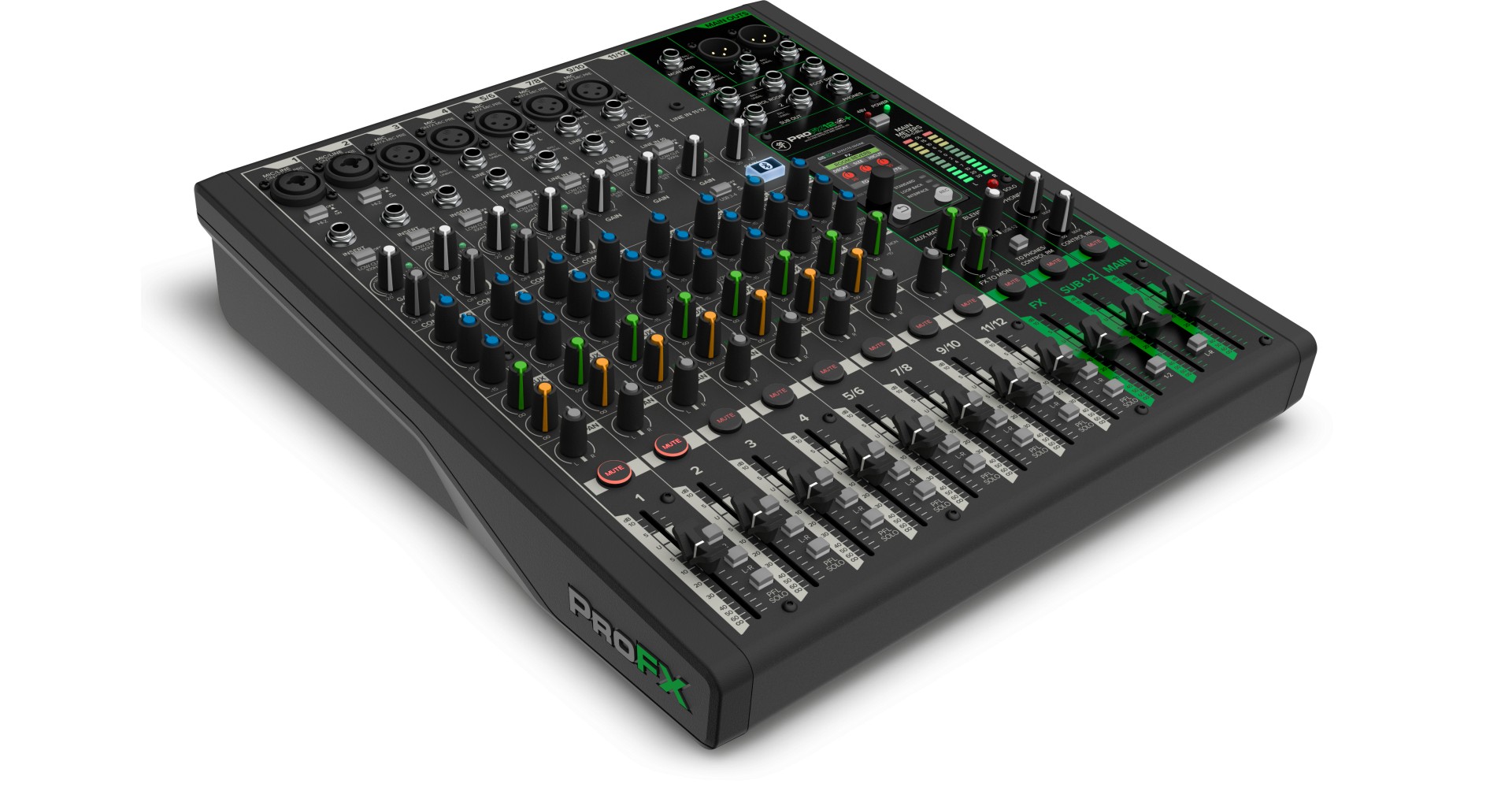

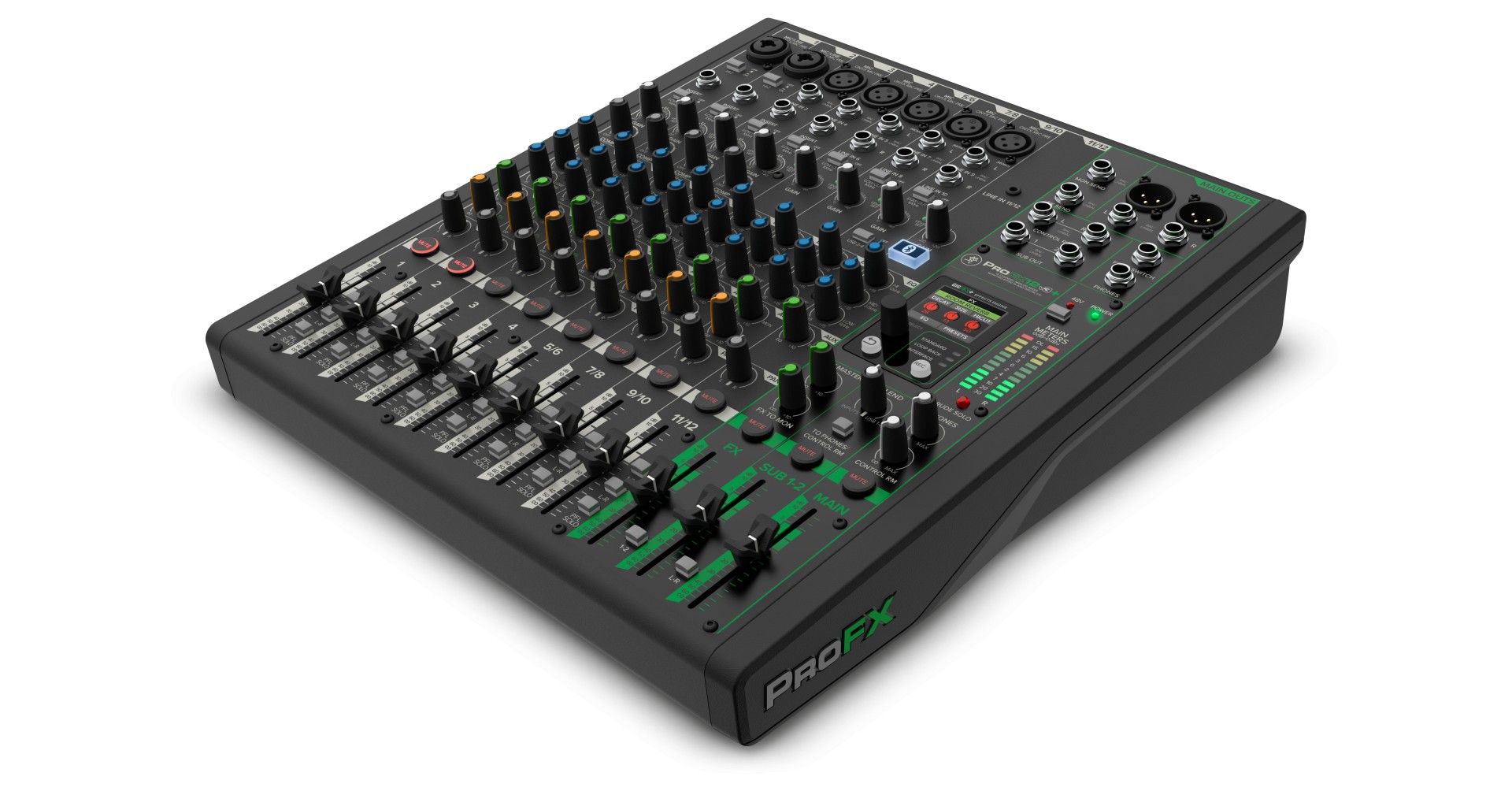

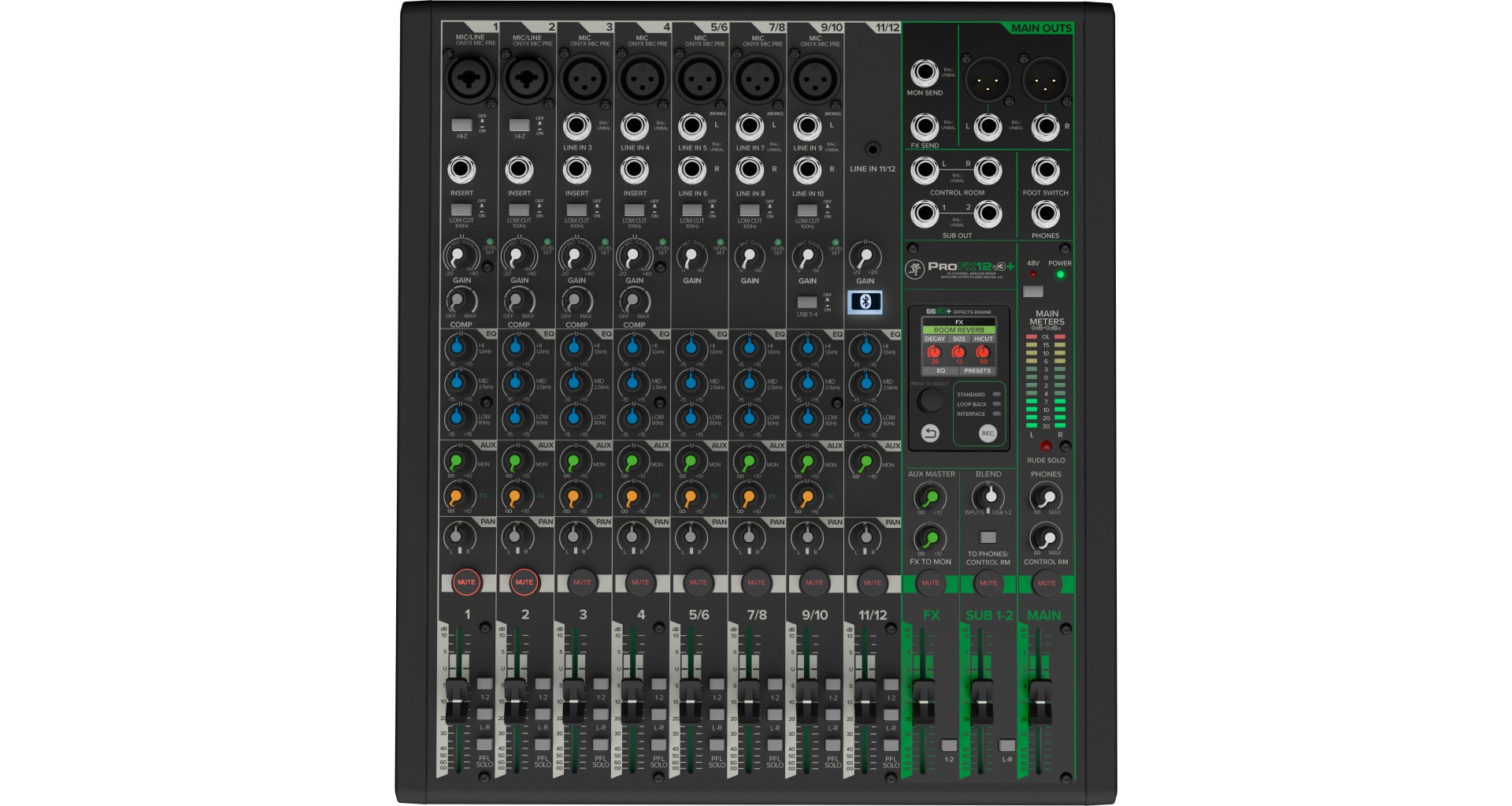

Mackie ProFX12v3+

Specificatii tehnice:

Mixer:

• Numar de canale de intrare analogice: 12
• Numar de preamplificatoare de microfon: 7

Canale de iesire analogica:

• 2 x Stereo Master Output
• 1 x Stereo Control Room/Monitor Output
• 1 x Stereo Bus/Subgroup Output
• 1 x Mono Aux Send Output
• 1 x Mono FX Send Output
• 1 x Stereo Headphone Output
• Routing mix: Mix principal stereo, bus/subgrup stereo
• EQ: EQ cu 3 benzi
• Efecte incorporate: 24x Efect (Tip nespecificat)
• I/O USB: 1x USB-C 2.0 (Inregistrare pe 2 canale, Redare audio, Conexiune host)
• Wireless: Bluetooth (Incorporat)
• Montabil in rack: Nu

Procesare de semnal:

• Gama de castig/ajustare: -20 dB la +60 dB
• Parametri EQ:
• Baza: ±15 dB la 80 Hz
• Medii: ±15 dB la 2.5 kHz
• Inalte: ±15 dB la 12 kHz
• Filtre: Trecere inalta: 100 Hz, 18 dB/Octava
• Efecte incorporate: 24x Efect (Tip nespecificat)
• Bit depth: 24-biti

Performanta:

• Raspuns in frecventa: Intrare microfon la iesire: 20 Hz la 30 kHz +0/-1 dB (Gain unitar)
• Nivel maxim de intrare: +22 dB
• Nivel de iesire:
• Iesire principala: +28 dBu la castig maxim
• Toate celelalte iesiri: +22 dBu la castig maxim
• Impedanta I/O:
• Intrare microfon: 3.3 kOhm
• Return insert: 10 kOhm
• Intrare linie: ≥ 20 kOhm
• Iesire casti: 25 Ohm
• Iesire principala: 120 Ohm (Nebalansat), 240 Ohm (Balansat)

Crosstalk:

• Intrari adiacente: -90 dB la 1 kHz
• Intrare la iesire: -80 dB la 1 kHz
• Fader dezactivat: -75 dB la 1 kHz
• Muted: -90 dB la 1 kHz
• CMRR: 70 dB la gain maxim (1 kHz, Microfon la Iesire principala)
• EIN: -126 dBu la gain maxim (Intrare de 150 Ohmi)
• Zgomot de fond: Toate iesirile: -95 dBu (Nivelul master la -∞, Nivelurile canalelor la -∞); -80 dBu (Nivelul master la unitate, Un canal la unitate)
• THD+N: Intrare microfon la iesire principala: < 0.03% (+4 dBu)

Conectivitate:

Intrari analogice:

• 2x Combo XLR-1/4" 3-Pin Balansat/Nebalansat Microfon/Line/Hi-Z
• 5x XLR 3-Pin Balansat Microfon
• 8x 1/4" TRS Balansat/Nebalansat Linie (3 Perechi Stereo)
• 1x 1/8" / 3.5 mm TRS Nebalansat Linie Stereo (1 Pereche Stereo)

Iesiri analogice:

• 2x XLR 3-Pin Balansat Iesire Stereo Principala
• 2x 1/4" TRS Balansat Iesire Stereo Principala
• 2x 1/4" TRS Balansat Iesire Camera Control/Monitor Stereo (1 Pereche Stereo)
• 2x 1/4" TRS Balansat Iesire Subgrup/Bus Stereo (1 Pereche Stereo)
• 2x 1/4" TRS Balansat/Nebalansat Send Auxiliar/Monitor
• 1x 1/4" TRS Nebalansat Iesire Casti Stereo
• Phantom Power: +48 V, Selectabil On/Off (Aplicat tuturor intrarilor)
• Digital I/O: Nu
• MIDI I/O: Nu
• I/O USB: 1x USB-C 2.0 (Inregistrare pe 2 canale, Redare audio, Conexiune host)
• Capacitate I/O USB: 2x Intrare / 4x Iesire
• Alte I/O: 1x Intrare Pedala 6.3 mm
• Wireless: Bluetooth (Incorporat)
• Compatibil cu aplicatia mobila: Nu
• Compatibilitate OS: macOS, Windows

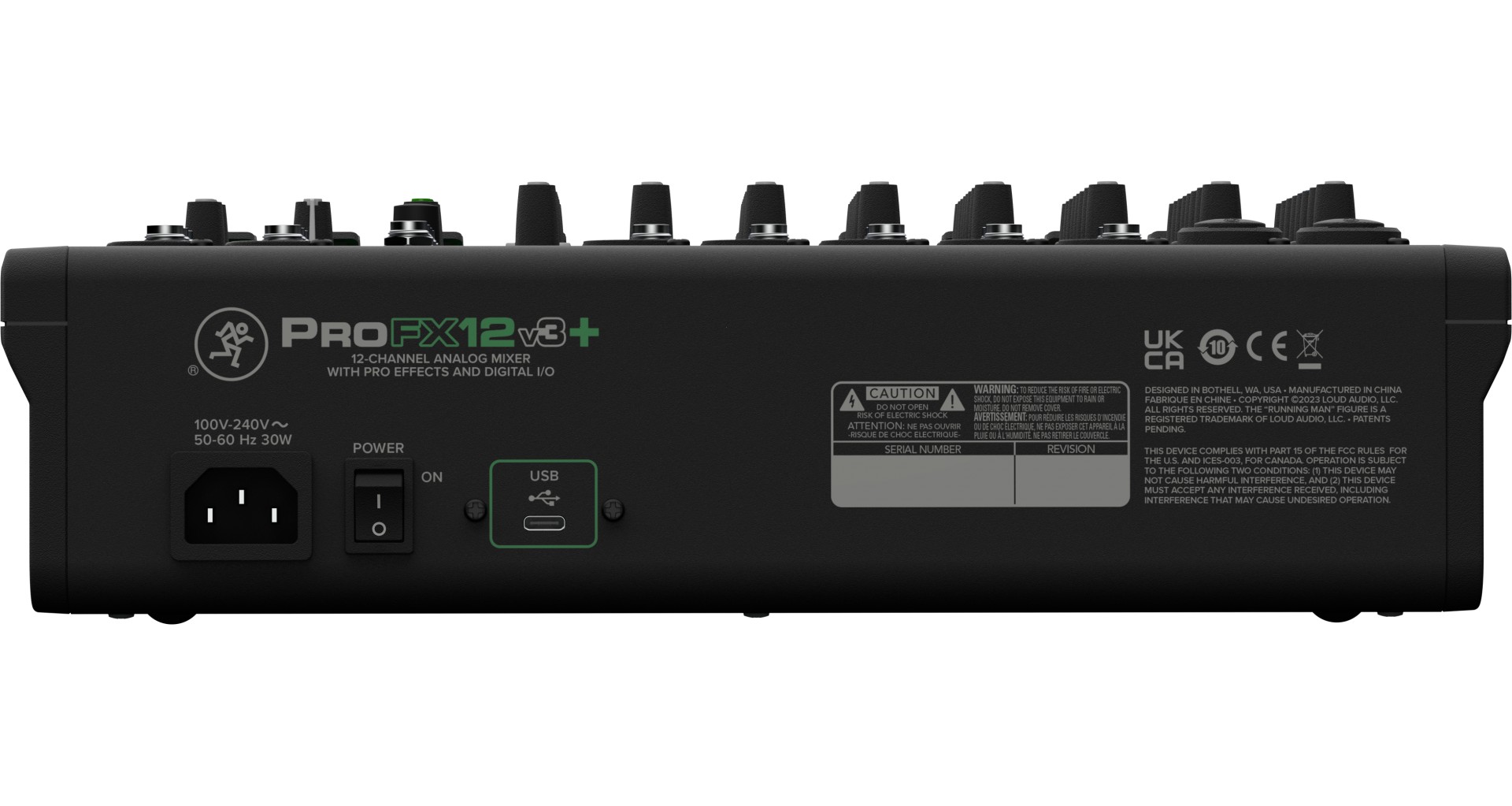

Alimentare:

• Alimentare AC: Universala: 100 la 240 VAC, 50 / 60 Hz
• I/O Alimentare AC: 1x Intrare IEC
• Consum de energie: 30 W

Fizic:

• Montabil in rack: Nu
• Dimensiuni: 8.1 x 33 x 37.5 cm
• Greutate: 3.6 kg
