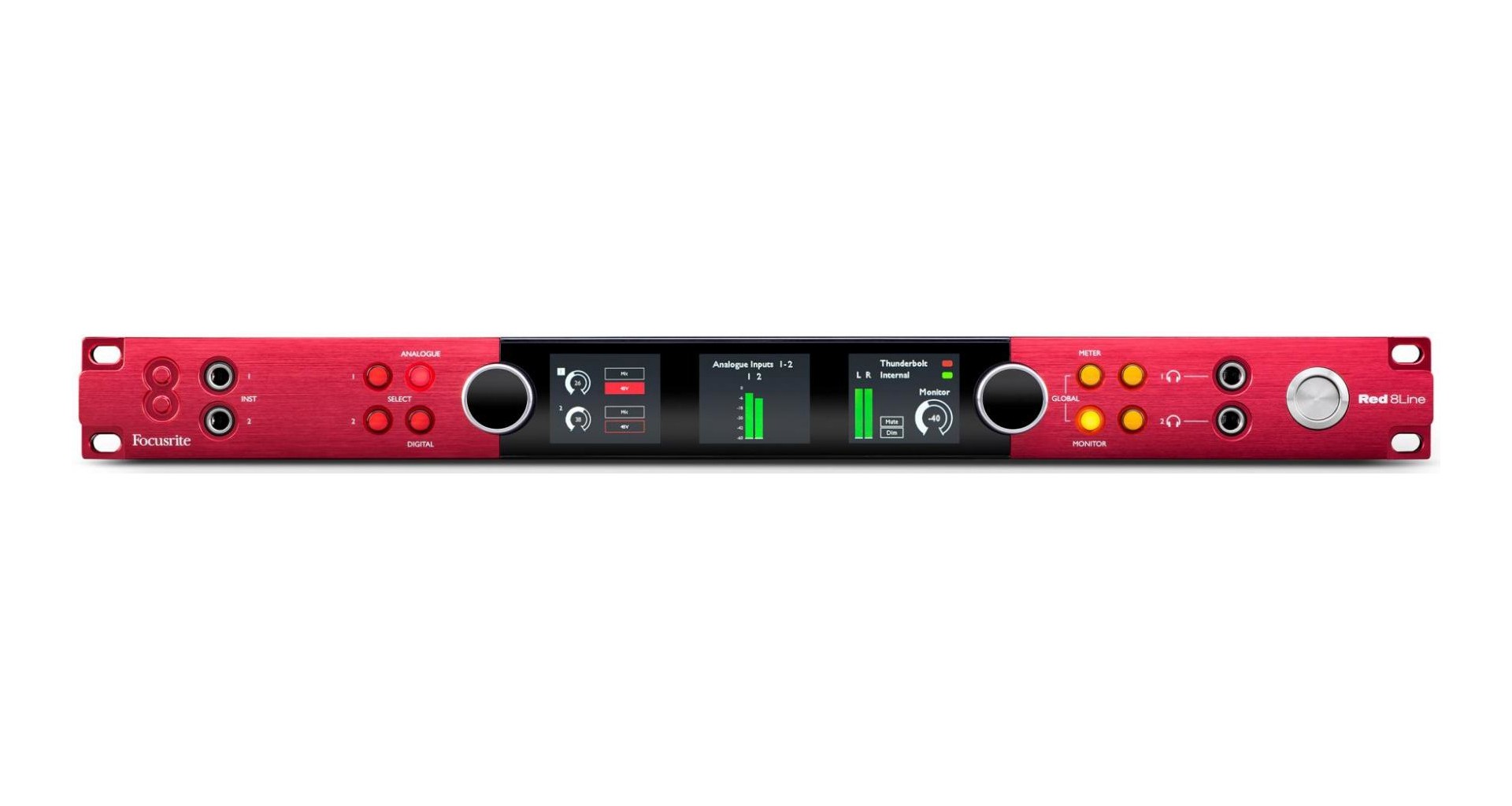

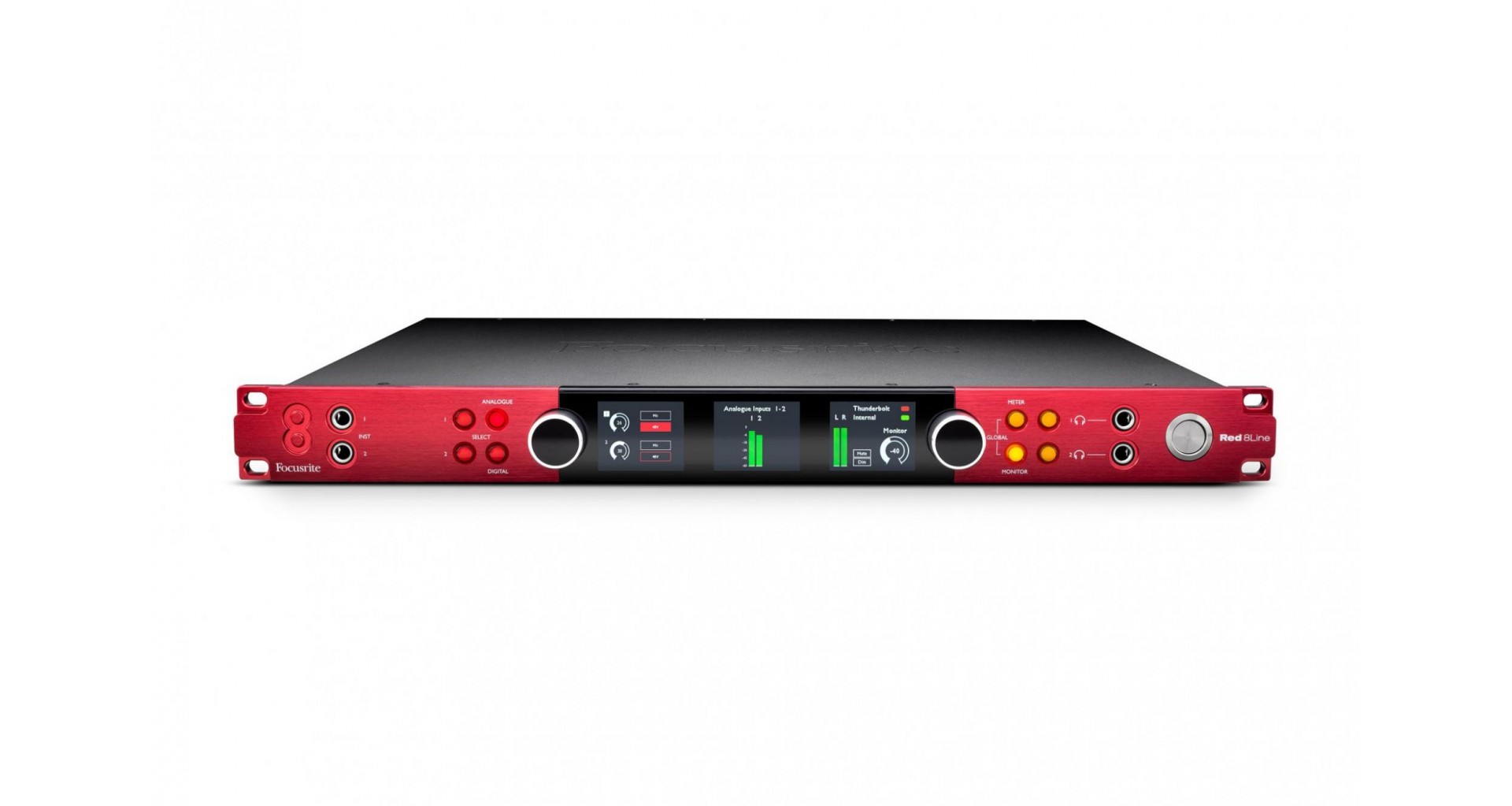

Focusrite Red 8Line

Caracteristici esentiale:

•  Conversie audio de o calitate extrem de inalta: AD/DA 24 bit / 192 kHz cu gama dinamica 119 dB AD si 121 dB DA.
•  Mod de lucru versatil pe mai multe platforme: Comutarea dintre DAW-uri in cateva secunde, folosind panoul frontal.
•  2 preamplificatoare Red Evolution controlabile la distanta: Cu gain ultra-clean de pana la 63 dB, phantom power, inversare polaritate, filtru Hi-pass, plus modul Air, ce ofera o emulare analogica a caracteristicilor cunoscutului preamp ISA.
•  Implementare a Thunderbolt 3: Drivere pentru Mac sau PC cu latenta ultra-mica ce ofera flexibilitatea folosirii plugin-urilor in timp real. Cele 2 porturi Thunderbolt fac un daisy chain pentru a conecta mai multe dispozitive.
•  Conectivitate Pro Tools HD ca standard - 2 porturi mini DigiLink ofera conectivitate directa cu placile Pro Tools HD, fara necesitatea unor dispozitive de expansiune.
•  Conectivitate Dante ca standard: 2 porturi Dante permit conexiunea la protocolul audio-over-ip standard in industrie, pentru expansiune si interoperabilitate cu alte dispozitive digitale.
•  Iesiri de monitor dedicate L/R si control usor de utilizat: Controlul de monitoare suporta monitorizare mono, stereo si multichannel pana la 7.1
•  Intrari si iesiri analogice extensibile: 8 intrari si iesiri Line pe DB25. iesiri independente de monitoare L/R. 2 preampuri de mcrofon Red Evolution si 2 iesiri stereo de casti.
•  Afisaj de precizie: 3 afisaje LCD ofera metering de acuratete pentru orice intrare sau iesire, monitoare principale si iesiri de casti.

Include pachet software Hitmaker Expansion:

• Melodyne Essential
• Relab’s LX480 Essentials
• Sonnox VoxDoubler
• Softube Flow® Guitar Essentials
• XLN Audio® Addictive Keys Studio Grand
• Native Instruments® MASSIVE
• XLN’s Addictive Drums 2: Studio Rock Kit
• Bx_console Focusrite SC
• Red 2 & 3 Plug-in Suite
• Korvpressor
• REAMP

Update: Hitmaker Expansion include acum Korvpressor si REAMP. Korvpressor este un compresor unic ce poate obtine un mix clar si echilibrat, iar REAMP poate recrea sonoritatea calda a amplificatoarelor analog si a magnetofoanelor folosite in studiouri pentru inregistrari.

Specificatii:

Intrari si iesiri simultane

•  Channel Count Up to 58 x 64
• System Requirements
•  Computer: Apple Mac with at least one Thunderbolt 3 port (or Thunderbolt 1 / 2 port and Apple Thunderbolt 3 adapter) running supported OS. Windows 10 system with at least on Thunderbolt 3 port (Thunderbolt 1 / 2 Windows systems are not supported)."
•  Other: Internet connection for downloading and installing software and driver

Microphone Inputs

• All measurements taken at maximum gain unless otherwise stated, Rs = 150Ohm
•  Gain Range: 0-8dB to 63dB in 1dB steps
•  Type: Electronically Balanced, Zin = 6.2kOhm
•  Max. Input Level: >.+19dBu, min gain
•  Frequency Response: 20Hz - 35kHz +/-0.2dB, min gain
•  THD + N: -101dB (0.0009%) @ -1dBFS (@ 11dB Gain)
•  EIN: <.-129dBu "A"-Weighted (typical)
•  Signal-to-Noise Ratio: 119dB "A"-Weighted (typical), min gain
•  Common-Mode Rejection Ratio: 50/60Hz CMRR: -90dB
•  Phantom Power: +48V, independently switchable per channel.
•  HPF: High-Pass Filter (HPF): -3dB @ 80 +/- 3Hz, 12dB/Octave, independently switchable per channel
•  Air Mode: 2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kOhm

Line Inputs 1-8

• All measurements taken at 24dBu, Rs = 600Ohm
•  0 dBFS Reference Level: +18 or +24dBu (switchable)
•  Type: Electronically Balanced, Zin = 20kOhm
•  Frequency Response: 20Hz - 35kHz +/-0.2dB
•  THD + N: -102dB (0.0008%) @ -1dBFS
•  Signal-to-Noise Ratio: 119dB "A"-Weighted (typical)
•  Common-Mode Rejection Ratio: 50/60Hz CMRR: -70dB

Instrument Inputs

• All measurements taken at maximum gain unless otherwise stated, Rs = 600Ohm
•  Gain Range: 0-8dB to 63dB in 1dB steps
•  Type: Zin = 2.3MOhm
•  Max. Input Level: >.+15dBu, min gain
•  Frequency Response: 20Hz - 35kHz +/-0.2dB, min gain
•  THD + N: -100dB (0.001%) @ -1dBFS (@ 11dB Gain)
•  Signal-to-Noise Ratio: 117dB "A"-Weighted (typical), min gain
•  HPF: -3dB @ 80 +/- 3Hz, 12dB/Octave, independently switchable per channel
•  Air Mode: 2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz)

Line Outputs 1-8

• All measurements taken at maximum output level, Rs = 100kOhm
•  0 dBFS Reference Levels: +18 or +24dBu (switchable)
•  Frequency Response: 20Hz - 35kHz +/-0.2dB
•  THD + N: <.-104dB (0.0006%) unweighted, 20Hz - 20kHz. -1dBFS input
•  Dynamic Range: 121dB "A"-weighted (typical), 20Hz - 20kHz
•  Output impedance: Nominal output impedance = 136Ohm balanced (68Ohm each phase)

Monitor Outputs

• All measurements taken at maximum output level, Rs = 100kOhm
•  0 dBFS Reference Levels: +18dBu
•  Frequency Response: 20Hz - 35kHz +/-0.2dB
•  THD+N: -80dB (0.01%) unweighted, 20Hz - 20kHz. -1dBFS input
•  Dynamic Range: 120dB (A-Weighted)
•  Output impedance: Nominal output impedance = 136Ohm balanced (68Ohm each phase)

Headphone Outputs

• All measurements taken at maximum output level, Rs = 600Ohm
•  0 dBFS Reference Levels : +16dBm +/- 0.5dB
•  Frequency Response: 20Hz - 20kHz +/-0.2dB
•  THD + N: <.-75dB (0.018%) unweighted, 20Hz - 20kHz
•  Dynamic Range: 114dB "A"-weighted (typical), 20Hz - 20kHz
•  Output Impedance: 10Ohm
•  Headphone Impedance: 32Ohm - 600Ohm

Crosstalk

• Microphone Crosstalk
•  Mic Input to Input: <. -80dB. 20Hz - 20kHz (driven channel at -20dBFS)
•  Mic Input to Output: <. -130dB. 20Hz - 20kHz (driven channel at -20dBFS)
•  Output to Mic Input: <. -165dB. 20Hz - 20kHz (driven channel at -20dBFS)

Line Crosstalk

•  Line Input to Line Input: <. -100dB. 20Hz - 20kHz (driven channel at -20dBFS)
•  Line Input to Output: <. -150dB. 20Hz - 20kHz (driven channel at -20dBFS)
•  Output to Line Input: <. -150dB. 20Hz - 20kHz (driven channel at -20dBFS)

Output Crosstalk

•  Output to Output: <. -95dB. 20Hz - 20kHz (driven channel at -20dBFS)

Headphone Crosstalk

•  Headphone to Headphone: <. -95dB. 20Hz - 20kHz (driven channel at -20dBFS)

Digital Performance

•  Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
•  Clock Sources: Internal, ADAT 1, ADAT 2, S/PDIF, Word Clock, Loop Sync or from Dante Network Master

Front Panel Connectivity

• Instrument Inputs
•  Channel Count: 2 Channels In
•  Instrument Inputs: 2 x 1/4" TS jack

Headphone Outputs

•  Channel Count: 2 Stereo Channels Out
•  Headphone Outputs: 2 x 1/4" TRS stereo jack

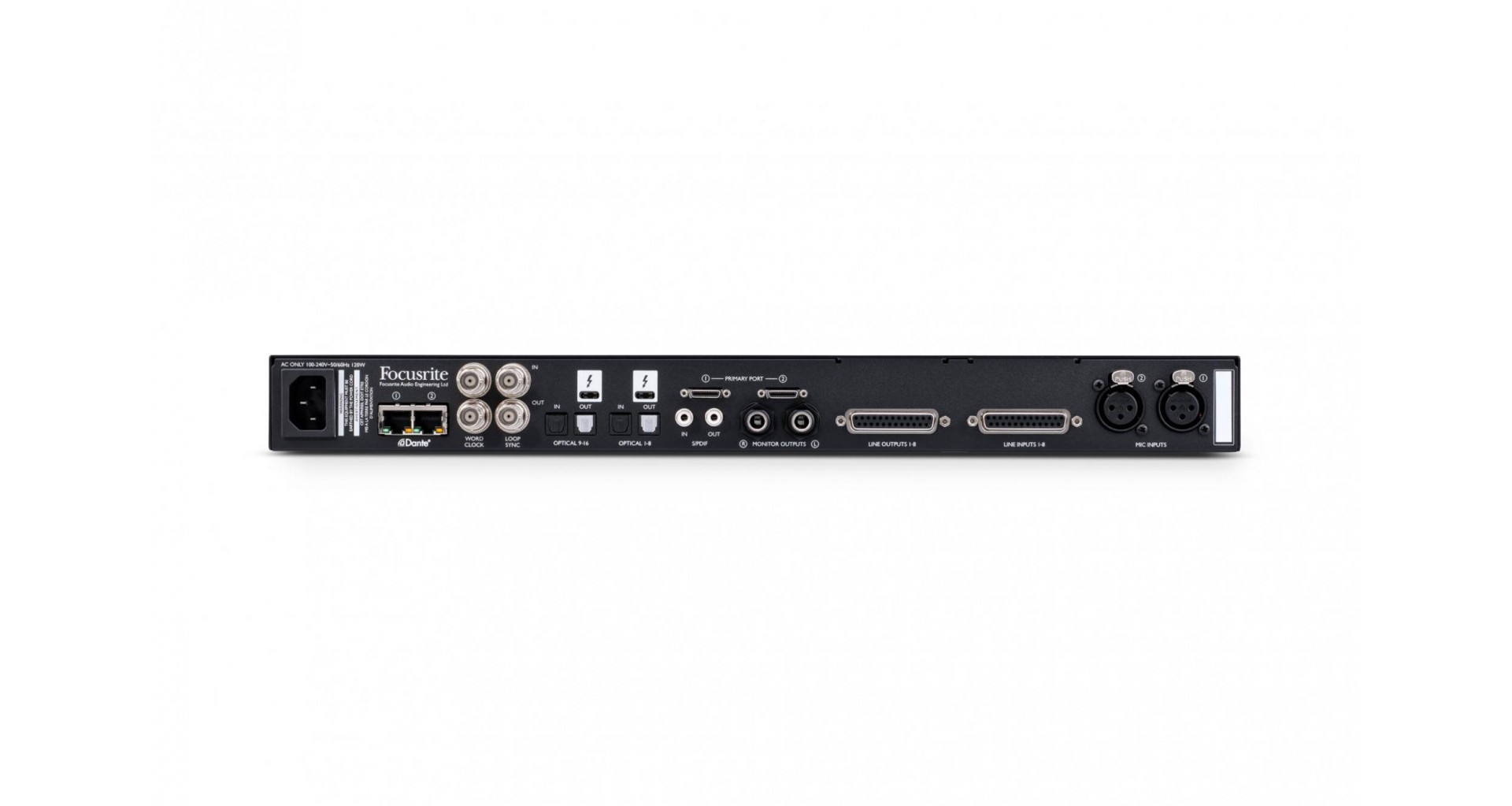

Rear Panel Connectivity

• Thunderbolt
•  Channel Count: Up to 58 In and 64 Out
•  Thunderbolt Ports: 2 x Thunderbolt 3 Ports (Primary Port 1 and Primary Port 2)

Pro Tools|HD

•  Channel Count: Up to 58 In and 64 Out (32 In and 32 Out per connection)
•  Primary Port: 2 x Mini DigiLink

Dante

•  Channel Count: Up to 32 In and 32 Out
•  Input and Output: 2 x Ethernet standard RJ45 connectors (Compatible with Cat 5e and above).

Mic Inputs

•  Channel Count: 2 In
•  Input: 2 x Female XLR

Line Level

•  Channel Count: 8 In and 8 Out
•  Input: 2 x DB-25 connectors (AES59)
•  Output: 2 x DB-25 connectors (AES59)

ADAT

•  Channel Count: Up to 16 In and 16 Out
•  Input: 2 x TOSLINK connector
•  Output: 2 x TOSLINK connector
•  Channel Assignments @ 44.1 kHz, 48 kHz: Port 1 = Channels 1 - 8 , Port 2 = Channels 9 - 16
•  Channel Assignments @ 88.2 kHz, 96 kHz: SMUXI: Port 1 = Channels 1 - 4, Port 2 = Channels 5 - 8
•  Channel Assignments @ 176.4 kHz, 192 kHz: SMUXII: Port 1 = Channels 1 - 2 , Port 2 = Channels 3 - 4

S/PDIF

•  Channel Count: 2 In and 2 Out (Optical up to 96kHz)
•  Input: 1 x RCA phono socket (1 x TOSLINK up to 96kHz)
•  Output: 1 x RCA phono socket (1 x TOSLINK up to 96kHz)

Monitor Outputs

•  Channel Count: 2 Out
•  Montor Outputs: 2 x 1/4" TRS jack

Loop Sync

•  Loop Sync Input: 1 x BNC 75Ohm port
•  Loop Sync Output: 1 x BNC 75Ohm port

World Clock

•  Word Clock Input: 1 x BNC 75Ohm port
•  Word Clock Output: 1 x BNC 75Ohm port

PSU

• PSU: 1 x IEC Input

Front Panel Indicators

•  Screens: 3 x Screens (menus and metering)
•  Control Functions: 2 x Encoders (menu navigation, channel functions (Gain, +48V, Phase, HPF, Air and Mic/Line/Inst) monitor and headphone outputs (Level, Mute and Dim)). 4 x Switches (control over menus & metering)

Power

• PSU: 1 x Internal, 100-240V, 50/60Hz, consumption 120W.

Heat Performance

•  Operating Temperature: Operates at an ambient temperature of up to 40 degrees Celsius
•  Fan: Dual fan
