DiGiCo Quantum 225

Caracteristici esentiale:

• 72 canale de intrare cu procesare completa
• 36 buss-uri Aux/Subgrup cu procesare completa
• Matrice 12 x 12 cu procesare completa
• 24 Benzi de prelucrare
• 32 Instante de procesare nodale
• Functia True Solo
• 41 de afisaje LCD TFT
• Ecran tactil de inalta rezolutie de 1 x 17"
• Comenzi macro programabile pentru utilizatori
• Capabil de mirroring cu un alt Quantum 225
• 2 sloturi DMI pentru a extinde I/O
• UB MADI Integrat
• Software offline
• Controlul iPad-ului

Suprafata de lucru:

• 25 x 100mm sensibil la atingere, fadere motorizate
• Ecrane tactile LCD de inalta luminozitate si de inalta rezolutie de 1 x 17"
• 41 x Full Color TFT LCD Display
• 1 x 1 / 4 "jack pentru casti
• 1 x 3.5mm jack pentru casti
• 1 x slot USB 2.0
• Bara de luminare tastatura
• Bara de luminare integrata
• 1 x Suport de montare

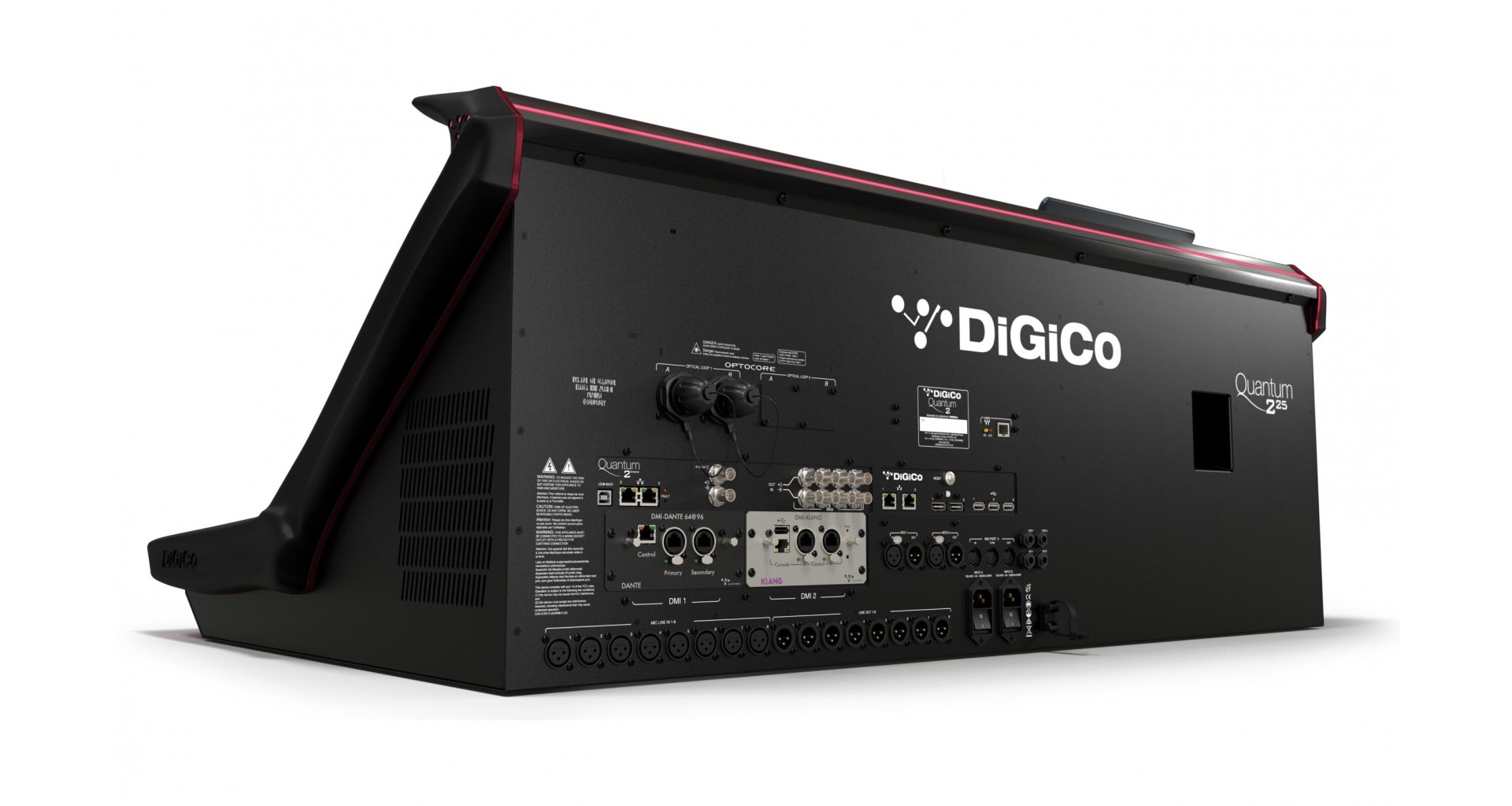

In spate:

• 2 x Redundant PSUs
• 8 x XLR Mic/Line Inputs
• 8 x XLR Line Outputs
• 2 x XLR AES/EBU Inputs (4 x channels)
• 2 x XLR AES/EBU Outputs (4 x channels)
• 4 x MADI BNC I/O @ 48k, 2 interfaces at 96k
• 1 x MultiMode Optocore Interface (Optional)
• 1 x Waves port (Optional)
• 2 x DMI Slots (up to 64 I/O per slot)
• 1 x UB MADI (USB Type B Audio I/O interface for recording
• and playback of up to 48 channels)
• 4 x Ethernet ports (switched together)
• 3 x USB 2.0 slots
• 2 x GPI 1/4&rdquo. Jacks
• 2 x GPO 1/4&rdquo. Jacks
• 1 x MIDI In/Thru/Out (5 pin DIN)
• 1 x Word Clock I/O BNC
• 2 x DisplayPort Outputs
• 1 x Quantum Lighting Bar

Optiuni:

• Single or Dual Loop Optocore (HMA, OpticalCon or ST)
• Upgrade to SingleMode Optocore
• Waves Soundgrid Interface
• Flightcase
• Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC /
• Dante / Dante 64@96 / Hydra 2 / KLANG / MADI B / MADI C/ ME / Mic / Waves

Procesare semnal:

72 Input Channels (Mono)

• Main & Alternative input
• Analogue Gain
• Phase Inversion Control
• Gain Tracking
• Digital Trim (-40dB to +40dB)
• Variable Delay (0ms to 1.3s)
• DiGiTube
• HPF/LPF (-24dB/Oct)
• 4 Band Parametric EQ / Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor
• EQ/Dyn Order Control
• 2 Insert Points per Channel
• Channel Mute & Hard Mute
• Channel Direct Outputs
• 36 Aux/Sub-Group Busses
• Phase Inversion Control
• Digital Trim (-40dB to +40dB)
• Variable Delay (0ms to 1.3s)
• DiGiTube
• Merge Input
• Tone Generator
• HPF/LPF (-24dB/Oct)
• 8 Band EQ: 4 Band Parametric EQ and 4 Band
• Parametric or Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor • EQ/Dyn Order Control • 2 Insert Points per Channel
• Channel Mute & Hard Mute
• 1 LR/LCR Master Buss (with full processing)
• 12 Input x 12 Output Full Processing Matrix
• 12 Control Groups (CGs)
• 2 Solo Busses
• 16 x 32-band GEQs
• 12 x Internal Stereo FX Processors
• Delays
• Audio Enhancer
• Choruses
• Pitch Shifters • Reverbs
• 6 x Internal Spice Rack Slots
• 6 band Dynamic Multiband Compressor/Expander

24 x Mustard Processing Strips

• Tube
• Tube Emulation
• HPF/LPF (-24dB/Oct)
• 4 Band EQ: 2 Band Parametric EQ and 2 Band
• Parametric EQ or All Pass Filters • DYN 1: Classic RMS/Peak Compressor, Vintage VCA
• Compressor, Optical Compressor, FET Limiter • DYN 2: Gate, Ducker
• 32 x Nodal Processing
• 4 Band Parametric EQ / Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor
• Multiband Compressors available on every channel, Buss
• and Nodal Processor
• Dynamic EQs available on every channel, Buss and Nodal
• Processor
• DiGiTuBes available on every channel & Buss
• Virtual Soundcheck
• True Solo function

Specificatii audio:

• Sample Rate: 48kHz or 96kHz
• Processing Delay: TBC
• Internal Processing: Up to 40-bit, Floating Point
• A>.D & D>.A: 24-bit Converter Bit Depth
• Frequency Response: TBC
• THD: TBC
• Channel Separation: TBC
• Residual Output Noise: TBC
• Microphone Input: TBC
• Maximum Output Level: TBC
• Maximum Input Level: TBC

Caracteristici fizice:

• Dimensions: 1124mm (w) x 801mm (d) x 436mm (h)
• Weight: 43kg (138kg with optional flightcase)
• Flightcase: 1260mm (w) x 601mm (d) x 1141mm (h) (Optional)
• Power Requirements: 100-240V, ~5A, 50-60Hz, 300W, 255VA
• Redundancy: Internal PSUs x 2
• Product Code: X-Q225-WS
