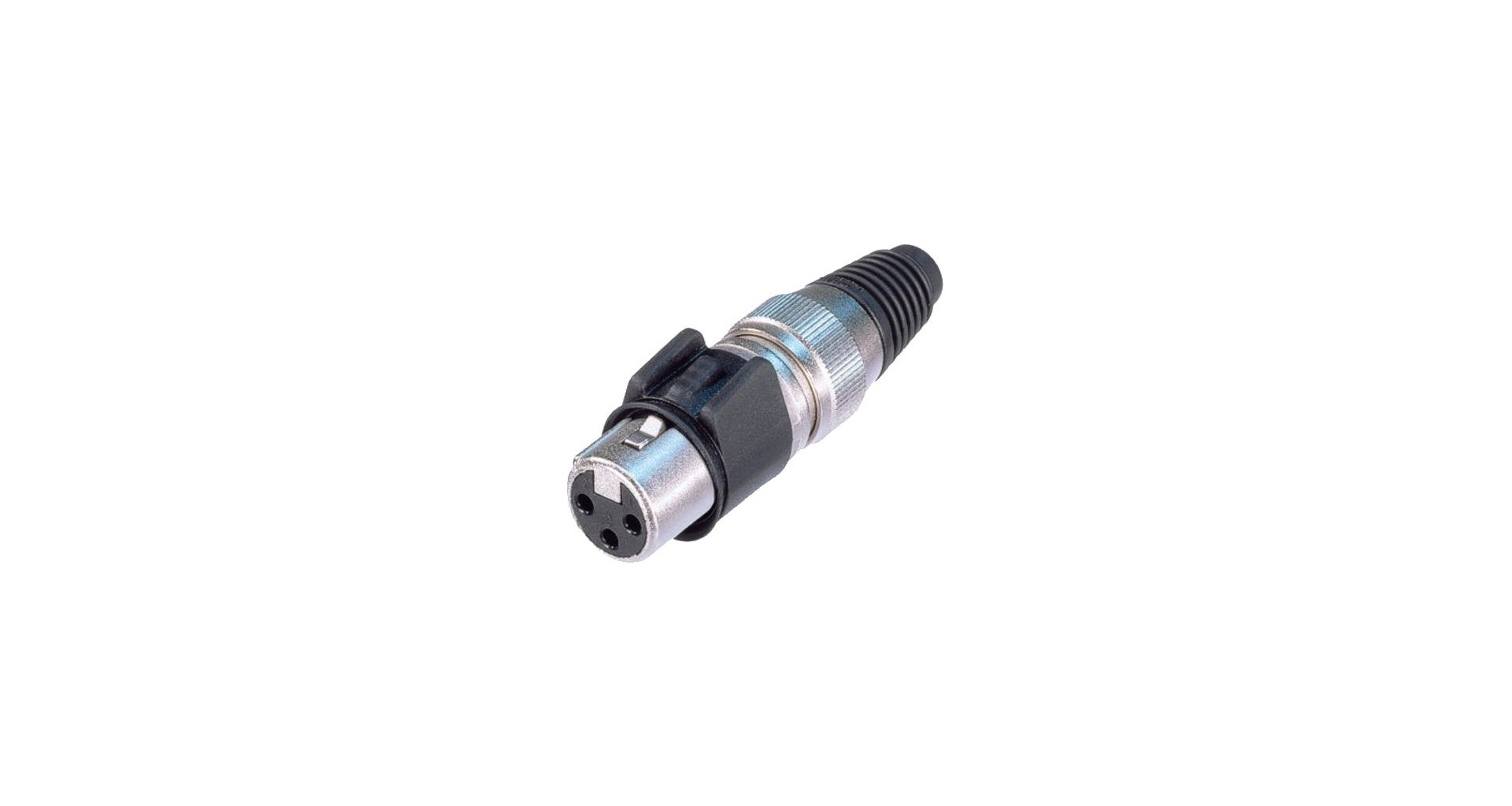

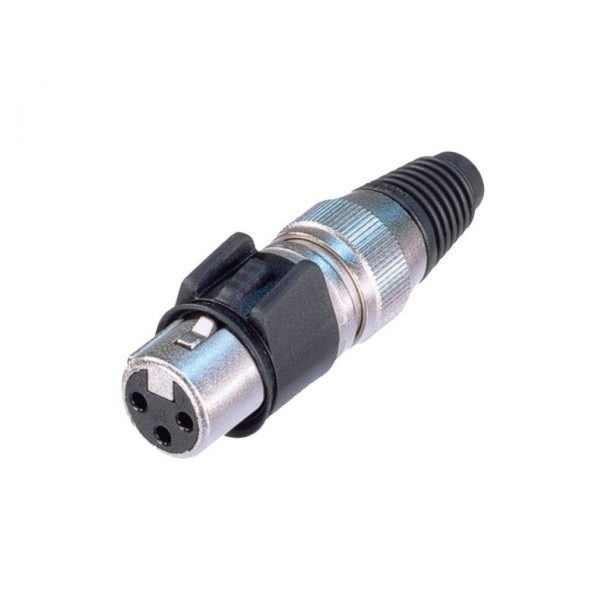

Neutrik NC3FXCC

3 pole female cable connector, RF-protected, gold contacts - digital cable connector

The XCC XLR cable connector Series with circumferential shield contact provides excellent RF-protection to transmit digital audio signals most efficient and reliable. This XLR features a coaxial ground spring and a coaxial hex crimp ferrule at the cable entrance for proper and reliable transition of the shield to the shell.

3 pole female cable connector, RF-protected, gold contacts

Cable O.D.: 5.4 - 6.2 mm
Crimp Size Shield: 6.5 mm (hex)




Features & Benefits

3 pole cable connector with a circumferential shield contact for best EMI protection
XCCR coding ring to indicate digital AES signals included
Rugged zinc diecast shell, long lasting and durable
Chuck type strain relief system for secure clamping of cables
Boot with rubber gland gives high protection against bending stresses
