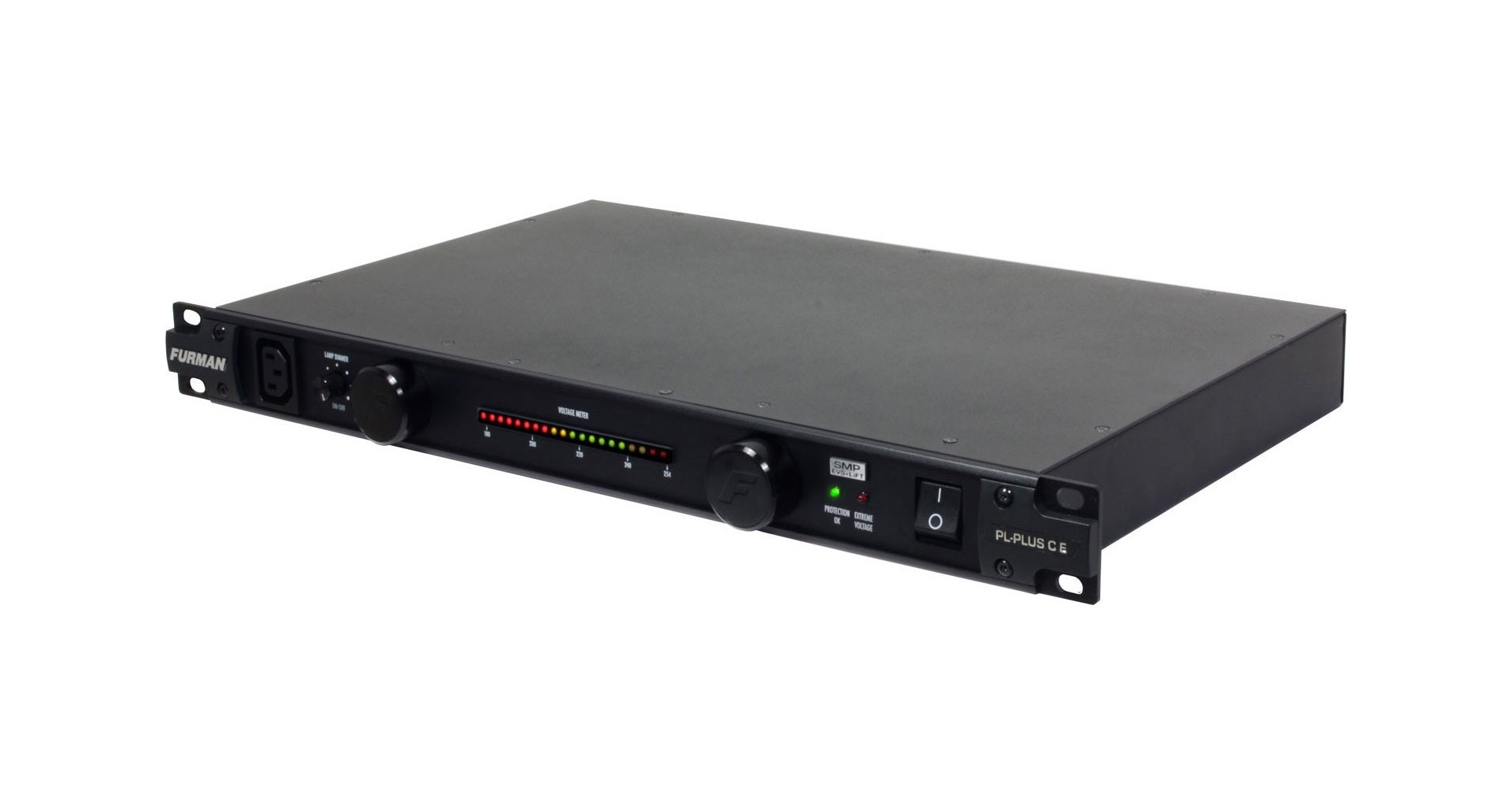

Furman PL-Plus C E

• Surge Protection
  • Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
• Noise Filtration
  • LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
• Voltage Protection
  • Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
• Pull-out Lights
  • Dual smooth track retractable LED lights illuminate equipment in your rack.
• Diagnostic Lights
  • LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
• LED Voltmeter
  • Segmented LED voltmeter monitors and displays incoming line voltage.
• Isolated Banks
  • Isolated outlet banks minimize inter-component interference and noise contamination.
• 10 AMP Rating
  • 10 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
• 11 Total Outlets
  • 11 total outlets (10 rear panel outlets and one front panel convenience outlet).
• BNC Lamp Connector
  • Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Specificatii:

General
    •    FamilyClassic Series 240V
    •    Line Voltage240 (Volts)

AC Protection
    •    AC Protection Technology:
        -Extreme Voltage Shutdown
-Series Multi-Stage Protection
-Non-sacrificial protection with zero ground contamination

Shipping Info
    •    Length21.5 (Inches)
    •    Width14.9 (Inches)
    •    Height4.1 (Inches)
    •    Weight11.6 (Lbs)
    •    Unit of MeasureEach
    •    UPC 654061028109
    •    Master Pack Qty2

Other Specifications
    •    CURRENT RATING:10 amps
    •    OPERATING VOLTAGE:180 to 274 VAC
    •    OVER VOLTAGE SHUTDOWN:275 VAC typically
    •    SPIKE PROTECTION MODES:Line to neutral, zero ground leakage
    •    SPIKE CLAMPING VOLTAGE:376 VAC peak @ 3,000 Amps, 266 VAC RMS
    •    RESPONSE TIME:1 nanosecond
    •    MAXIMUM SURGE CURRENT:6,500 amps
    •    NOISE ATTENUATION:10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz Linear attenuation curve from 0.05 - 100 Ohms line impedance
    •    DIMENSIONS:44.45mm H x 482.6mm W x 266.7mm D.
    •    WEIGHT:5 kg
    •    CONSTRUCTION:Steel chassis, 3mm brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
    •    POWER CONSUMPTION:25 VA
    •    SAFETY AGENCY LISTING:CE
