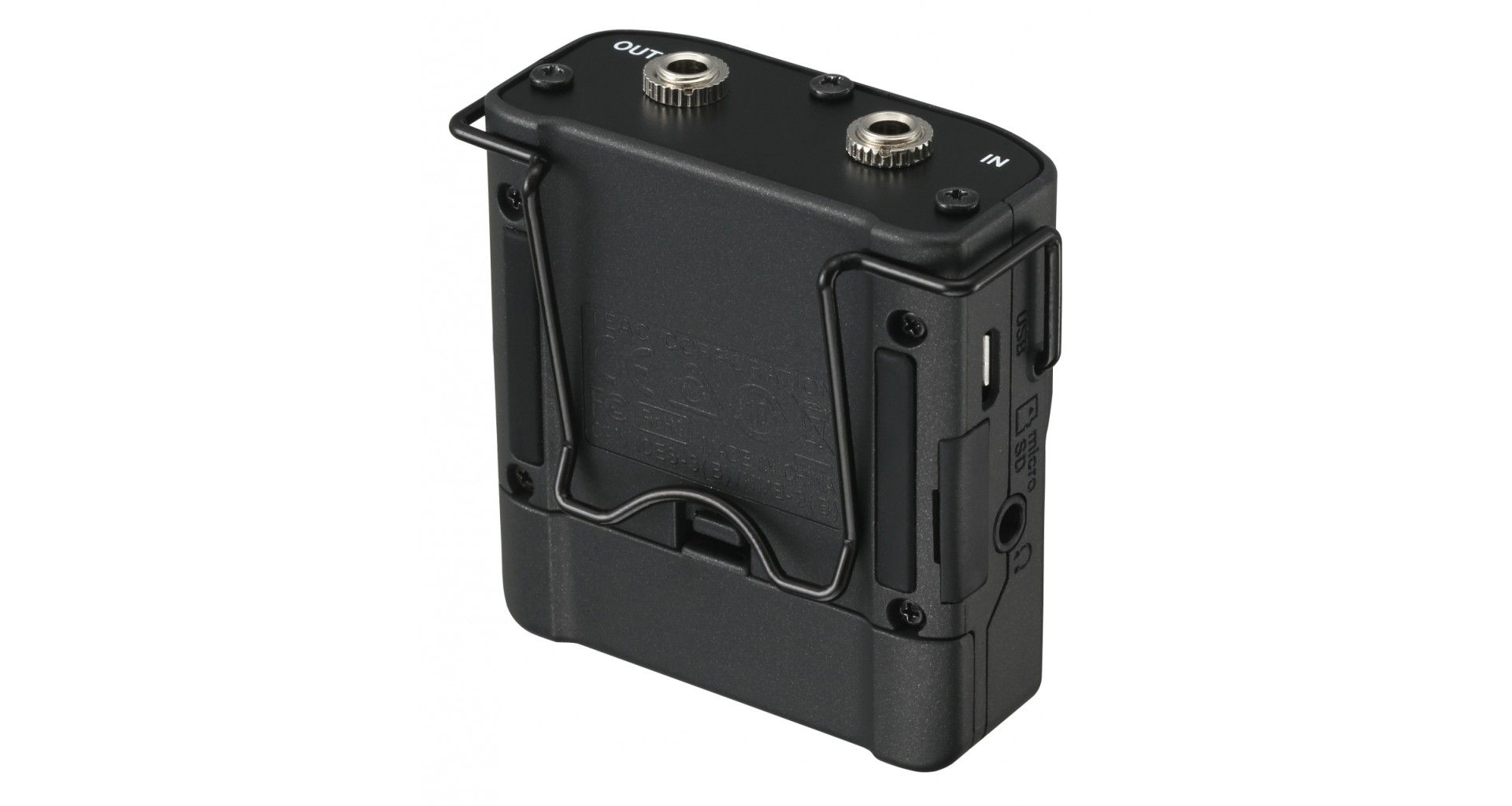

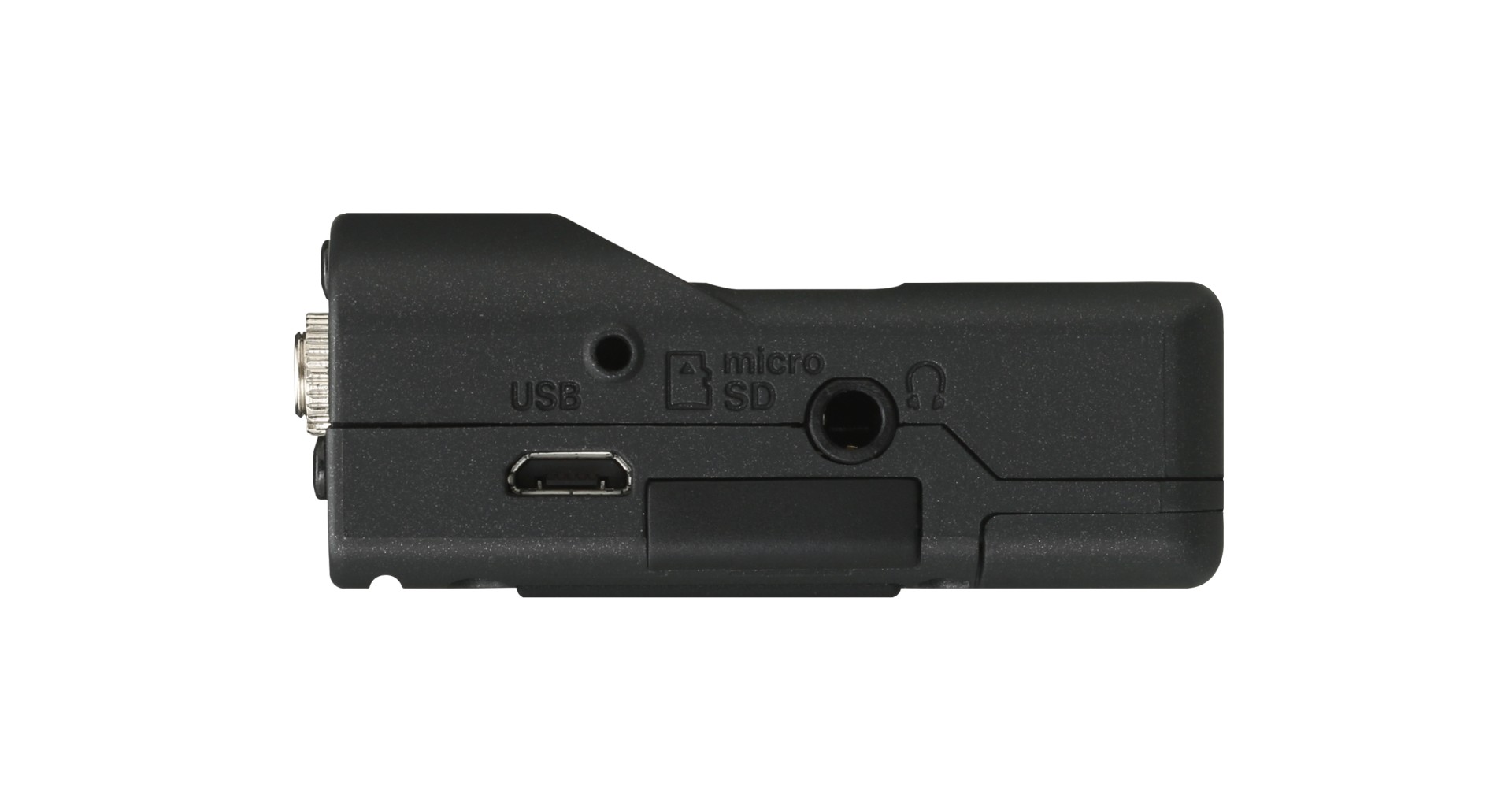

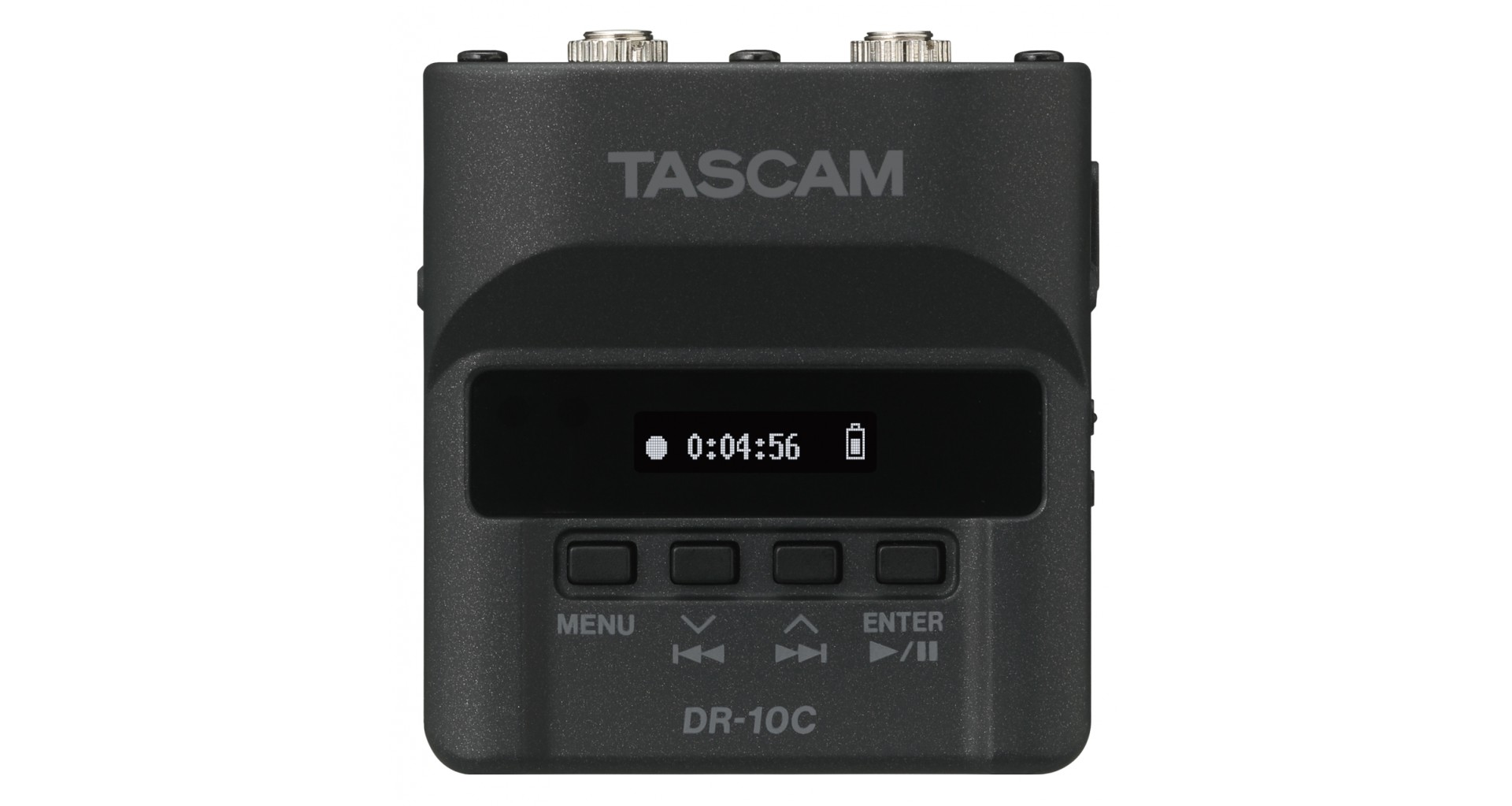

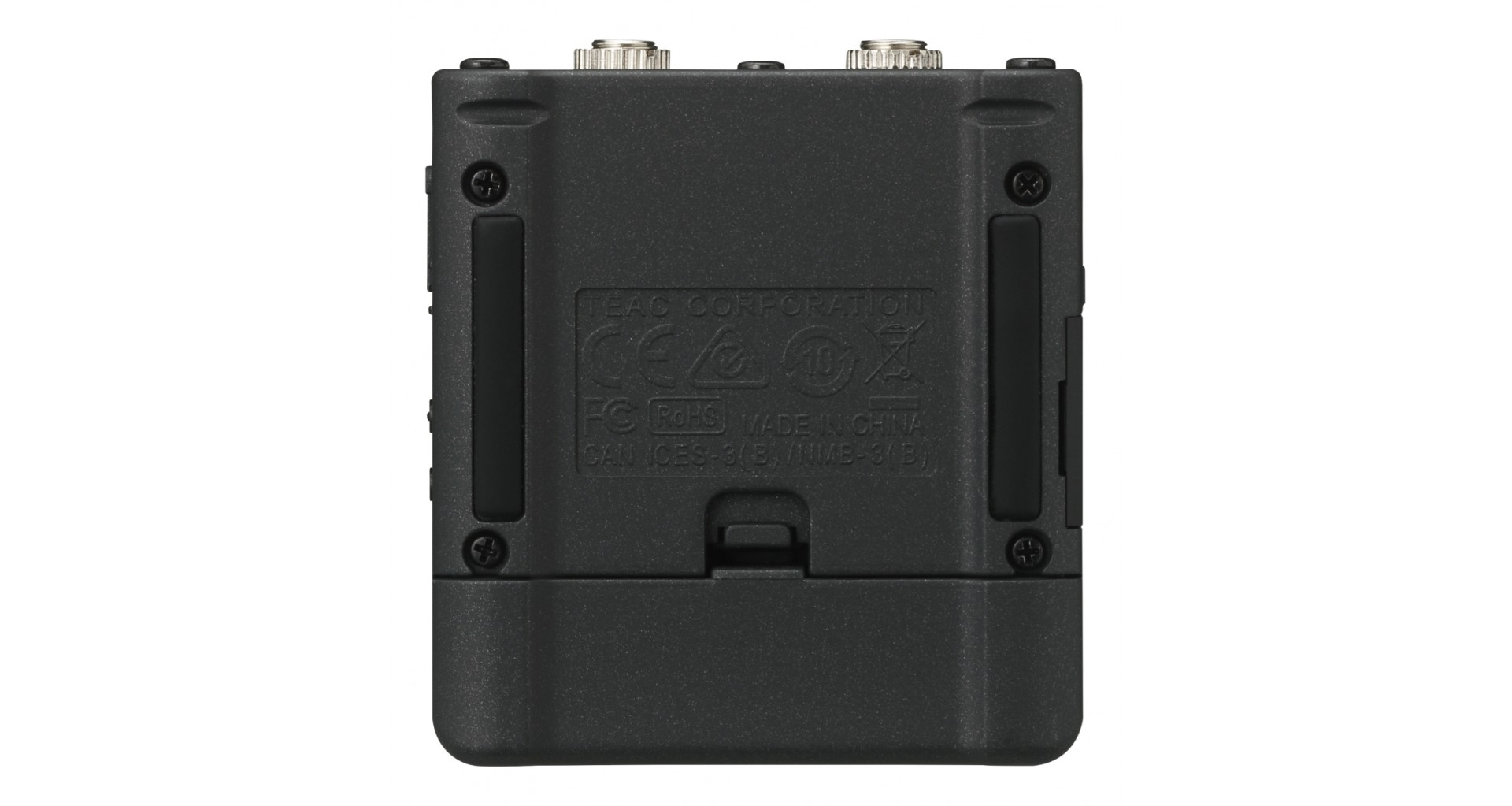

Tascam DR-10CS

Specificatii tehnice:

Stocare

• microSD card (64 MB - 2 GB)
• microSDHC card (4 - 32 GB)

Format inregistrare/redare

• BWF-compatibil WAV format, 44.1/48 kHz, 16/24 bits, mono/poly
• MP3 format, 44.1/48 kHz, 128/192 kbit/s (inregistrare) 32-320 kbit/s (playback)

Intrari si iesiri:

• Intrare analogica (microfon)
• DR-10CS (Sennheiser): 3.5-mm mini TRS jack (with screw lock)

• Nivel maxim de intrare: -12 dBV
• Nivel minim de intrare: -53 dBV
• Gain intrare microfon: 10 dB to 35 dB
• Impedanta de intrare: 33 kOhm sau mai mare

Iesire analogica

• DR-10CS (Sennheiser): 3.5-mm mini TRS jack (with screw lock)

Iesire analogica (jack casti)

• 3.5-mm mini stereo jack (iesire audio dual mono)

Performante audio:

• Raspuns in frecventa: 20 Hz - 22 kHz, +1/-3 dB
• Distorsiune: 0.05 %
• Raport zgomot/semnal: 88 dB sau mai mare

• Alimentare: 1 baterie AAA (alcalina, NiMH sau litiu)
• Alimentare USB prin conectarea la PC
• Consum energie: 0,45 W (maximum)
• Consum curent (USB): 0,25 A (maximum)
• Interval de temperatura de functionare permis: 0-40 °C
• Dimensiuni: 52 x 56 x 25 mm
• Greutate
• 63 g (cu baterie)
• 51 g (fara baterie)
