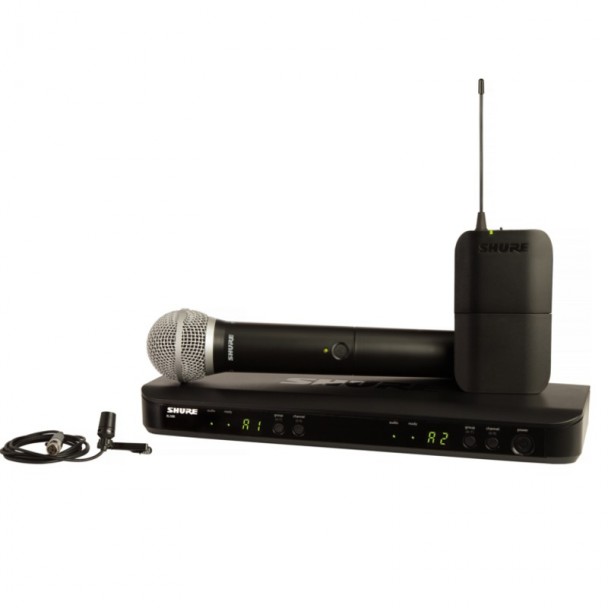

Shure BLX1288/CVL H8E

Receptor wireless dual channel BLX88

- Impedanta iesire: Conector XLR: 200 ohm, conector 6.35 mm 50 ohm
- Nivel iesire audio: Conector XLR: -27 dBV, conector 6.35 mm -13 dBV
- Sensibilitate RF: -105 dBm pentru SINAD 12 dB
- Image Rejection: >.50 dB
- Dimensiuni: 40 x 388 x 116 mm
- Greutate: 429 g
- Carcasa: Mulaj ABS
- Necesitati alimentare: 12-15 V DC @ 160 mA

Transmitator bodypack BLX1

- Raza ajustare gain: 26 dB
- Impedanta intrare: 1 M?
- Iesire transmitator RF: 10 mW
- Dimensiuni: 110 x 64 x 21 mm
- Greutate: 75 g
- Carcasa: Mulaj ABS
- Necesitati alimentare: 2 x baterii AA LR6, 1.5 V alkaline
- Viata baterie: Pana la 14 ore (Alkaline)

Microfon Condenser Lavaliera CVL:

- Tip: Condenser Electret
- Frecventa de raspuns: 50 - 20.000 Hz
- Caracteristica polara: Cardioid
- Iesire impedanta: 600 ohm @ 1 kHz
- Nivel iesire audio: -43.5 dBV/Pa
- Raport semnal-zgomot: 72 dB @ 1 kHz
- SPL maxim: 139 dB @ 1 kHz
- Raza dinamica: 117 dB @ 1 kHz
- Iesire zgomot: 22 dB
- Necesitati alimentare: +5 V DC, 10 max.
- Cablu: 1.3 m
- Conector: TA4F
- Greutate: 25 g
