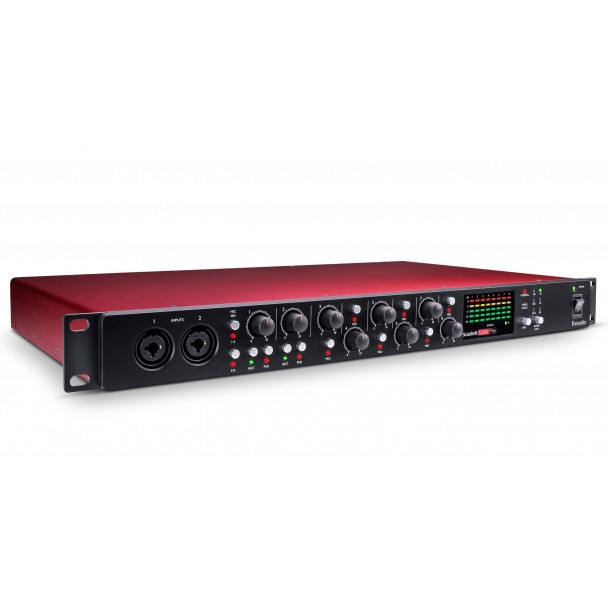

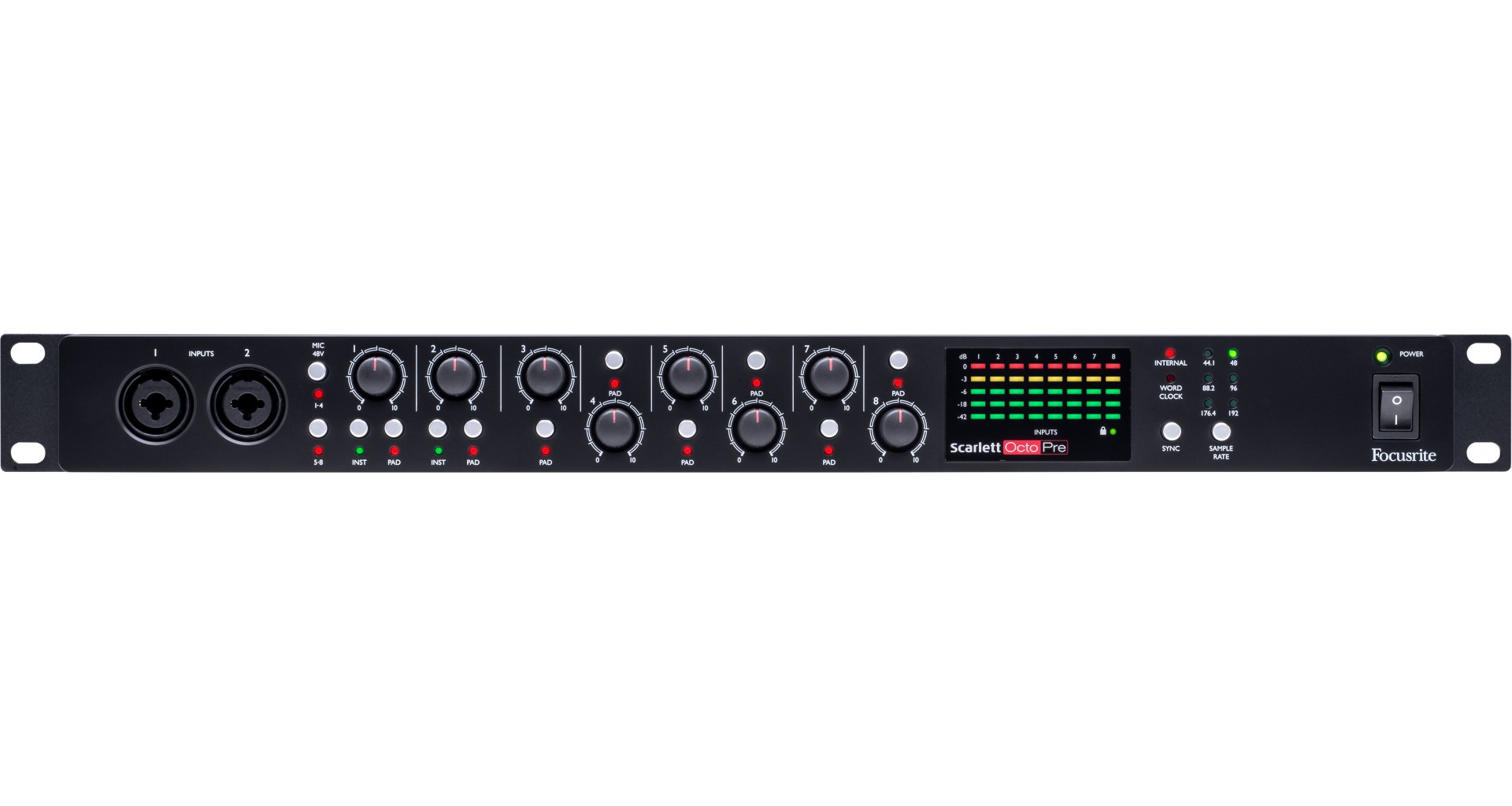

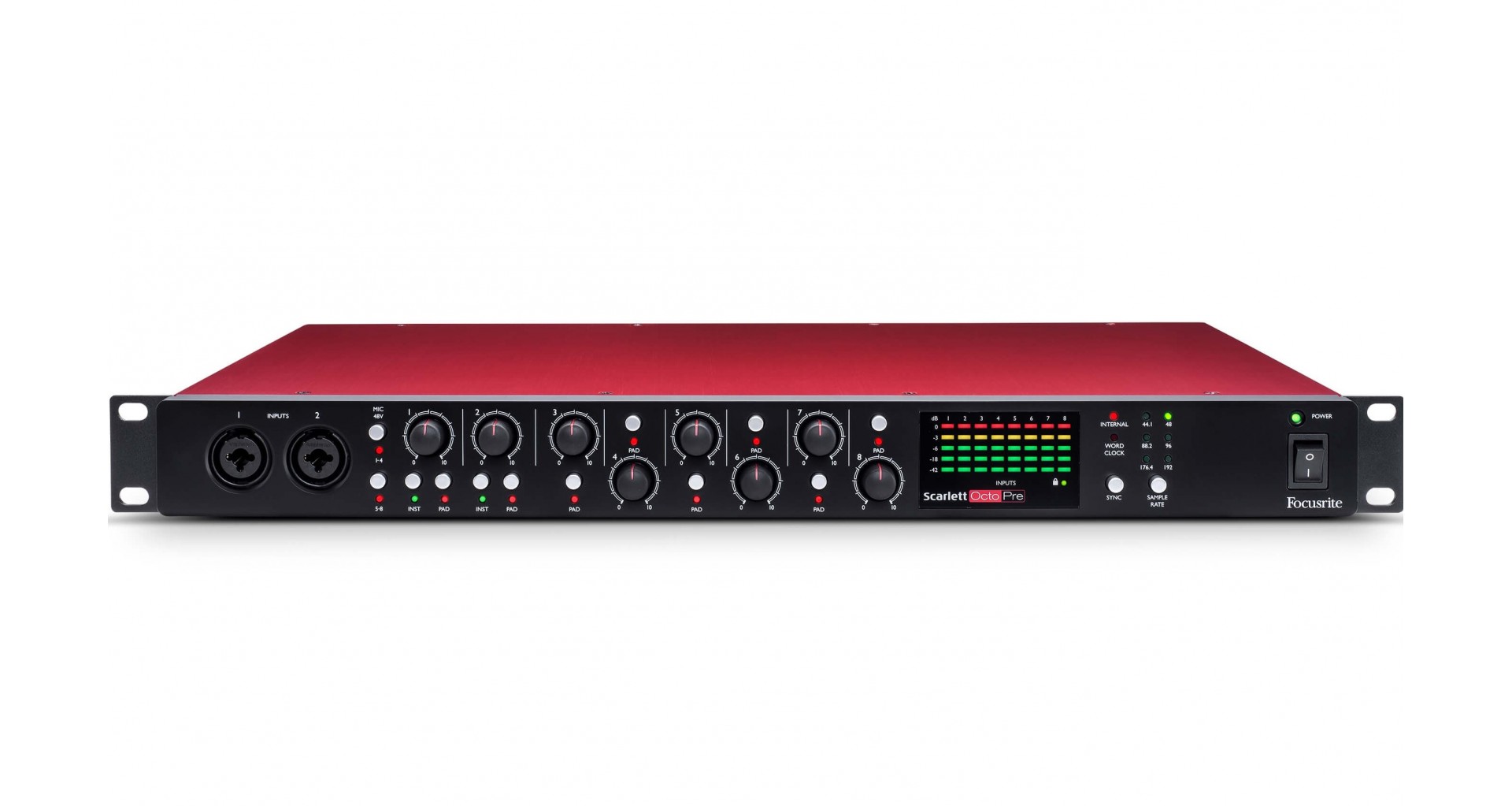

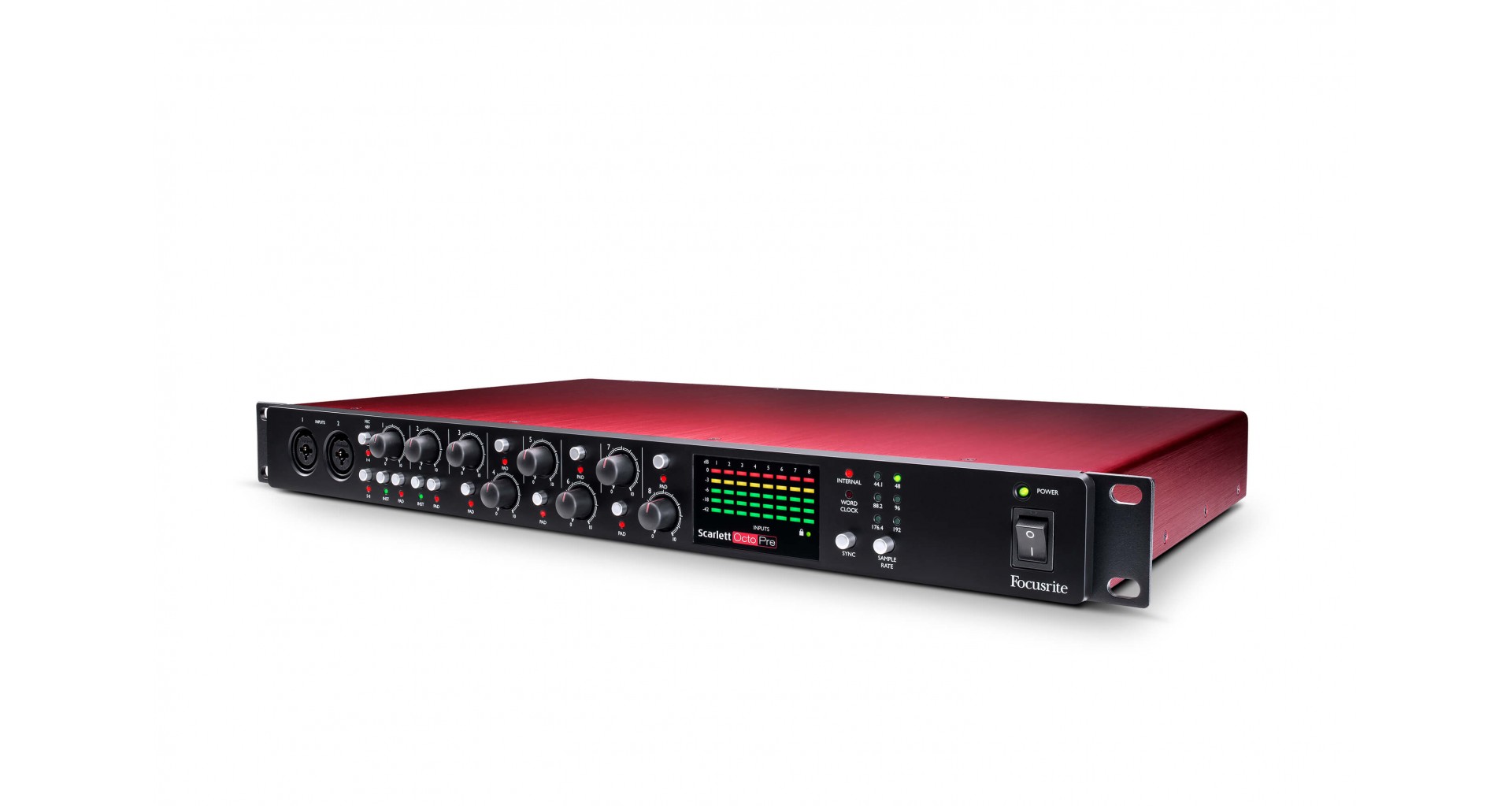

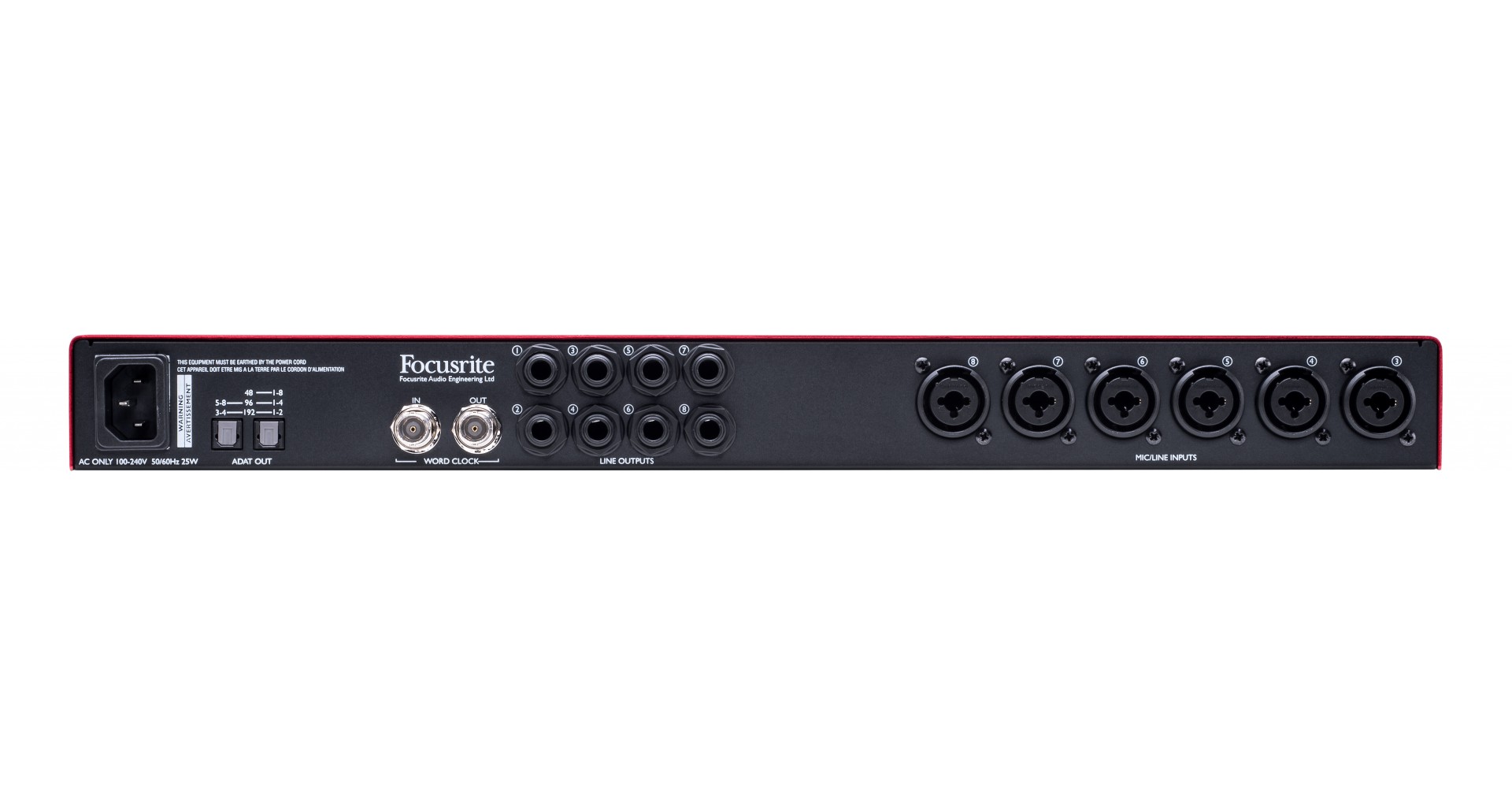

Focusrite Scarlett OctoPre

Caracteristici esentiale Scarlett OctoPre:

• 8 preamplificatoare de microfon cu sunet natural si detaliat
• 8 intrari balansate de linie
• Conversie A-D, D-A la 192 kHz
• Pad pentru extra headroom pe fiecare canal - ideal pentru surse de sunet foarte zgomotoase
• Eight balanced line outputs - ideal for live use
• LED input metering cu 5 segmente
• Conexiune ADAT via cabluri optice
• 48V Phantom power pe fiecare canal
• State-of-the-art digital clocking cu Word Clock I/O pentru sincronizarea cu device-uri externe

Specificatii:

• Max sample rate: 192 kHz
• Dimensiuni: 482 mm x 286 mm x 44.5 mm
• Greutate: 3.7 kg
• Tipul Pream-urilor: Solid State
• Numar Canale: 8
• Phantom Power: Da
• Sampling Rate: pana la 192kHz
• Rata de Conversie: 24 bit
• Gain Range: 50 dB
• Intrari Analogice: 8 x XLR/Jack de 6.3mm combo
• Iesiri Analogice: 8 x Jack de 6.3mm
• Iesiri Digitale: 2 x ADAT (Optic Toslink)
• Word Clock: In/Out
• Unitati de rack ocupate: 1U

Intrari microfon:

• Raspuns in frecvente: 20Hz - 20kHz +0.5/-1.5dB
• Dynamic Range: 109 dB (A-Weighted)
• THD+N: <0.001%
• Noise EIN: -127 dBu
• Maximum input level (fara pad pad): +8 dBu
• Maximum input level (cu pad): +16 dBu
• Gain Range: 50 dB
• Impedanta intrare: 3 kOhm

Intrari linie:

• Raspuns in frecvente: 20Hz - 20kHz +0.5/-1.5dB
• Dynamic Range: 109 dB (A-Weighted)
• THD+N: <0.002%
• Maximum input level: +22 dBu
• Gain Range: 50 dB
• Impedanta intrare: 49 kOhm

Intrari instrument:

• Raspuns in frecvente: 20Hz - 20kHz +0.5/-1.5dB
• Dynamic Range: 108 dB (A-Weighted)
• THD+N: <0.01%
• Maximum input level: +13 dBu
• Gain Range: 50 dB
• Impedanta intrare: 1 MOhm

Iesire line:

• Maximum Output Level (0 dBFS): +16dBu @ 0dBFS, sau >21dBu cand iesirea ADAT nu este folosita
• THD+N: <0.001%
• Impedanta iesire: 136 Ohm (Balansat)

Continutul pachetului:

• Scarlett OctoPre
• Ghid de utilizare
• Cablu de alimentare

Software inclus:

• Plug-in Collective
• Focusrite Red 2 & 3 Plug-in suite
• Softube Time & Tone bundle
