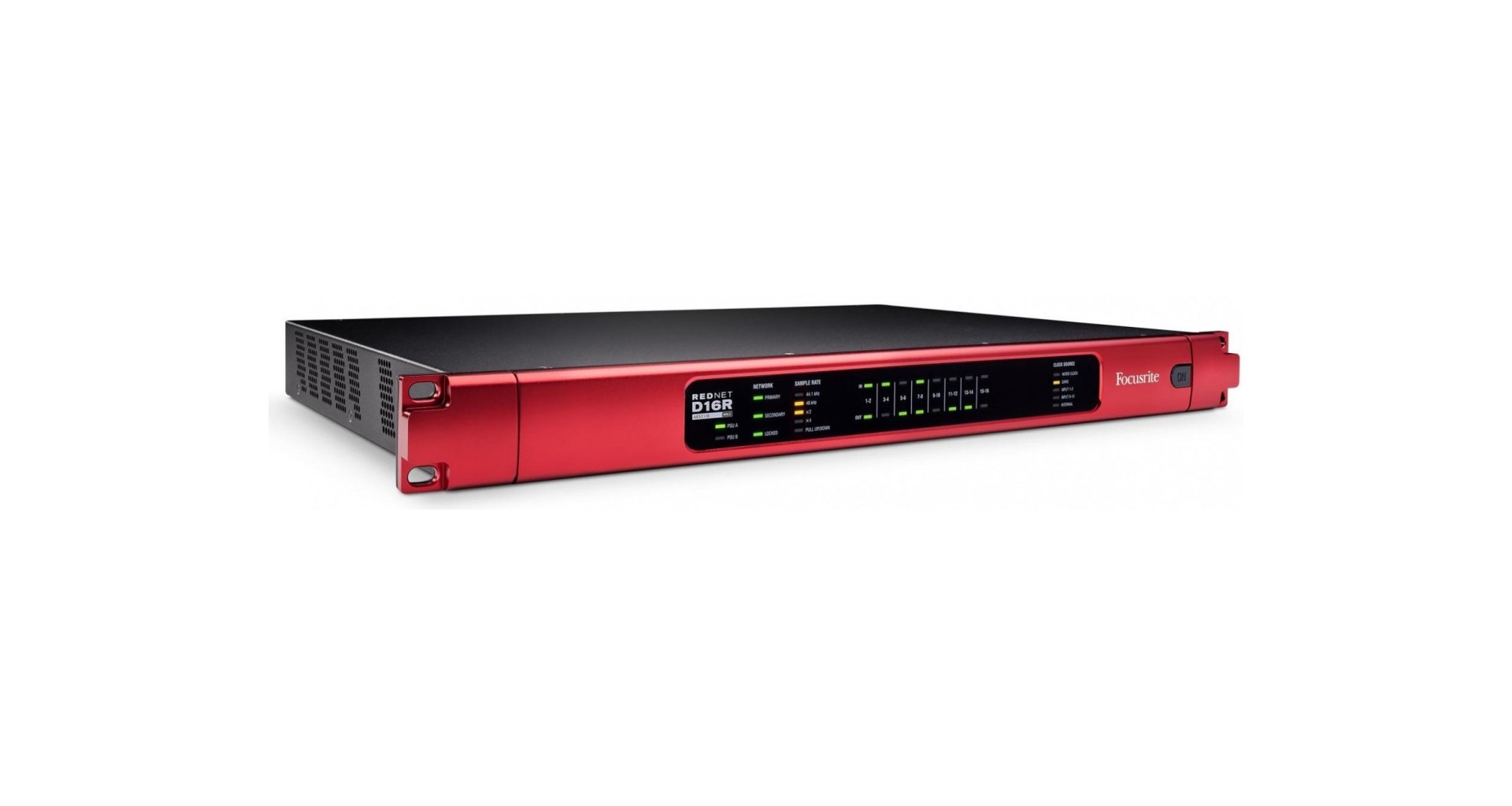

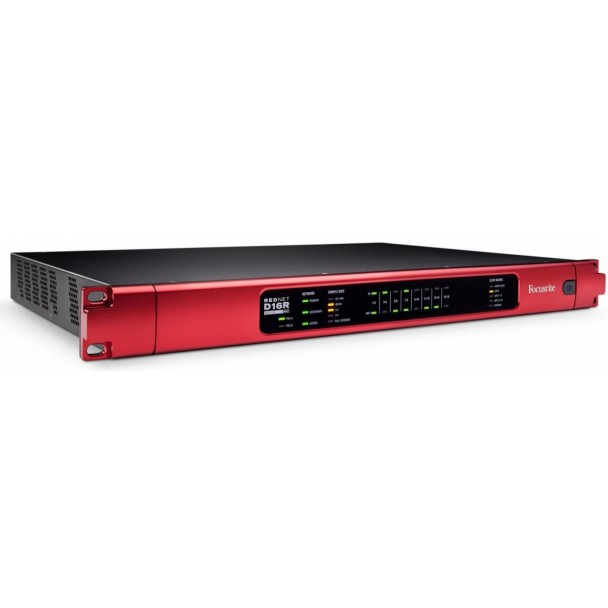

Focusrite RedNet D16R MkII

RedNet Control v2.13 Update

• Focusrite ofera extinderea capacitatii RedNet PCIeNX de la 128x128 la 256x256 canale (pana la 96kHz) prin actualizarea RedNet Control la v2.13 si achizitionarea unei licente de upgrade de la Audinate.
• Detalii si descarcare: RedNet PCIeNX

Caracteristici esentiale:

•  Interfata digitala bidirectionala de 16 canale pentru retelele Dante
•  Control individual al canalelor de intrare si iesire folosind software-ul RedNet Control
•  2 PSU-uri cu locking IEC
•  2 conectori locking etherCON pentru conexiuni Primara si Secundara de retea
•  Protectie la alimentare si retea prin comutare automata in caz de esec
•  Indicatori LED pentru PSU, retea, sample rate, semnal si sursa clock pe panoul frontal
•  Conversie Sample Rate pe toate canalele de intrare
•  2 conectori DB25 cu configuratie standard AES59, fiecare cu cate 8 canale I/O AES3
•  Conectori RCA pentru 2 canale I/O S/PDIF
•  Conexiuni XLR pentru extra I/O AES3 si intrare DARS
•  Conectori BNC pentru I/O World Clock
•  Incinta compacta 1U ce permite functionalitate maxima intr-un spatiu minim
•  Operabilitate maxima cu toate interfetele Red si RedNet, plus dispozitive Dante de la sute de producatori
•  Control la distanta folosind RedNet Control si Dante Controller

Garantie:
Te poti baza oricand si in orice colt al lumii pe o garantie de 3 ani pentru produsele Focusrite Pro ce necesita reparatie sau inlocuiri din vina fabricantului.

Continut cutie:

•  RedNet D16R MkII
•  2x cabluri IEC AC
•  2x clapete de retinere IEC
•  Focusrite Pro ghid informatii importante
•  Focusrite Pro ghid informatii importante cu link catre:
•  RedNet Control
•  Drivere RedNet PCIe
•  Audinate Dante Controller

Specificatii:

Input / Output Trim

•  Input Trim: -78 to 0dB in 1dB steps (per canal)
•  Output Trim: -78 to 0dB in 1dB steps (per canal)

Convertori sample rate intrare

•  Sample Rate Range: 32 - 216 kHz
•  Gain Error: -0.3dB
•  Gama dinamica: >. 138dB (-60 dBFS method)
•  THD + N: <. -130dB (0.00003%). 0 dBFS input
•  Latenta: 11 - 45 sample-uri

Performanta digitala

•  Sample rate-uri suportate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
•  Surse clock : Internal, Word Clock, DARS, AES3 input 1-2, AES input 9-10 or from Dante Network Master.
•  External word clock range: Nominal sample rate ±7.5%

Conectivitate panou spate

AES3

•  Channel Count: 16 x 16 AES3 channels
•  Input and Output: 2 x DB-25 connectors (AES59 Combined I/O / Tascam Digital)
•  Alternate Input (optional DARS): 1 x Female XLR (replaces DB-25 channels 1-2)
•  Alternate Output: 1 x Male XLR (duplicates DB-25 channels 1-2)

S/PDIF

•  Channel Count: 2 x 2 S/PDIF Channels (reduces AES3 input channels)
•  Input: 1 x RCA phono socket (replaces DB-25 channels 3-4)
•  Output: 1 x RCA phono socket (switchable, duplicates any DB-25 channel pair)

Word Clock

•  Input: 1 x BNC 75Ohm port (switchable termination)
•  Output: 1 x BNC 75Ohm port

PSU & Network Connections

•  PSU: 2 x IEC Inputs with retaining clips.
•  Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors (Accomodates rugged etherCON NE8MC*. Does not intermate with Cat 6 cable connector NE8MC6-MO and NKE65* cable)

Front Panel Indicators

•  Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
•  Secondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
•  Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or Secondary network port will cause this LED to illuminate.
•  Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode.
•  Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master, shows lock to indicated clock source. Flashing indicates external clock is selected but not connected.
•  Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4.
•  Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain.
•  Signal Indicators: 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS.
•  Clock Source: Orange LED for each: Internal, Word Clock, DARS, Input 1-2 and Input 9-10.

Network Modes

•  Redundant: Allows unit to connect to two independent networks.
•  Switched: Connects both ports to integrated network switch allowing daisy-chaining of devices.

Power

•  PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 30W

Heat Performance

• Operating Temperature: Operates at up to an ambient temperature of 50 degrees Celcius
