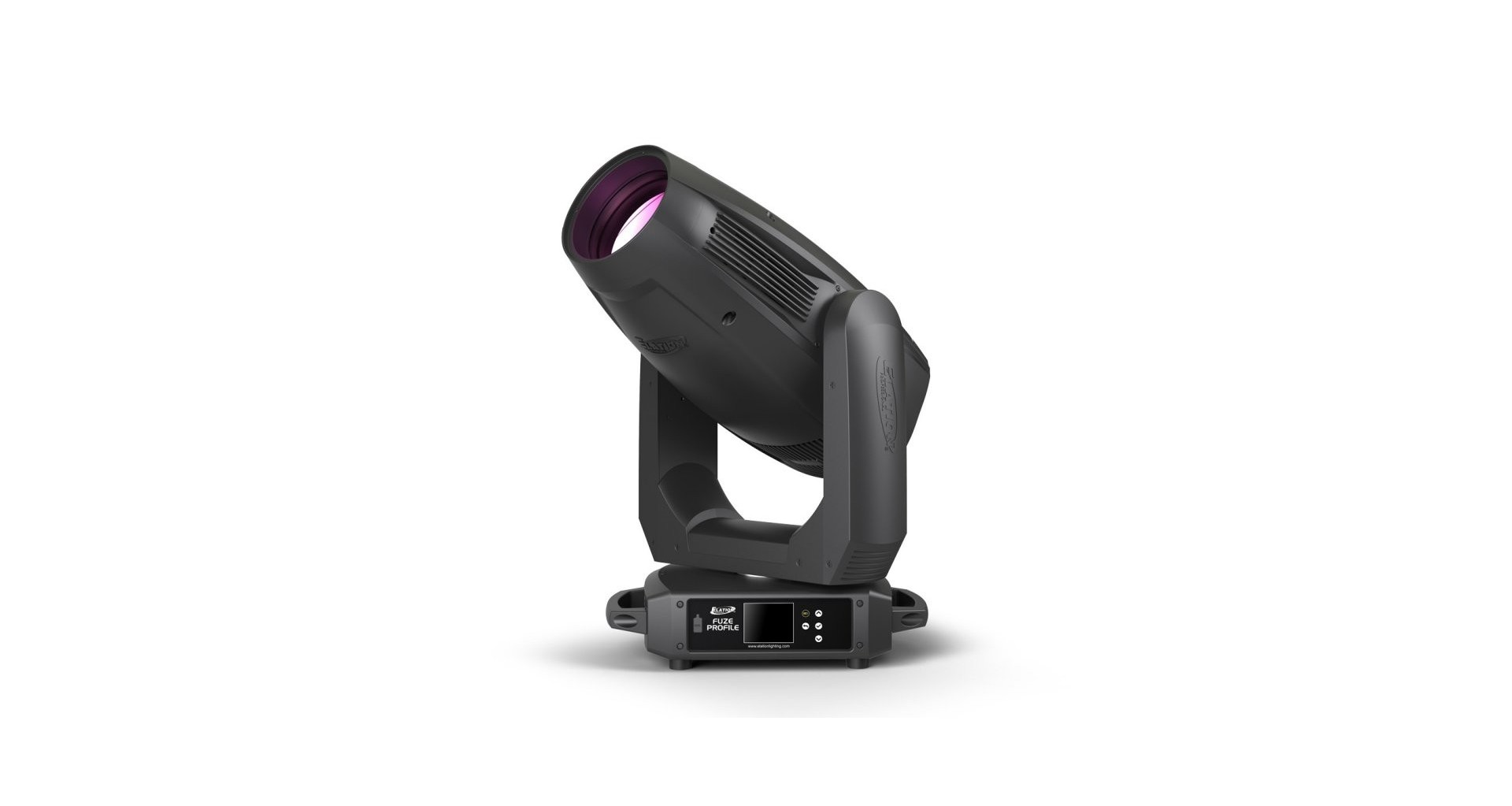

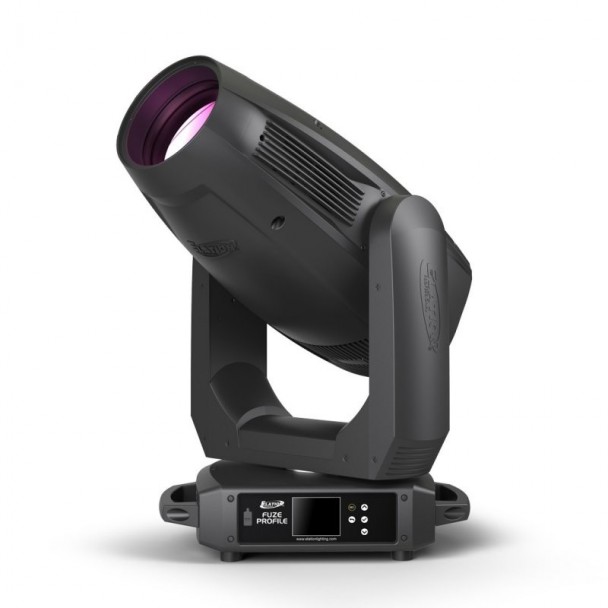

Elation Fuze Profile

FEATURES
Extended color RGBMA LED Engine, 92 CRI
Rotating and Fixed Gobo plus Animation Wheel
Full Blackout Framing System
Wide Zoom Range from 7gr to 46gr

SOURCE
305W 6,500K RGBMA LED Engine, 92 CRI
30,000 Hour Average LED Life*

PHOTOMETRIC DATA
9,000+ Total Lumen Output

EFFECTS
7gr - 46gr Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 45 Index
Variable Frost Filter
4 Facet Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe

COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book

GOBOS
1x 6 Rotating / Indexing Interchangeable Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel

CONTROL / CONNECTIONS
2 DMX Channel Modes
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180gr Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement
5pin DMX In/Out
Neutrik powerCON TRUE1 Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 16.0&rdquo. (407mm)
Width: 10.1" (256mm)
Vertical Height: 27.4" (698mm)
Weight: 55.1 lbs. (25kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
W Max Power Consumption
14grF to 113grF (-10grC to 45grC)

OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
