DAP Audio GIG-124CFX Mixer analog

ZD-026258

DAP Audio
DAP Audio GIG-124CFX

Descriere scurta:

Mixer analog cu 12 canale DAP Audio GIG-124CFX.

Unitate de vanzare: bucata


Specificatii:

   Numar canale: 12
Intrari mono: 6
Intrari stereo: 4


Vezi descrierea completa

Daca achizitionati acest produs, veti primi 140 puncte de loialitate. In cosul dumneavoastra veti avea in total 140 puncte care poate/pot fi schimbat(e) intr-un voucher de reducere, disponibil la urmatoarea achizitie, in valoare de 14 Lei.

Nou

Pret cu TVA inclus:1,407 Lei

1,407 Lei pe bucata

In rate de la 234.50 Lei / luna - vezi detalii


IN STOC FURNIZOR
Produsul este disponibil la furnizor si poate fi livrat in maxim 12 zile lucratoare.


Comanda telefonic: 0735.088.888

Garantie: 24 Luni

Transport: GRATUIT

Retur: 14 Zile

Vezi Modalitatile de Plata

Review-uri Clienti: (0)

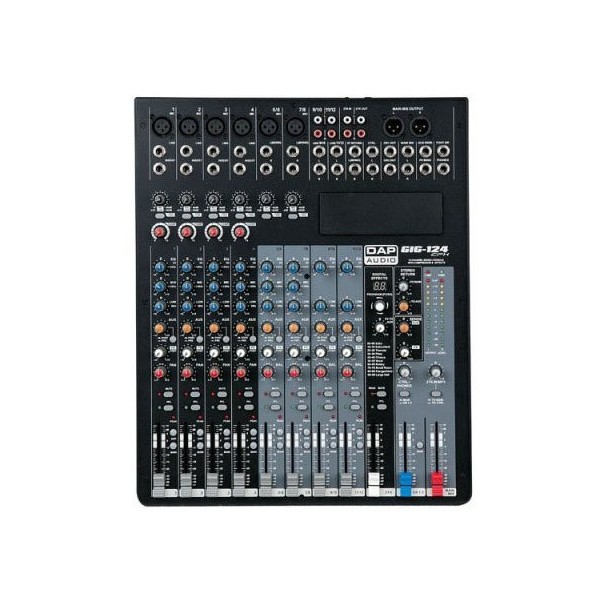

Mixer analog DAP Audio GIG-124CFX:


The GIG-124 CFX Mixing Console is packed with features that cannot be found in other consoles of it"s size: 6 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as 2 auxiliary control, build-in 24-bit DSP effect with 100 presets, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs.




Specifications



Mono Channels
Mic Input: XLR balanced
Line input: 1/4&ndash. TRS balanced
Freq response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD=N): &lt.0,03% @ 0dB, 22Hz ~ 22kHz
Gain range: 50dB
Input sensitivity: -35dBu ~ +15dBu
LOW Cut: 75Hz
SNR &lt.-100dBr
Phantom Power: +48V switchable

Stereo Channels
Mic Input: XLR balanced
Line input: 1/4&ndash. TRS/RCA unbalanced
Freq response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD=N): &lt.0,03% @ 0dB, 22Hz ~ 22kHz
Gain range: 50dB
Input sensitivity: -20dBu ~ +20dBu
LOW Cut: 75Hz
SNR &lt.-100dBr
Phantom Power: +48V switchable

Channels EQ
High: +/- 15dB @ 12kHz
Mid: +/- 15dB @ 2,5kHz
Low: +/- 15dB @ 80Hz

Impedances
Microphone input: 1,8K Ohm
Other inputs: &gt.10K Ohm
Tape output: 1K Ohm
All other outputs: 120 Ohm

Power supply: AC 100- 240V 50Hz/60Hz
Power consumption: 40 Watt
Measurements: 416 x 340 x 93mm
Weight: 3,96 Kg
Vezi Specificatiile Tehnice
Numar canale12
Intrari mono6
Intrari stereo4
Tip produsMixer analog
