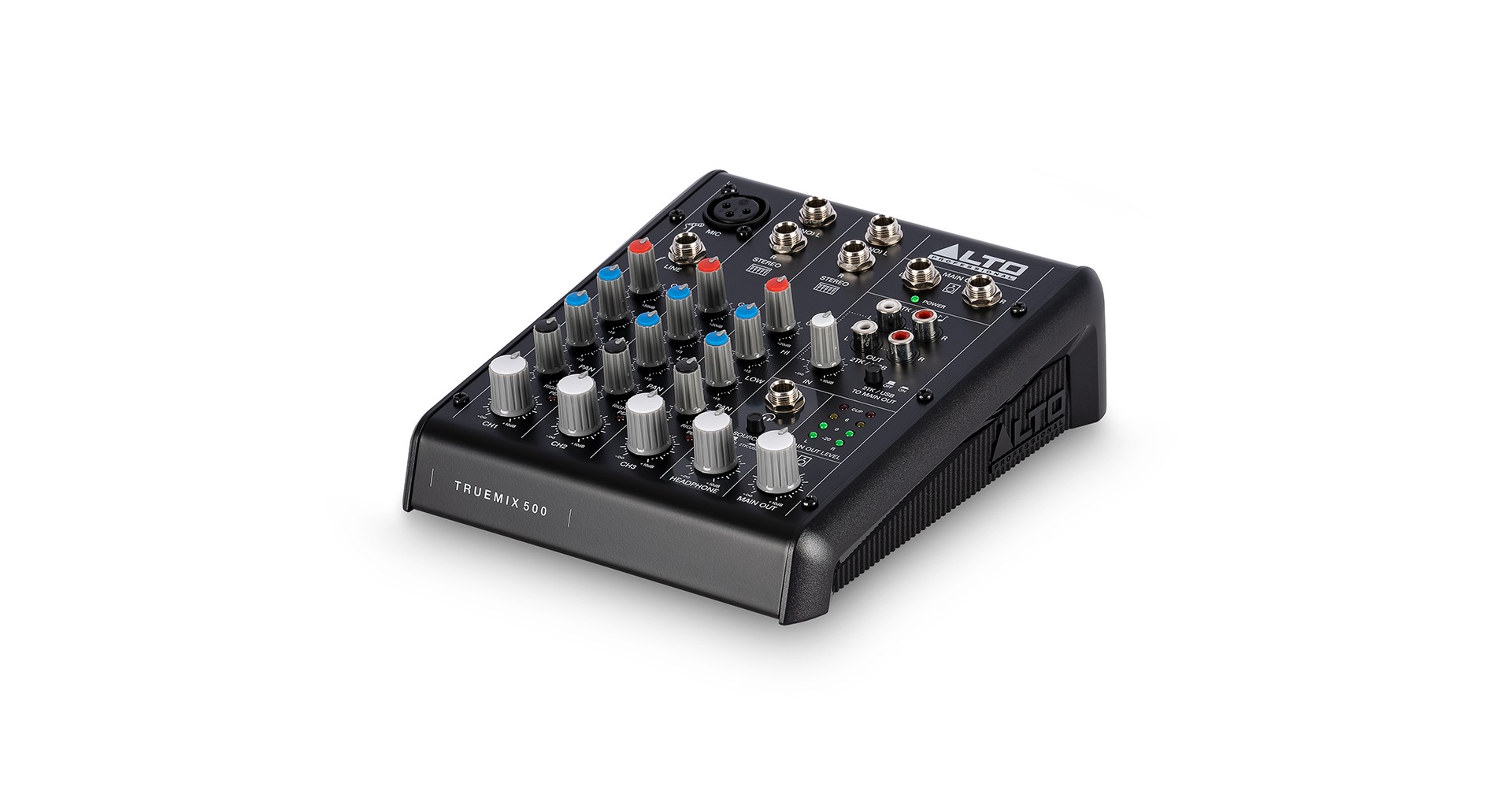

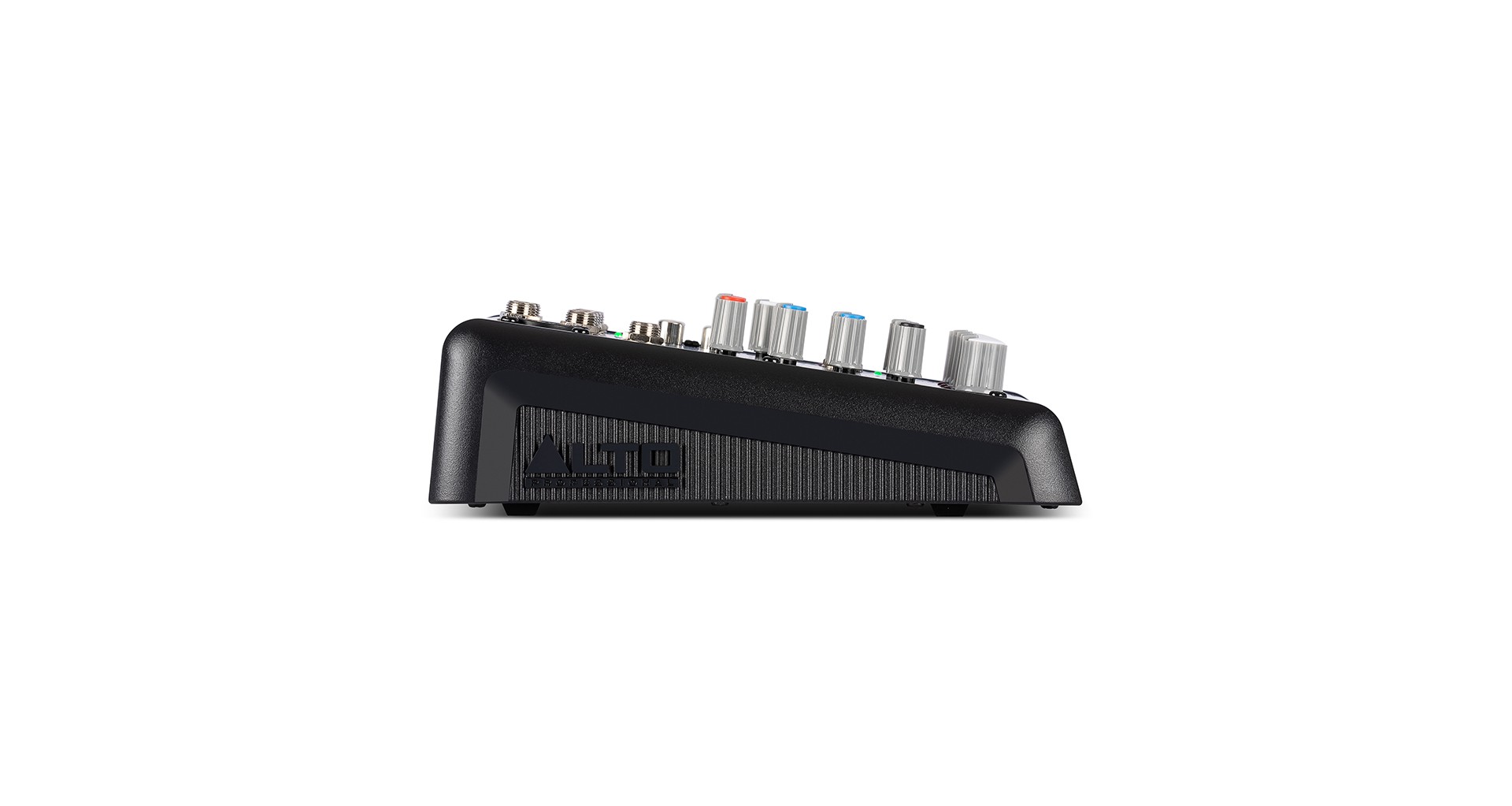

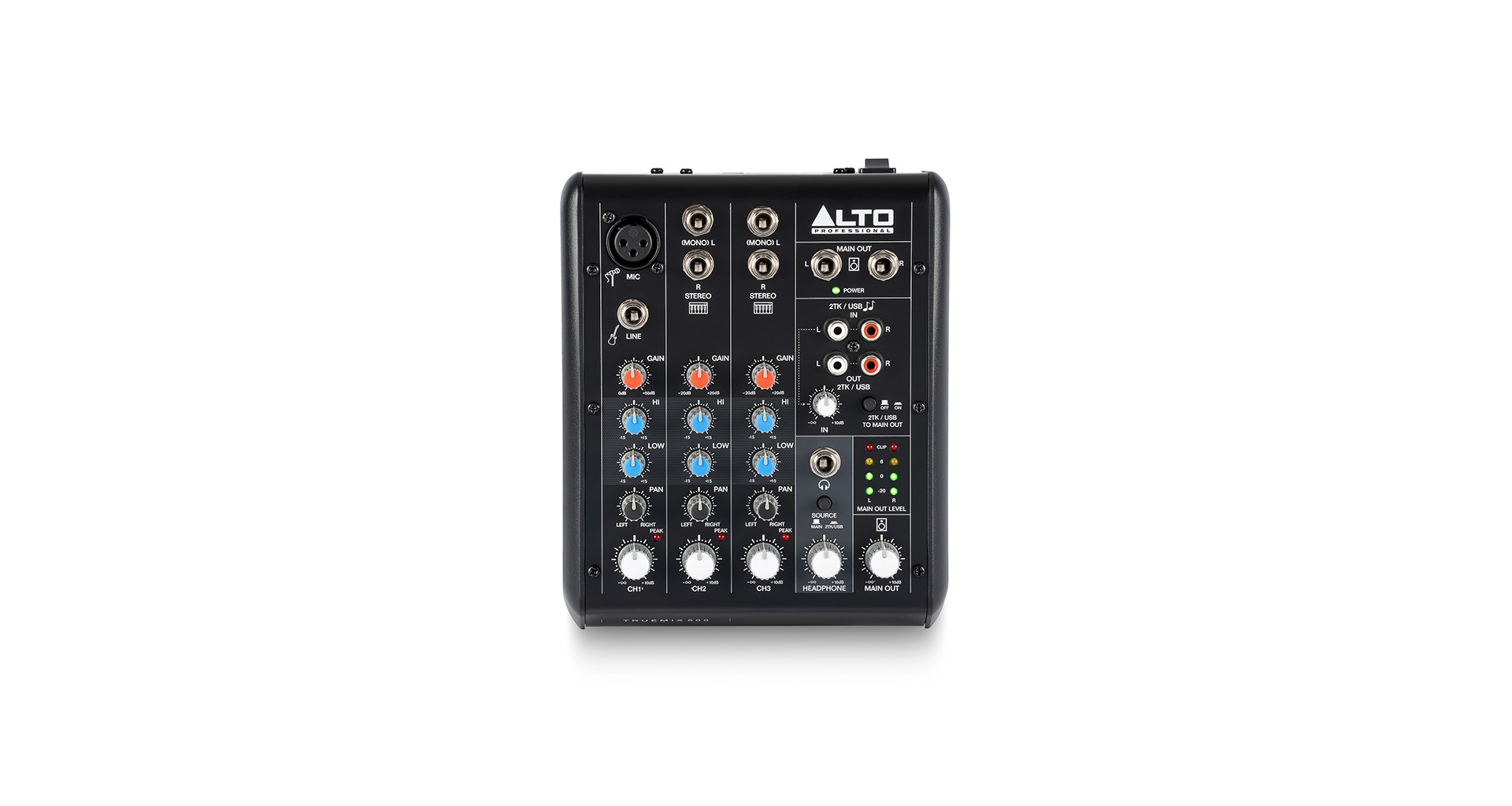

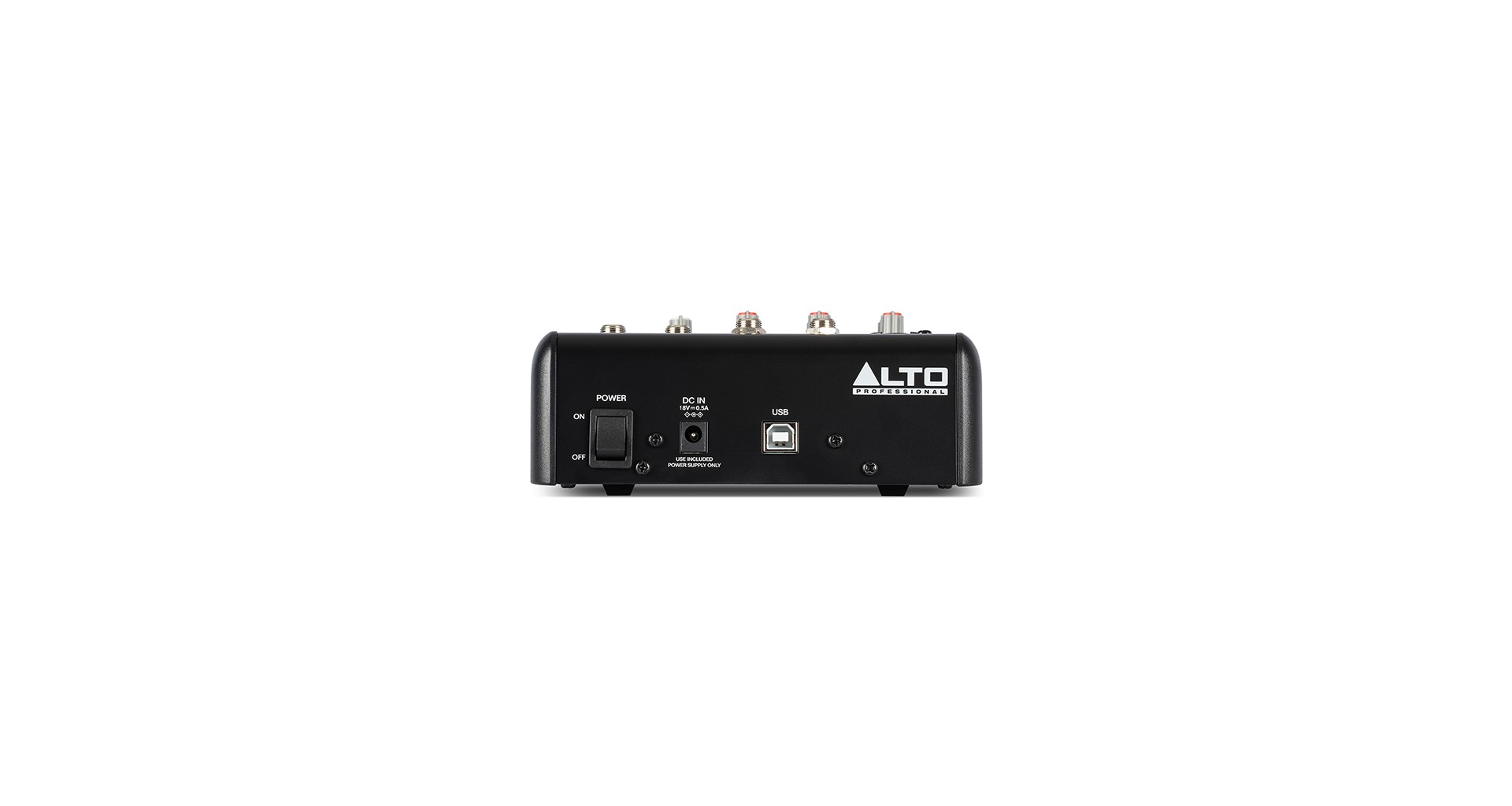

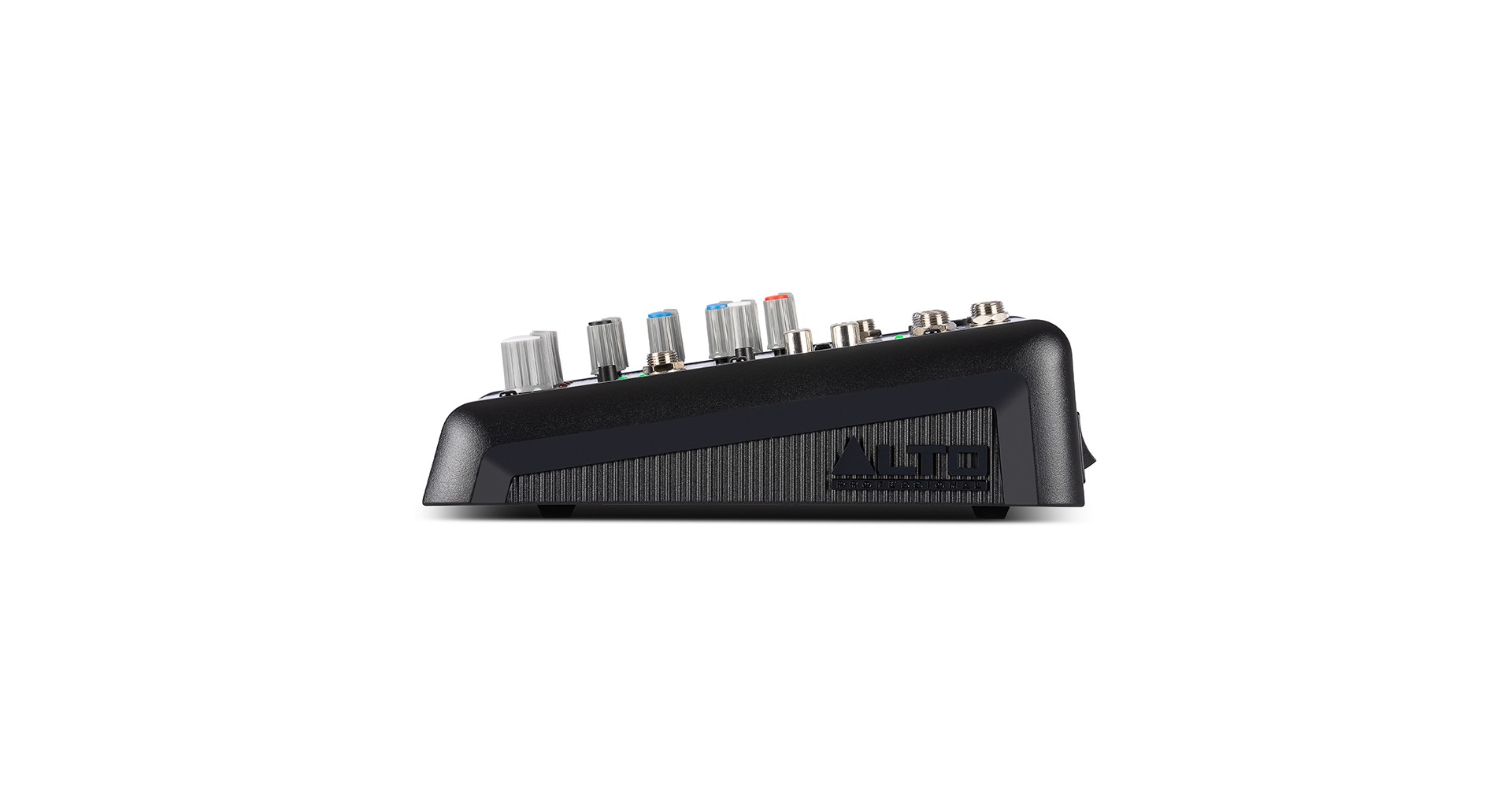

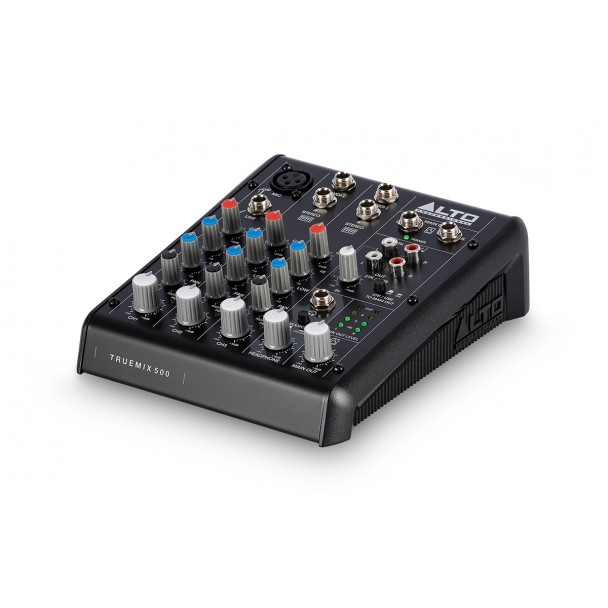

Alto TrueMix 500

Specificatii tehnice:

Raspuns in frecventa (±1 dB): 20 Hz – 22 kHz
THD+N (@ 4 dBu, 1 kHz): < 0.005%

Intervale Gain:

• Intrari Mic (Canal 1): 0 – 44 dB
• Intrare de linie (Canal 1): 12 – 30 dBu
• Intrari de linie (Canalele 2/3): 0 dBu

Gain:

• 74 dB (Intrare Mic catre Iesire Main si Iesire 2TK)
• 80 dB (Intrare Mic catre Iesire Phones)
• 30 dB (Intrare de linie catre Iesire Main)
• Raport semnal zgomot (SNR): >110 dBu

Impedanta:

• Intrari Mic: 3.9 kΩ
• Toate celelalte intrari: > 10 kΩ
• Iesire 2TK: 1 kΩ
• Toate celelalte iesiri: 120 Ω

Diafonie:

• Intrari adiacente: < -80 dB @ 1 kHz
• Intrari catre iesiri: < -75 dB @ 1 kHz (stereo L/R, canal 1, rotit puternic la stanga sau la dreapta)

Equalization:

• High: ±15 dB @ 12 kHz
• Low: ±15 dB @ 80 Hz

Conectori:

• 2 x Iesiri TRS de 1/4” (6,35 mm)
• 2 x Intrari stereo TRS L/R de 1/4” (6,35 mm)
• 1 x Iesire pentru casti TRS de 1/4” (6,35 mm)
• 1 x Intrare mono TRS de 1/4" (6,35 mm)
• 1 x Intrare XLR
• 1 x Intrare stereo RCA L/R
• 1 x Iesire stereo RCA L/R
• 1 x Intrare USB tip B
• 1 x Intrare DC power

Comenzi:

• 1 x Power switch
• 6 x Knob-uri Volum control (1 pentru intrare si iesire)
• 3 x Knob-uri Gain control (1 pe canal)
• 3 x Knob-uri EQ Hi control (1 pe canal)
• 3 x Knob-uri EQ Low control ( 1 pe canal)
• 3 x Knob-uri Stereo Pan control (1 pe canal)
• 2 x Butoane locking switch

Indicatori:

• 1 x Power LED
• 3 x Peak LED
• 8 x Main Out Meter LED

Main Mix:

• Iesire Main: 2x TRS balansate de 1/4" (6.35 mm), +22 dBu max iesire
• Iesire 2TK: 2x RCA balansate, 0 dBu max iesire
• Iesire casti: 1x TRS stereo de 1/4" (6.35 mm), 160 mW @ 32 Ω

Alimentare: 18V DC, 500mA
Consum energie: 9W
Dimensiuni: 159.5 x 193 x 66 mm
Greutate: 900g
