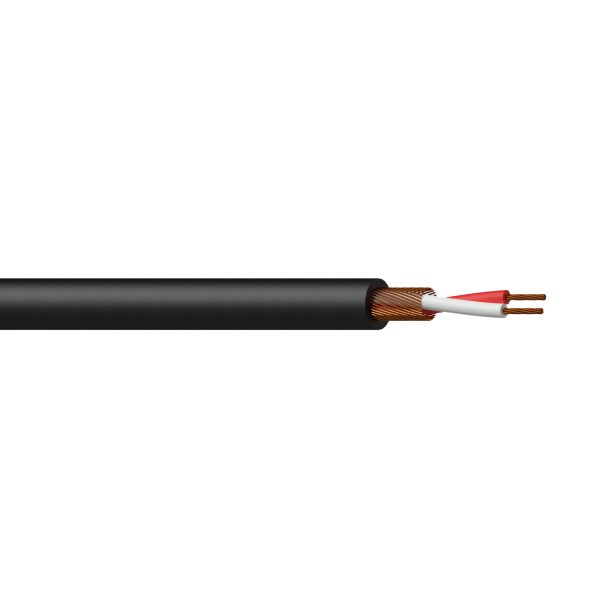

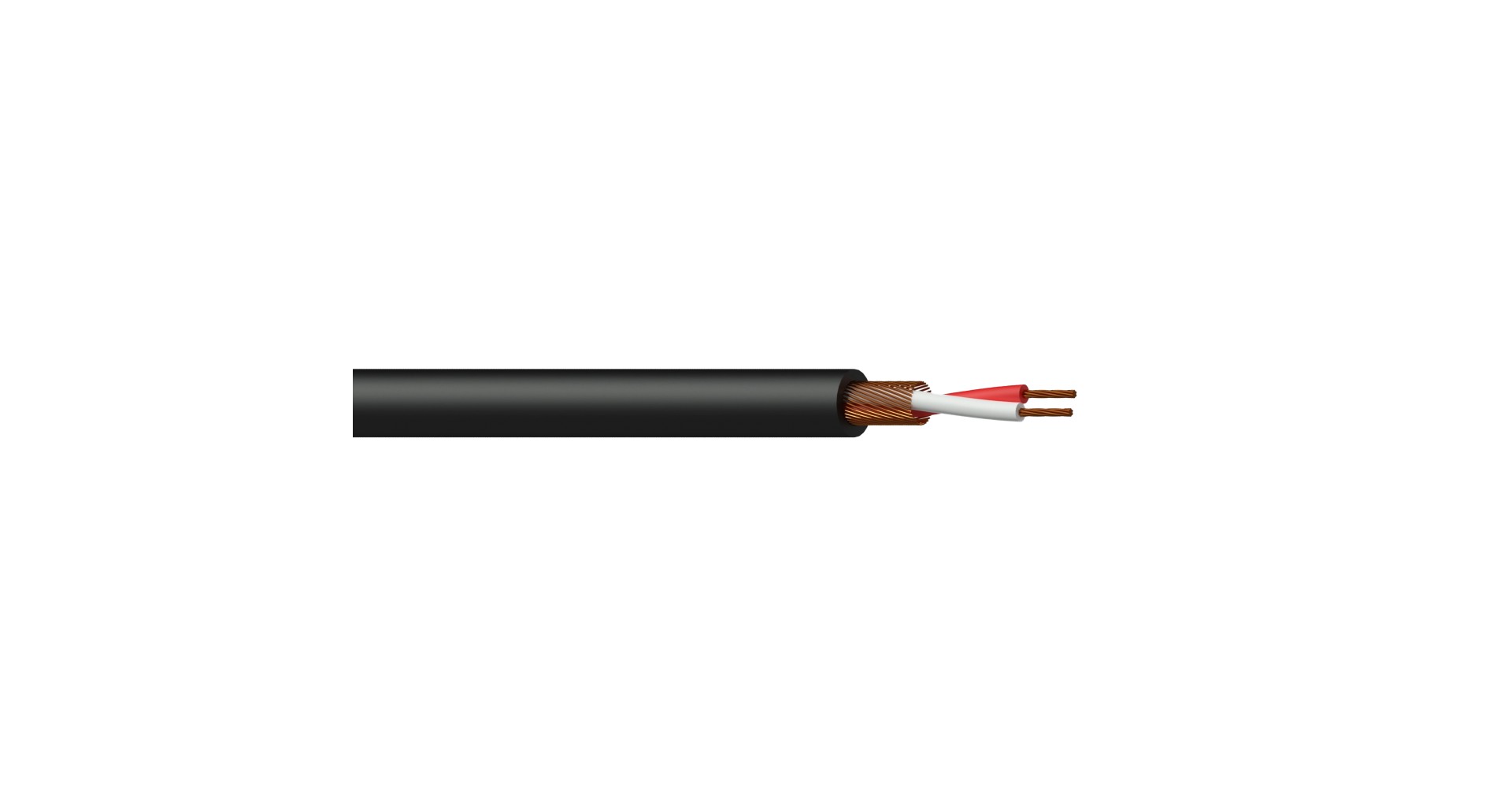

ProCab MC105B

Caracteristici:

Conductor intern: Material - LDPE (polietilena de densitate joasa), 1 mm (Ø)
Culori: Alb / Rosu
Ecranare: Spiralata, BC 32 x 0.12 mm (Ø)
Izolatie exterioara: Material - PVC flexibil, 3.5 mm (Ø)
Conductor intern: Material - BC 7 x 0.15 mm (Ø) (OFC)
Sectiune transversala: 0.123 mm²
Numar de conductori: 2

Caracteristici mecanice:

Interval de temperatura: Instalatie fixa: -40 °C pana la +80 °C; Instalatie mobila: -25 °C pana la +70 °C
Raza de indoire: Instalatie fixa: 6 x diametrul exterior; Instalatie mobila: 8 x diametrul exterior

Caracteristici electrice:

Capacitate: Conductor/Ecranare: 59 pF / m la 1 MHz; Conductor/Conductor: 90 pF / m la 1 MHz
Impedanta: 95 Ω ± 1 Ω
