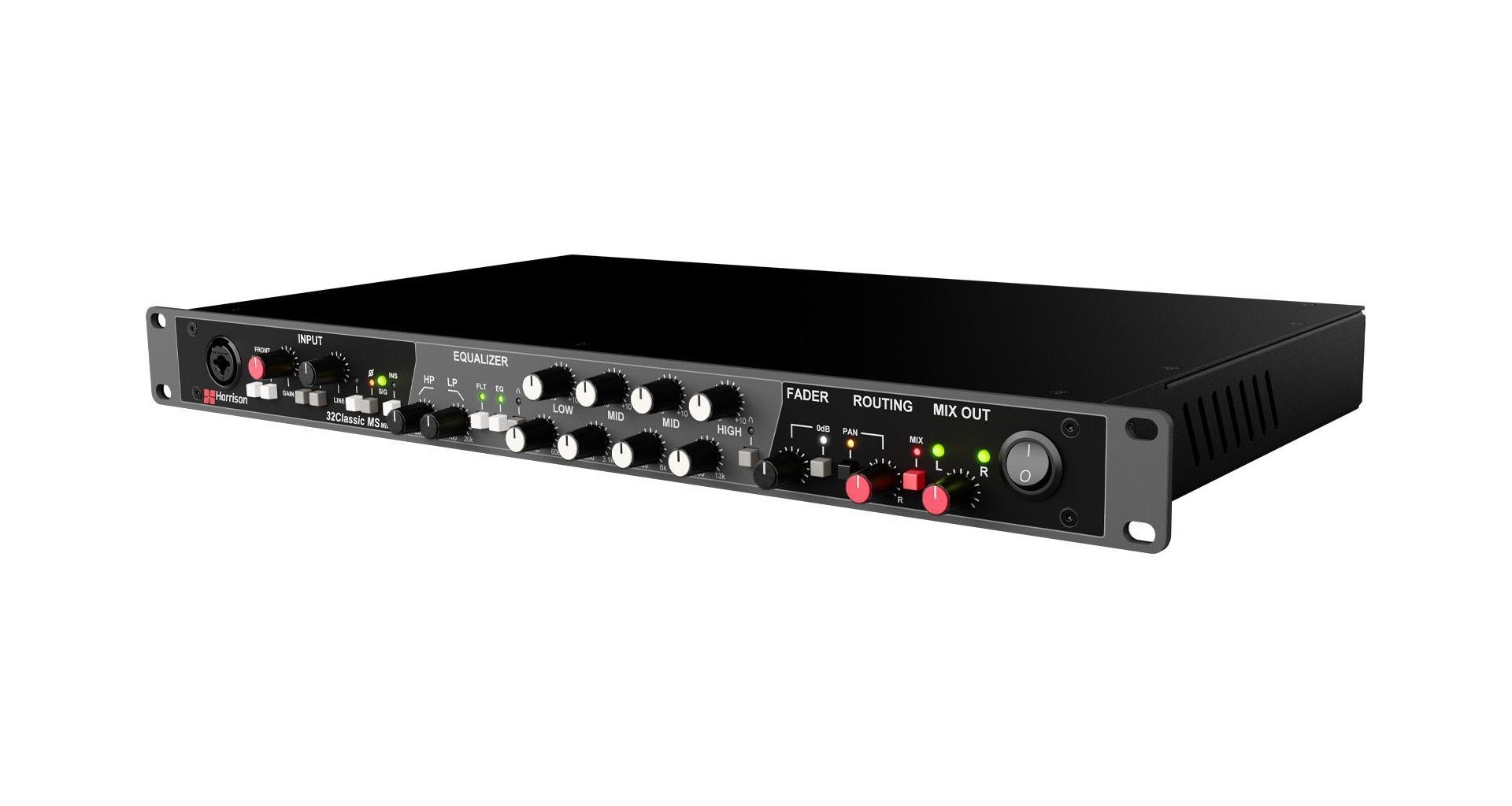

Harrison Audio 32Classic MS Mix Strip

Specificatii tehnice

Preamp Microfon / Intrare instrument (Specificatii comune):

• Gain minim (Pad dezactivat): 20 dB, +/- 1 dB
• Gain maxim: 70 dB, -0.5 / +1.75 dB
• Raspuns in frecventa: 20 Hz – 20 kHz, +/- 0.25 dB
• Pad de intrare: -20 dB
• Nivel maxim de intrare, Pad dezactivat: +4 dBu
• Nivel maxim de intrare, Pad activat: +24 dBu

Preamp de microfon:

• Transformator de microfon Jensen
• THD+N (1 kHz -20 dBu @ 40 dB Castig): < 0.004%
• Zgomot A-ponderat (@ 40 dB Castig): -84 dBu
• EIN (sursa 150 Ω): < -127 dBu
• Impedanta de intrare, Pad dezactivat: 6.8 kΩ
• Impedanta de intrare, Pad activat: 1.3 kΩ
• Phantom Power: +48V, comutabil

Intrare instrument:

• THD+N (1 kHz -10 dBu @ 40 dB Castig): < 0.01%
• Zgomot A-ponderat (@ 40 dB Castig): -71 dBu
• Impedanta de intrare: 1.2 MΩ

Intrari de linie (Line Input, Insert Return):

• THD+N (1 kHz 10 dBu @ Unity Gain): < 0.002%
• Zgomot A-ponderat (@ Unity Gain): -94 dBu
• Raspuns in frecventa: 20 Hz – 20 kHz, +/- 0.25 dB
• Reglaj linie: +/- 10.5 dB
• Impedanta de intrare: 10 kΩ
• Nivel maxim de intrare, Pad activat: +24 dBu

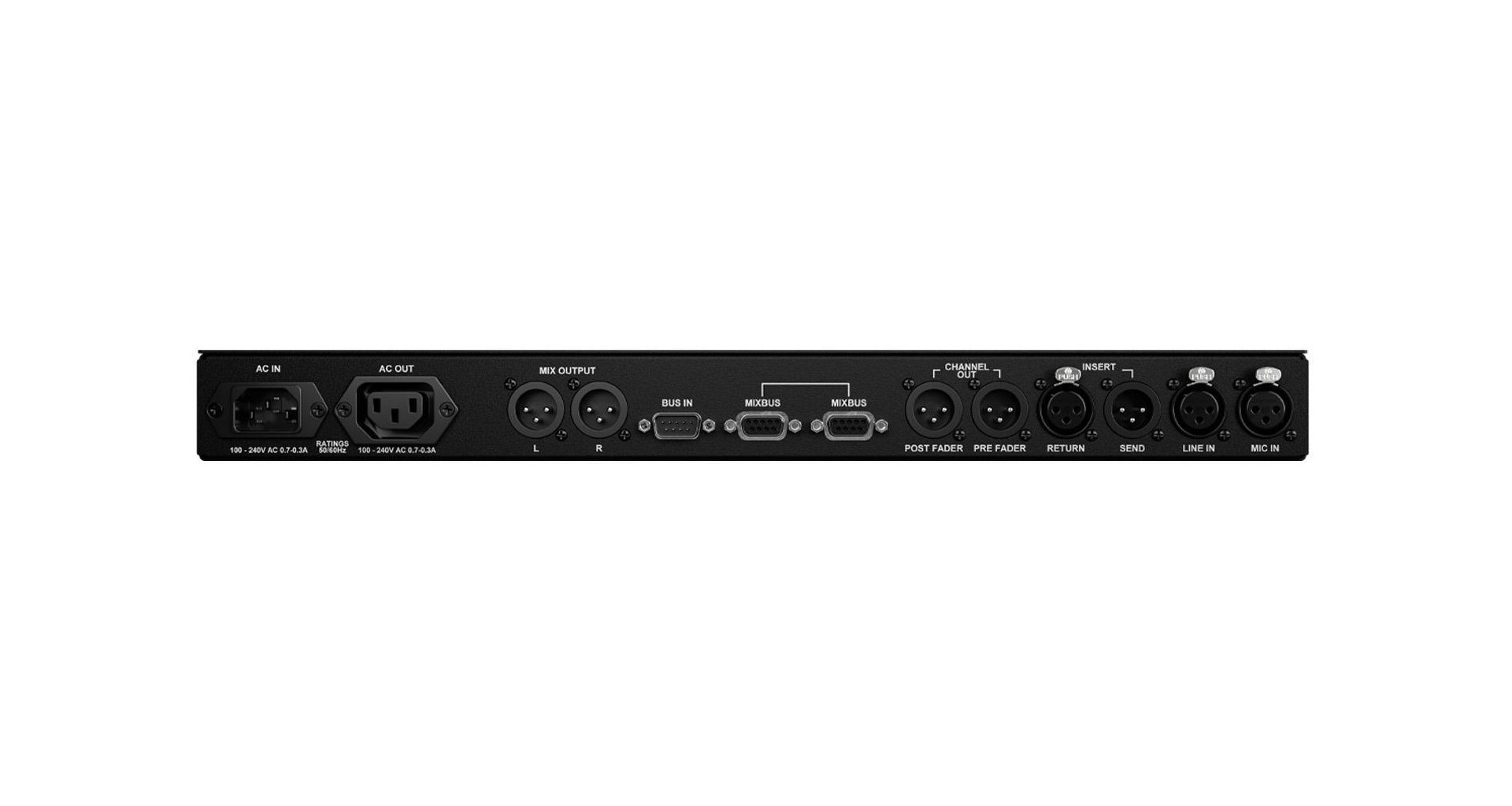

Iesiri de linie (Insert Send, Pre Fader, Post Fader, Mix Left, Mix Right):

• Balansate electronic
• Nivel maxim de iesire: +24 dBu
• Impedanta de iesire: 30 Ω
• Insert Send, Pre Fader, Post Fader (@ Unity Gain):
• THD+N (1 kHz 10 dBu @ Unity Gain): < 0.0008%
• Zgomot A-ponderat: < -99 dBu
• Mix Left, Mix Right:
• THD+N (1 kHz 10 dBu @ Unity Gain): < 0.001%
• Zgomot A-ponderat (@ Unity Gain): < -95 dBu
• Legea panoramarii: -3 dB

Indicatori de semnal:

3 x LED-uri bi-color pentru prezenta semnalului

• Verde >= -14 dBu
• Galben >= 4 dBu
• Rosu >= 18 dBu

Dimensiuni:

• Latime: 482 mm
• Inaltime: 44 mm (1 RU)
• Adancime (de la spatele urechilor de rack): 260 mm
• Greutate: 3.67 kg
