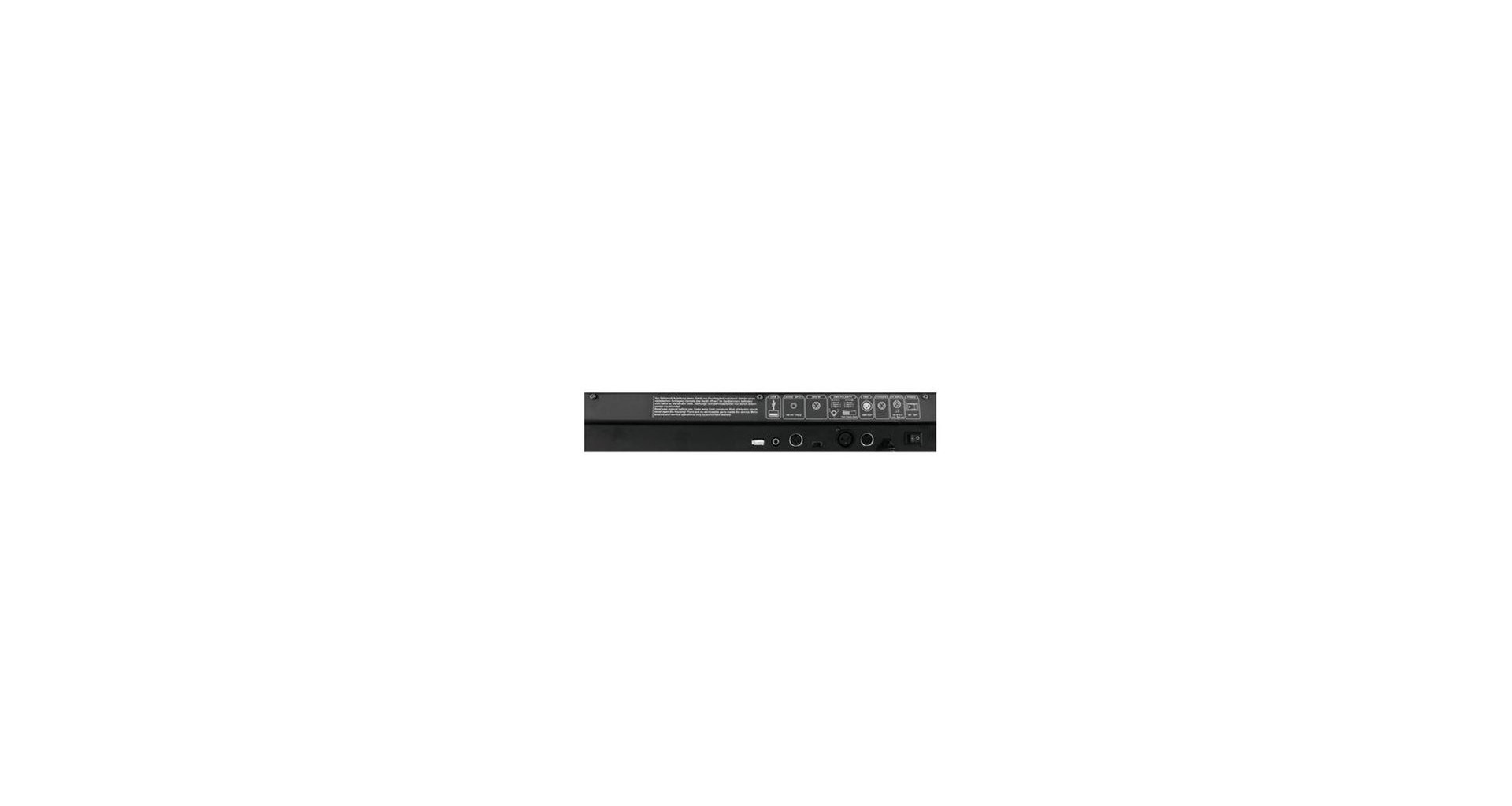

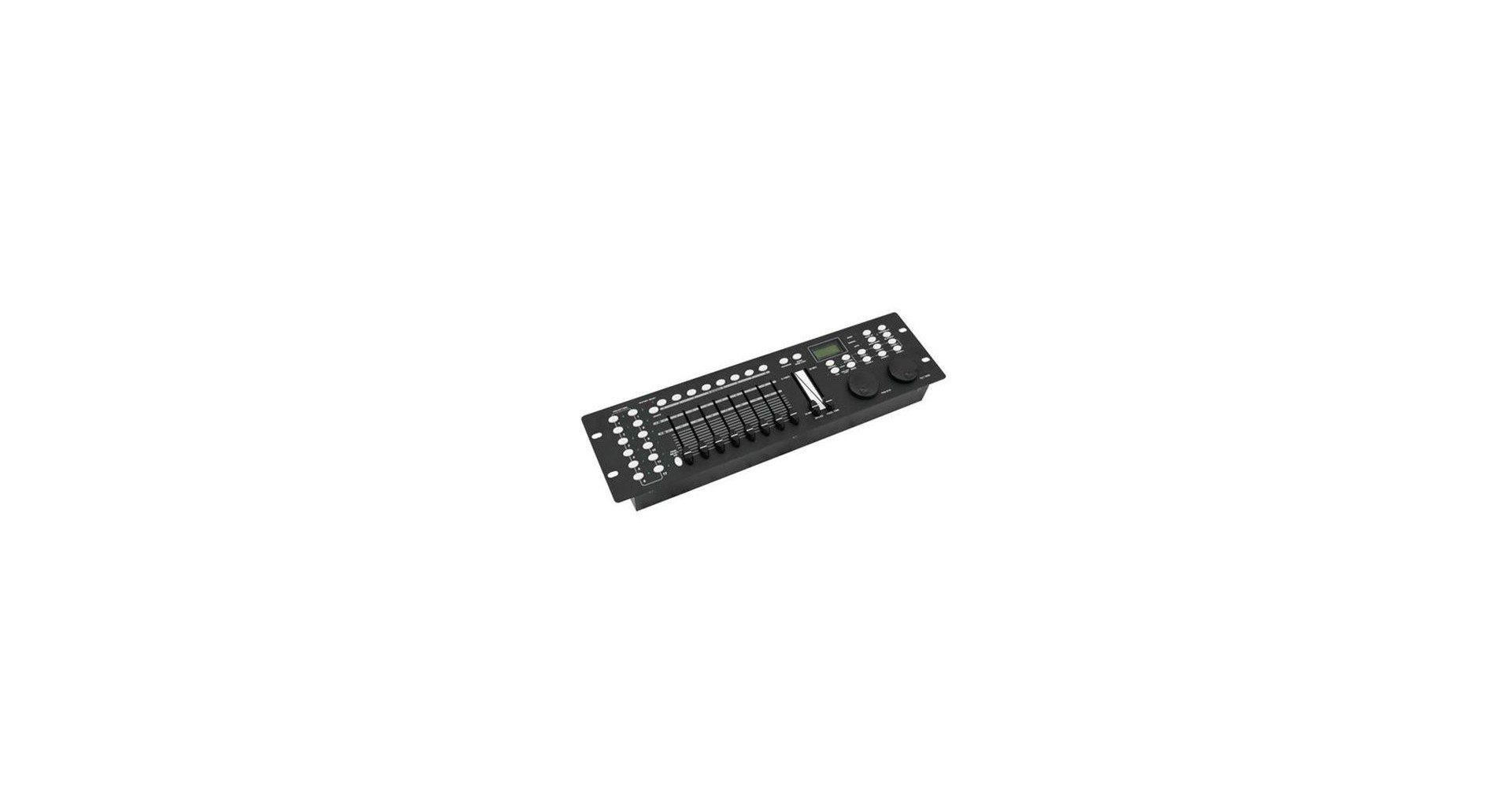

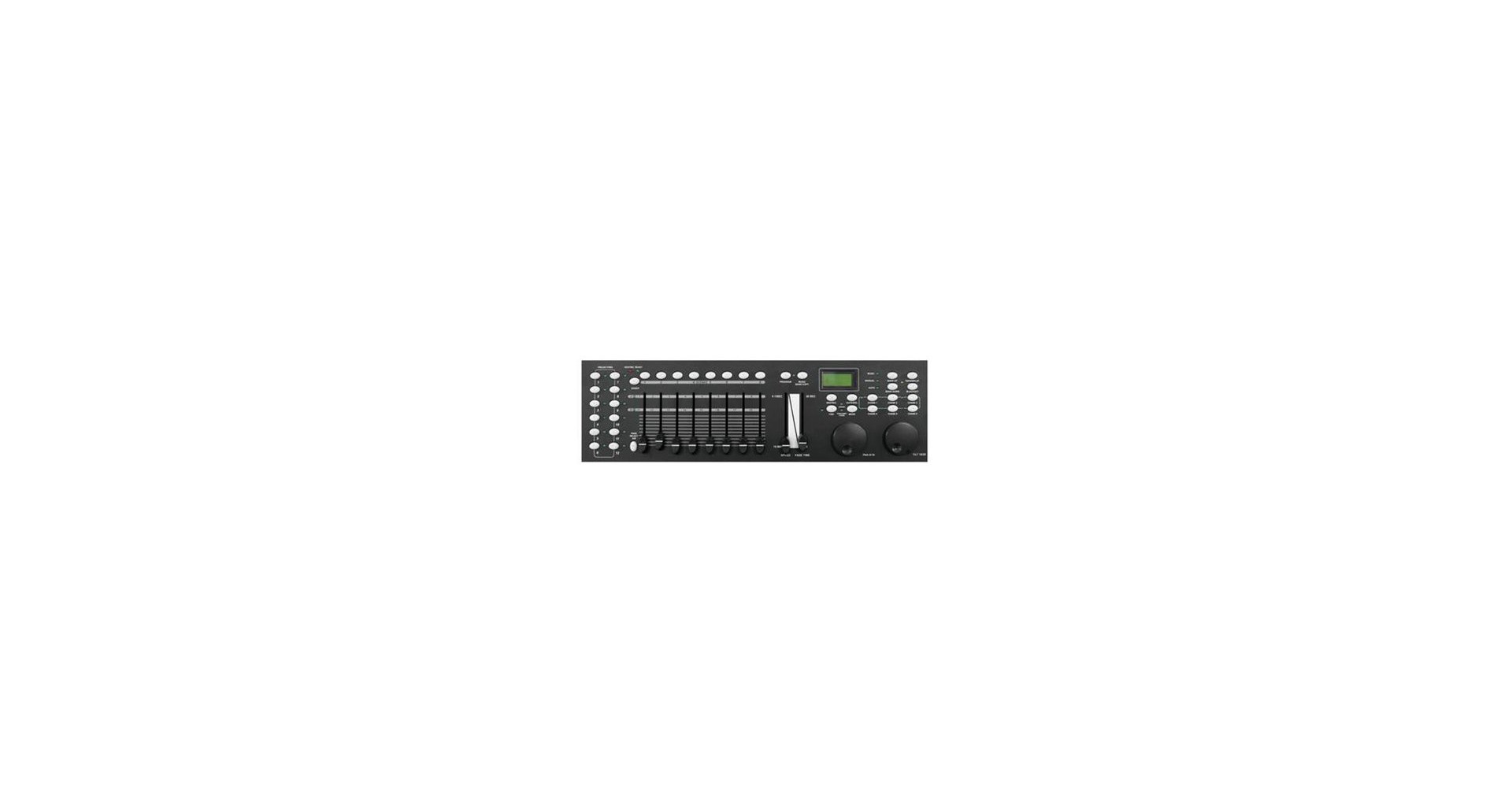

Eurolite DMX Operator 240

DMX controller for 12 light effect units such as moving heads, scanners and LED spot lights
12 fixtures with up to 20 channels each can be controlled
240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
USB port for storing program data
240 programmable scenes (30 banks x 8 scenes)
6 programmable chases with 240 scenes each can be stored
Manual, time-controlled or sound-controlled chase running mode
Fade between scenes adjustable between 0-30 s
Copy function for scenes and banks
2 DMX fixture levels can be controlled, each with up to 10 channels
8 DMX channel faders
2 jog wheels for pan/tilt
Blackout function
Sound control via built-in microphone or line input with adjustable sensitivity
Backlit LCD (2 x 8 characters)
RDM support (DMX address setup and identify)
Fog machine control possible
Supports standard MIDI
3-pin XLR connector with polarity selector
Firmware update via USB
Desktop console
Rack installation with 3 units

Power supply: 100-240 V AC, 50/60 Hz via power unit included in the delivery
Power consumption: 2.7 W
Number of control channels: 240
Storable scenes: 240 (8 each in 30 memory banks)
Storable chases: 6 with 240 steps each
Sound control: via built-in microphone or via audio input
Audio input: RCA
Input sensitivity: 0.1-1 V
DMX512/RDM output: 3-pin XLR connector with polarity selector
MIDI input: 5-pin DIN
Fog machine connector: 5-pin DIN
Available storage media: USB devices (FAT32)
Dimensions (LxWxH): 483 x 135 x 71 mm
Rack installation with 3 U
Weight: 2 kg
