Elation Smarty Max

FEATURES
Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology from 370 to 480W plus Smart Hibernation with up to 4,000 Hour Lamp Life
Full CMY Color Mixing System, Variable CTO
Motorized Iris
8 Rotating and 15 Static Gobos, Dual Track Animation, 4x Prism on Dual Planes, 2x Frost
Zoom from 1gr Beam to 33gr Wash and Auto Focus option

SOURCE
Philips MSD Platinum 400 Flex 480W Lamp
Variable Lamp Power 370/440/480W
Automated Lamp Hibernation with instant recovery
Up to 4,000 Hour Lamp Life*

PHOTOMETRIC DATA
20,000+ Lumen Total Fixture Output

EFFECTS
Beam, Spot and Wash Modes
Motorized Zoom 2gr Beam to 33gr Wash
Dual Frost Filter for Light Frost/ Full Wash
4 Prisms on Dual Planes
Motorized Iris
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe

COLOR
Full CMY Color Mixing System
Variable CTO
13 Position Color Wheel

GOBOS
2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
15 Static-Stamped Metal Gobos
Dual Track Animation Wheel

CONTROL / CONNECTIONS
2 DMX Channel Modes
(6) Button Touch Panel
Full Color 180gr Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
5pin DMX In/Out
RJ45 EtherCon In/Out
Neutrik powerCON True1 Power In/Out
With Wired Digital Communication Network

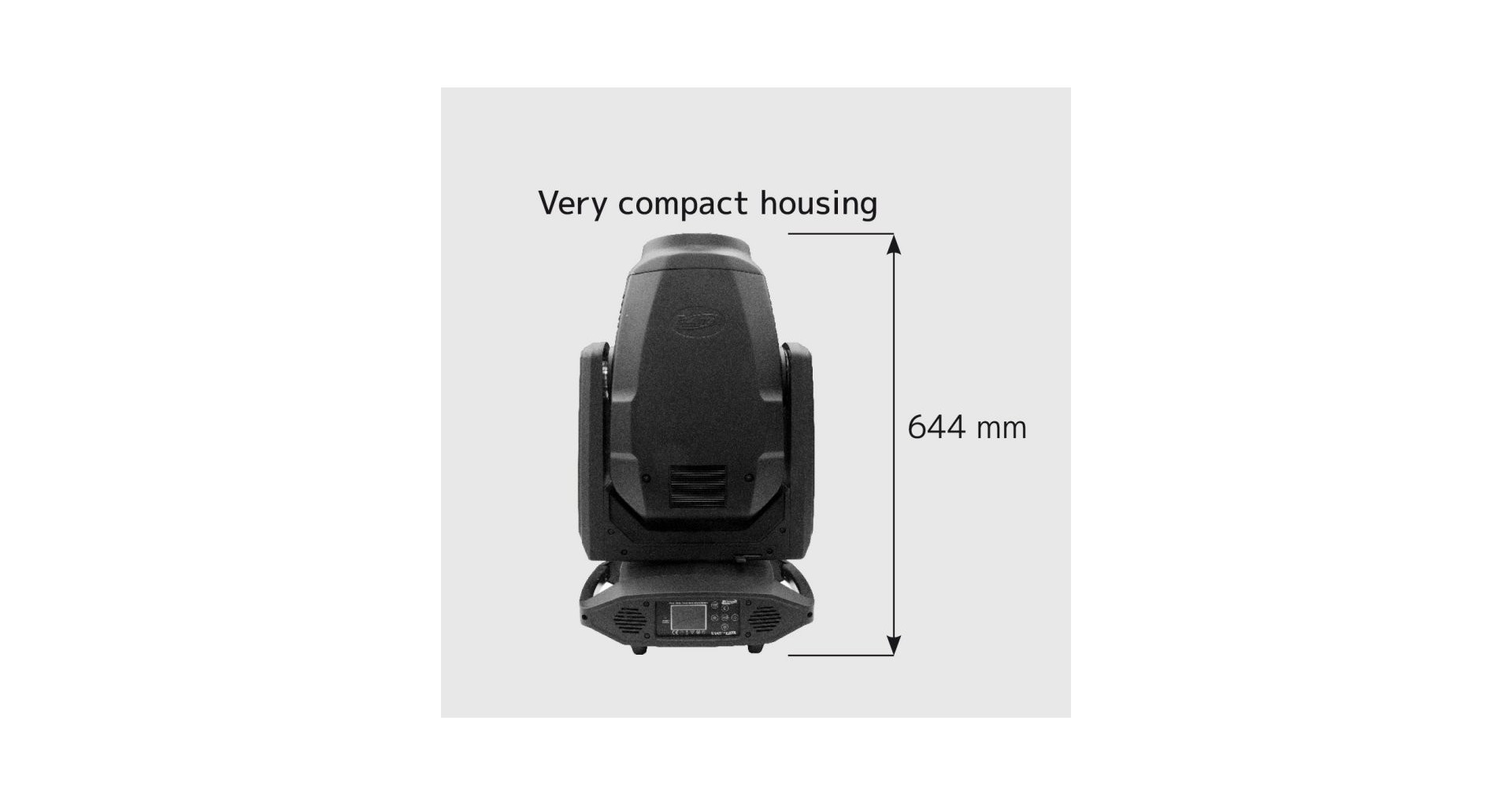

SIZE / WEIGHT
Length: 15.3&rdquo. (388mm)
Width: 11.2&rdquo. (284mm)
Height: 25.3&rdquo. (642mm)
Weight: 53.6 lbs. (24.3kg)

ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
750 W Max Power Consumption (estimated)
14grF to 113grF (-10grC to 45grC)

OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome

*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
