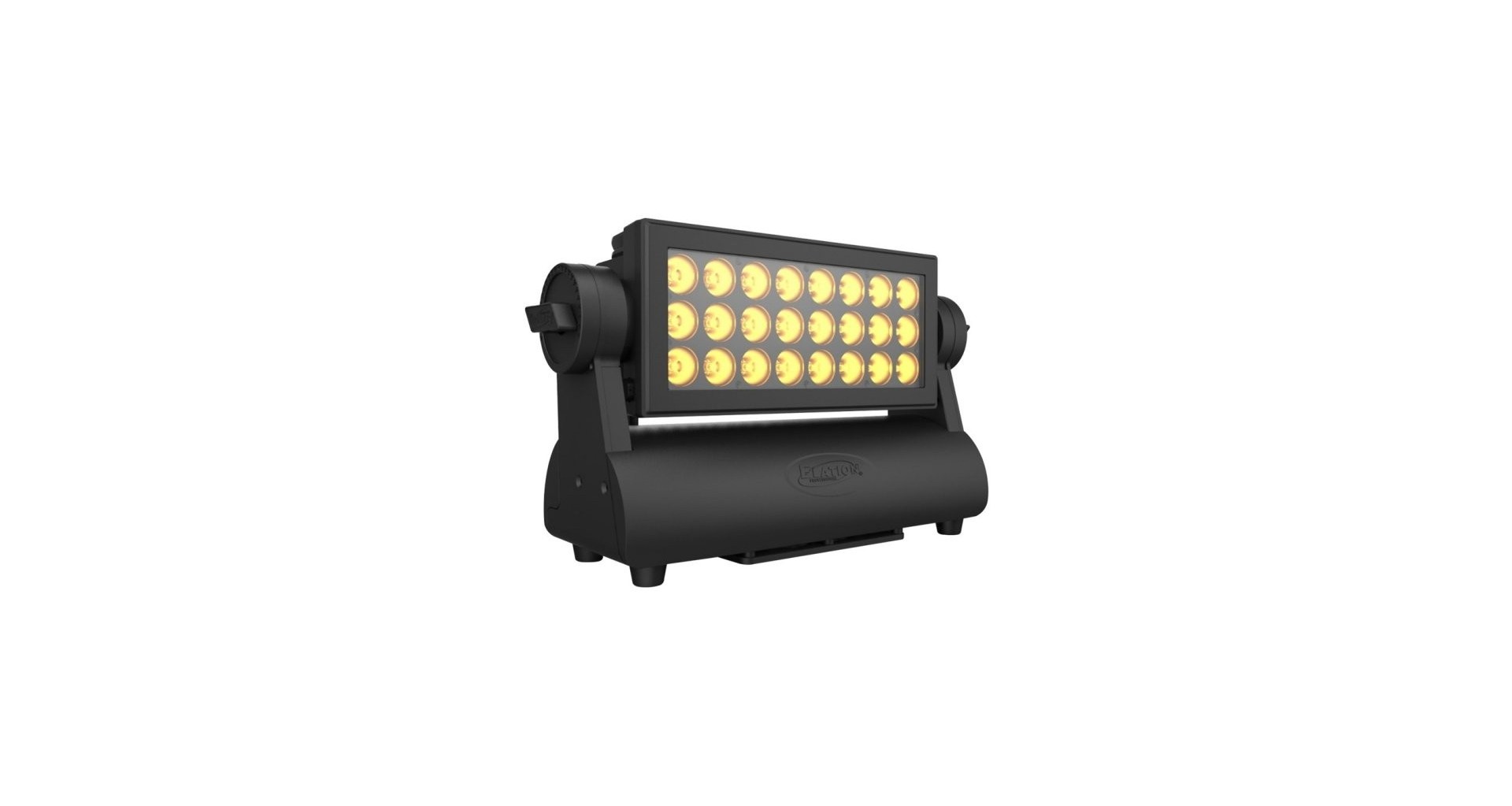

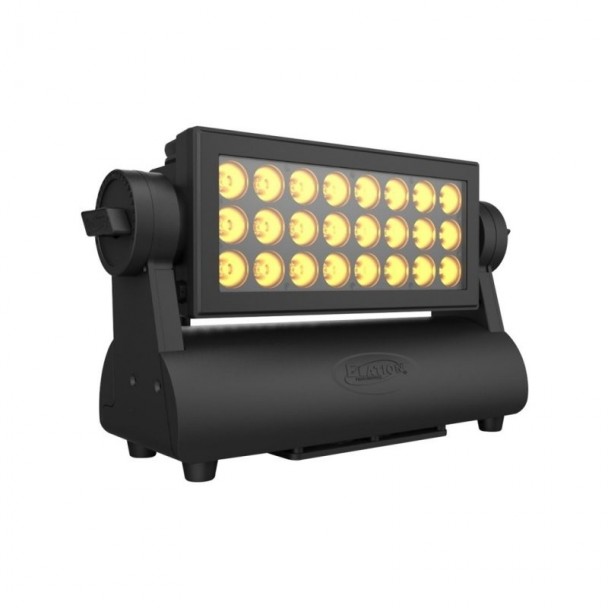

Elation PALADIN BRICK

FEATURES
360W RGBW Flood Light
Multicell Control
Rugged IP65 Design for Outdoor Events
Floor Standing or Mountable in any Orientation

SOURCE
24x 15W RGBW LED Emitters
100,000 Hour Average LED Life*

PHOTOMETRIC DATA
6,000K Total Lumen Output, CRI 71
14gr Beam 23gr Field Angle (without diffuser)
22gr Beam 45gr Field Angle (with diffuser)

COLOR
RGBW

CONTROL / CONNECTIONS
11 DMX Channel Modes
3x2 Cell Control
DMX, RDM Protocol Support
Standalone and Master / Slave Operation
4 Button OLED Control Display
5pin IP65 DMX In/Out
Seetronic IP65 Power In
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 17.3&rdquo. (440mm)
Height: 11.0&rdquo. (280mm)
Depth: 5.5&rdquo. (140mm)
Weight 21 lbs (9.5kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
400W Max Power Consumption
5grF to 113grF (-15grC to 45grC

OPTIONAL ACCESSORIES
1223200055 Barndoor for Paladin Brick
1223200058 Shader for Paladin Brick
1322000060 C-Loader II

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
