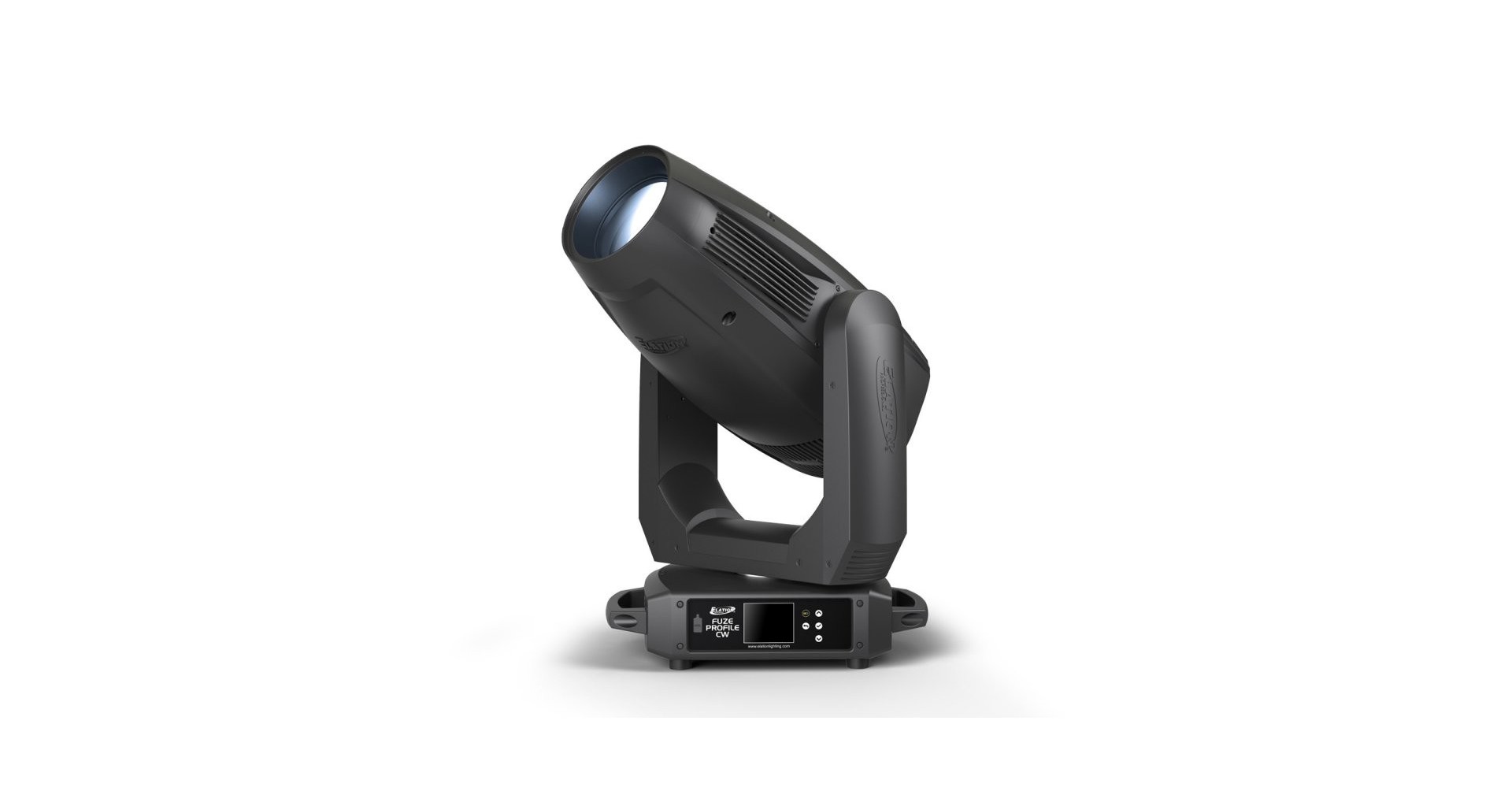

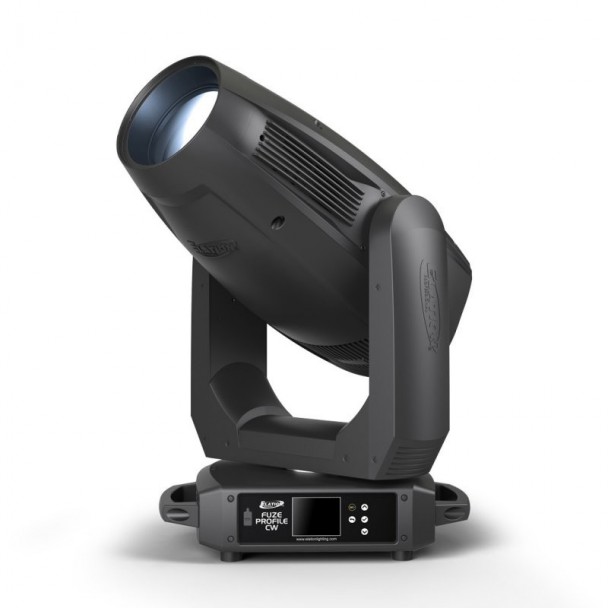

Elation Fuze Profile CW

FEATURES
High Efficiency 380W White LED Engine, 91CRI
Dual Color Wheel (Solids and Color Corrections)
Rotating Gobo Wheel
Full Blackout Framing System
Wide Zoom Range from 7gr to 46gr

SOURCE
380W 6,000K White LED Engine, 91CRI
30,000 Hour Average LED Life*

PHOTOMETRIC DATA
13,000 Total Lumen Output

EFFECTS
7gr - 46gr Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 45 Index
Variable Frost Filter
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency

COLOR
2 Color Wheels
7x Solid Colors
7x Color Correction and UV

GOBOS
1 Gobo Wheel
7 Rotating / Indexing Interchangeable Glass Gobos

CONTROL / CONNECTIONS
2 DMX Channel Modes
16-bit Pan, Tilt, and Dimming Control
Motorized Focus
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180gr Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement
Hibernation Mode (Power Save)
5pin DMX In/Out
Neutrik powerCON TRUE1 Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 15.9" (408mm)
Width: 9.9" (252mm)
Vertical Height: 27.4" (698mm)
Weight: 51.4 lbs. (23.3kg

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
590W Max Power Consumption
14grF to 113grF (-10grC to 45grC)

OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome


*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
