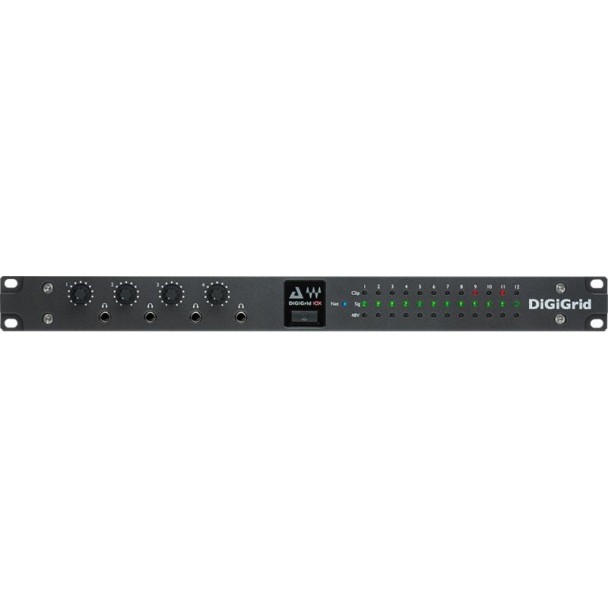

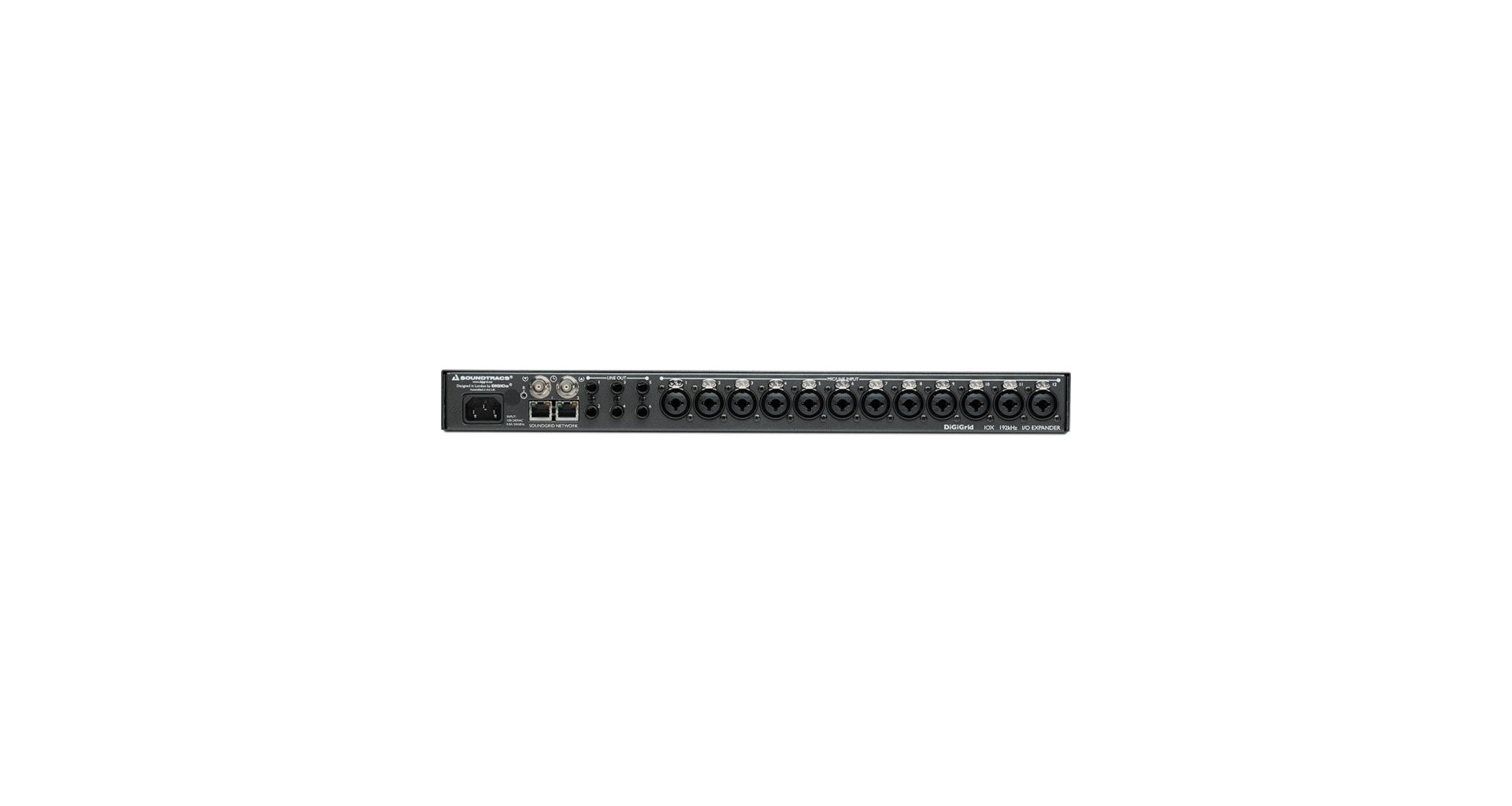

DiGiGrid IOX

Specificatii
General
1U rack montat
Sample rate: 44.1, 48, 88.2 and 96 kHz (176.4 si 192 kHz vor fi disponibile in viitor)
12 intrari mic/line (XLR/TRS combo)
6 canale de iesiri tip line
Word Clock I/O
Porturi 2 SoundGrid (RJ45s)
Reset switch
4 iesiri de casti cu knoburi analog. pana la +15 dB
Clock: Input Word Clock, SoundGrid (SoE), Internal
Input AC

Analog Inputs

Impedanta Input: Mic: 2K5 / Line: 8K0 Ohms
Gain microfon: 0 dB - +52.5 dB in 7.5-dB trepte.Controlul fin ofera aditional 0dB pana la 7dB in 0.5-dB trepte
Level intrare maxim: Mic: +26 dBu / Line: +36 dBu
Zgomot echivalent microfon: >. -126 dB (150 Ohm sursa, gain +59.5 dB)
Distorsiune armonica: De obicei <. 0.01% @ unity gain, -10dB intrare @ 1 kHz
Raspuns frecvente: +/-0.5 dB (20 Hz - 20 kHz)
Separare canal: Mai bine de 90 dB (40 Hz pana ka 15 kHz)

Analog Outputs

Level Output Maxim: +22 dBu
Zgomot: <.90 dB (20 Hz to 20 kHz)
Raspuns frecvente: +/-0.5 dB (20 Hz - 20 kHz)
Impedanta output: 50 Ohms
Channel Separation: Better than 90 dB (40 Hz to 15 kHz)
Dstorsiune armonica: De obicei <. 0.01% @ unity gain, -10dB intrare @ 1 kHz
