DAP Audio M10

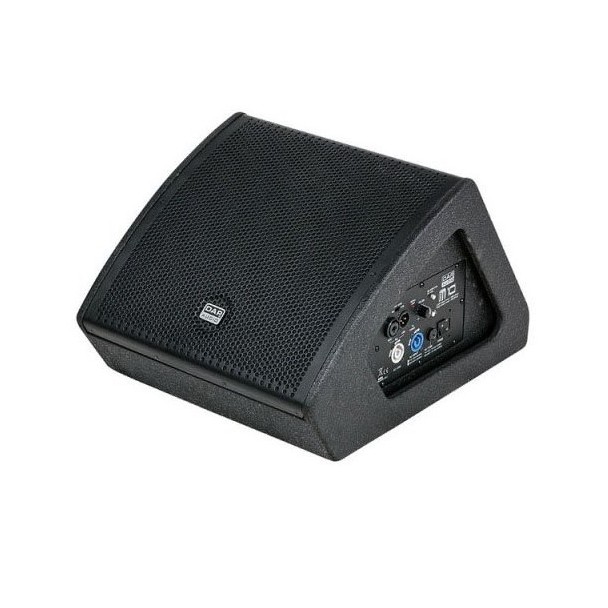

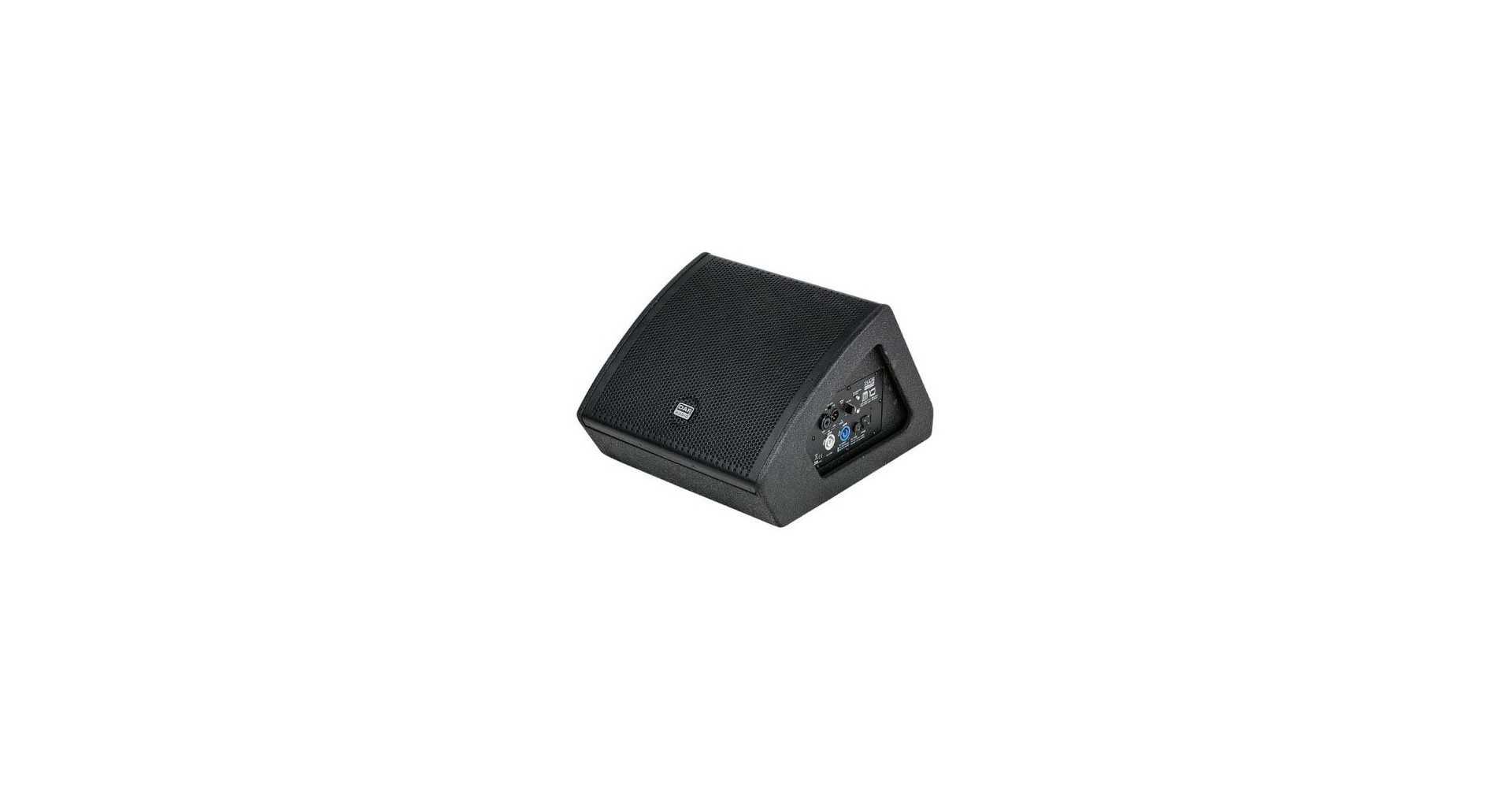

The active Bi-Amp M-series wedge speakers are the stage solution for optimal monitoring.
A compact, light-weight and innovative designed housing, combined with a powerful Class D amplifier, high-end components and good electronic protections make this a plug & play speaker for all high demanding professional musicians. The 60° wedge design and coaxial speaker ensures a transparent and direct &lsquo.in your face" sound with consistent coverage.
Integrated handles protect your connections and also make it very easy to handle them in most difficult stage settings.
Specifications
System: Active Bi-Amp 10" Monitor
Output Power: Class D, 350W LF power, 65W HF power
Maximum SPL @1M: 123dB/ 126dB Peak
Frequency resp. (-10dB): 70Hz &ndash. 20kHz
Transducer Low: 10" Woofer, 2,56" Voice Coil
Transducer High: 1" Neodymium Compression Driver,
1" Voice Coil
Nom Dispersion (HxV): 70° x 70° (-6dB)
Audio Input: XLR/ Jack Combo balanced
Link Output: XLR-male balanced
External Controls: Mic/Line switch, EQ Preset switch (Monitor/FOH),
Ground Lift switch, Volume control,
Signal-Limiter indication LED,
Power Switch with green LED
Electronic Protection: Thermal/ Overload/ Limiter/ Compressor
Mounting: Floor and Integrated 35mm Pole Socket
Power Supply: AC 100V~240V, 50 Hz/60Hz (SPSU)
Power Input: Neutrik Powercon
Housing: Wedge design 15 mm MDF with
Scratch Resistant Black Paint
Dimensions (HxWxD): 363 x 351 x 323 mm
Net Weight: 11,4 kg
