Artecta ECOdrive DC15WController LED ZD-017163 |
|

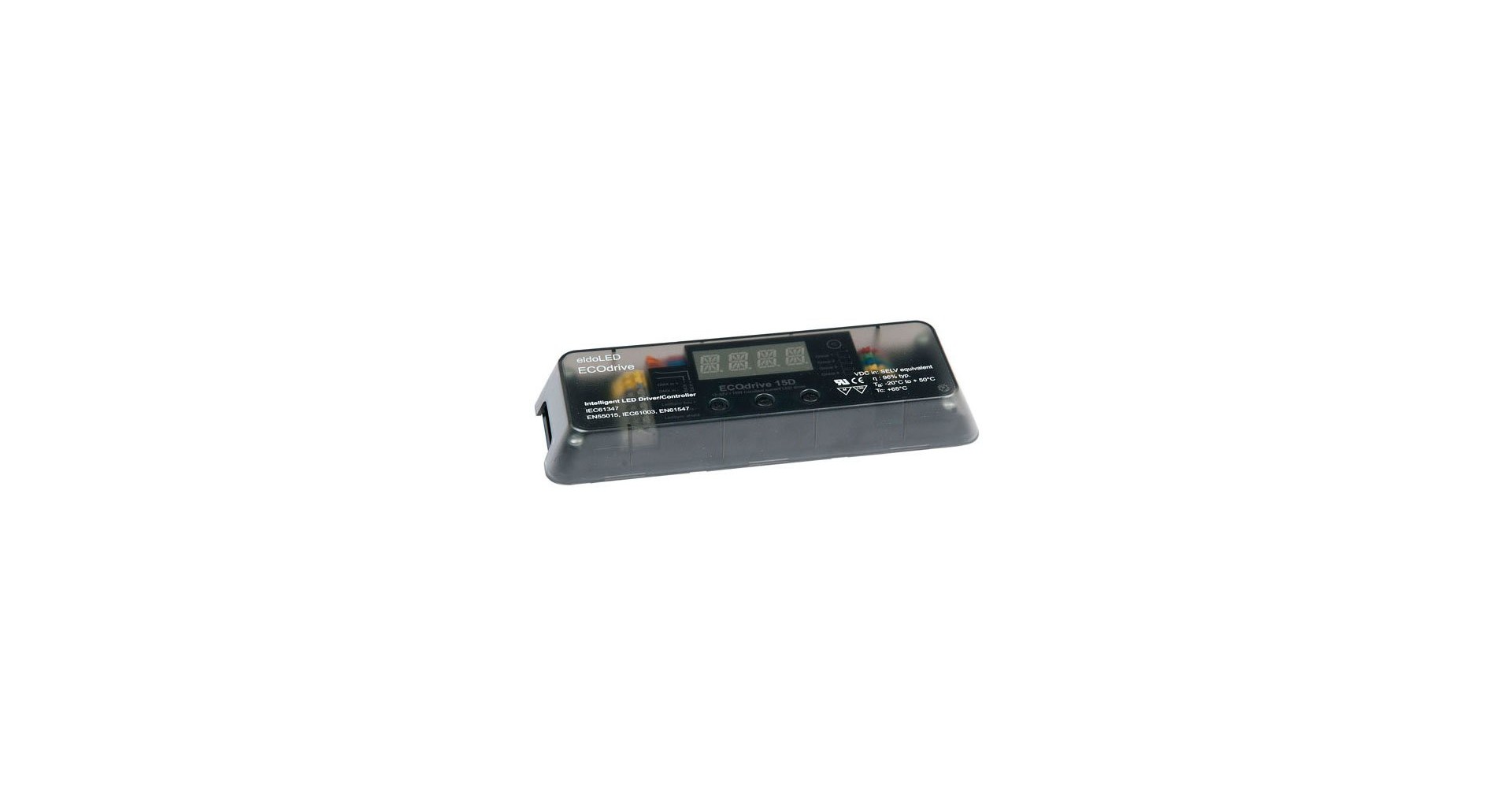

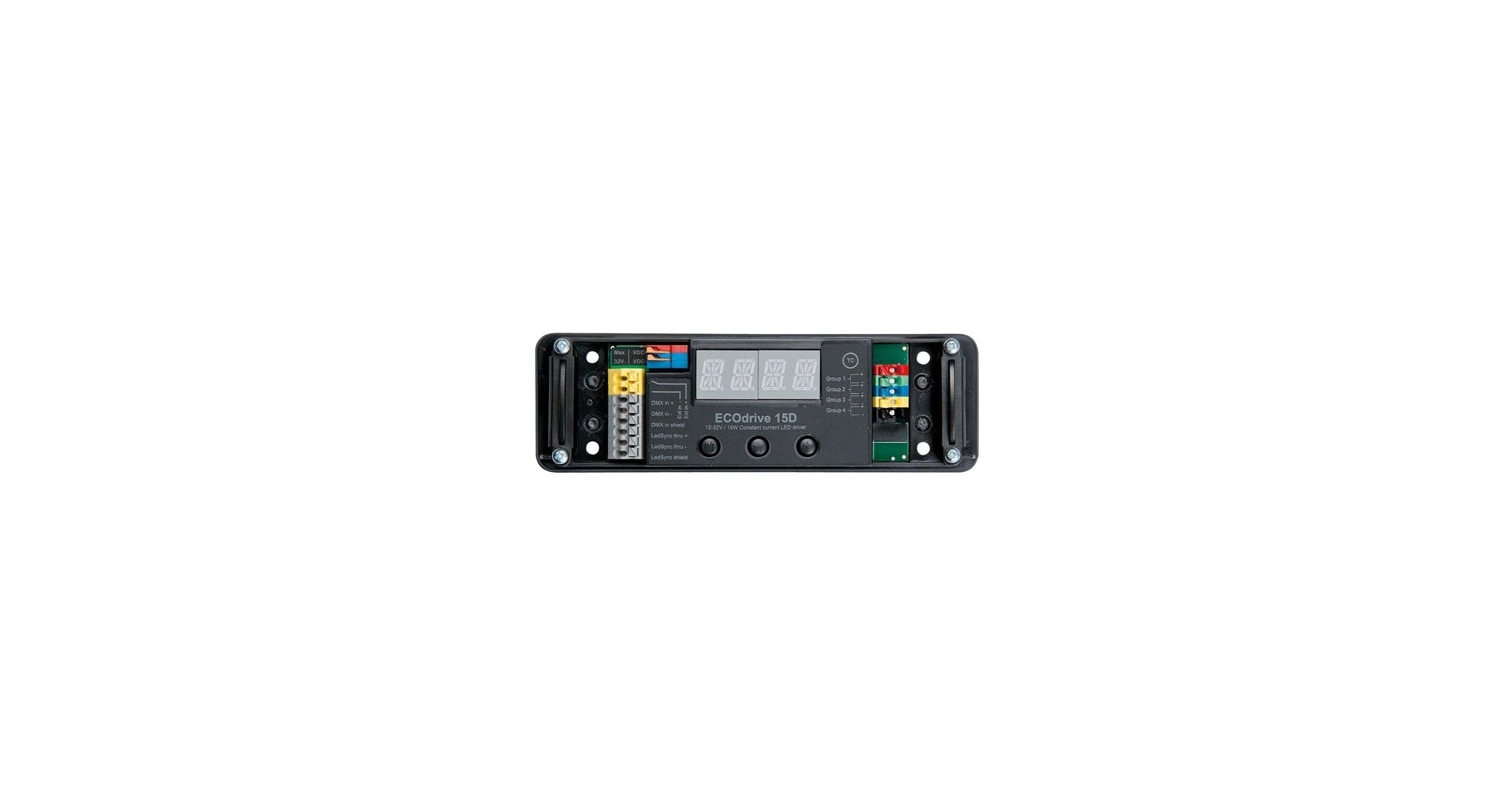

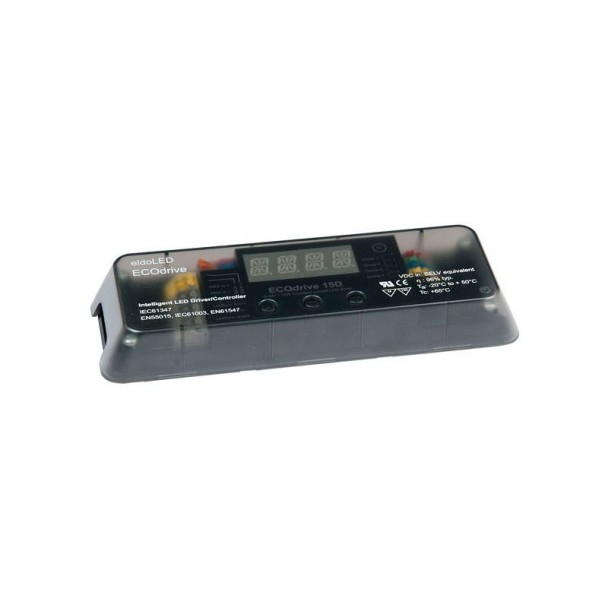

Artecta ECOdrive DC15W
ECOdrive DC15WConstant Current RGB(W) LED driver/controllerThe ECOdrive DC15W is a highly integrated, cost effective, enclosed and by display easy-to-configureconstant current driver/controller for indoor LED lighting applications. The ECOdrive can be integratedin a network or used as a standalone device. With a wide supply voltage of(12V-32V DC), theECOdrive DC15W is the ideal choise for powering 200mA - 500mA HB LED`s
Unitate de vanzare: bucata
Acest produs nu mai face parte din oferta Zeedo sau nu se mai produce.
Achizitioneaza in SICAP
Informatii produs:
Artecta ECOdrive DC15W
ECOdrive DC15WConstant Current RGB(W) LED driver/controllerThe ECOdrive DC15W is a highly integrated, cost effective, enclosed and by display easy-to-configureconstant current driver/controller for indoor LED lighting applications. The ECOdrive can be integratedin a network or used as a standalone device. With a wide supply voltage of(12V-32V DC), theECOdrive DC15W is the ideal choise for powering 200mA - 500mA HB LED`s
Unitate de vanzare: bucata
Artecta ECOdrive DC15W:
• LED current settings: 200-500mA (in 50mA steps)
• Power output range: 0-15 Watt
• Operarating supply: 12V-32V DC (Efficiency up to 95%)
• Independed LED groups: up to 4
• Environmental rat.: Ta range: -20°C to +50°C (-4°F to +122°F)
Tc max. 65°C (149°F)
T heatsink max: 60°C (140°F)
• Cooling: Passive (integrated heat spreader)
• Relative huminity: non condensing
• Network input: USITT DMX-512, LedSync
• Network output: USITT DMX-512, LedSync
• Network resolution: 8 bit (4 Network channels used by driver) or 16 bit
(8 Network channels used by driver)
• Power output range: 0-15 Watt
• Operarating supply: 12V-32V DC (Efficiency up to 95%)
• Independed LED groups: up to 4
• Environmental rat.: Ta range: -20°C to +50°C (-4°F to +122°F)
Tc max. 65°C (149°F)
T heatsink max: 60°C (140°F)
• Cooling: Passive (integrated heat spreader)
• Relative huminity: non condensing
• Network input: USITT DMX-512, LedSync
• Network output: USITT DMX-512, LedSync
• Network resolution: 8 bit (4 Network channels used by driver) or 16 bit
(8 Network channels used by driver)
Specificatii Tehnice Artecta ECOdrive DC15W
| Tip produs | Controller LED |
