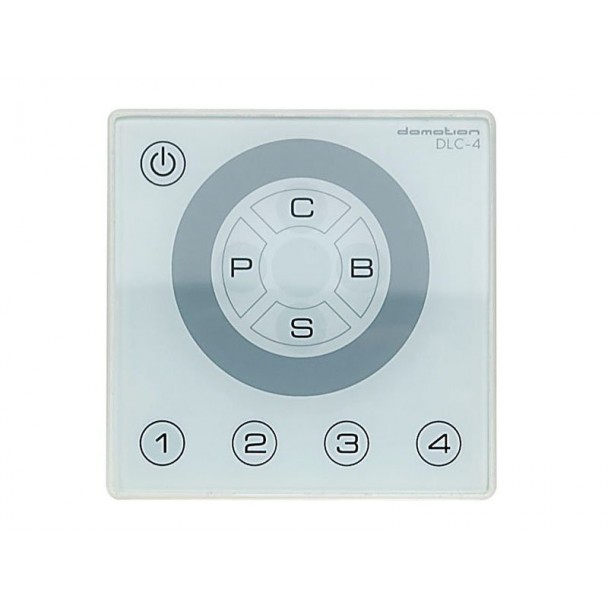

Artecta Domotion DLC-4

• Power Supply: DC 12-24V
• Max Load: 2A per channel, max. 6A total
• Housing: Polycarbonate
• DMX out: 4-pin green terminal
• Power in & PWM out: 6-pin terminal
• Operation temperature: 0°C to 40°C
• Storage temperature: -20°C to +70°C
• Max. PWM output 6A (RGB output 3X 2A)
• LED indicator to display the current output
• Four function menus
• Playback 4-9 preset scenes/colors
• Set fade time for Power on/off
• Set color exchange in the range of 0 to 4s
• Assign key tone ON/OFF
• Select input voltage in DC12-24V according to the output loading voltage
• Function memory and power failure protect
