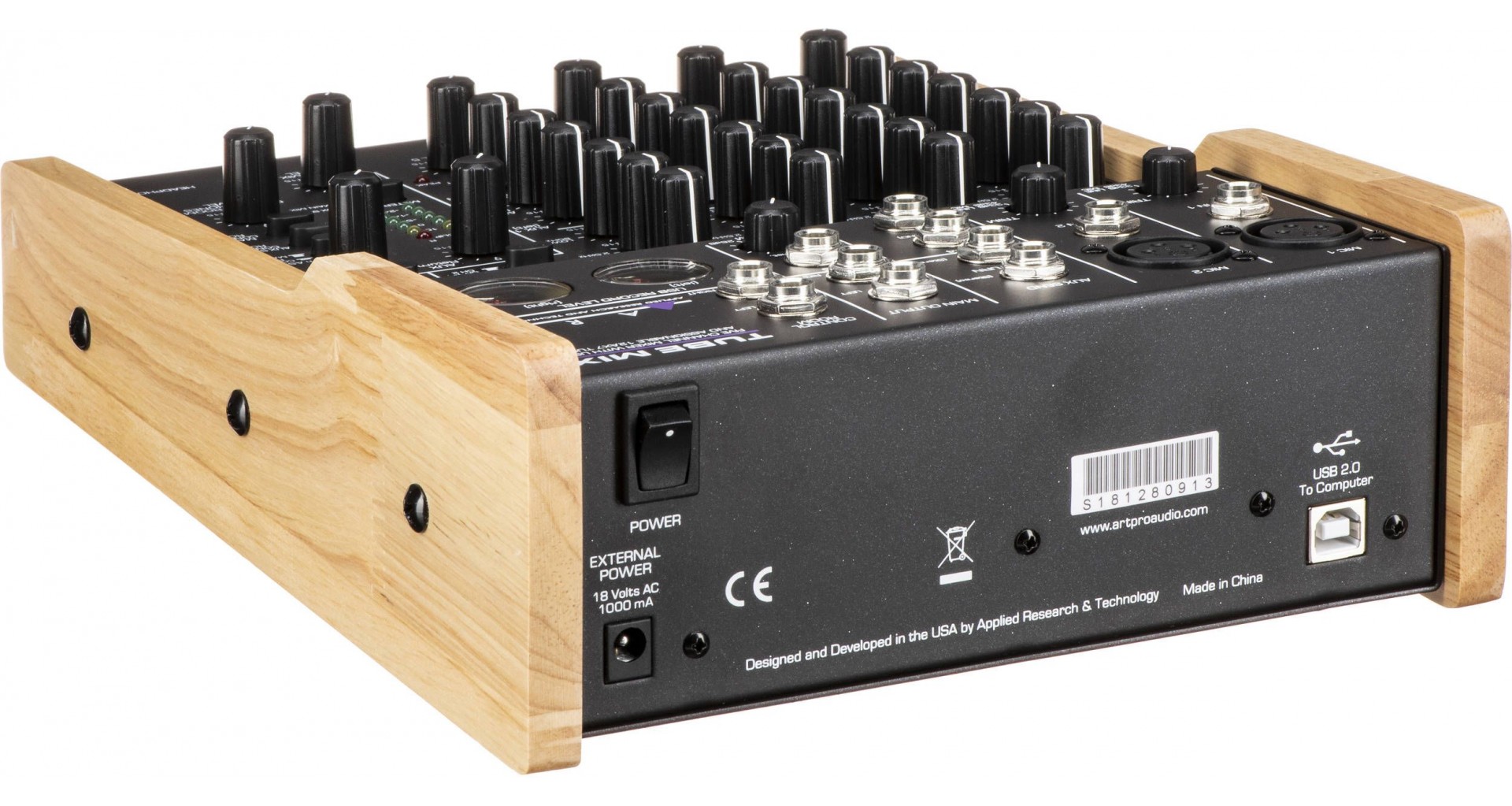

ART TubeMix

Specificatii tehnice:

Impedanta de intrare:

• Microfon: 3.5k Ω
• Line (CH1, CH2, CH3/4), 10k Ω
• CH5 (Inst.), 1M Ω

Impedanta de iesire:

• Main, Control Room (balansat/nebalansat), 150/100 Ω
• AUX Outputs, 150 Ω
• Headphones, 100 Ω

Raspuns in frecventa: 20-100kHz + 1dB

Nivel maxim de intrare:

• CH1, CH2 (Mic), +9dBu
• CH1 CH2 (Line In), +20dBu
• CH3/4 (EQ Flat), +20dBu
• CH5 (EQ Flat), +16dBu
• AUX Return, +24dBu

Nivel maxim de iesire:

• Main, Control Room (balansat/nebalansat), +20dBu/+17dBu
• Aux Send, +20dBu
• Headphones, 100mW / Ch @ 300 Ω, 50mW /Ch @32 Ω

Gain maxim:

• LINE IN to Main output (balansat), +63dB
• CH 5 to Main output (balansat), 56dB
• CH3/4 to Main output (balansat), +30dB

EIN:

• Microfon (@max gain), 127dBu “C”wtd.
• Line (@max gain), -105dBu “C” wtd.
• Instrument (@ max gain), -112dBu “C” wtd.

• Interfata USB pentru computer Interfata pentru Mac si PC
• A/D, D/A 16 biti, 44,1 kHz sau 48 kHz, USB selectabil de pe computer
• Comutator Phantom Power +48V DC
• Alimentare 18 VAC, 1000 mA
• Dimensiuni: 84 x 198 x 265 mm
• Greutate: 2,5 kg
• 0 dBu = 0,775 Vrms
