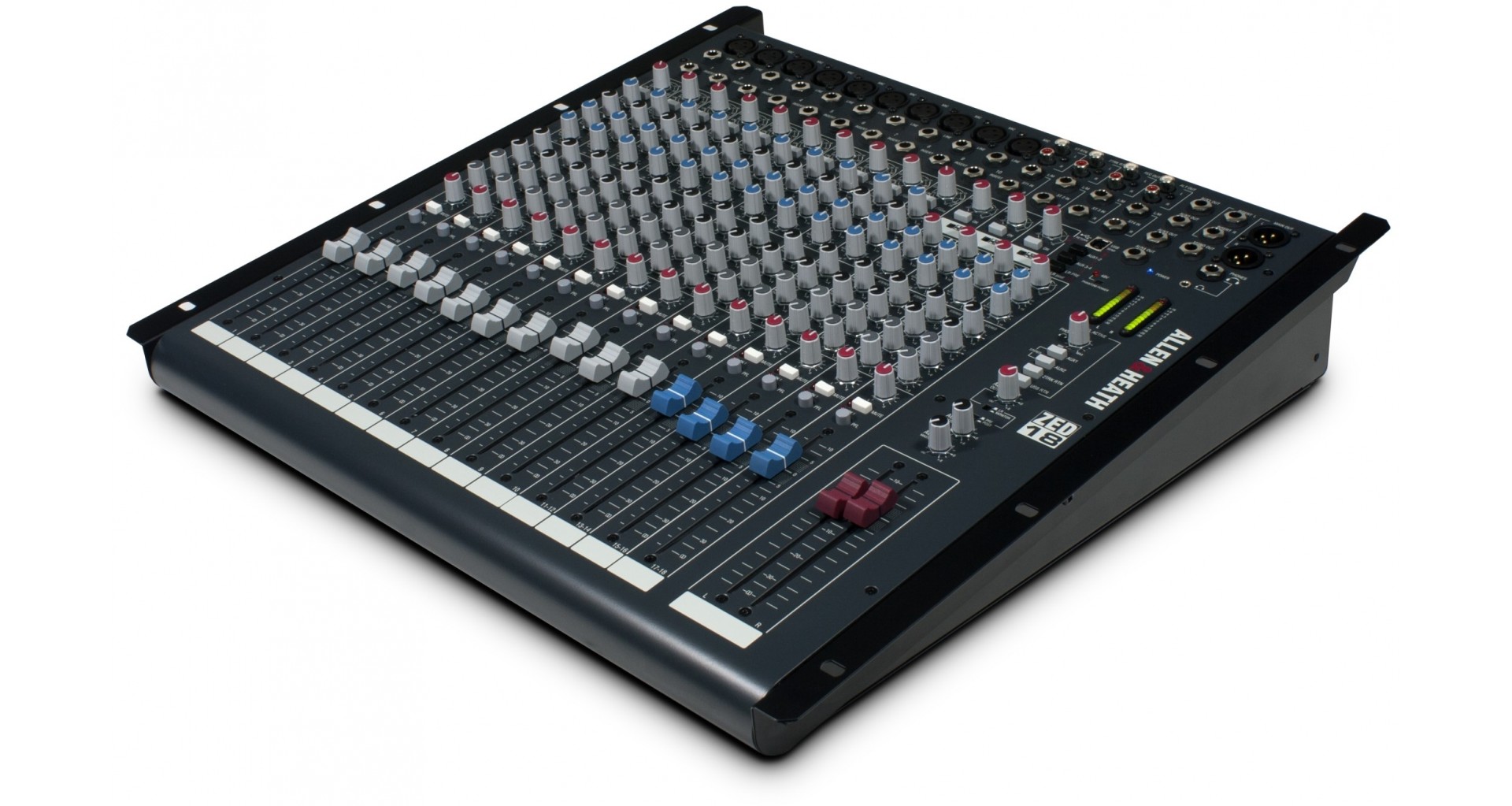

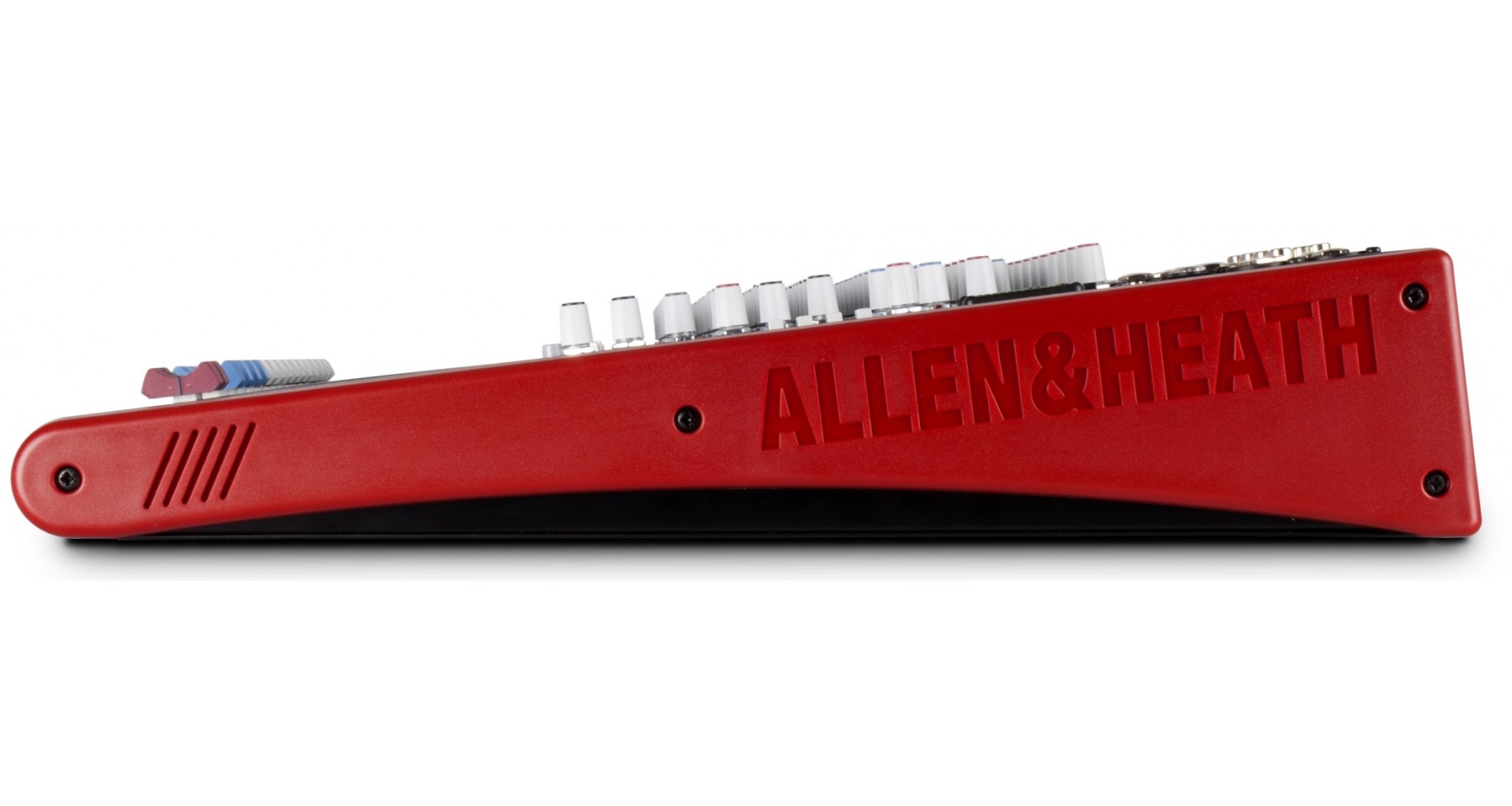

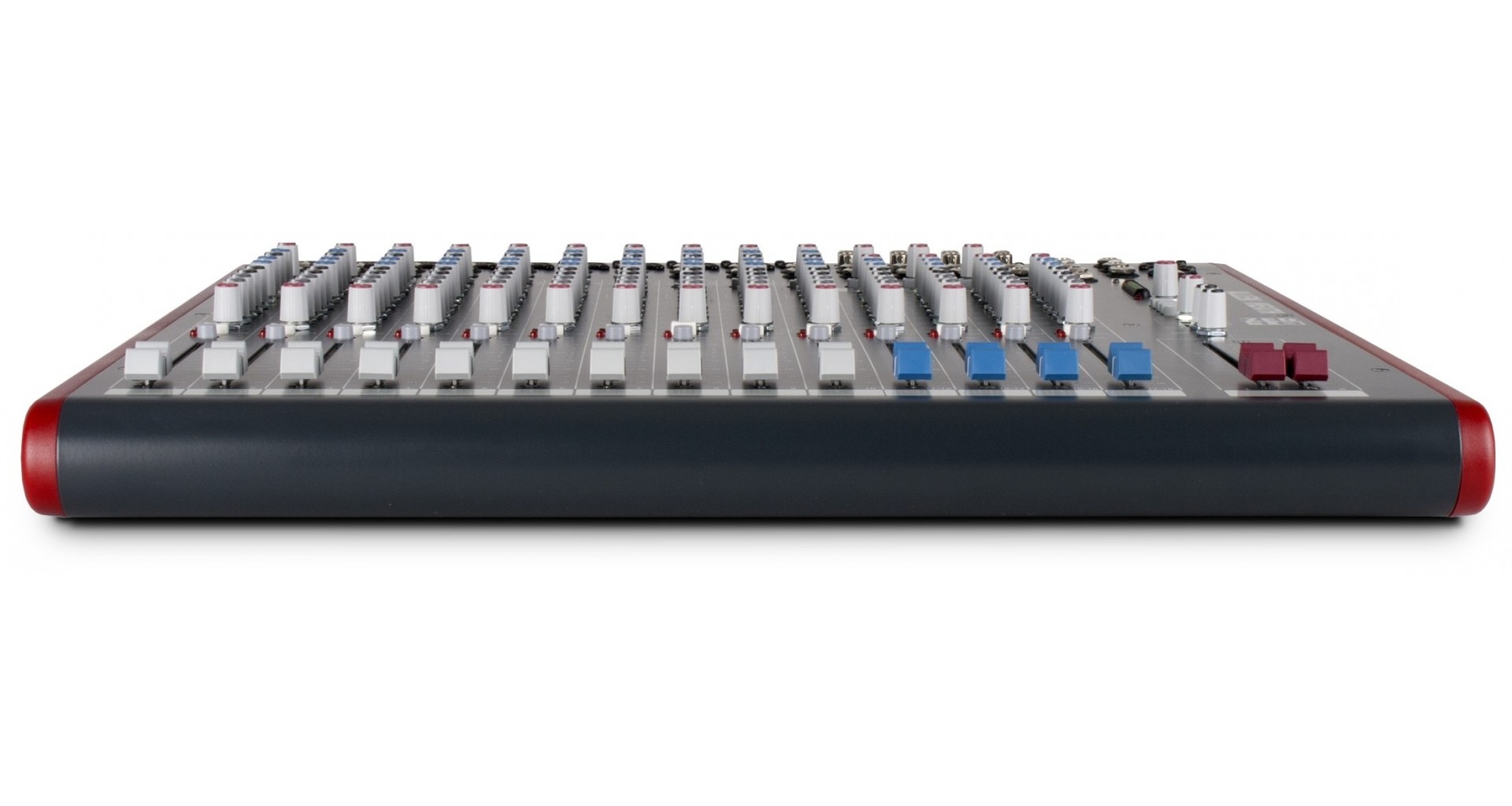

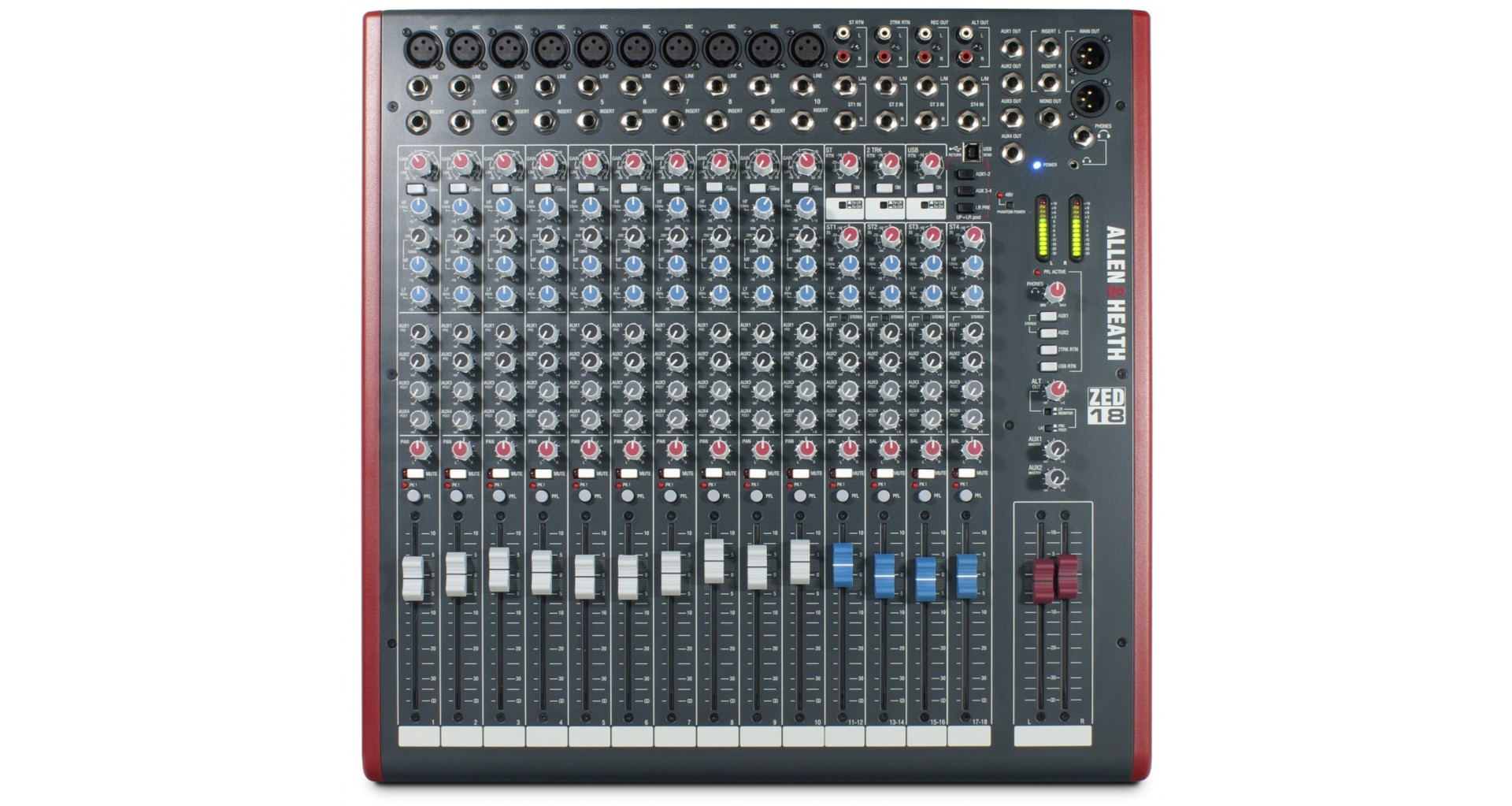

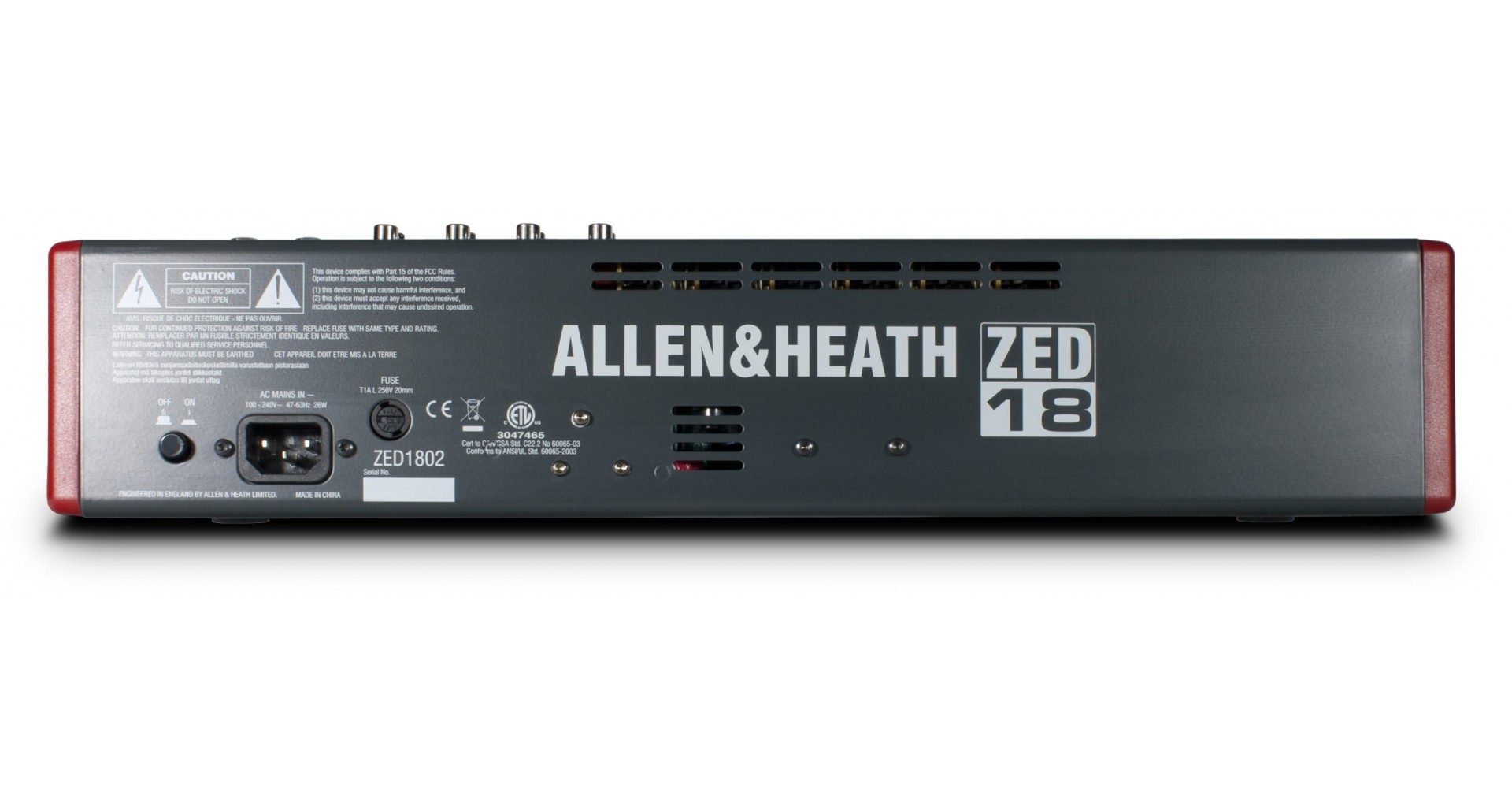

Allen & Heath ZED-18

Specificatii tehnice:

• Canale : 18 canale (10 x mono, 4 x stereo)
• Conectivitate PC: USB (2 x 2)
• Rezolutie A/D: 16-bit / 48kHz
• Fadere: 16 x ALPS 100mm

Intrari:

• Preamplificatoare microfon: 10 x XLR
• Phantom Power: Global
• Line: 10 x 1 / 4 "TRS, 8 x 1 / 4" (4 x canale stereo)
• 2 x Dual RCA Stereo (stereo, 2 track-uri)

Iesiri:

• Main: 2 x XLR (principal), 1 x 1/4" (mono)
• 2 x Dual RCA Stereo (rec out, alt out)
• Aux Trimite: 2 x Pre, 2 x Post

• Send / Return I / O: 4 x 1 / 4 "(aux send)
• Insertii canal: 10 x 1 / 4 "
• Insertii: 2 x 1 / 4 "(stereo principal)
• Casti: 1 x 1/4", 1 x 1/8"
• USB: 1 x Tip B
• EQ: EQ cu 3 benzi cu MusiQ

THD:

• Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out: 0.004%
• Mic in to Mix L/R Out, 30dB gain 1kHz: 0.014%
• Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.005%
• Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0. 003%

Headroom:

• Headroom analogic (0Vu): 21dB
• Headroom USB in & out (0Vu): 14dB

Raspuns in frecventa:

• Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 20Hz to 20kHz
• Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 30kHz
• Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz

• Software: Cakewalk Sonar LE
• Alimentare: Cablu IEC AC standard
• Dimensiuni: 464 x 98 x 465 mm
• Greutate: 8.5 kg
