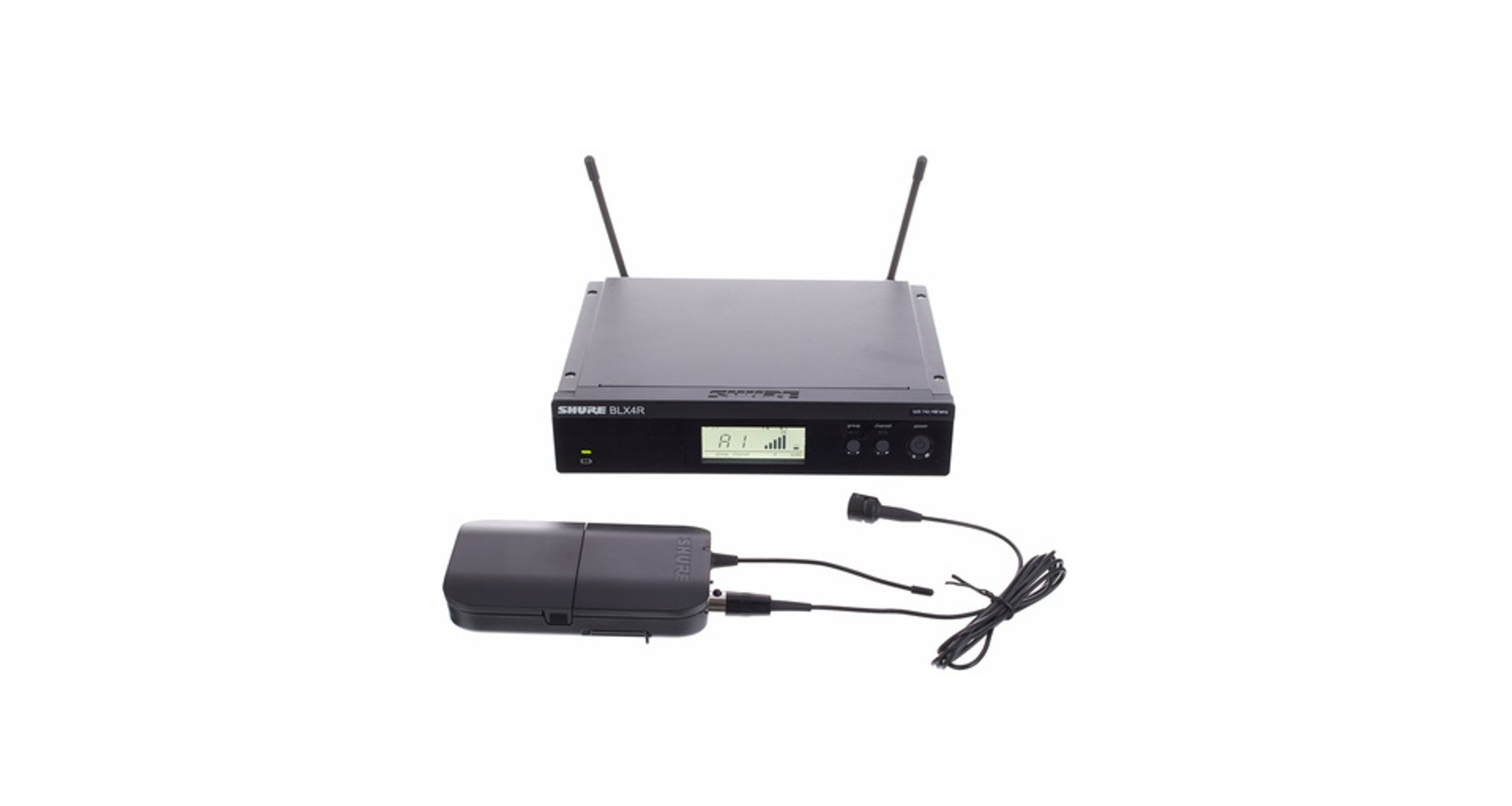

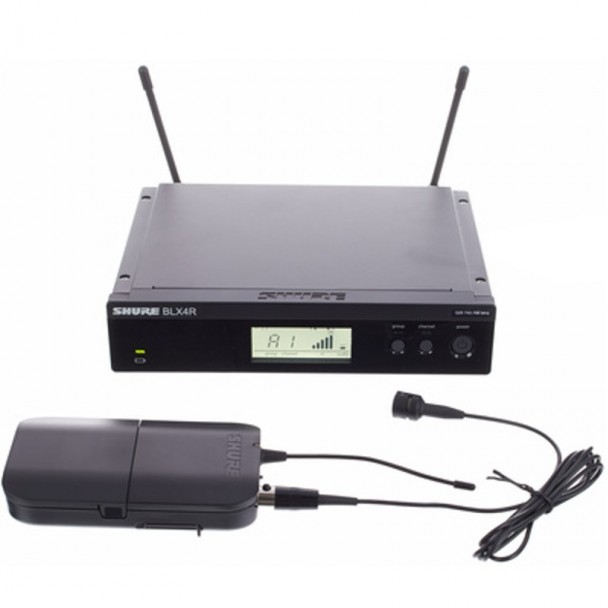

Shure BLX14R/CVL

Specificatii:

Microfon Condenser Lavaliera:

- Tip: Condenser Electret
- Frecventa de raspuns: 50 - 20.000 Hz
- Caracteristica polara: Cardioid
- Iesire impedanta: 600 ohm @ 1 kHz
- Nivel iesire audio: -43.5 dBV/Pa
- Raport semnal-zgomot: 72 dB @ 1 kHz
- SPL maxim: 139 dB @ 1 kHz
- Raza dinamica: 117 dB @ 1 kHz
- Iesire zgomot: 22 dB
- Necesitati alimentare: +5 V DC, 10 max.
- Cablu: 1.3 m
- Conector: TA4F
- Greutate: 25 g

Receptor wireless cu montaj in rack BLX4R

- Iesiri: 1 x XLR, 1 x 6.35 mm
- Iesire impedanta: XLR 200 ohm, 1/4 inch 50 ohm
- Nivel iesire audio: Conector XLR: -27 dBV, 1/4 inch: -13 dBV
- Sensibilitate RF: -105 dBm pentru 12 dB SINAD
- Image Rejection: >.50 dB
- Carcasa: Mulaj ABS
- Alimentare: 12 - 15 V DC @ 160 mA
- Dimensiuni: 40 x 188 x 103 mm
- Greutate: 241 g

Transmitator bodypack BLX1

- Intrare audio: Gain: -16 dBV (max.), 10 dBV (min.)
- Raza de ajustare gain: 26 dB
- Intrare impedanta: 1 MOhm
- Iesire RF: 10 mW
- Carcasa: Mulaj ABS
- Alimentare: 2 x baterii AA LR6, 1.5 V Alkaline
- Viata pe baterie: Pana la 14 ore
- Dimensiuni: 110 x 64 x 21 mm
- Greutate: 75 g
