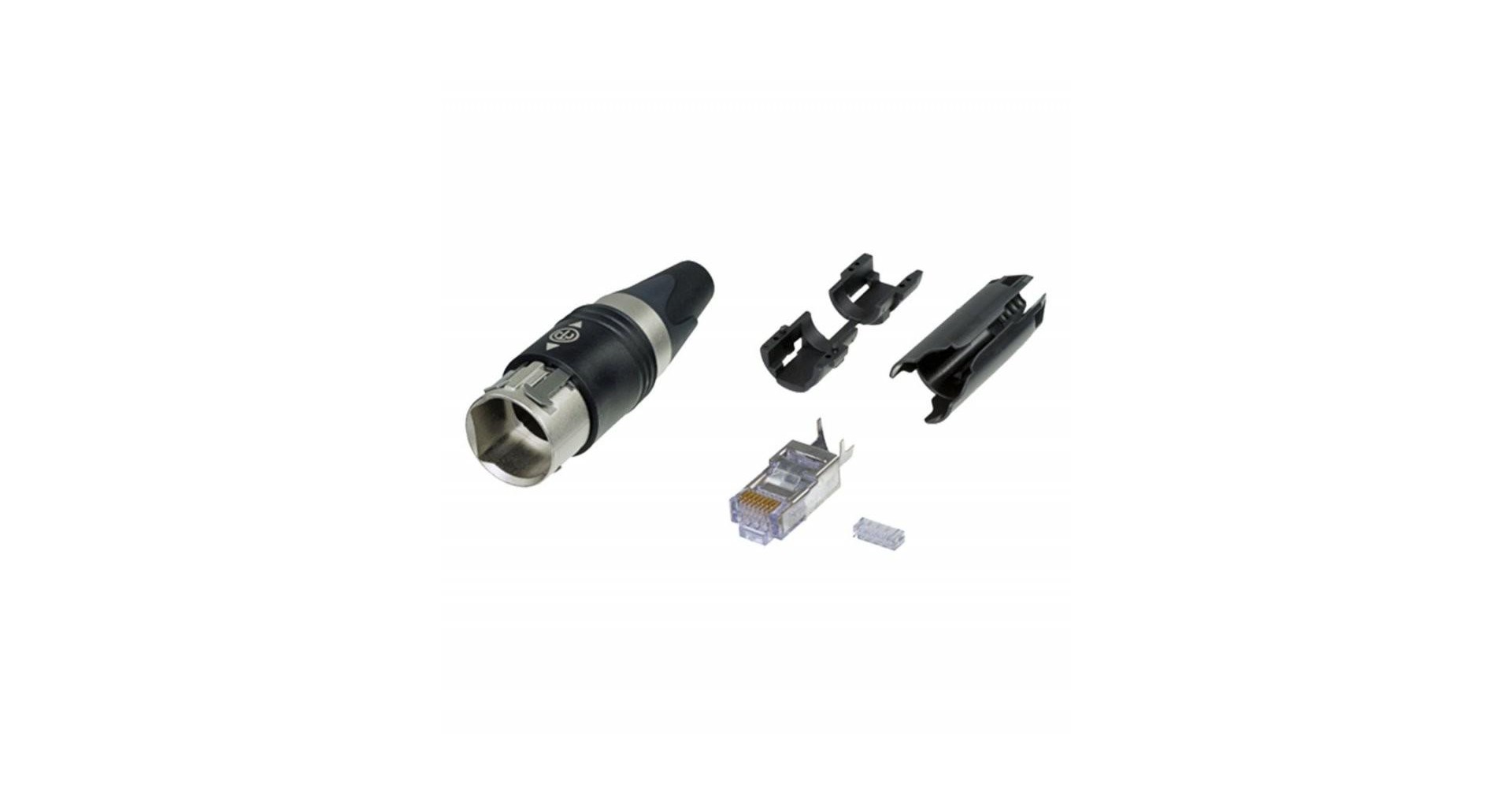

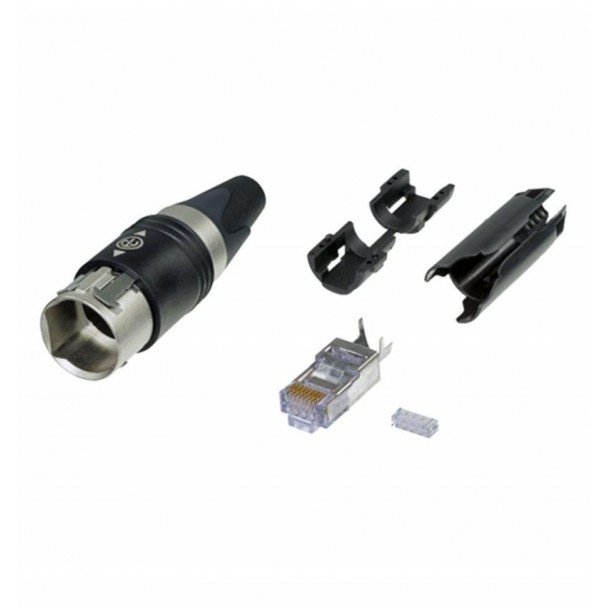

Neutrik NE8MC6-MO

Caracteristici:

- compatibil numai cu NE8FDY-C6 CAT 6
- nu este compatibil cu conectori CAT5 sau CAT6
- compliant CAT 6 - transfer date de pana la 10GBit/s
- IP 65

Specificatii tehnice:

- Connection Type: etherCON
- Gender: Male
- Cable O.D.: 5.5 - 6.5 mm
- Insertion force: <./= 40 N
- Withdrawal force: <./= 20 N
- Lifetime: >. 1000 mating cycles
- Wiresize: 28 - 22 AWG
- Locking device: Push-Pull
- Boot: Polyurethan
- Bushing: Polyamide (PA 6 15 % GR)
- Contact plating: 0.7 microm Au over 1.2 microm Ni plating
- Contacts: Bronze (CuSn8)
- Insert: Polyamdie (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
- CAT6 Plug: Molex Part Nr. 44915-0021
- Flammability: UL 94 HB
- Standard compliance: CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
- Protection class: IP 65
- Temperature range: -10 C to +60 C
