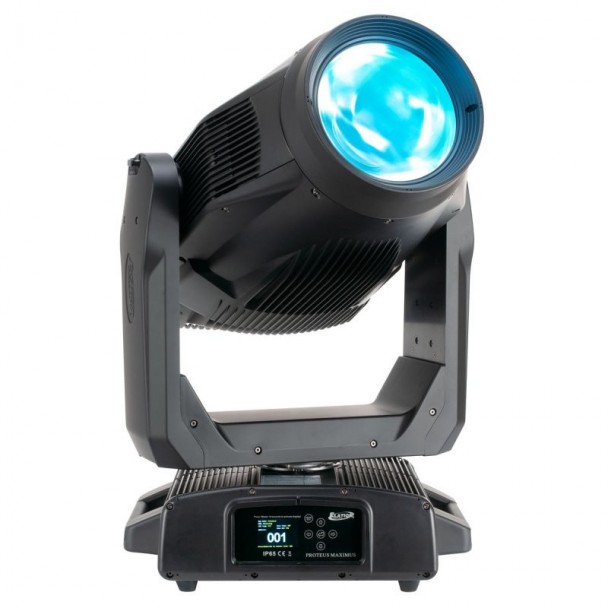

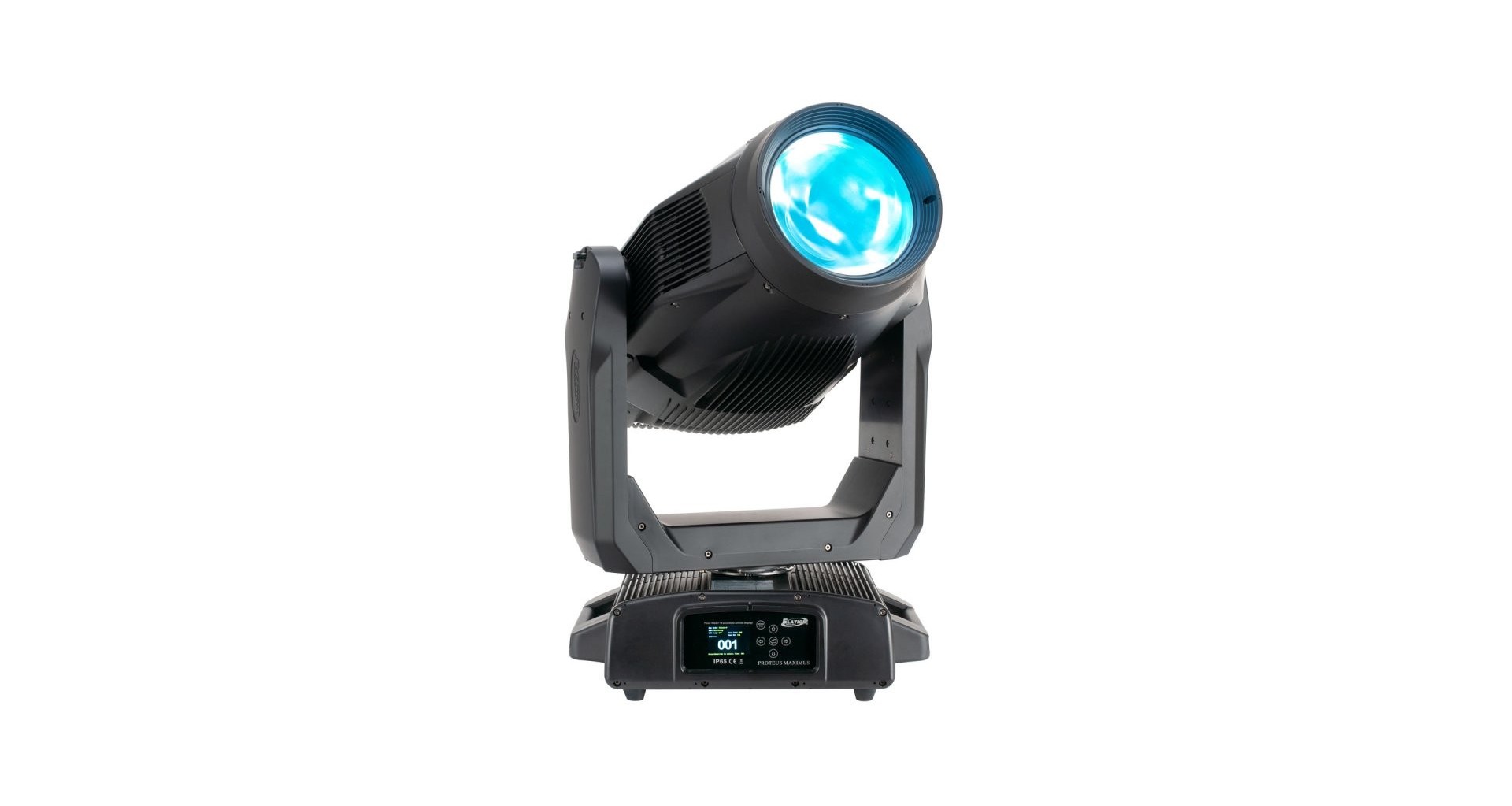

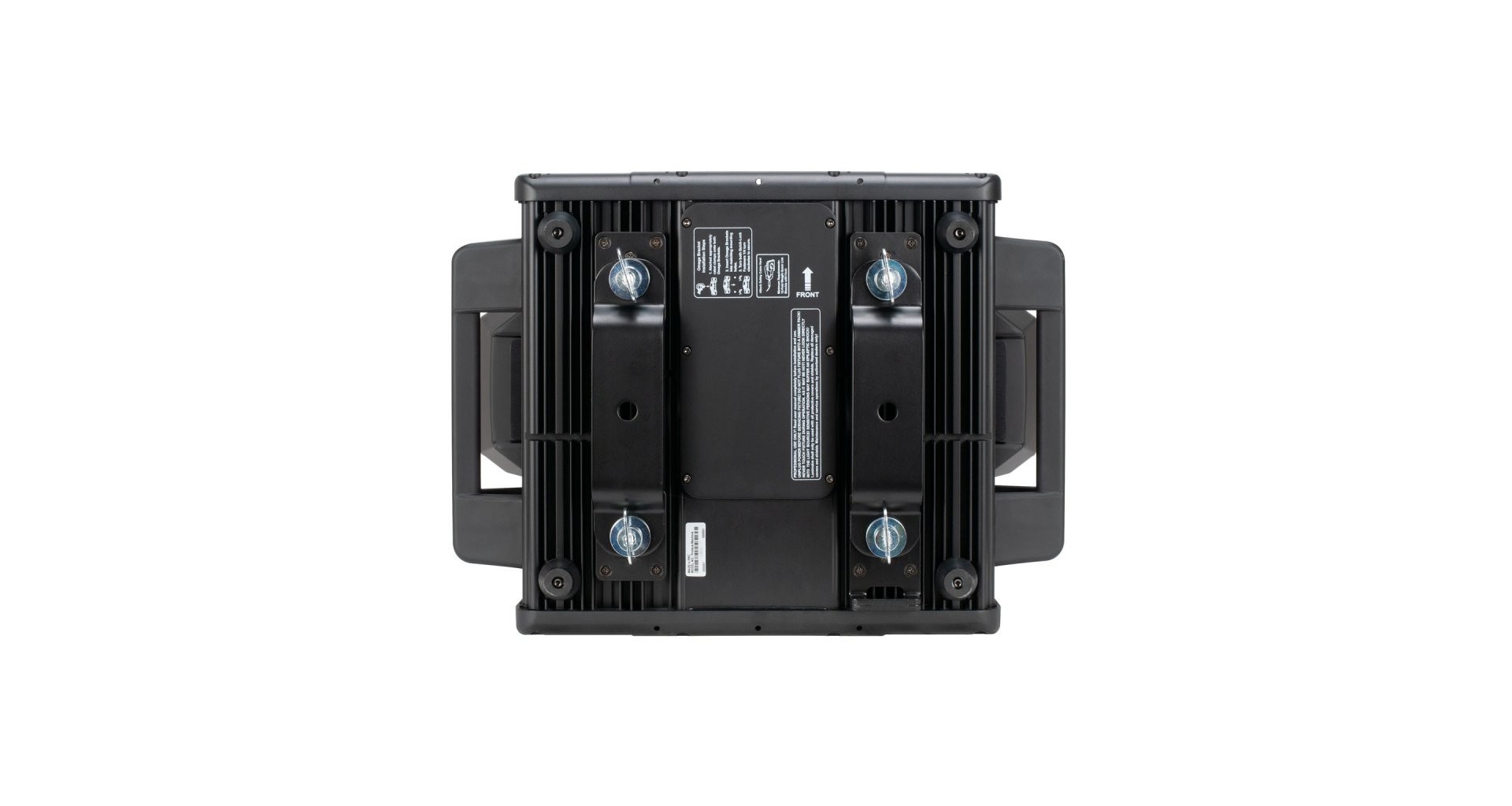

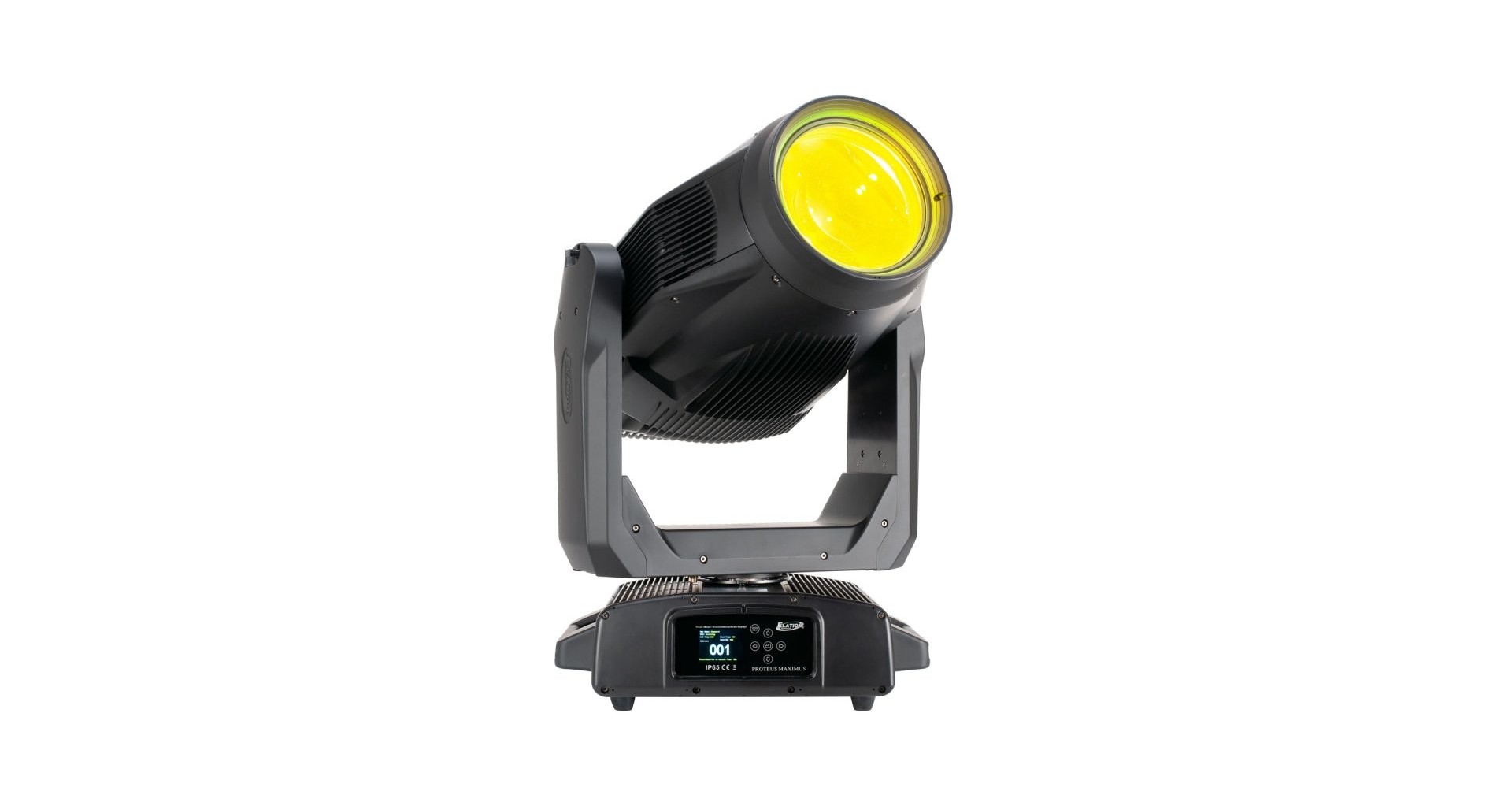

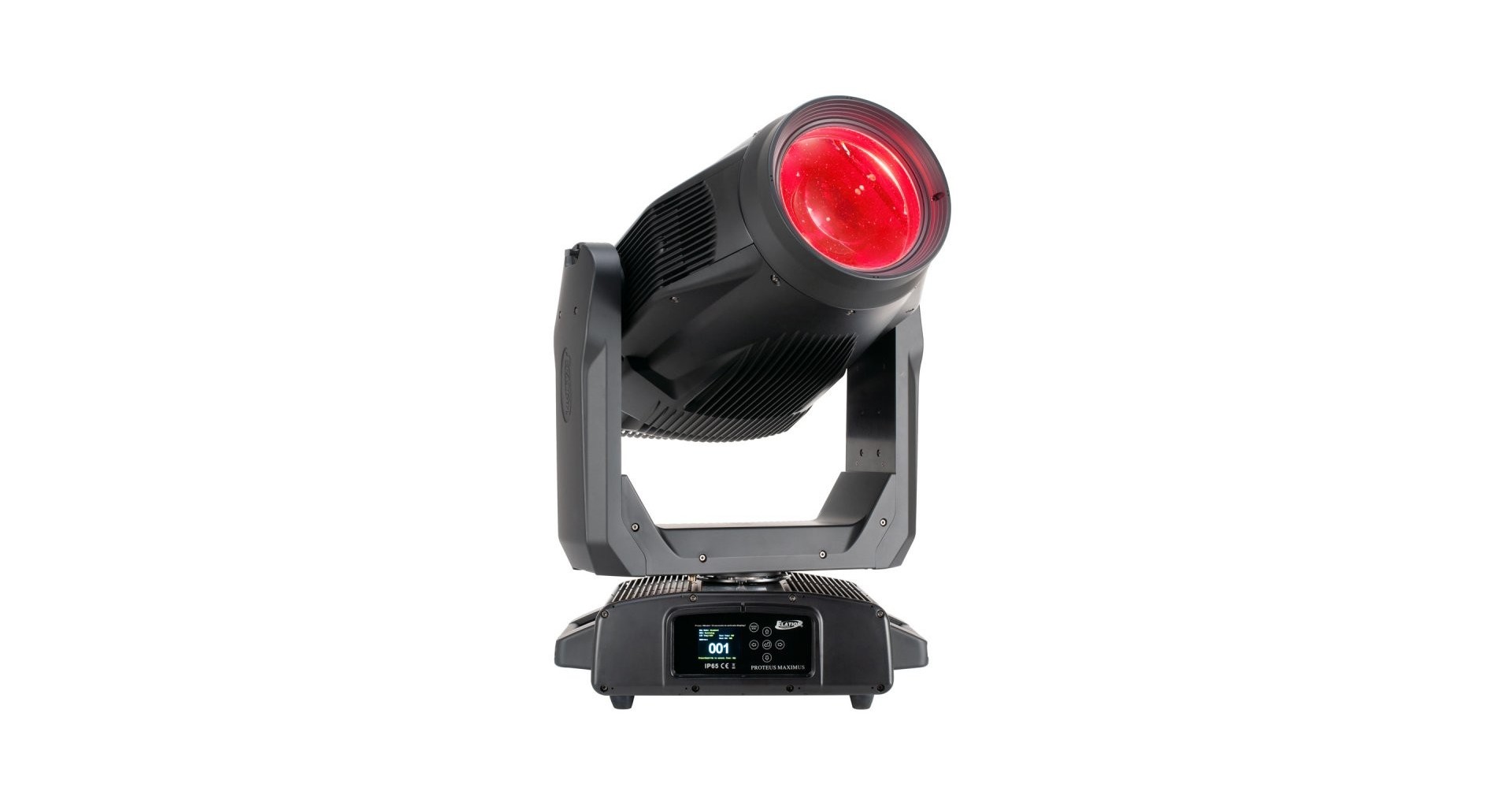

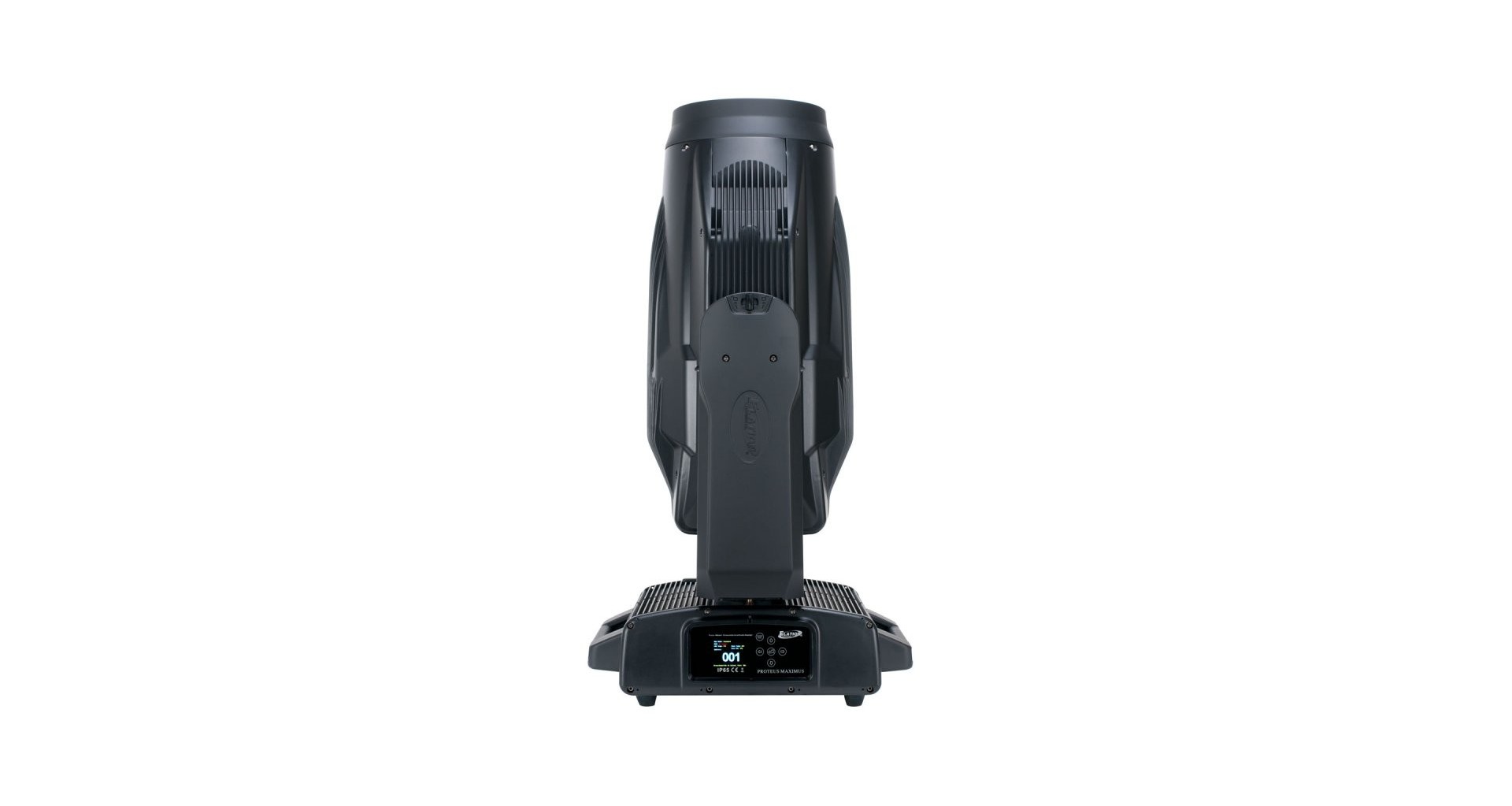

Elation Proteus MAXIMUS

Features
High Efficiency 950W White LED Engine
Up to 50.000 Total Lumen Fixture Output
CMY Color Mixing and Variable CTO
6 Position Color Wheel, High CRI, UV filter
Complete FX System featuring Rotating and Fixed Gobos, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5gr to 50gr / Large 180mm Front Aperture

SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*

PHOTOMETRIC DATA (preliminary)
50,000 Total Lumen Output
CRI 70+ (82+ with HCRI Filter)
2:1 Hotspot Ratio

EFFECTS
5.5 - 50gr Motorized Zoom (Large 180mm Front Aperture)
4 Rotating Full Blackout Framing Blades
+/-50gr Continuous Framing Indexing
Full 360gr Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate and Gamma Brightness

COLOR
CMY Color Mixing
Linear CTO Color Correction
6 Dichroic Colors including High CRI Filter and UV



GOBOS
2 Gobo Wheels
6 Rotating / Indexing Interchangeable Glass Gobos
7 Static Interchangeable Glass Gobos

CONTROL / CONNECTIONS
2 DMX Channel Modes (36 / 61)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180gr Reversible LCD Menu Display
Hibernation Mode (Power Save)
5pin XLR DMX In/Out
IP65 RJ45 etherCON In/Out
IP65 powerCON TRUE1 Power In



SIZE / WEIGHT
Length: 457mm (17.9 in)
Width: 331mm (13.0 in)
Height: 824mm (32.5 in)
Weight: 52kg (114.6 lbs.)



ELECTRICAL
AC 100-240V 50/60Hz
1,300W Max Power Consumption
14grF to 113grF (-10grC to 45grC)



*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
