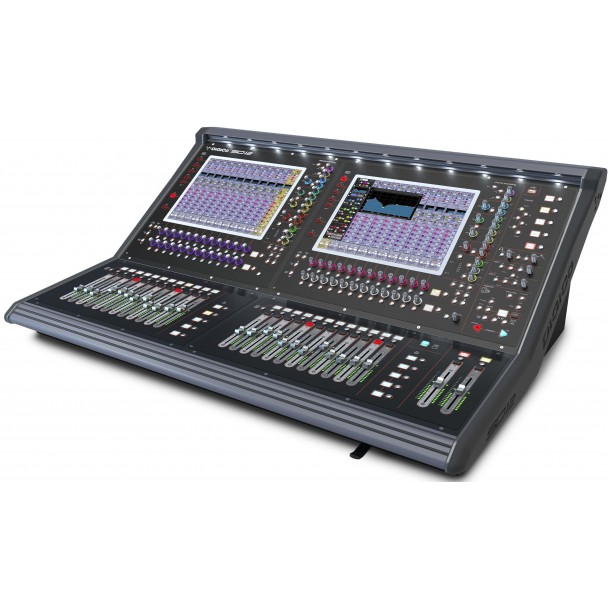

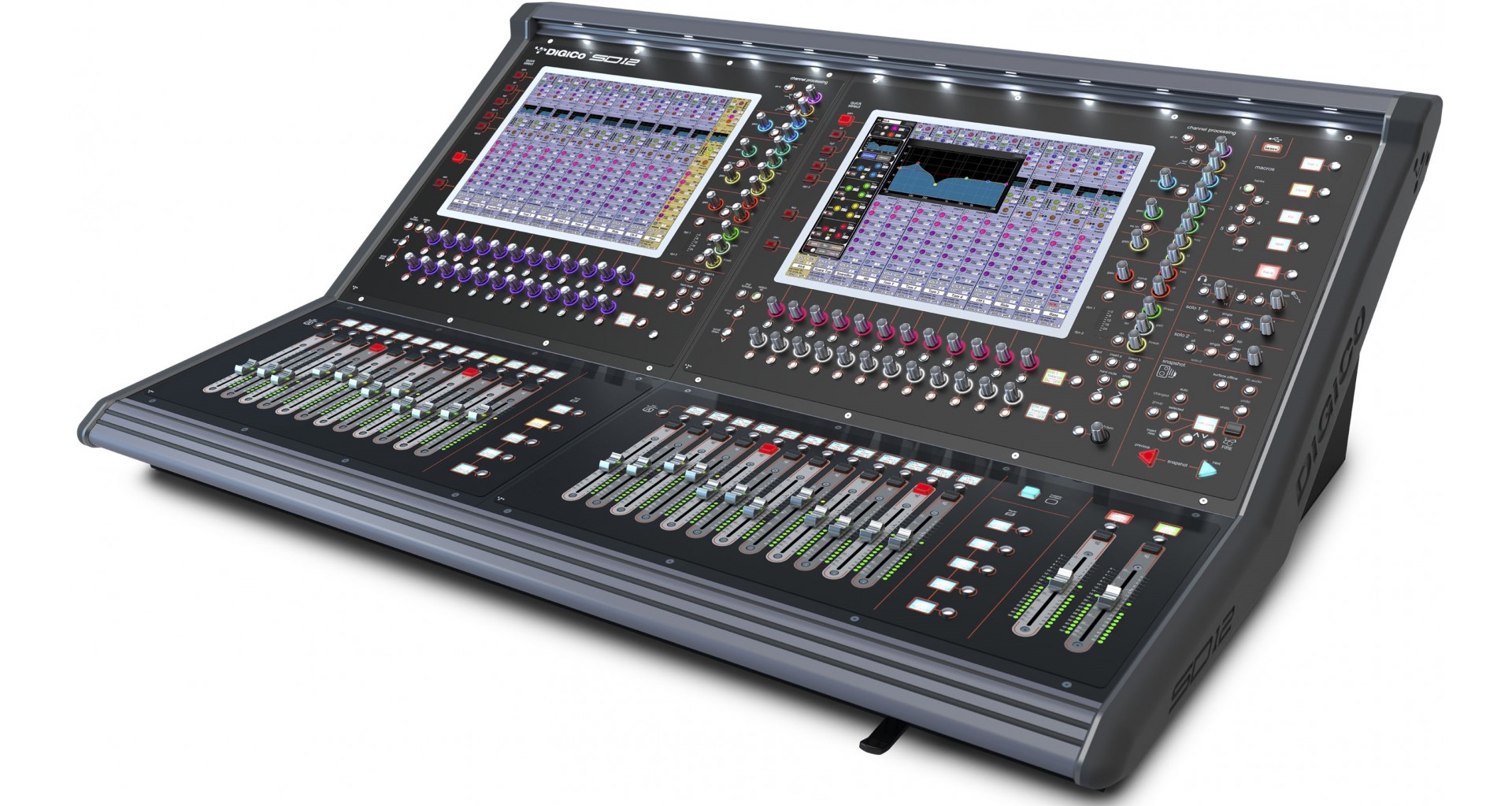

DiGiCo SD12

Caracteristici esentiale:

• 72 canale de intrare cu procesare completa
• 36 buss-uri Aux/Subgrup cu procesare completa
• Matrice 12 x 8 cu procesare completa
• Assignable channel layout
• Comenzi macro programabile pentru utilizatori
• Capabil de mirroring cu o alta consola SD12
• Redundant PSUs as standard
• Snapshots for seamlessly changing many parameters at once
• 2 sloturi DMI pentru a extinde I/O
• UB MADI Integrat
• Software offline
• Controlul iPad-ului
• Sd12 96 optiune software

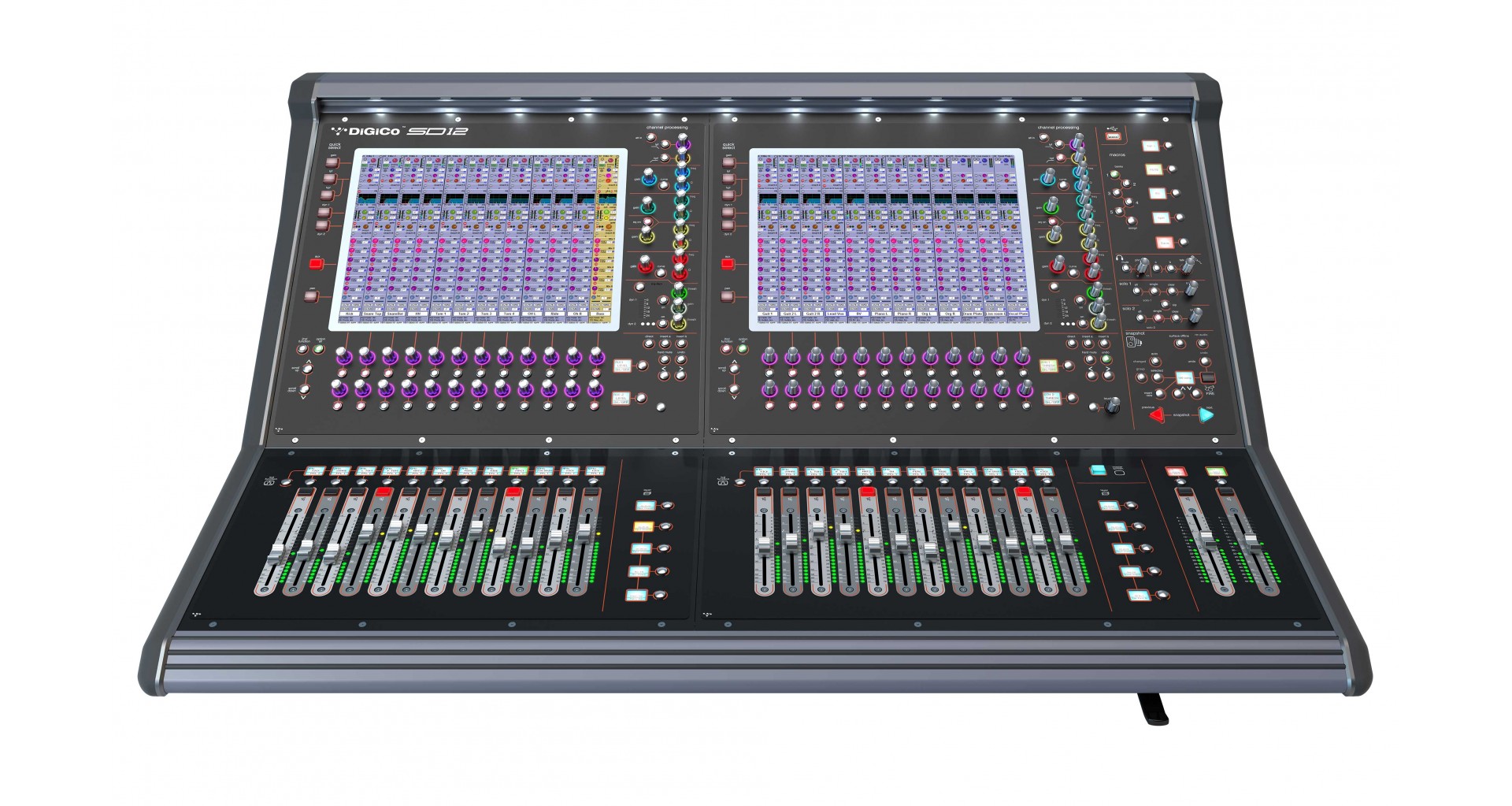

Suprafata de lucru:

• 26 x 100mm touch-sensitive, motorised faders
• 2 x 15" LCD high-resolution touchscreens
• 28 x 20-Segment LED bargraph meters
• 1 x ¼." Headphone socket
• 1 x 3.5mm Headphone Socket
• 1 x USB 2.0 slot
• Integrated Light Bar

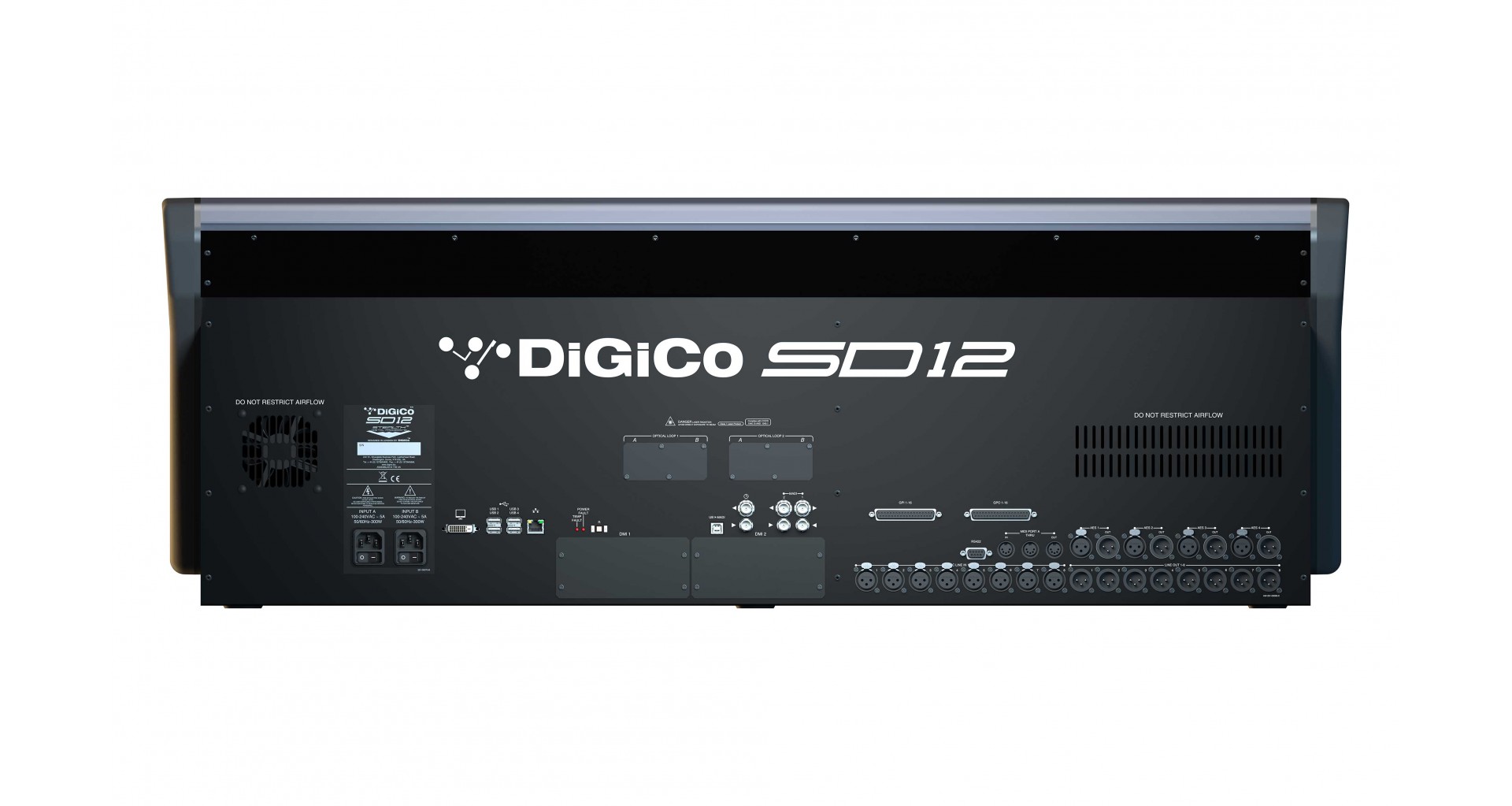

In spate:

• 2 x Redundant PSUs
• 2 x DMI Slots (up to 64 I/O per slot)
• 8 x XLR Mic/Line Inputs
• 8 x XLR Line Outputs
• 4 x XLR AES/EBU Inputs (8 x channels)
• 4 x XLR AES/EBU Outputs (8 x channels)
• 1 x GPI DSub37 (16 inputs)
• 1 x GPO DSub37 (16 outputs)
• 1 x MIDI In/Thru/Out (5 pin DIN)
• 1 x Word Clock I/O BNC
• 2 x MADI BNC I/O
• 1 x DVI port
• 1 x Ethernet port
• 4 x USB 2.0 slots
• 2 x Optocore Interface (Optional)
• 1 x UB MADI (USB Type B Audio I/O interface for recording
• and playback of up to 48 channels)
• 1 x RS422 port (9 pin)

Optiuni:

• Single or Dual Loop Optocore (HMA, OpticalCon or ST)
• Upgrade to SingleMode Optocore
• SD12 96 Software Upgrade
• Flightcase
• Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC /
• Dante / Dante64@96 / Hydra 2 / KLANG / MADI B / MADI C/ ME / Mic / Waves

Procesarea semnalului:

72 Input Channels (Mono)

• Main & Alternative input
• Analogue Gain
• Phase Inversion Control Gain Tracking
• Digital Trim (-40dB to +40dB)
• Variable Delay (0ms to 1.3s)
• DiGiTube
• HPF/LPF (-24dB/Oct)
• 4 Band Parametric EQ / Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor
• EQ/Dyn Order Control
• 2 Insert Points per Channel
• Channel Mute & Hard Mute
• Channel Direct Outputs
• 36 Aux/Sub-Group Busses
• Phase Inversion Control
• Digital Trim (-40dB to +40dB)
• Variable Delay (0ms to 1.3s)
• DiGiTube
• Merge Input
• Tone Generator
• HPF/LPF (-24dB/Oct)
• 4 Band Parametric EQ / Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor
• EQ/Dyn Order Control
• 2 Insert Points per Channel
• Channel Mute & Hard Mute
• 1 LR/LCR Master Buss (with full processing)
• 12 input x 8 output Full Processing Matrix
• 12 Control Groups (CGs)
• 2 Solo Busses
• 16 x 32-band GEQs
• 12 x Internal Stereo FX Processors
• Delays
• Audio Enhancer
• Choruses
• Pitch Shifters
• Reverbs
• DiGiTuBes available on every channel and Buss
• Dynamic EQs available on every channel and Buss
• Multiband Compressors available on every channel & Buss
• Virtual Soundcheck

Specificatii audio:

• Sample Rate: 48kHz or 96kHz
• Processing Delay: 1ms Typical (channel, SD Rack Input
• Through L-R Buss to Stage Output @96kHz)
• Internal Processing: Up to 40-bit, Floating Point
• A>.D & D>.A: 24-bit Converter Bit Depth
• Frequency Response: +/- 0.6dB (20Hz &ndash. 20kHz)
• THD: <.0.05% @ Unity Gain,: 10dB Input @ 1kHz
• Channel Separation: Better Than 90dB: (40Hz-15kHz)
• Microphone Input: Better Than -126dB: Equivalent Noise
• Maximum Output Level: +22dBu
• Maximum Input Level: +22dBu

Caracteristici fizice:

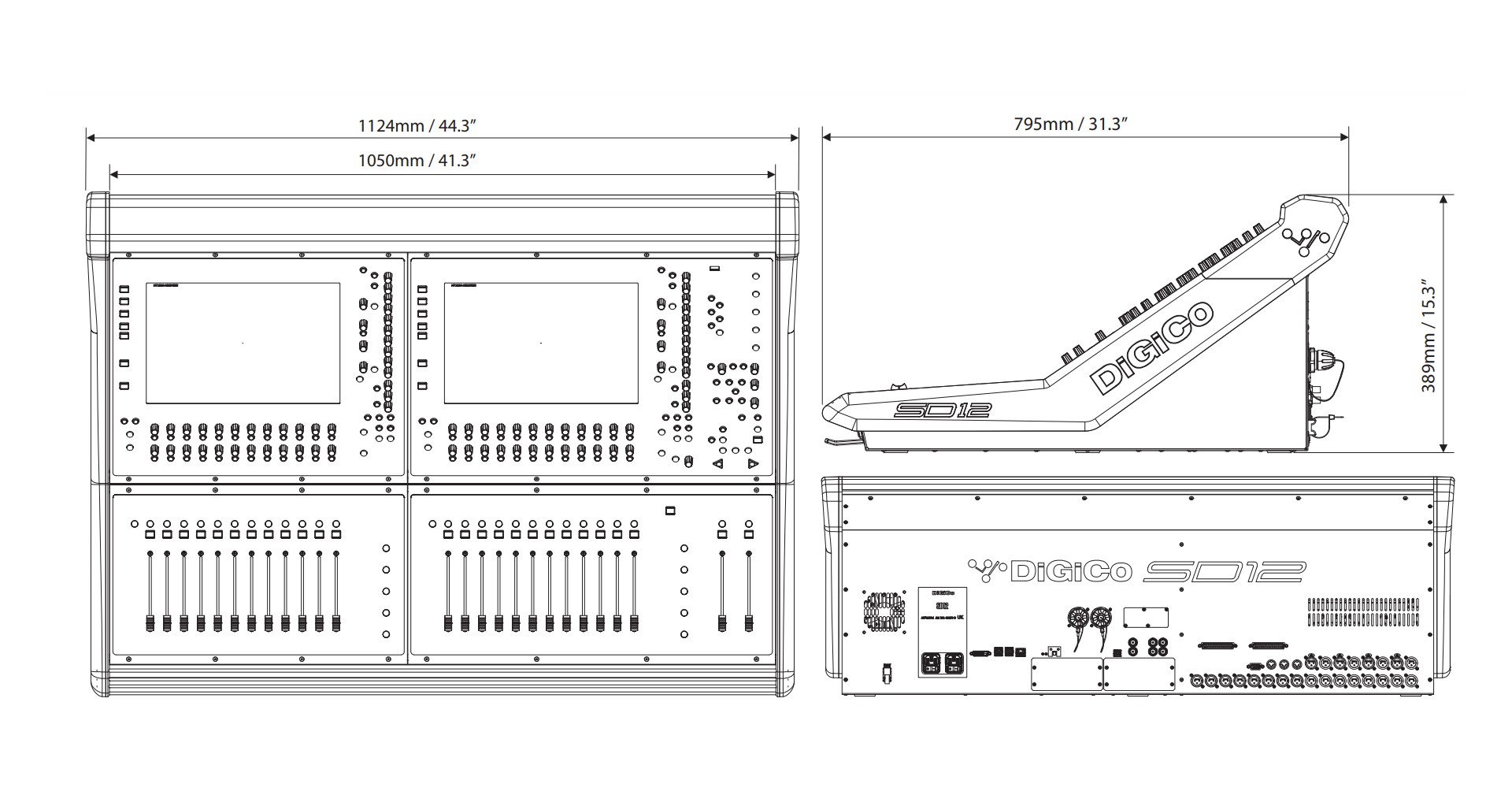

• Dimensiuni: 1124mm (w) x 795mm (d) x 389mm (h)
• Greutate: 42kg (130kg with optional flightcase)
• Flightcase: 1270mm (w) x 570mm (d) x 1150mm (h) (Optional)
• Alimentare: 90-260V, 50-60Hz, 232VA (140W)
• Redundancy: Internal PSU x 2
• Product code: X-SD12
