DiGiCo SD12 96

Consola digitala de mixaj audio ZD-042519

DiGiCo SD12 96

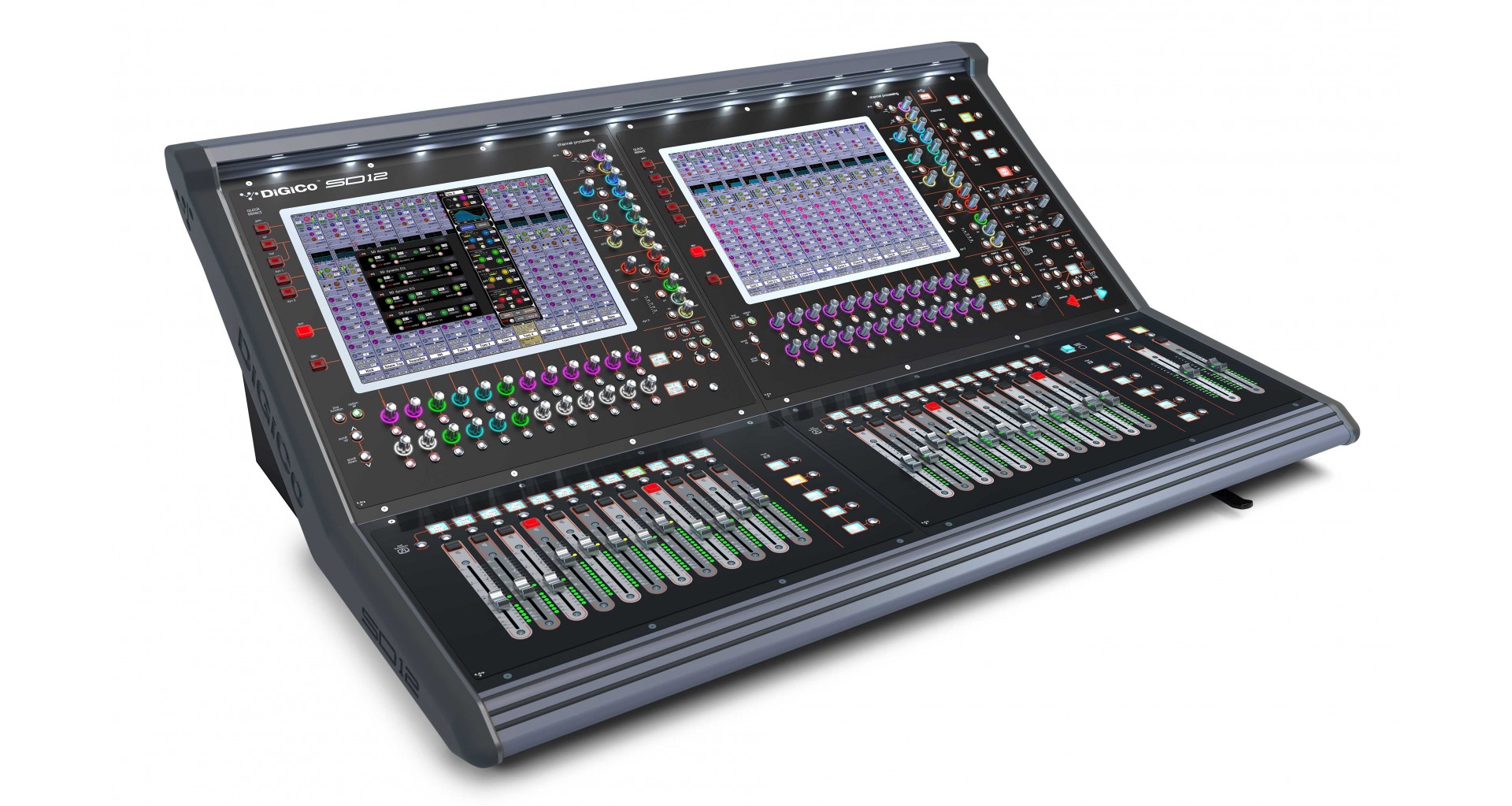

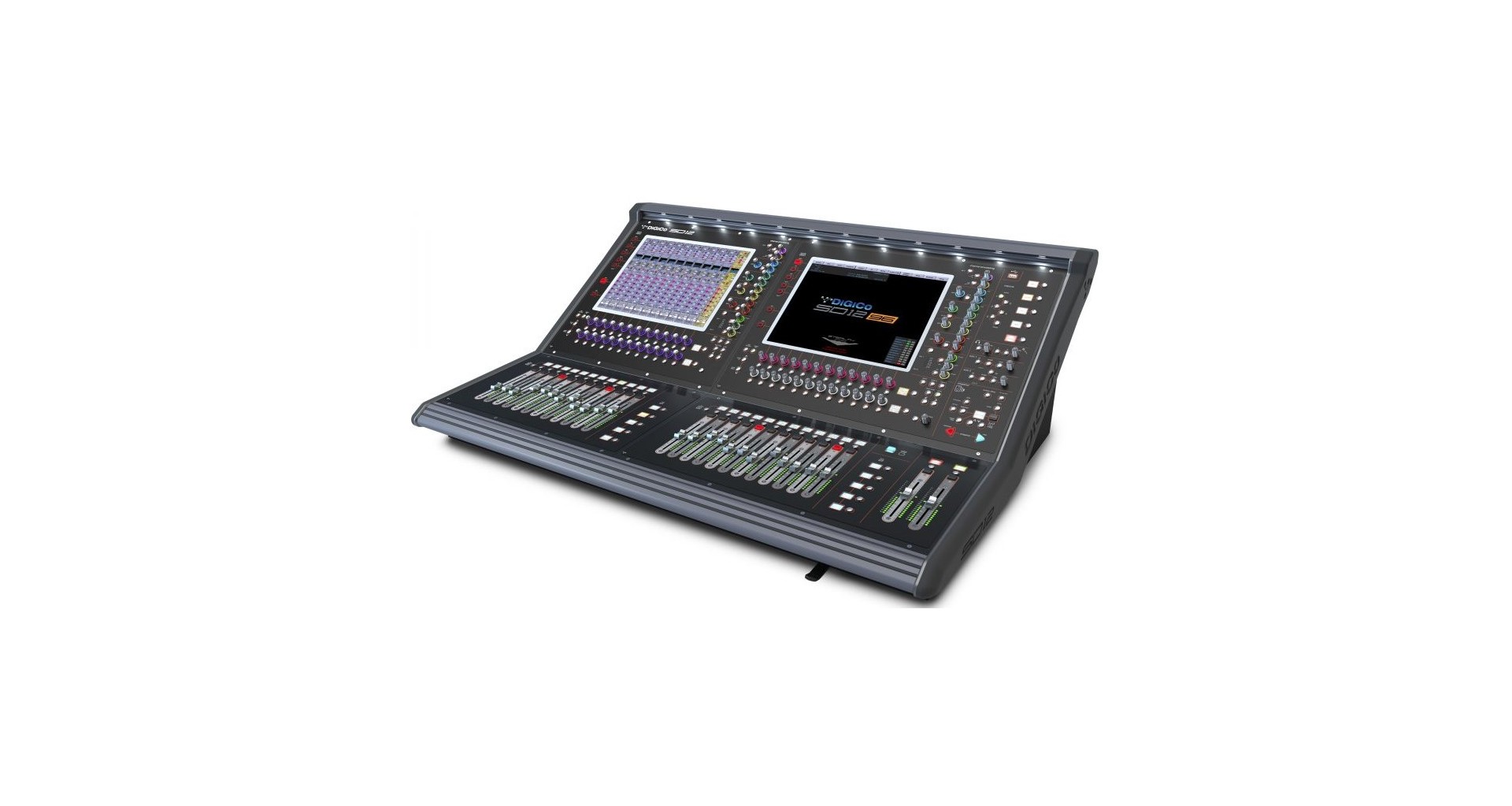

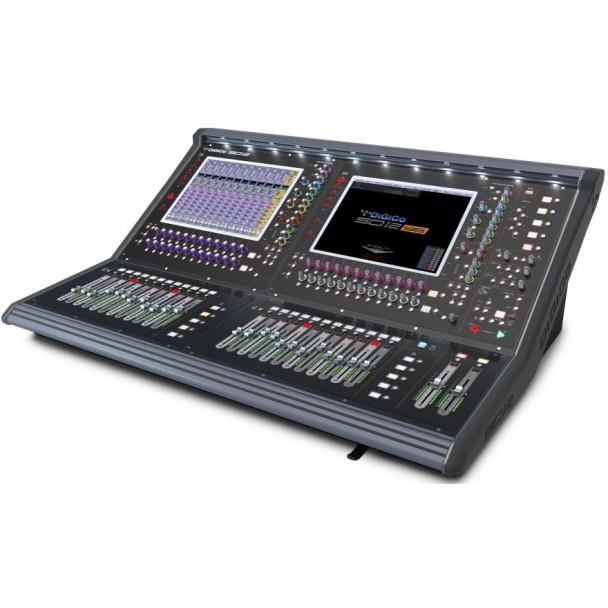

DiGiCo SD12 96 este o consola de mixaj cu 72 de canale, 26 fadere fizice si un ecran 2 x 15 "LCD touch-screen de inalta rezolutie.

Este dotata cu Stealth Digital Processing si tehnologie FPGA.

Unitate de vanzare: bucata

Vezi descrierea completa

Acest produs nu are puncte de fidelitate.

ZEEDO este distribuitorul autorizat DiGiCo in Romania.

Cere oferta de pret pentru DiGiCo SD12 96 trimitand o cerere la digico@zeedoshop.ro

Pentru revanzare, termen de livrare, detalii tehnice sau alte intrebari, va rugam sa ne contactati pe email: digico@zeedoshop.ro sau telefon: +4.0311.019.554

Achizitioneaza in SICAP
DiGiCo SD12 96

DiGiCo SD12 96

Solicita postarea acestui produs in SICAP. Daca ai si alte cerinte, scrie-ne in campul mai jos si un consultant te va contacta in cel mai scurt timp.
Numele institutiei si cerinta dumneavoastra
Nume persoana de contact
Email
Telefon




Informatii produs:

DiGiCo SD12 96

DiGiCo SD12 96 este o consola de mixaj cu 72 de canale, 26 fadere fizice si un ecran 2 x 15 "LCD touch-screen de inalta rezolutie.

Este dotata cu Stealth Digital Processing si tehnologie FPGA.

Unitate de vanzare: bucata


Acest produs nu are puncte de fidelitate.

DiGiCo SD12 96:

Caracteristici esentiale:

  • 96 canale de intrare cu procesare completa
  • 48 buss-uri Aux/Subgrup cu procesare completa
  • Matrice 12 x 8 cu procesare completa
  • Assignable channel layout
  • Comenzi macro programabile pentru utilizatori
  • Capabil de mirroring cu o alta consola SD12
  • Redundant PSUs as standard
  • Snapshots for seamlessly changing many parameters at once
  • 2 sloturi DMI pentru a extinde I/O
  • UB MADI Integrat
  • Software offline
  • Controlul iPad-ului
  • Sd12 96 optiune software

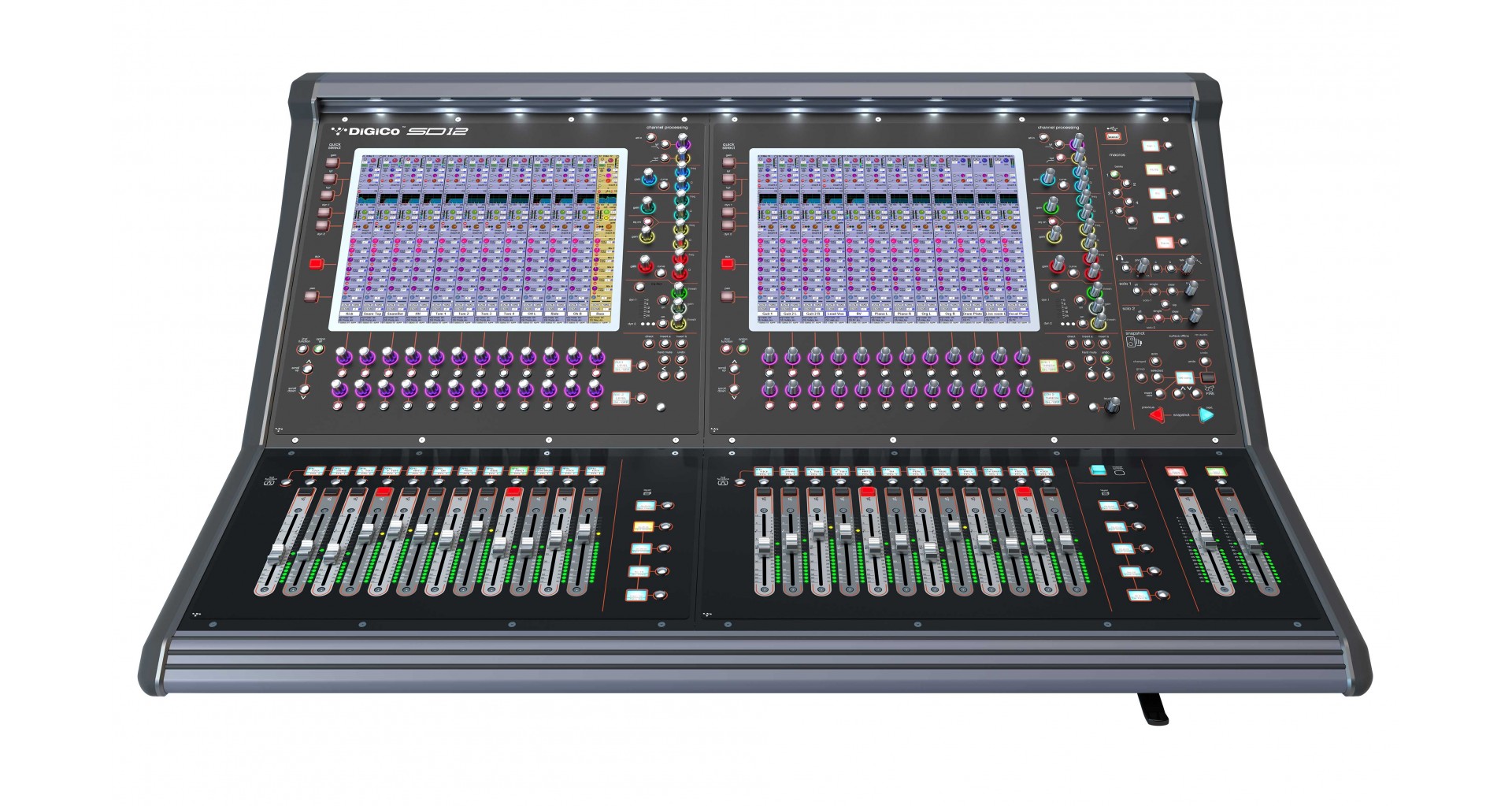

Suprafata de lucru:

  • 26 x 100mm touch-sensitive, motorised faders
  • 2 x 15". LCD high-resolution touchscreens
  • 28 x 20-Segment LED bargraph meters
  • 1 x ¼". Headphone socket
  • 1 x 3.5mm Headphone Socket
  • 1 x USB 2.0 slot
  • Integrated Light Bar

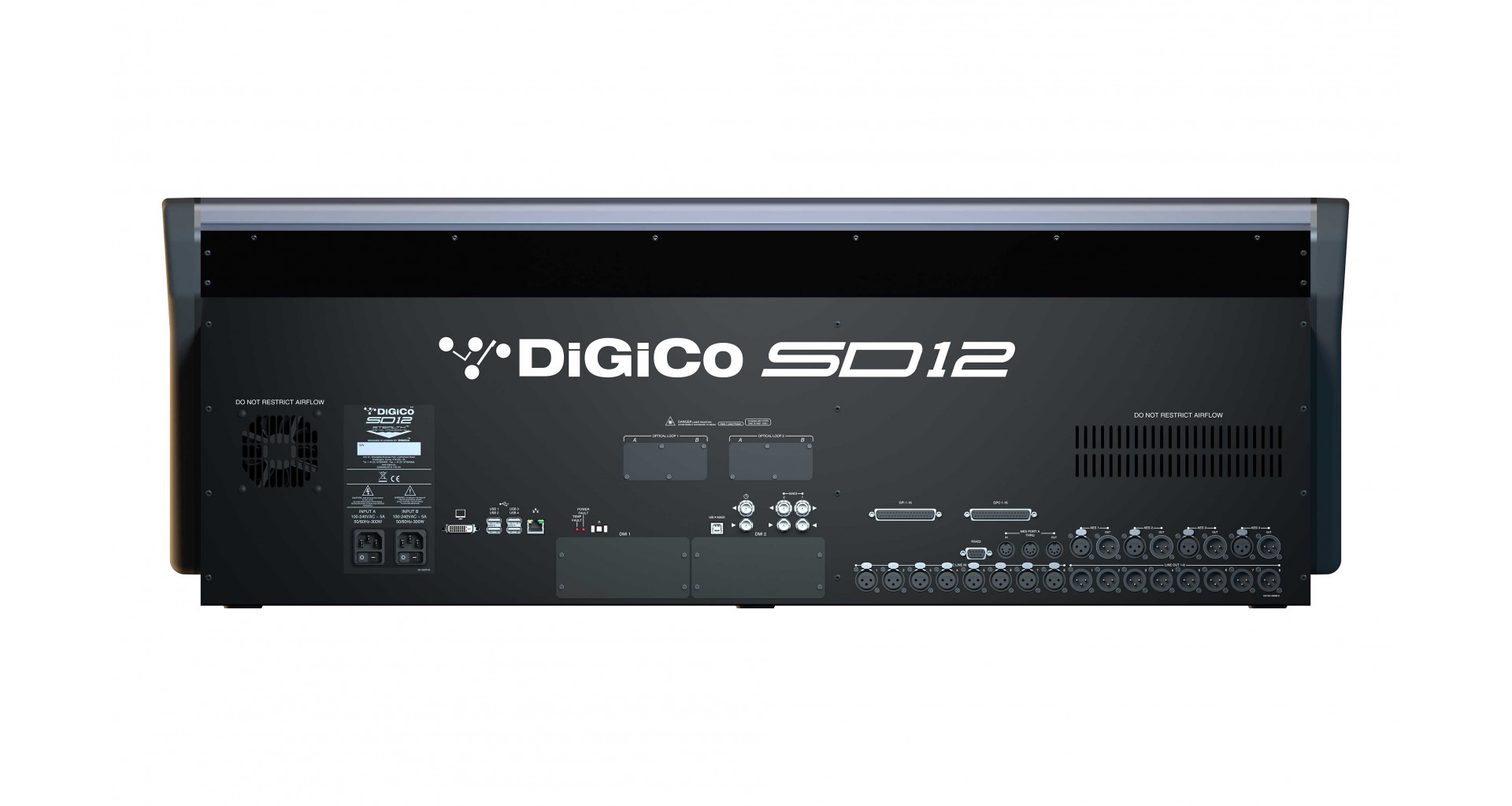

In spate:

  • 2 x Redundant PSUs
  • 2 x DMI Slots (up to 64 I/O per slot)
  • 8 x XLR Mic/Line Inputs
  • 8 x XLR Line Outputs
  • 4 x XLR AES/EBU Inputs (8 x channels)
  • 4 x XLR AES/EBU Outputs (8 x channels)
  • 1 x GPI DSub37 (16 inputs)
  • 1 x GPO DSub37 (16 outputs)
  • 1 x MIDI In/Thru/Out (5 pin DIN)
  • 1 x Word Clock I/O BNC
  • 2 x MADI BNC I/O
  • 1 x DVI port
  • 1 x Ethernet port
  • 4 x USB 2.0 slots
  • 2 x Optocore Interface (Optional)
  • 1 x UB MADI (USB Type B Audio I/O interface for recording
  • and playback of up to 48 channels)
  • 1 x RS422 port (9 pin)

Optiuni:

  • Single or Dual Loop Optocore (HMA, OpticalCon or ST)
  • Upgrade to SingleMode Optocore
  • SD12 96 Software Upgrade
  • Flightcase
  • Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC /
  • Dante / Dante64@96 / Hydra 2 / KLANG / MADI B / MADI C/ ME / Mic / Waves

Procesarea semnalului:

  • 96 Input Channels (Mono)
  • Main & Alternative input
  • Analogue Gain
  • Phase Inversion Control Gain Tracking
  • Digital Trim (-40dB to +40dB)
  • Variable Delay (0ms to 1.3s)
  • DiGiTube
  • HPF/LPF (-24dB/Oct)
  • 4 Band Parametric EQ / Dynamic EQ
  • DYN 1: Compressor, Multiband Compressor, Desser
  • DYN 2: Gate, Duck, External Input Compressor
  • EQ/Dyn Order Control
  • 2 Insert Points per Channel
  • Channel Mute & Hard Mute
  • Channel Direct Outputs
  • 36 Aux/Sub-Group Busses
  • Phase Inversion Control
  • Digital Trim (-40dB to +40dB)
  • Variable Delay (0ms to 1.3s)
  • DiGiTube
  • Merge Input
  • Tone Generator
  • HPF/LPF (-24dB/Oct)
  • 4 Band Parametric EQ / Dynamic EQ
  • DYN 1: Compressor, Multiband Compressor, Desser
  • DYN 2: Gate, Duck, External Input Compressor
  • EQ/Dyn Order Control
  • 2 Insert Points per Channel
  • Channel Mute & Hard Mute
  • 1 LR/LCR Master Buss (with full processing)
  • 12 input x 8 output Full Processing Matrix
  • 12 Control Groups (CGs)
  • 2 Solo Busses
  • 16 x 32-band GEQs
  • 12 x Internal Stereo FX Processors
  • Delays
  • Audio Enhancer
  • Choruses
  • Pitch Shifters
  • Reverbs
  • DiGiTuBes available on every channel and Buss
  • Dynamic EQs available on every channel and Buss
  • Multiband Compressors available on every channel & Buss
  • Virtual Soundcheck

Specificatii audio:

  • Sample Rate: 48kHz or 96kHz
  • Processing Delay: 1ms Typical (channel, SD Rack Input
  • Through L-R Buss to Stage Output @96kHz)
  • Internal Processing: Up to 40-bit, Floating Point
  • A>.D & D>.A: 24-bit Converter Bit Depth
  • Frequency Response: +/- 0.6dB (20Hz &ndash. 20kHz)
  • THD: <.0.05% @ Unity Gain,: 10dB Input @ 1kHz
  • Channel Separation: Better Than 90dB: (40Hz-15kHz)
  • Microphone Input: Better Than -126dB: Equivalent Noise
  • Maximum Output Level: +22dBu
  • Maximum Input Level: +22dBu

Caracteristici fizice:

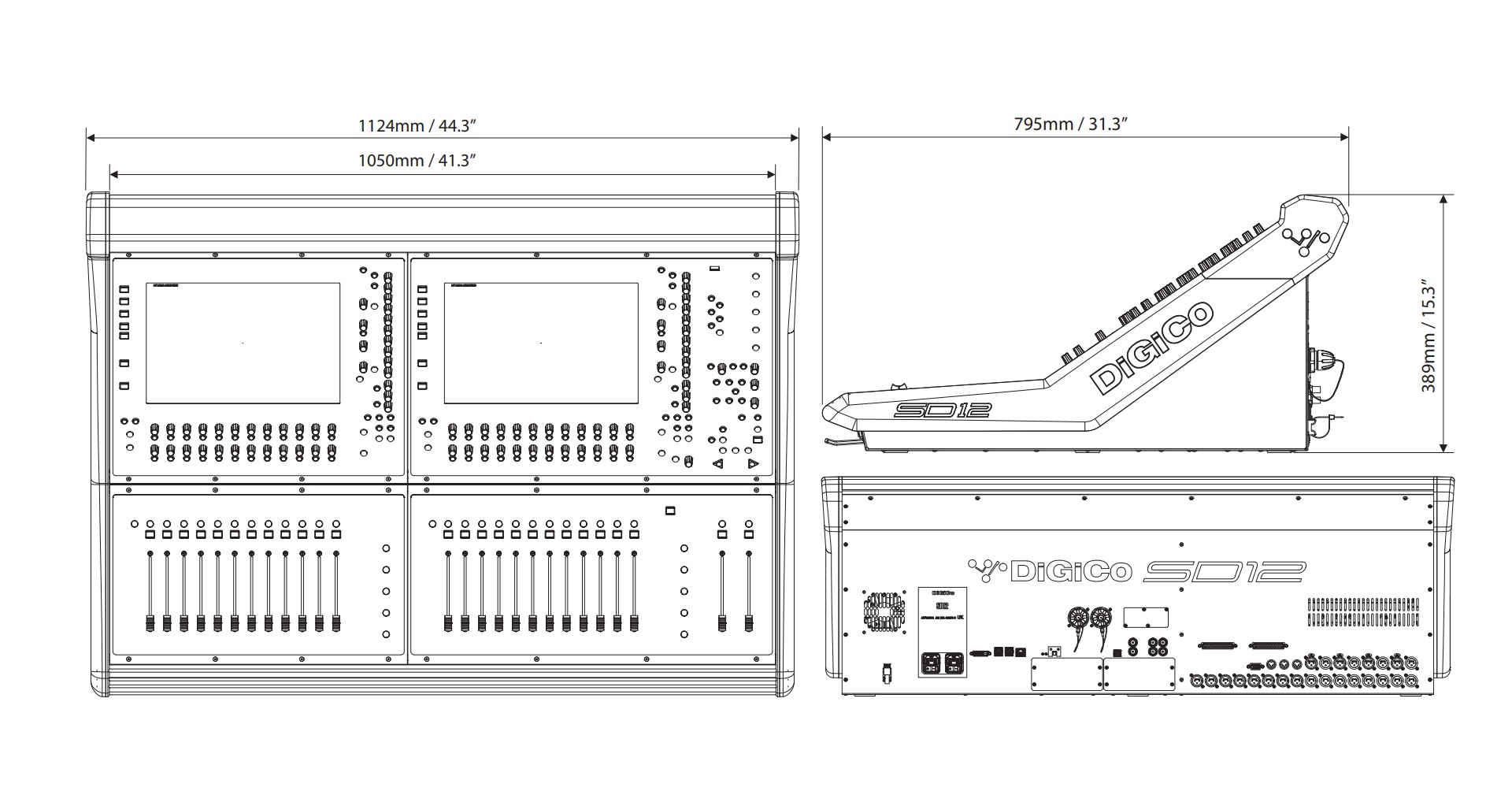

  • Dimensiuni: 1124mm (w) x 795mm (d) x 389mm (h)
  • Greutate: 42kg (130kg with optional flightcase)
  • Flightcase: 1270mm (w) x 570mm (d) x 1150mm (h) (Optional)
  • Alimentare: 90-260V, 50-60Hz, 232VA (140W)
  • Redundancy: Internal PSU x 2
  • Product code: X-SD1296

Vezi toate produsele de tip Mixere digitale DiGiCo
Vezi toate produsele din categoria Mixere digitale
Vezi toate produsele apartinand producatorului DiGiCo

Specificatii Tehnice DiGiCo SD12 96

Numar intrari 96
Numar de canale 96
Raspuns in frecventa 48kHz - 96kHz
Greutate 42kg
Dimensiuni 1124 x 795 x 389mm
Tip produs Consola digitala de mixaj audio
Garantie 36
