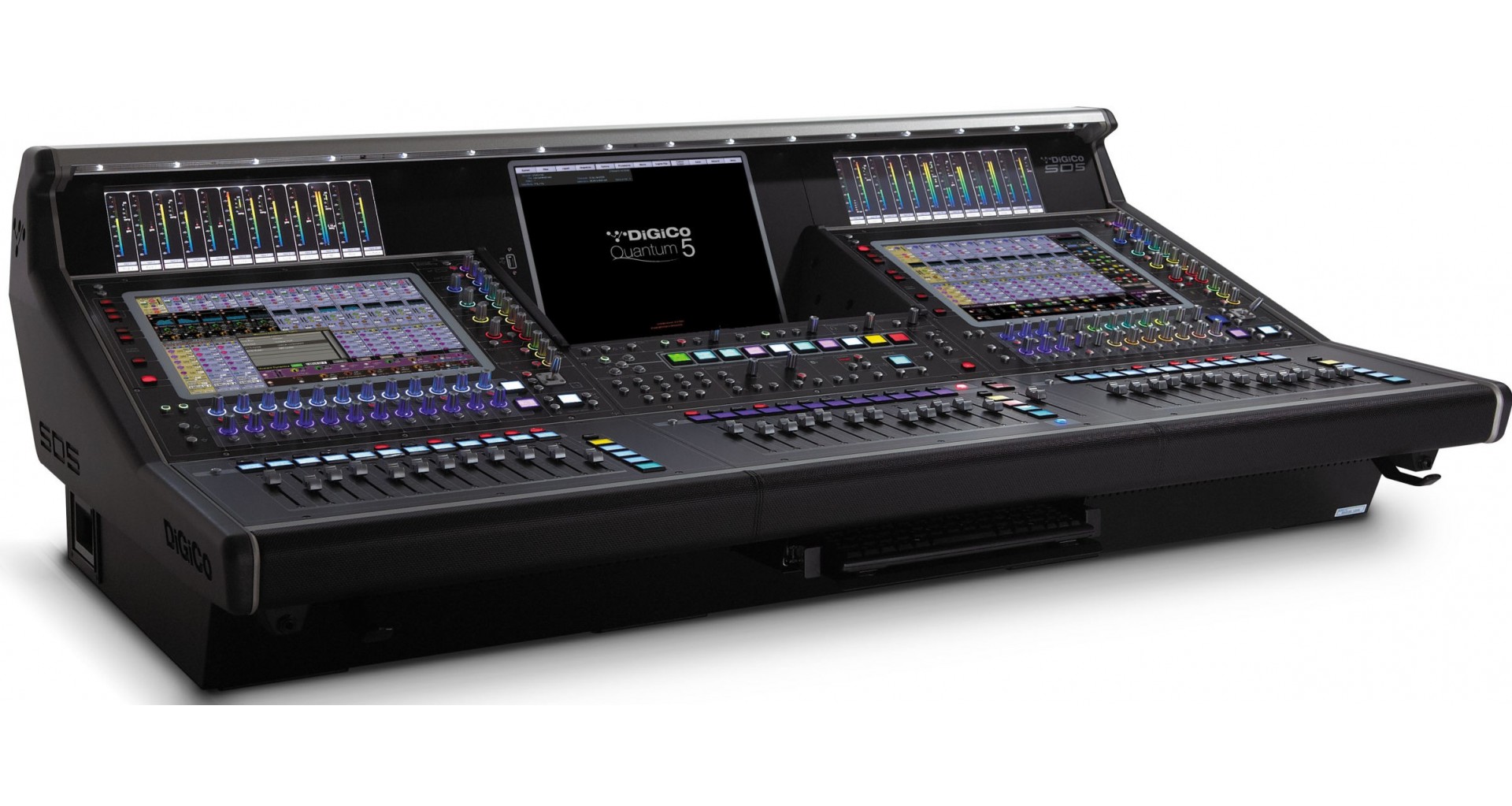

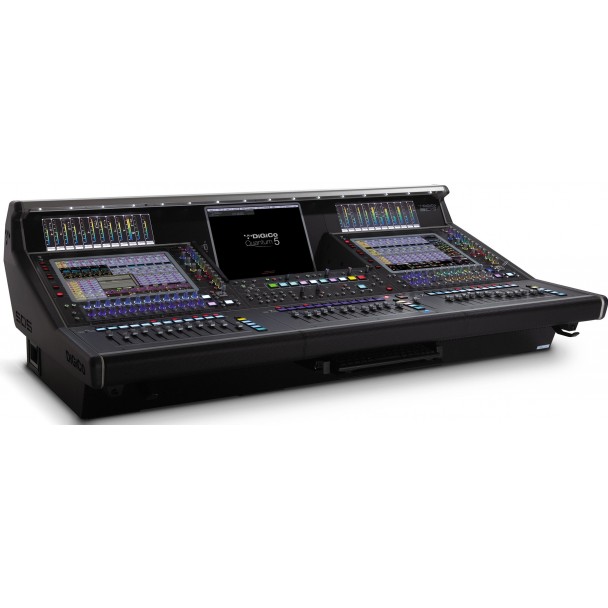

DiGiCo Quantum 5

Caracteristici esentiale:

• Pana la 256 de canale de intrare cu procesare completa
• Pana la 128 de buss-uri Aux/Subgrup cu procesare completa
• Matrice 36 x 36 cu procesare completa
• 48 Insertable Mustard processing strips
• 128 Instante de procesare nodale
• Functia True Solo
• Comenzi macro programabile pentru utilizatori
• Capabil de mirroring cu un alt Quantum 5
• Redundant PSUs as standard
• Snapshots for seamlessly changing many parameters at once
• 2 sloturi DMI pentru a extinde I/O
• UB MADI Integrat
• Software offline
• Controlul iPad-ului
• Optiunea de broadcast a software-ului

Suprafata de lucru:

• 37 x 100mm sensibil la atingere, fadere motorizate
• Ecran tactil LCD de inalta rezolutie de 3 x 15"
• 2 x LCD de inalta rezolutie TFT-LCD montat la comanda
• Ecrane Meterbridge
• 2 x 1 / 4 " socket pentru casti
• 1 x slot USB 2.0
• Bara de iluminare integrata

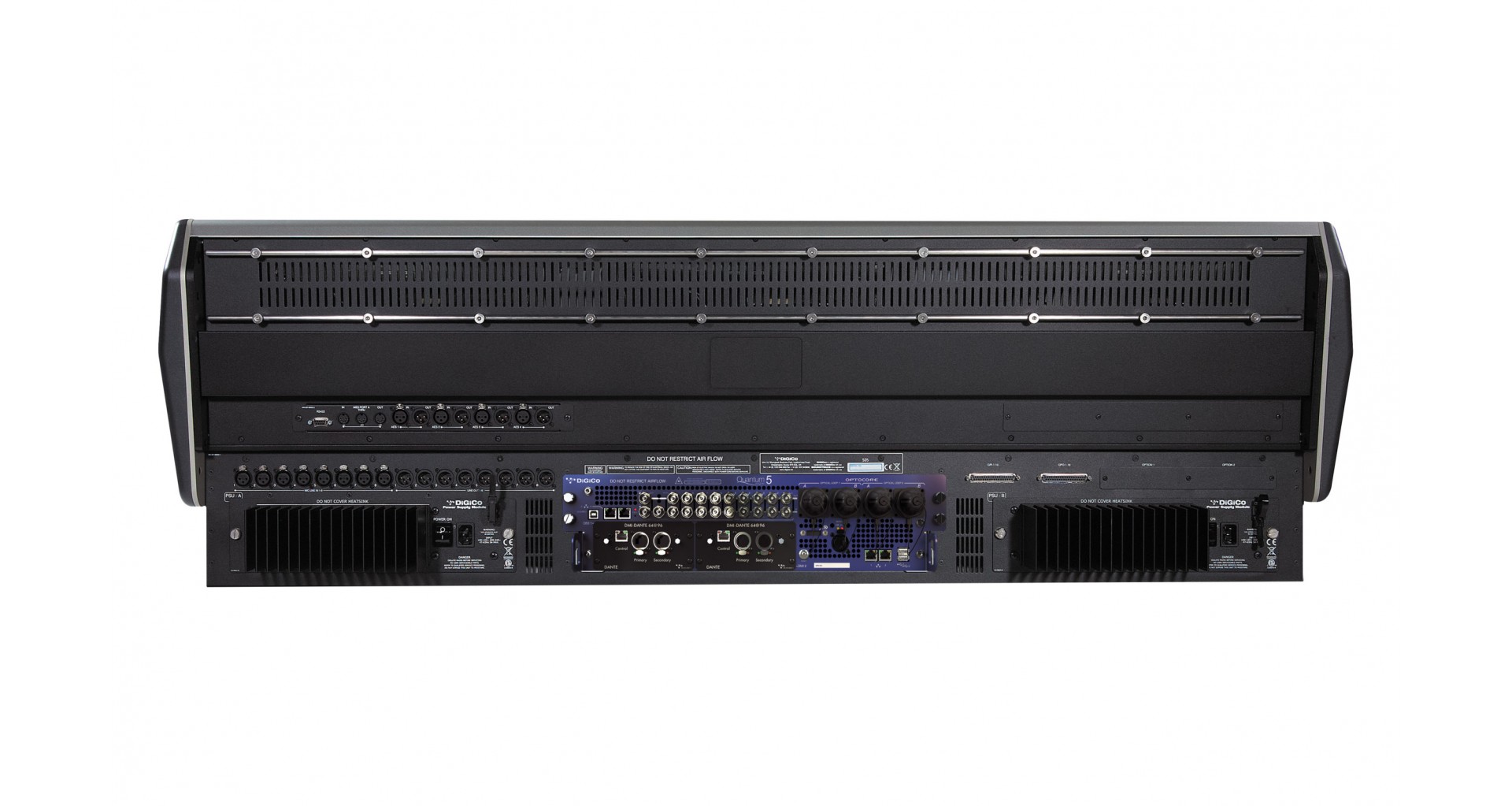

In spate:

• 2 x Redundant PSUs
• 8 x XLR Mic/Line Inputs
• 8 x XLR Line Outputs
• 4 x XLR AES/EBU Inputs (8 x channels)
• 4 x XLR AES/EBU Outputs (8 x channels)
• 8 x MADI BNC I/O at 48k, 4 interfaces at 96k
• 1 x MultiMode Optocore Interface (expandable to 2)
• 1 x Waves port as standard
• 2 x DMI Slots (up to 64 I/O per slot)
• 1 x UB MADI (USB Type B Audio I/O interface for recording
• and playback of up to 48 channels)
• 4 x Ethernet ports (switched together)
• 2 x USB 2.0 slots
• 1 x DSub37 GPI (16 inputs)
• 1 x DSub37 GPO (16 outputs)
• 1 x MIDI In/Thru/Out (5 pin DIN)
• 1 x Word Clock I/O BNC
• 1 x DisplayPort Output
• 1 x AES/EBU Sync I/O
• 1 x BNC Video Sync
• 1 x RS422 port (9 pin)

Optiuni:

• Upgrade to Dual Loop Optocore (HMA, OpticalCon or ST)
• Upgrade to SingleMode Optocore
• Broadcast Software
• Flightcase
• Quantum Upgrade kit for SD5 (including Quantum power
• distribution board)
• Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC /
• Dante / Dante 64@96 / Hydra 2 / KLANG / MADI B / MADI C/ ME / Mic / Waves

Procesare semnal:

• Up to 256 Input Channels (Mono)
• Main & Alternative input
• Analogue Gain
• Phase Inversion Control
• Gain Tracking
• Digital Trim (-40dB to +40dB)
• Variable Delay (0ms to 1.3s)
• DiGiTube
• HPF/LPF (-24dB/Oct)
• 4 Band Parametric EQ / Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor
• EQ/Dyn Order Control
• 2 Insert Points per Channel
• Channel Mute & Hard Mute
• Channel Direct Outputs

Up to 128 Aux/Sub-Group Busses

• Phase Inversion Control
• Digital Trim (-40dB to +40dB)
• Variable Delay (0ms to 1.3s)
• DiGiTube
• Merge Input
• Tone Generator
• HPF/LPF (-24dB/Oct)
• 8 Band EQ: 4 Band Parametric EQ and 4 Band
• Parametric or Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor EQ/Dyn Order Control 2 Insert Points per Channel
• Channel Mute & Hard Mute
• 1 LR/LCR/LCRS/5.1 Master Buss (with full processing)
• 36 input x 36 output Full Processing Matrix
• 36 Control Groups (CGs)
• 2 Solo Busses
• 32 x 32-band GEQs
• 36 x Internal Stereo FX Processors
• Delays
• Audio Enhancer
• Choruses
• Pitch Shifters Reverbs
• 12 x Internal Spice Rack Slots
• 6 band Dynamic Multiband Compressor/Expander
• 48 x Mustard Processing Strips
• Tube
• Tube Emulation
• HPF/LPF (-24dB/Oct)
• 4 Band EQ: 2 Band Parametric EQ and 2 Band
• Parametric EQ or All Pass Filters DYN 1: Classic RMS/Peak Compressor, Vintage VCA
• Compressor, Optical Compressor, FET Limiter DYN 2: Gate, Ducker
• 128 x Nodal Processing
• 4 Band Parametric EQ / Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor
• Multiband Compressors available on every channel, Buss
• and Nodal Processor
• Dynamic EQs available on every channel, Buss and Nodal
• Processor
• DiGiTuBes available on every channel & Buss
• True Solo function
• Virtual Souncheck

Specificatii audio:

• Sample Rate: 48kHz or 96kHz
• Procesing Delay: 2ms Typical @ 48K (253 Channels, Stage
• input Through L-R Buss to Stage Output) 1.1ms @ 96k
• Internal Processing: Up to 40-bit, Floating Point
• A>.D & D>.A: 24-bit Converter Bit Depth
• Frequency Response: +/- 0.6dB (20Hz &ndash. 20kHz)
• THD: <.0.05% @ Unity Gain,: 10dB Input @ 1kHz
• Channel Separation: Better Than 90dB: (40Hz-15kHz)
• Residual Output Noise: <.90dBu Typical (20Hz-20kHz)
• Microphone Input: Better Than -126dB: Equivalent Noise
• Maximum Output Level: +22dBu
• Maximum Input Level: +22dBu

Caracteristici fizice:

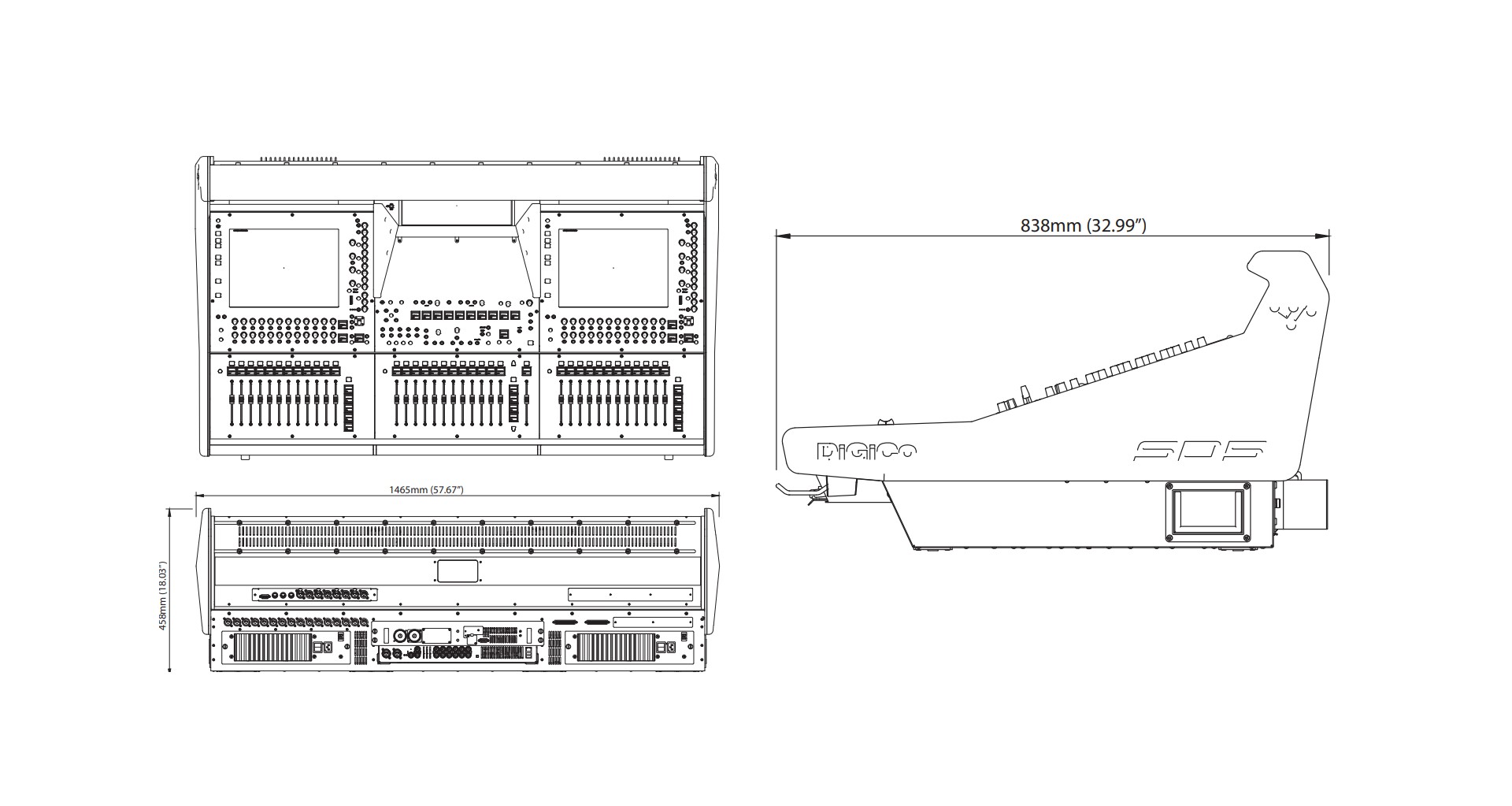

• Dimensiuni: 1465mm (w) x 838mm (d) x 458mm (h)
• Greutate: 116kg (235kg with optional flightcase)
• Flightcase: 1600mm (w) x 600mm (d) x 1200mm (h) (Optional)
• Alimentare: 90-260 V, 50-60Hz, 790VA
• Redundancy: Internal PSU x 2
• Product Code: X-Q5-WS-OP (HMA optics)
• Product Code: X-Q5-UP-OP (Upgrade from SD5 with HMA optics)
