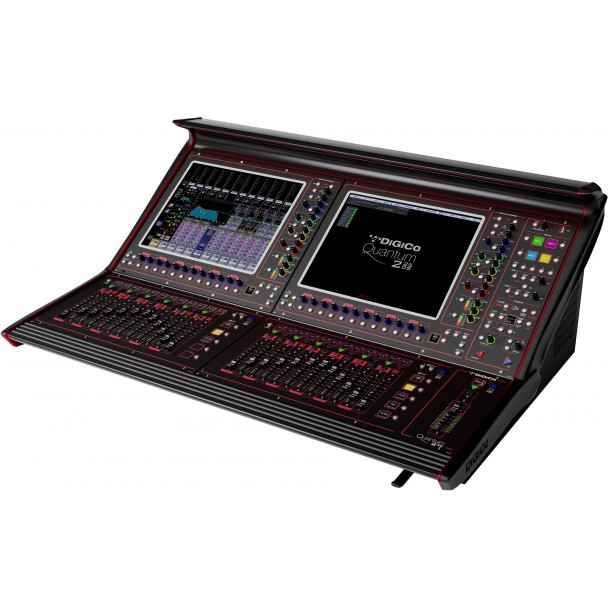

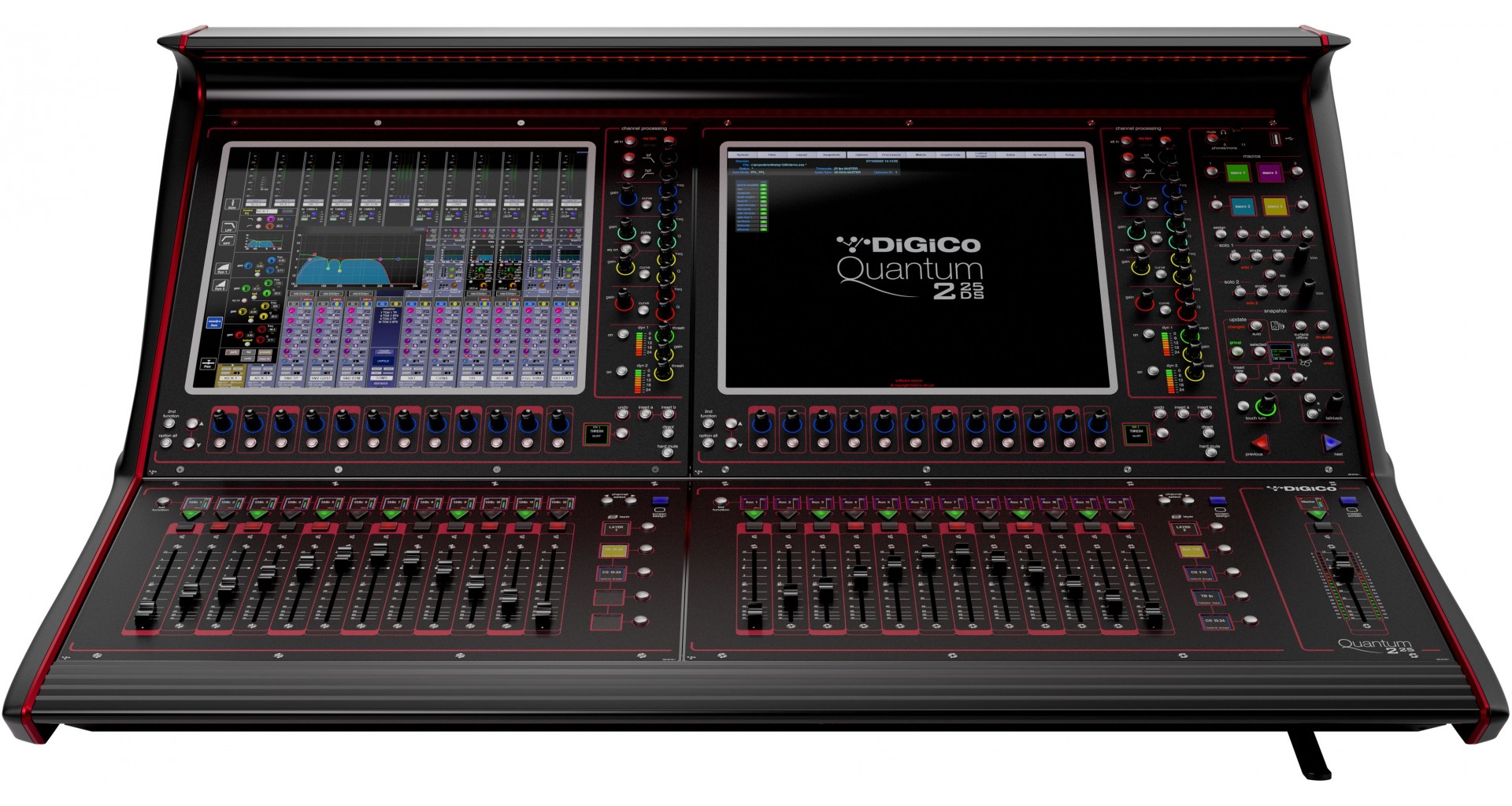

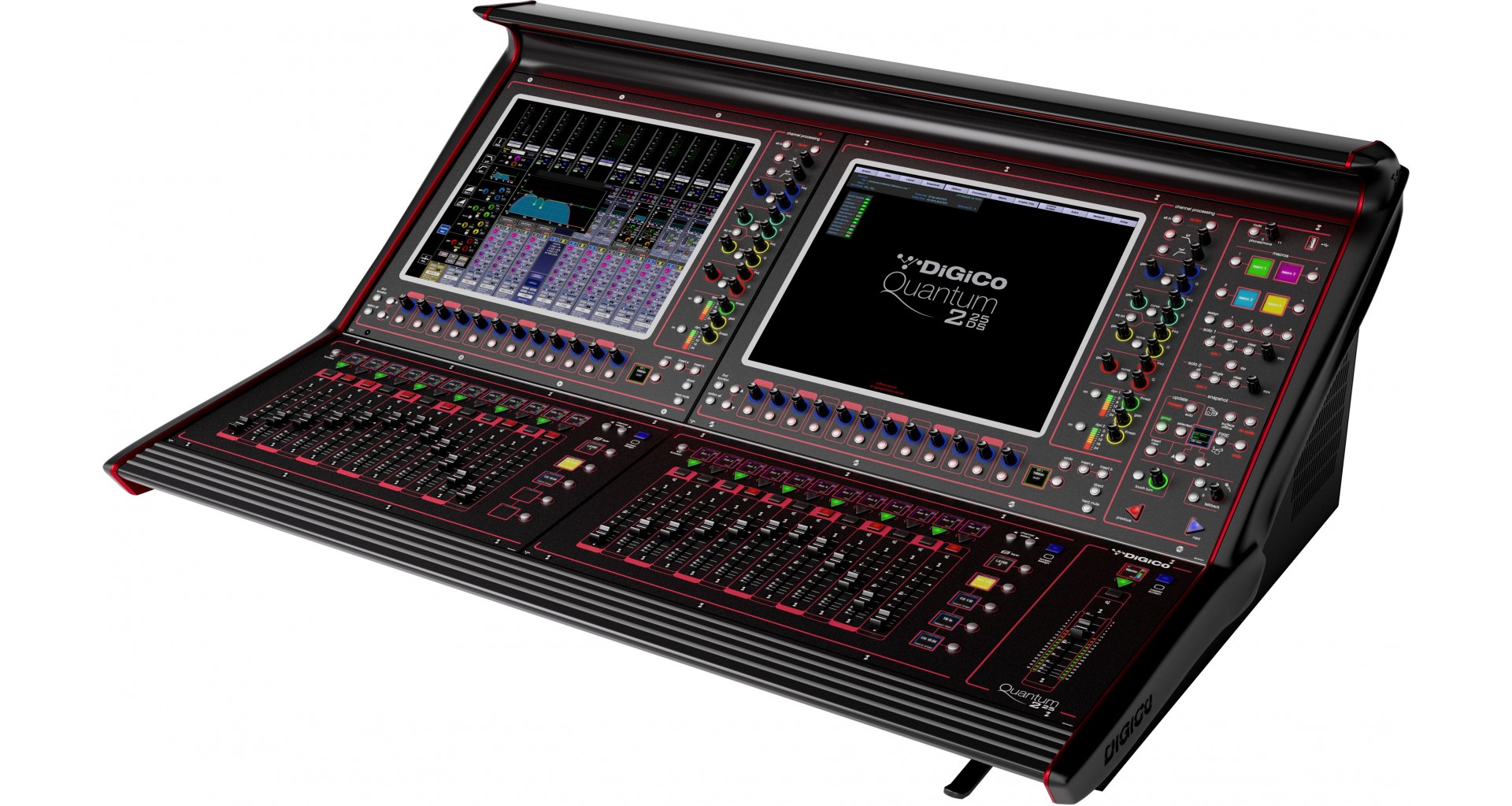

DiGiCo Quantum 225DS

Caracteristici generale:

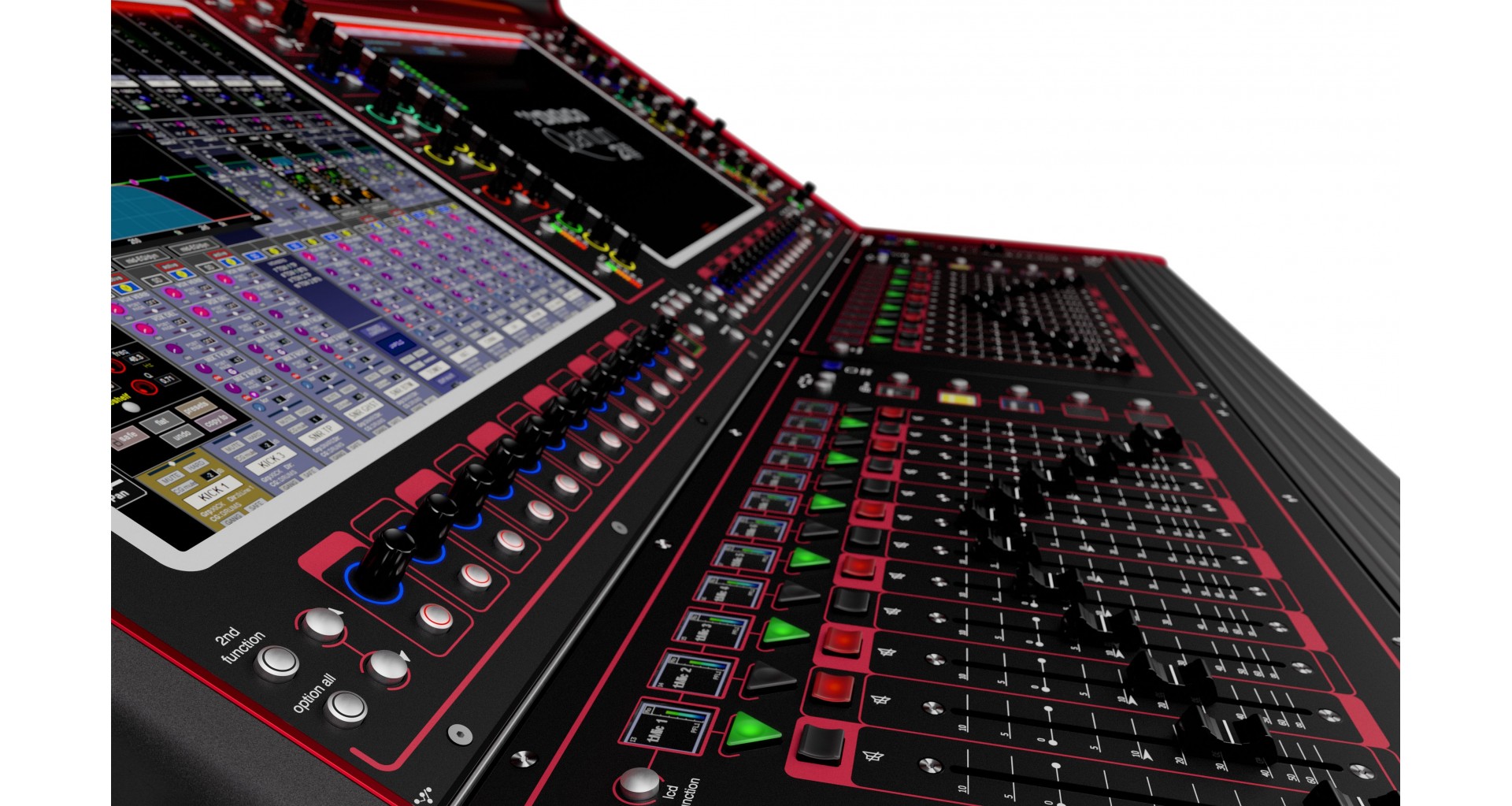

• Fadere: 25 x 100 mm, touch-sensitive, motorizate

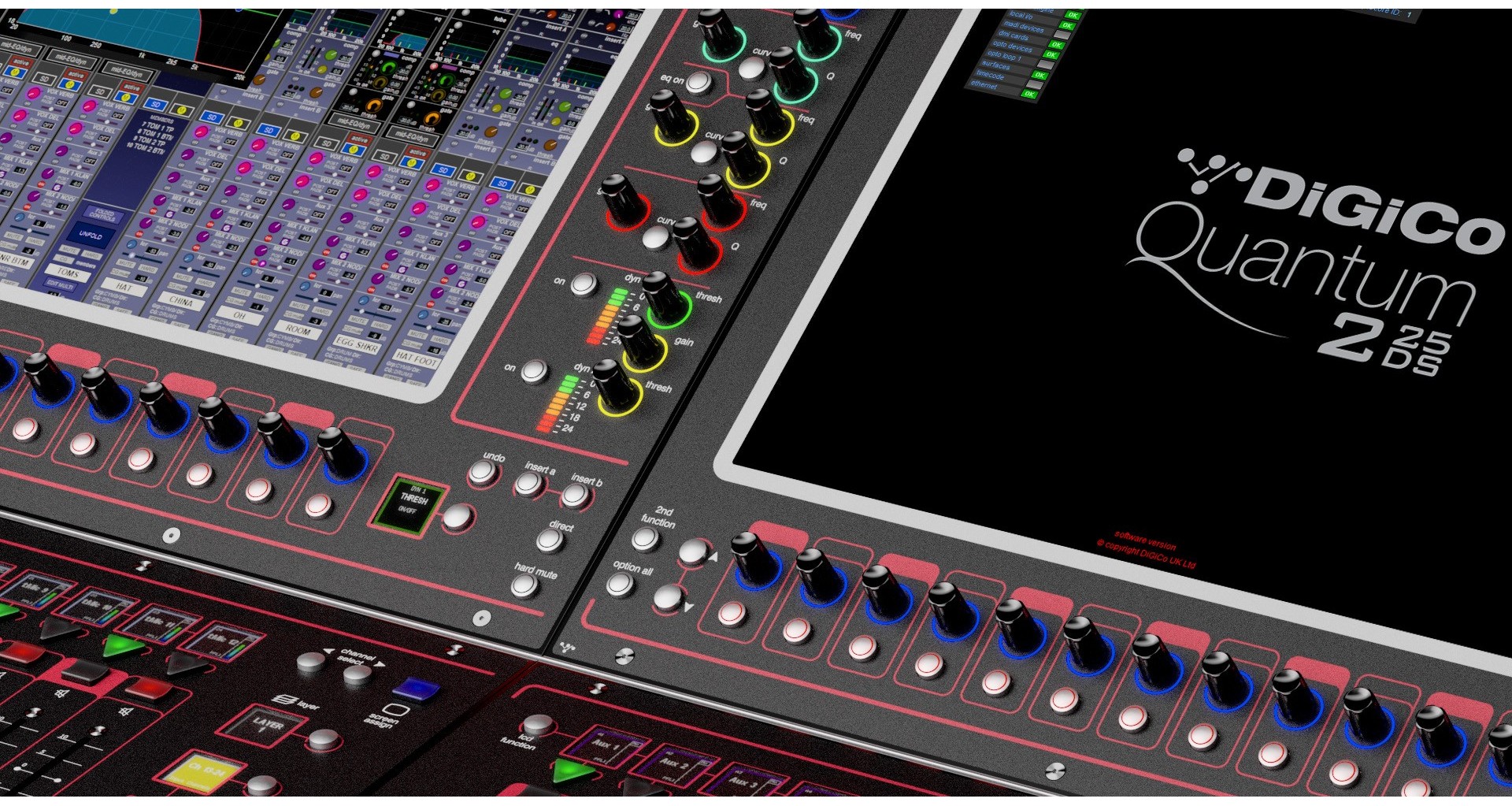

• Display-uri: 2 x 17 inch LCD, luminozitate ridicata, rezolutie mare, touchscreen
• Canale de intrare: 72
• Bus-uri: pana la 36 Aux / Group cu procesare completa Mono / Stereo / LCR plus Master
• Matrice: pana la 12 intrari / 12 iesiri cu procesare completa
• Grupuri de control: pana la 12, selectabile tip VCA, moving fader, mute group
• EQ grafic: 16 x 32 benzi, Gain +/- 12 dB
• FX interne: pana la 12 efecte stereo cu reverb floating point si delay / chorus / pitch / enhancer
• Spice Rack: 6 sloturi mono / 3 stereo
• Mustard Proc: 24 canale de procesare
• Nodal Proc: 32 procesoare nodale

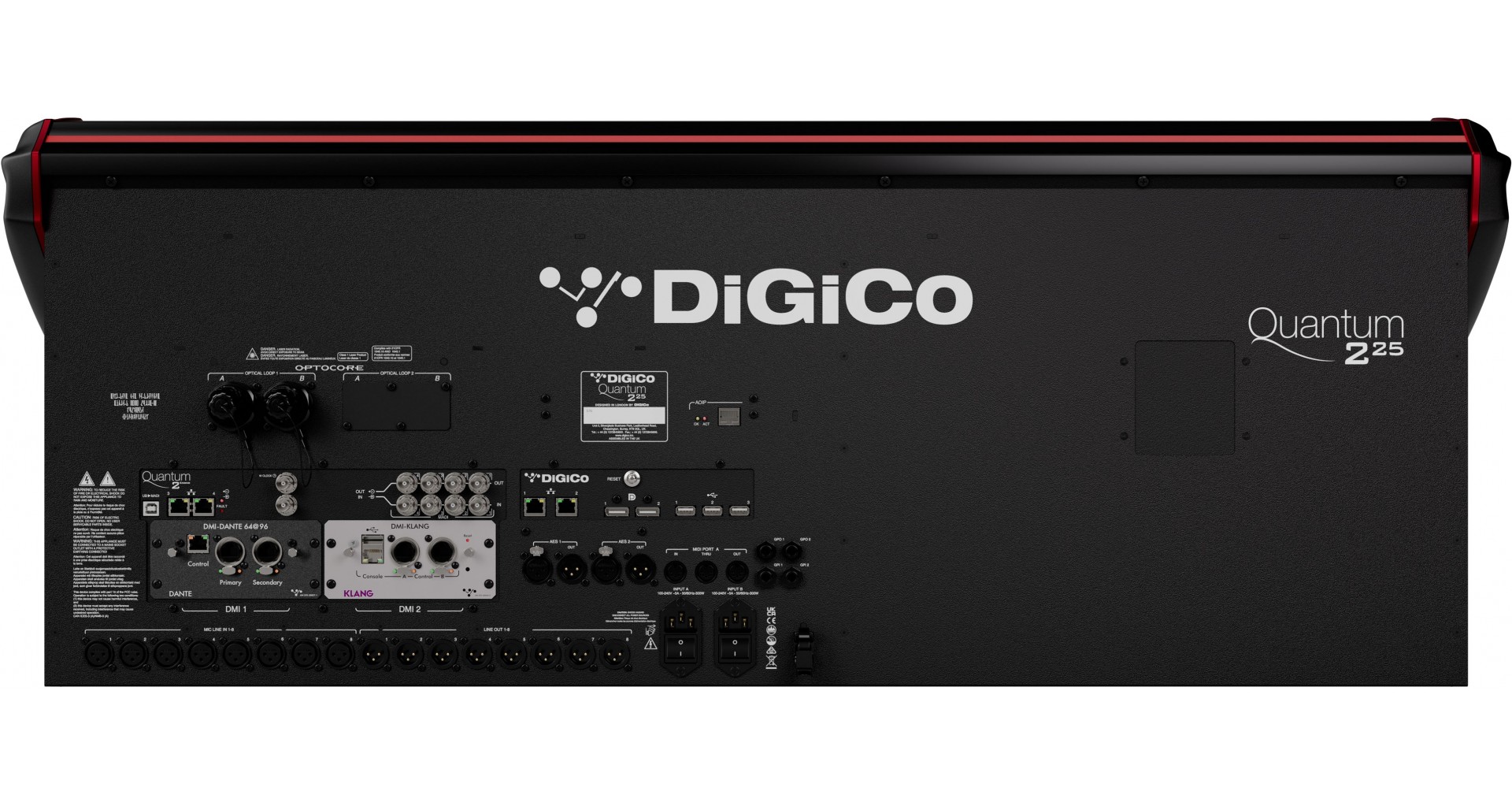

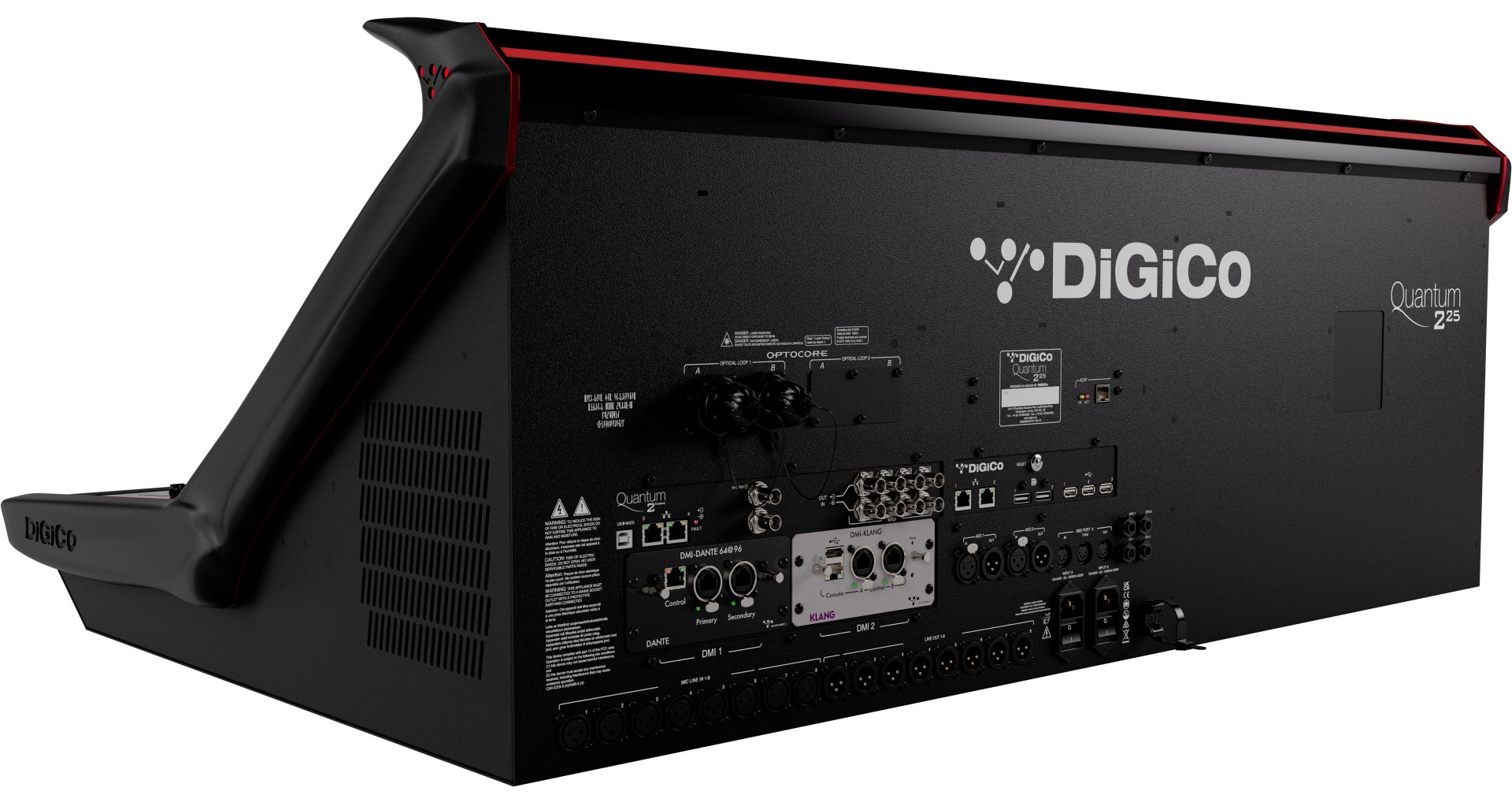

• I/O local: 8 x mic/linie I/O, 2 x AES I/O (4 canale)
• Interfata MADI: 4 interfete la 48 kHz, 2 interfete la 96 kHz, conexiune BNC
• Interfata Optocore: optional, bucla dubla disponibila
• Rate de esantionare: 48 kHz / 96 kHz
• GPI/GPO: 2
• DMI: 2 x interfata multicanal DiGiCo
• Waves: optional
• Sincronizare externa: Wordclock, MADI, Optocore
• Dimensiuni: 1124 mm (l) x 801 mm (a) x 436 mm (h)
• Greutate: 43 kg
• Alimentare: 100V-240V, 50-60 Hz, 255 VA

Specificatii tehnice:

Specificatii audio:

• Sample Rate: 48 kHz sau 96 kHz
• Delay procesare: 2 ms la 48 kHz, 1 ms la 96 kHz
• Procesare interna: pana la 40-bit, floating point
• A>D & D>A: convertor 24-bit
• Raspuns in frecventa: (Mic In la Line Out): +/-0.25 dB (20 Hz - 20 kHz)
• THD+N (Mic In la AES Out): <0.003% (-10 dBFS out, 0 dB gain, 22 Hz-20 kHz)
• THD+N (AES In la Line Out): <0.003% (+16 dBu out, 22 Hz-20 kHz)
• Separare canale: (Mic In la Line Out): >100 dB la 10 kHz
• Zgomot rezidual de iesire: <-94 dBu (22 Hz-20 kHz, A-weighted)
• Zgomot echivalent de intrare (EIN): <-127 dBu (22 Hz-20 kHz, A-weighted)
• Nivel maxim de iesire: +22 dBu
• Nivel maxim de intrare: +22 dBu

Specificatii canale de procesare:

Canal de intrare:

• Denumire: definit de utilizator / preseturi
• Selectare canale: mono / stereo / multi
• Routing intrari: intrare principala si alternativa
• Gain analog: -20 la +60 dB
• Phase: normal / invers
• Digital Trim: -40 la +40 dB
• Delay: pana la 1.3 s
• DiGiTuBe: Drive 0.01 - 50.0, Bias 0 - 6
• LPF: 20 - 20 kHz, 24 dB/oct
• HPF: 20 - 20 kHz, 24 dB/oct
• Insert A: (pre EQ/Dyn) On/Off
• Egalizare: EQ 4 benzi parametric sau dinamic, frecventa 20 - 20 kHz, Gain +/-18 dB, Q 0.1-20 parametric / 0.10-0.85 shelf, Dynamic EQ On/Off, Threshold -60 - 0 dB, Attack 500 us - 100 ms, Release 10 ms - 10 s, Ratio 1:1 - 50:1
• Sectiune dinamica 1: compresor single sau multibanda (3 benzi), Threshold -60 - 0 dB, Attack 500 us - 100 ms, Release 10 ms - 10 s, Ratio 1:1 - 50:1, Gain 0 la +40 dB, crossover 20 Hz - 20 kHz, De-Esser inclus
• Sectiune dinamica 2: Gate / Ducker cu Threshold -60 - 0 dB, Attack 50 us - 100 ms, Hold 2 ms - 2 s, Release 5 ms - 5 s, Range 0 - 90 dB, compresor suplimentar cu parametri similari
• Insert B: (post EQ/Dyn) On/Off
• Ordine EQ/Dyn: EQ/Dyn sau Dyn/EQ
• Mute: Channel Mute / Hard Mute
• Solo: Solo Bus 1 / Solo Bus 2 / ambele, Auto Solo
• Channel Safe: Input, EQ, Dyn, Aux, Pan, Fade/Mute, Inserts, Buss, Directs, Full Safe
• Routing iesire: Buss, Insert A, Insert B, FX, Direct On/Off, Pre-Mute / Pre-Fade / Post-Fade, nivel +/-18 dB
• Fader: 100 mm motorizat ∞ la +10 dB

Iesire Aux / Group / Matrix:

• Denumire: definit de utilizator / preseturi
• Phase: normal / invers
• Trim digital: -20 la +60 dB
• Delay: pana la 1.3 sec
• DiGiTuBe: Drive 0.01 - 50.0, Bias 0 - 6
• LPF: 20 - 20 kHz, 24 dB/oct
• HPF: 20 - 20 kHz, 24 dB/oct
• Insert A: (pre EQ/Dyn) On/Off
• Egalizare: EQ 8 benzi, parametric sau dinamic, frecventa 20 - 20 kHz, Gain +/-18 dB, Q 0.1-20 / 0.10-0.85, Dynamic EQ On/Off, Threshold -60 - 0 dB, Attack 500 us - 100 ms, Release 10 ms - 10 s, Ratio 1:1 - 50:1
• Sectiune dinamica 1: compresor single sau multibanda (3 benzi) si De-Esser, parametri similari cu input
• Sectiune dinamica 2: Gate / Ducker si compresor, Threshold -60 - 0 dB, Attack 50 us - 100 ms, Hold 2 ms - 2 s, Release 5 ms - 5 s, Range 0 - 90 dB
• Insert B: (post EQ/Dyn) On/Off
• Ordine EQ/Dyn: EQ/Dyn sau Dyn/EQ
• Mute: Channel Mute / Hard Mute
• Solo: Solo Bus 1 / Solo Bus 2 / ambele, Auto Solo
• Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe
• Routing iesire: Outputs, Insert A, Insert B, FX
• Fader: 100 mm motorizat ∞ la +10 dB

Procesare Mustard:

• Preamplifier Tubes: Drive variabil, preseturi Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion, Gain de iesire variabil
• Preamplifier Amp: Drive variabil, armonici Odd/Even, control Bias si Saturate, Off/Odd/Even pentru a doua etapa, HF Boost variabil, Gain de iesire variabil
• Egalizare: EQ 4 benzi parametric, filtre HPF & LPF ordin 4
• Sectiune dinamica 1: Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter
• Sectiune dinamica 2: Gate / Ducker
