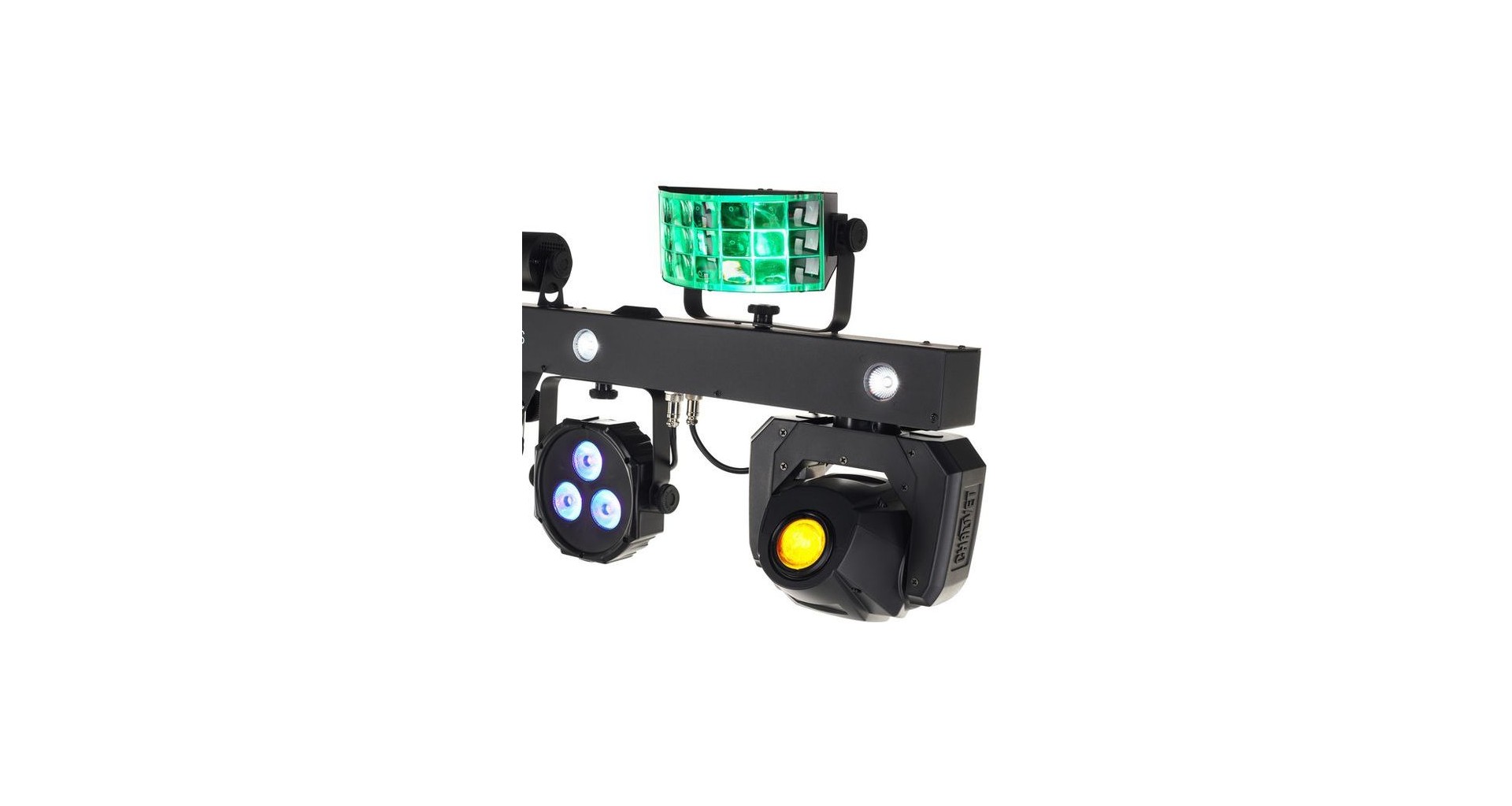

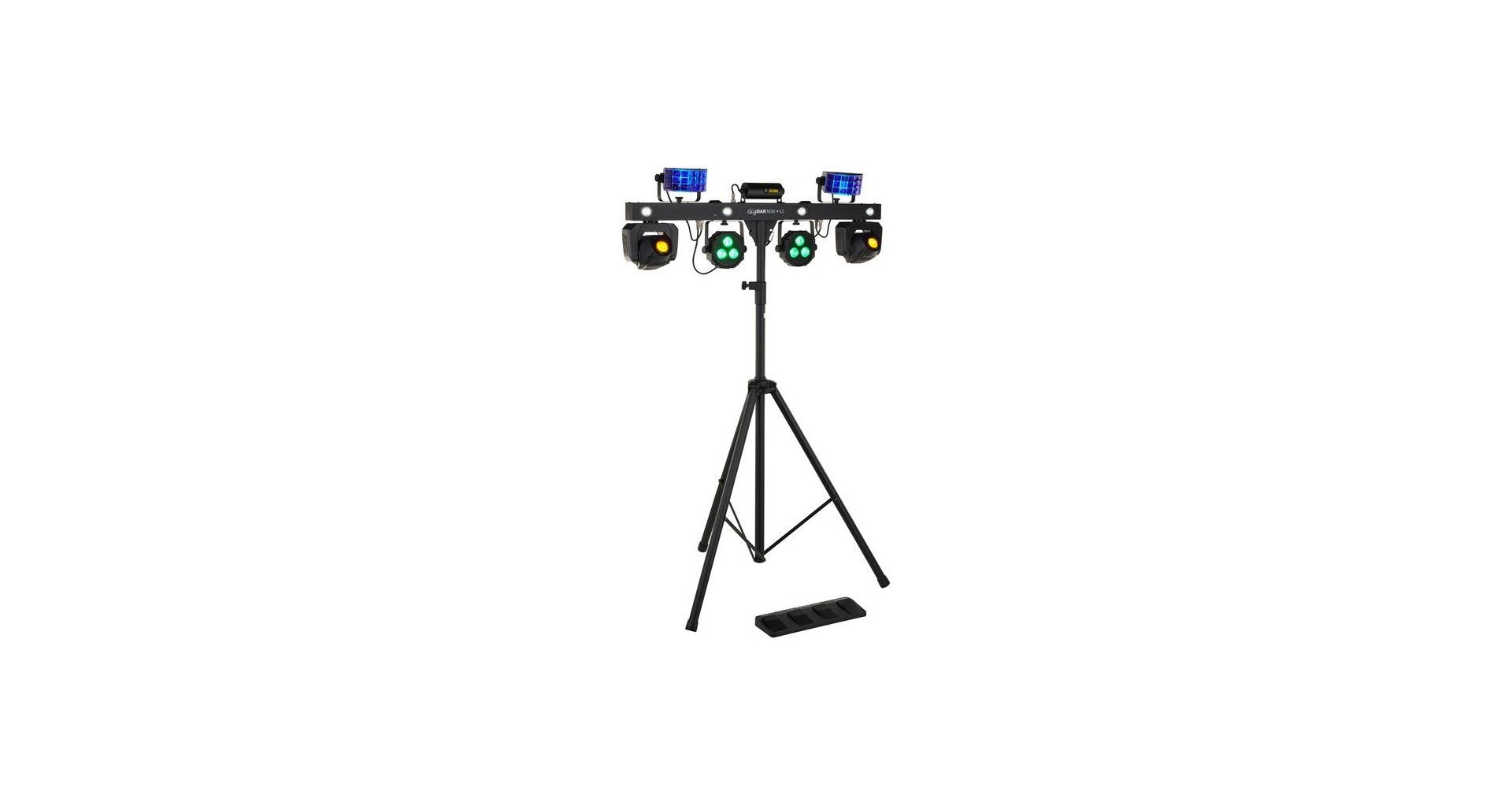

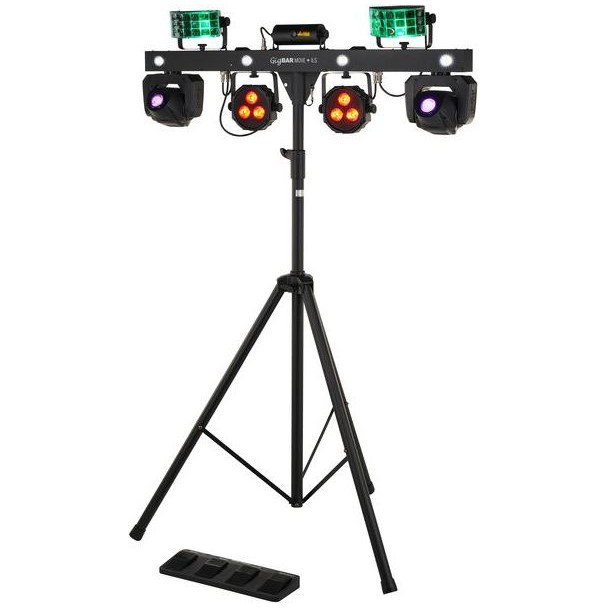

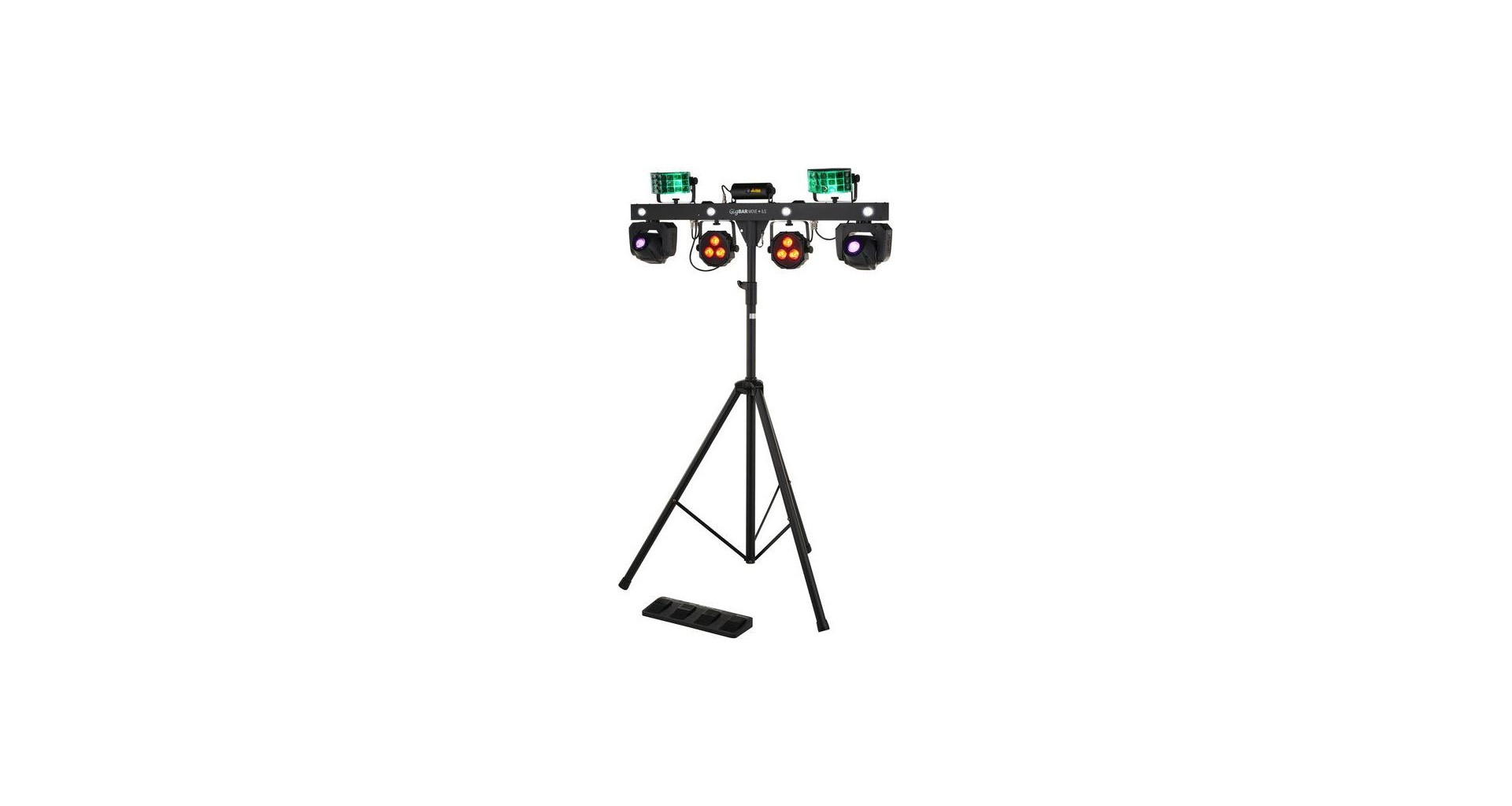

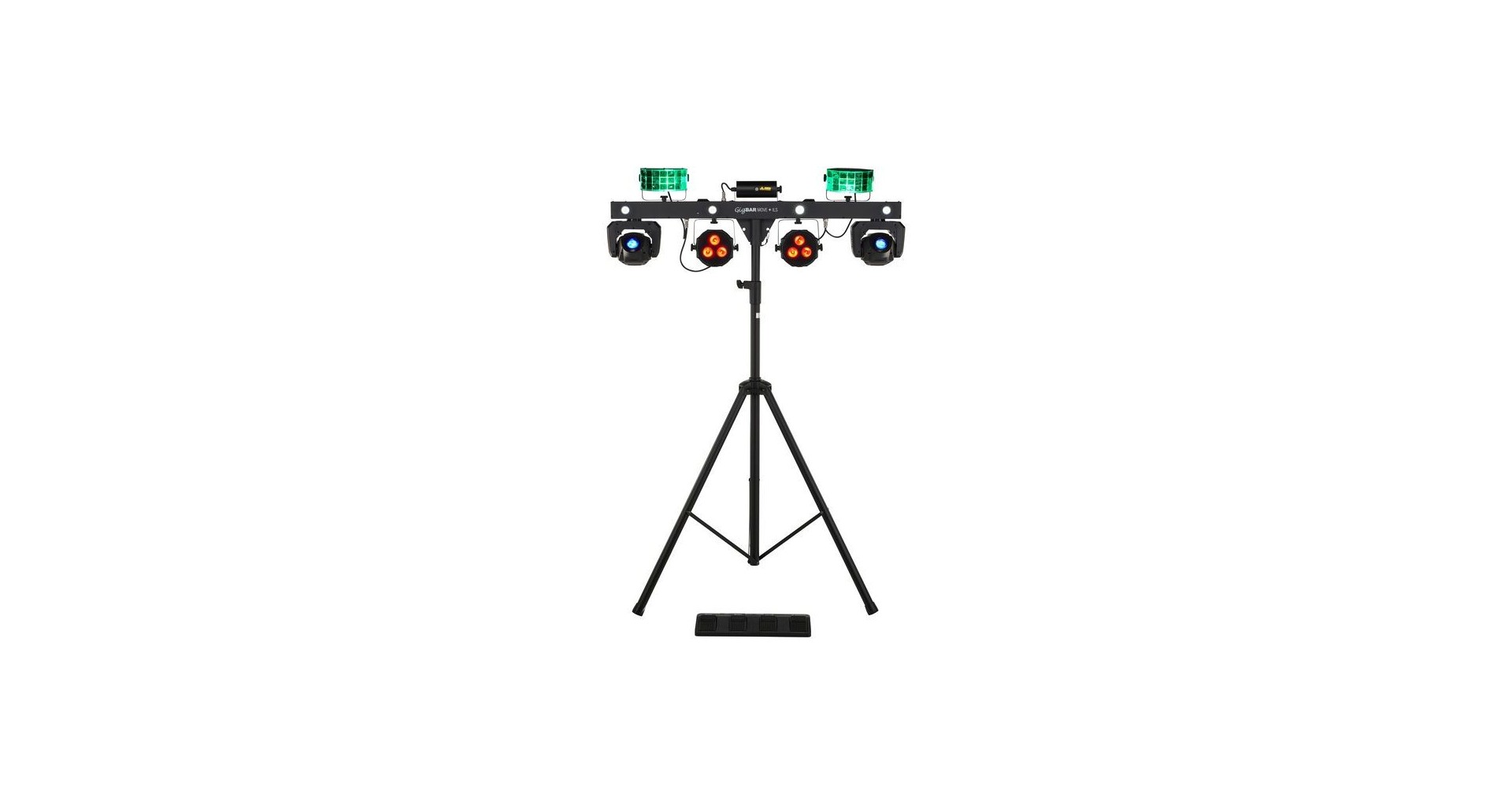

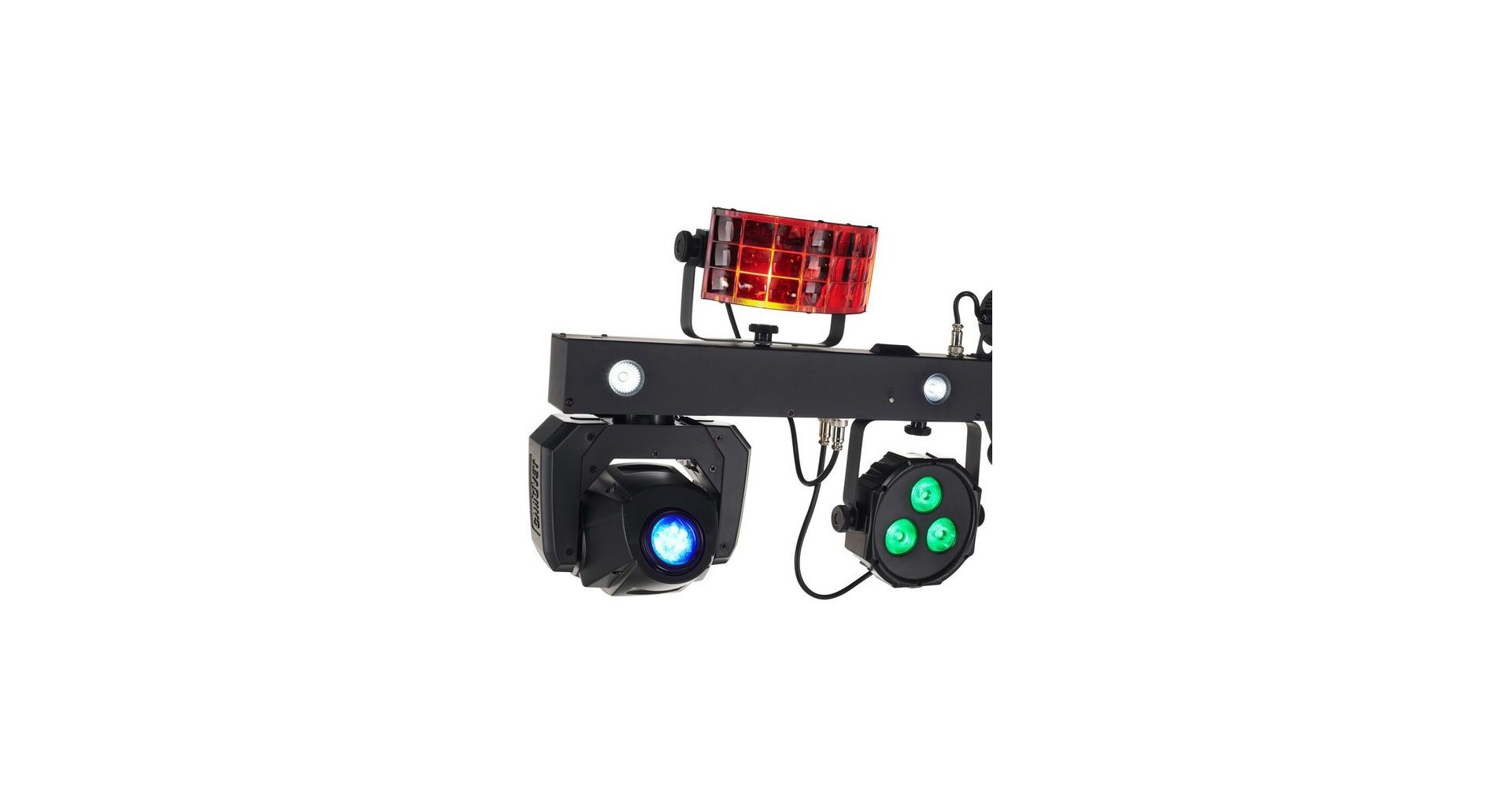

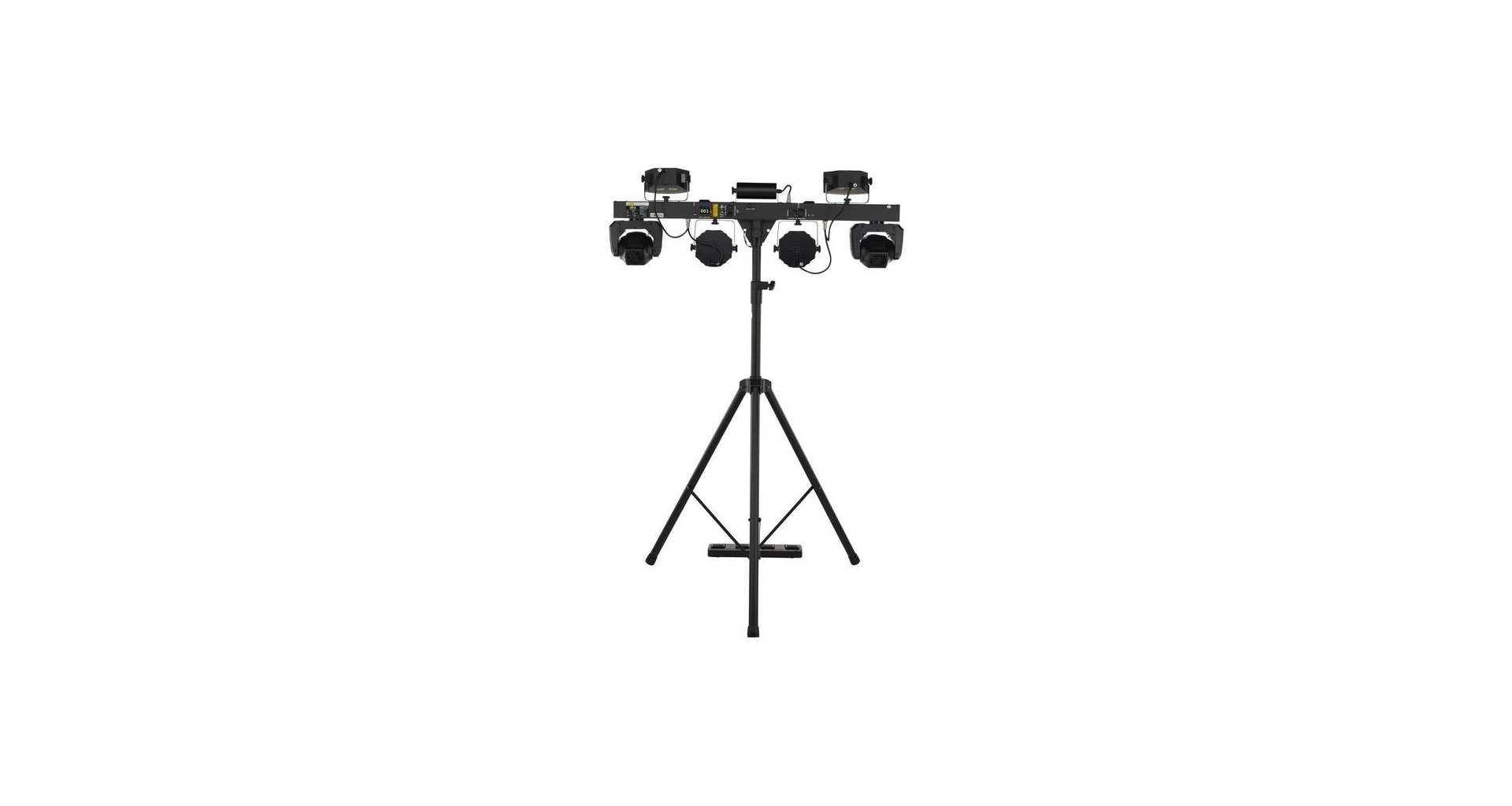

Chauvet DJ GigBAR Move + ILS

• Canale DMX: 3, 29 sau 51
• Conectori DMX: 3 pini XLR
• Pan si tilt: 540 grade / 180 grade
• Culori: (moving head): 9 + deschis, culori split, derulare continua la viteze variabile
• Gobo-uri: (moving head) 9 + deschis, derulare continua la viteze variabile
• Sursa de lumina:
• Par: 3 LED-uri (culoare hexagonala RGBAW+UV) 6 W (2 A), durata de viata de 50.000 ore
• Stroboscop: 4 LED-uri (alb rece) 5 W (1.2 A), durata de viata de 50.000 ore
• Derby: 8 LED-uri (2 rosu, 2 verde, 2 albastru, 2 alb) 6.5 W (2 A), durata de viata de 50.000 ore
• Moving head: 1 LED (alb rece) 32 W (3 A), durata de viata de 50.000 ore
• Laser: dioda laser rosie de 638 nm/30 mW, verde de 520 nm/20 mW, albastra de 450 nm/ 50 mW
• Rata de stroboscop: 0 pana la 30 Hz
• Unghiuri de iluminare:
• Moving head: 17 grade
• Par: 22 grade
• Stroboscop: 30 grade
• Unghiuri field:
• Par: 33 grade
• Stroboscop: 62 grade
• Unghi de acoperire:
• Derby: 131 grade
• Laser: 93 grade
• Dimensiune trepied compatibila: 1.5 inch (37.4 mm)
• Iluminare:
• Par: 1,205 lux la 2 m (per par)
• Moving head: 5,140 lux la 2 m (per moving head)
• Stroboscop: 130 lux la 2 m
• Conectare la alimentare: 7 unitati la 120 V. 12 unitati la 230 V
• Tensiune de intrare: de la 100 pana la 240 VAC, 50/60 Hz (auto-ranging)
• Putere si curent:
• 250 W, 3 A la 120 V, 60 Hz
• 248 W, 1.8 A la 230 V, 50 Hz
• Greutate (doar bara): 14 kg
• Dimensiuni: 1100 x 144 x 449 mm (43 x 5.7 x 17.7 inch)
• Certificari: CE, UKCA, RoHS, FCC, FDA
• Inaltime stativ: de la 1.5 m pana la 2.5 m
• Frecventa de operare footswitch: 433 MHz
• Distanta maxima fara obstacole (footswitch): 30.5 m
• Distanta maxima fara obstacole (D-Fi): 183 m
• Baterie footswitch: 9 V alcalina
• Controlere incluse: telecomanda RF, footswitch wireless
• Lungime cablu: 3 m
• Grosime trepied: 1.37 inch (35 mm)

Accesorii incluse:

• Cablu de alimentare
• Telecomanda RF

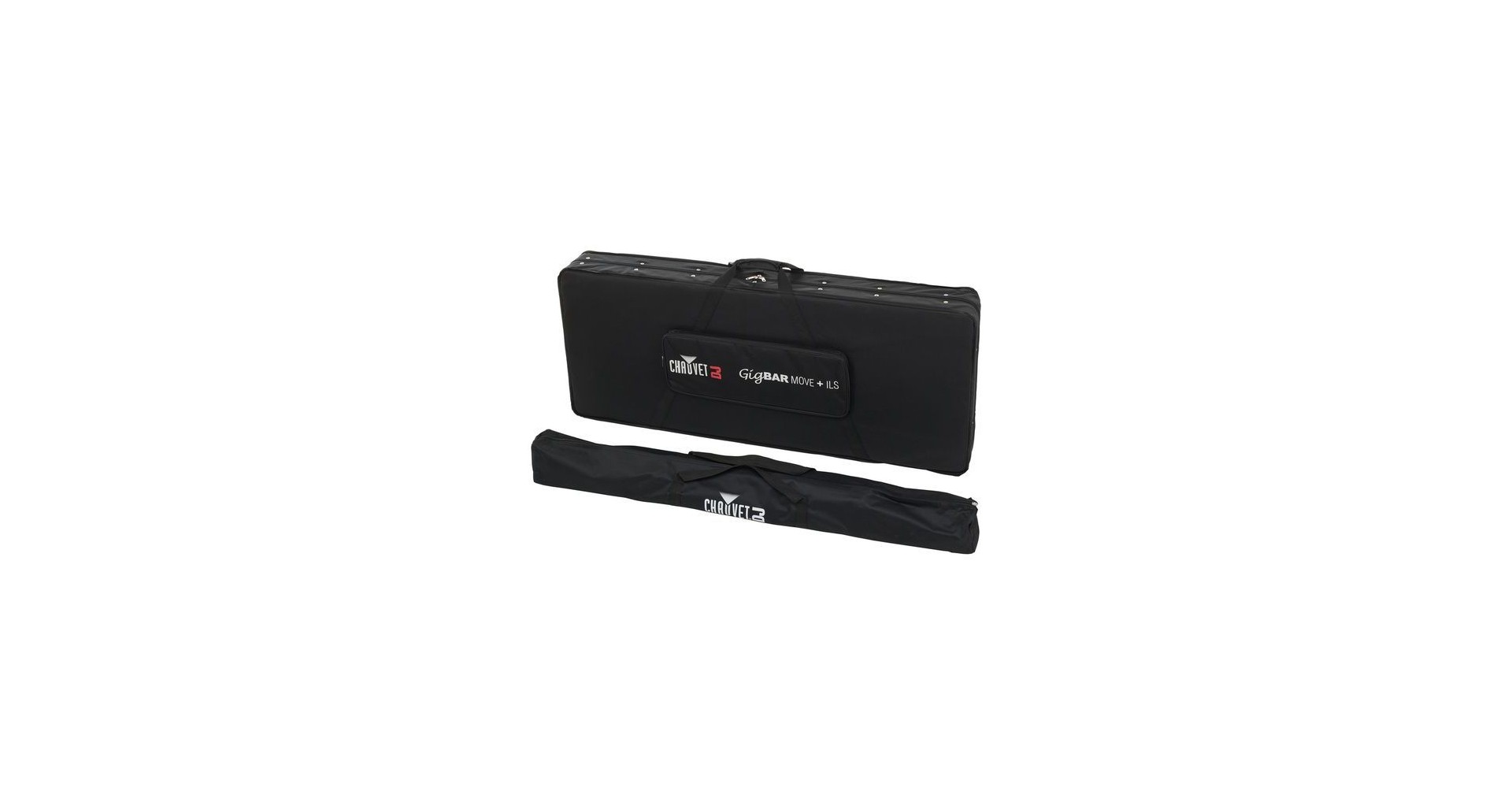

• Geanta de transport

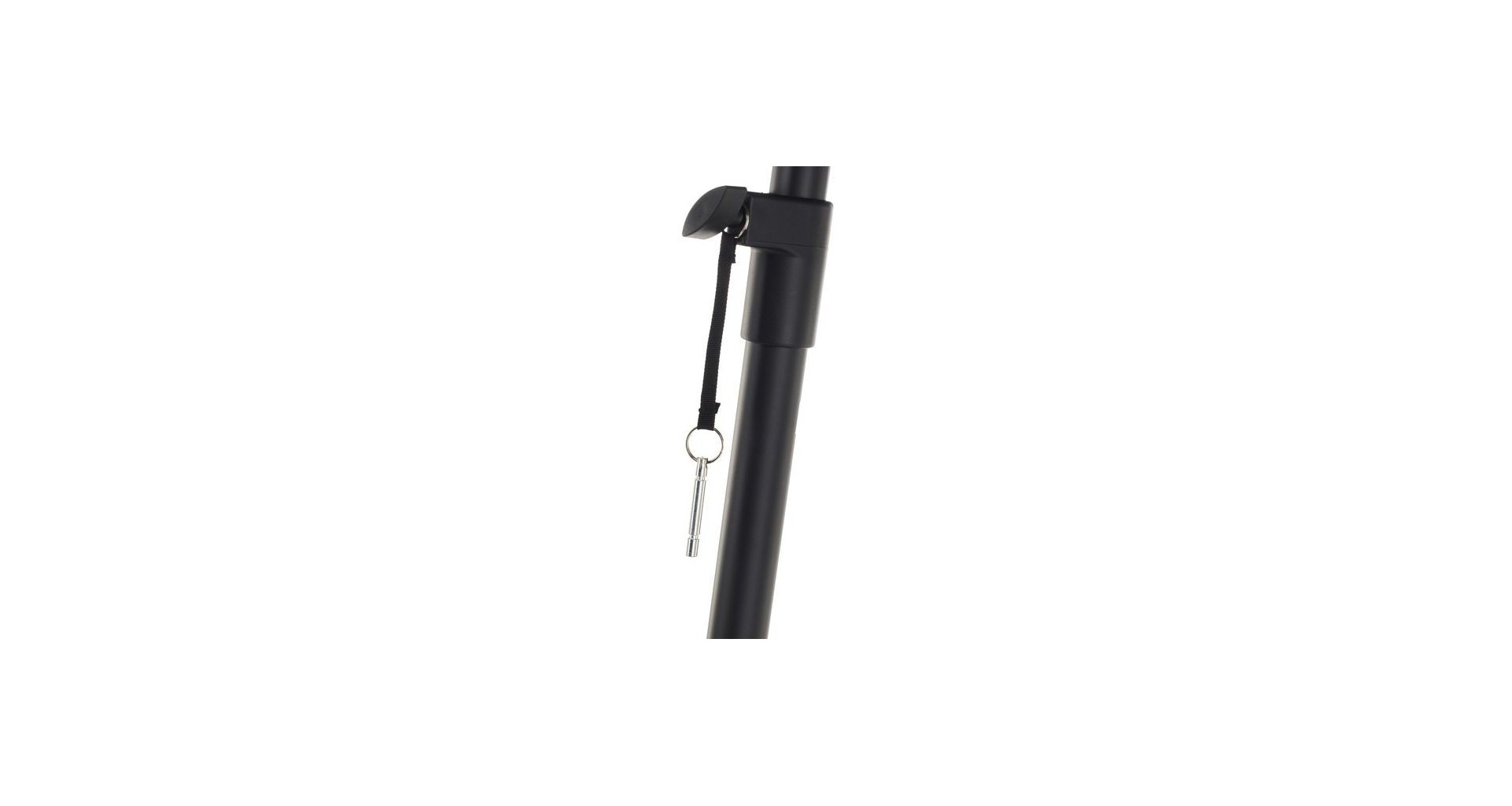

• Trepied
• Geanta de transport pentru trepied

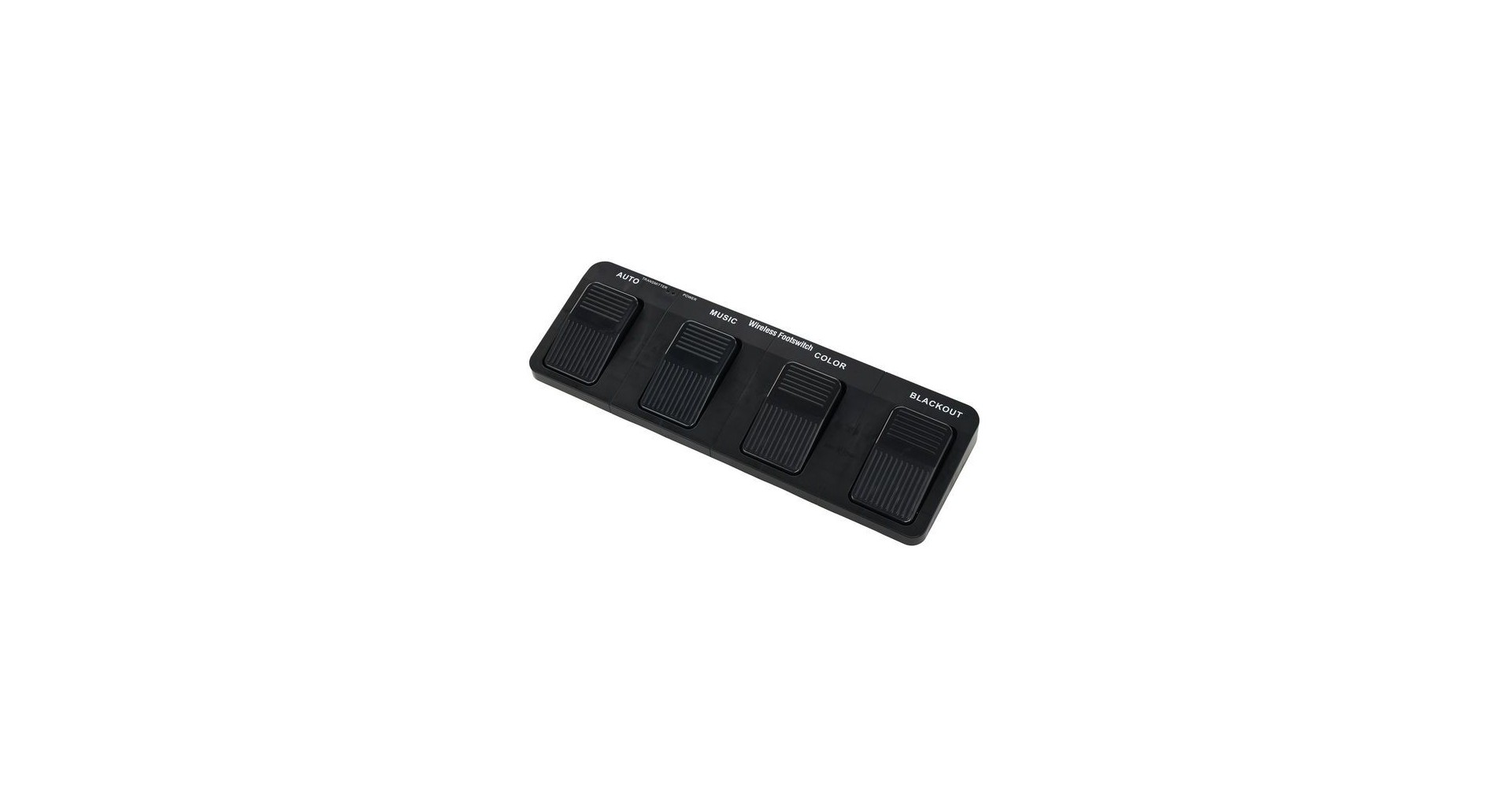

• Footswitch (pedala de control)
• Manual de utilizare
