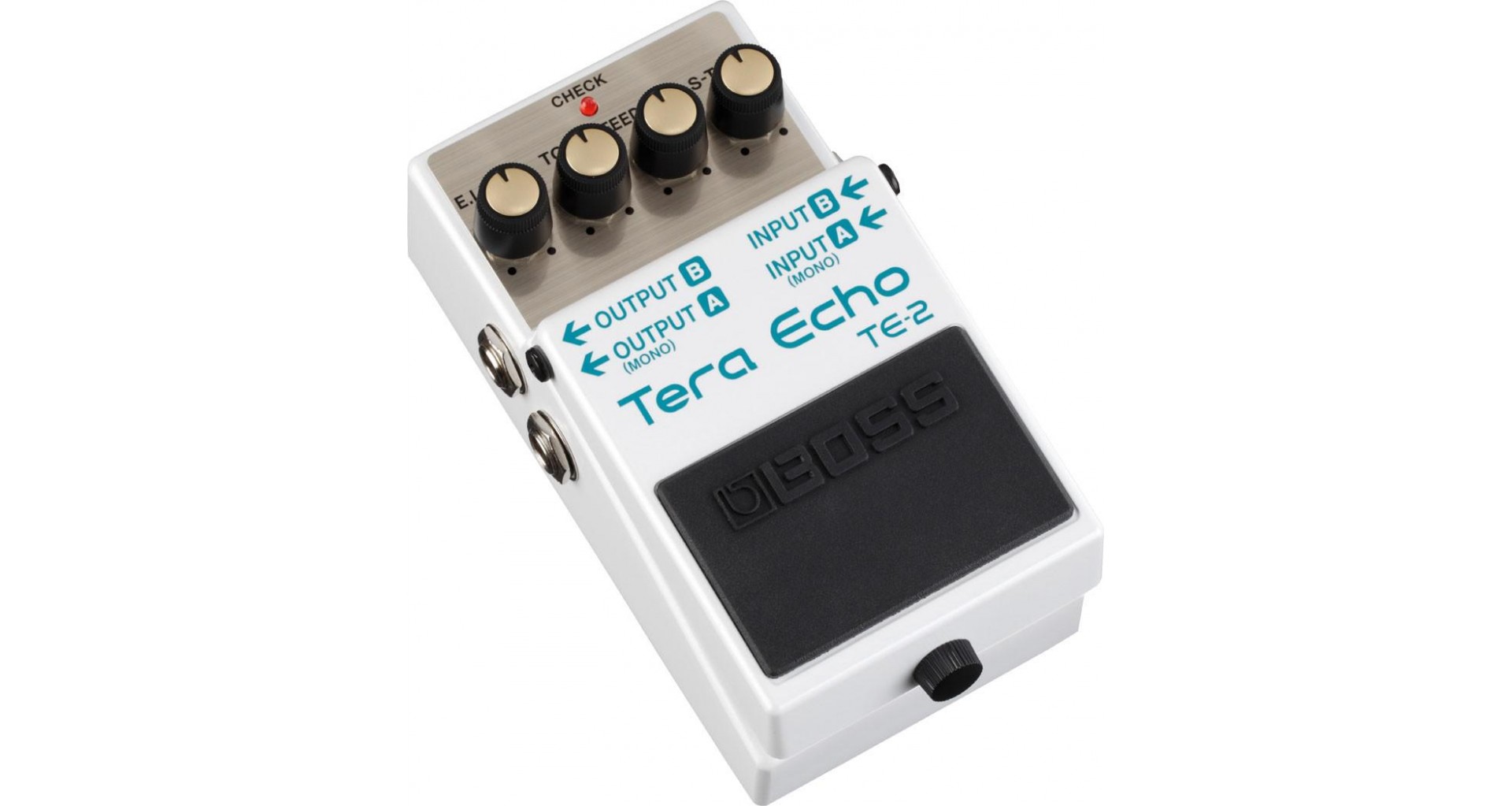

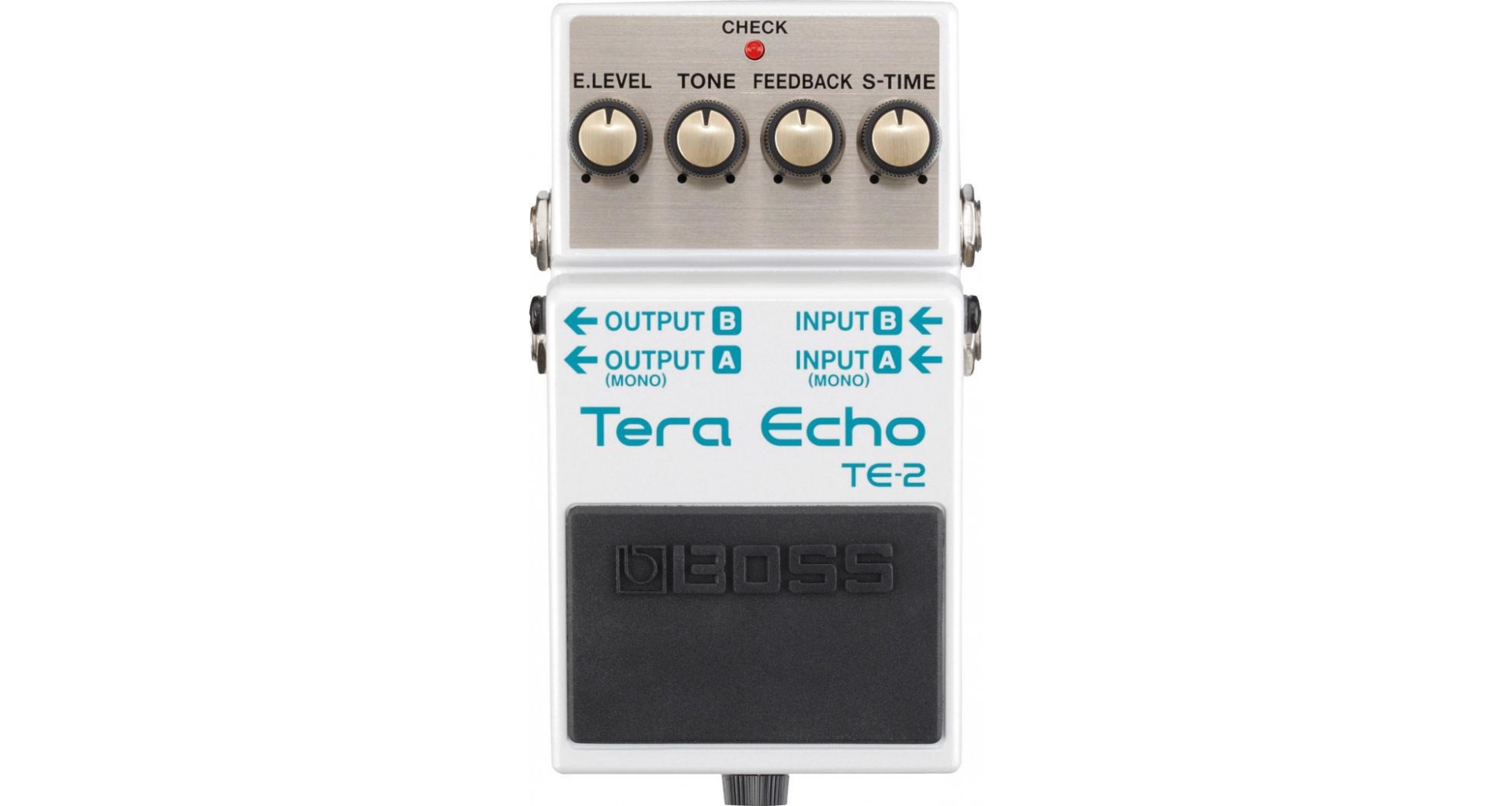

Boss TE-2

Guitar effect - Tera Echo Pedal • Offers a dynamic new stereo ambience effect

-Next-generation BOSS compact pedal with innovative Multi-Dimensional Processing, realized with proprietary technology and custom DSP
-Rich, spacious echo and ambience effects
-Dramatically enhances the direct tone, but never overwhelms it
-Freeze function holds the ambient sound for lead backing and sound effects
-Ultra-responsive to volume changes and playing dynamics
-Wide range of sound adjustment with simple controls
-Mono/stereo input and output

Specifications

Nominal Input Leve: 20 dBu
Input Impedance: 1 M ohms
Nominal Output Level: 20 dBu
Output Impedance: 1 k ohms
Recommended Load Impedance: 10 k ohms or greater
Connectors: INPUT Jack A (mono)/ B, OUTPUT Jack A (mono)/ B, AC Adaptor Jack (DC 9 V)

Power Supply
DC 9 V: Dry Battery 9 V type (6LR61 or 6F22), AC Adaptor (sold separately)
Current Draw: 53 mA (DC 9 V)

Accessories
Owner"s Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)

Option (sold separately)
AC Adaptor (PSA-Series)

Size and Weight ( incl. battery )
Width: 73 mm (2-7/8 inches)
Depth: 129 mm (5-1/8 inches)
Height: 59 mm (2-3/8 inches)
Weight: 435 g (1 lbs. )
