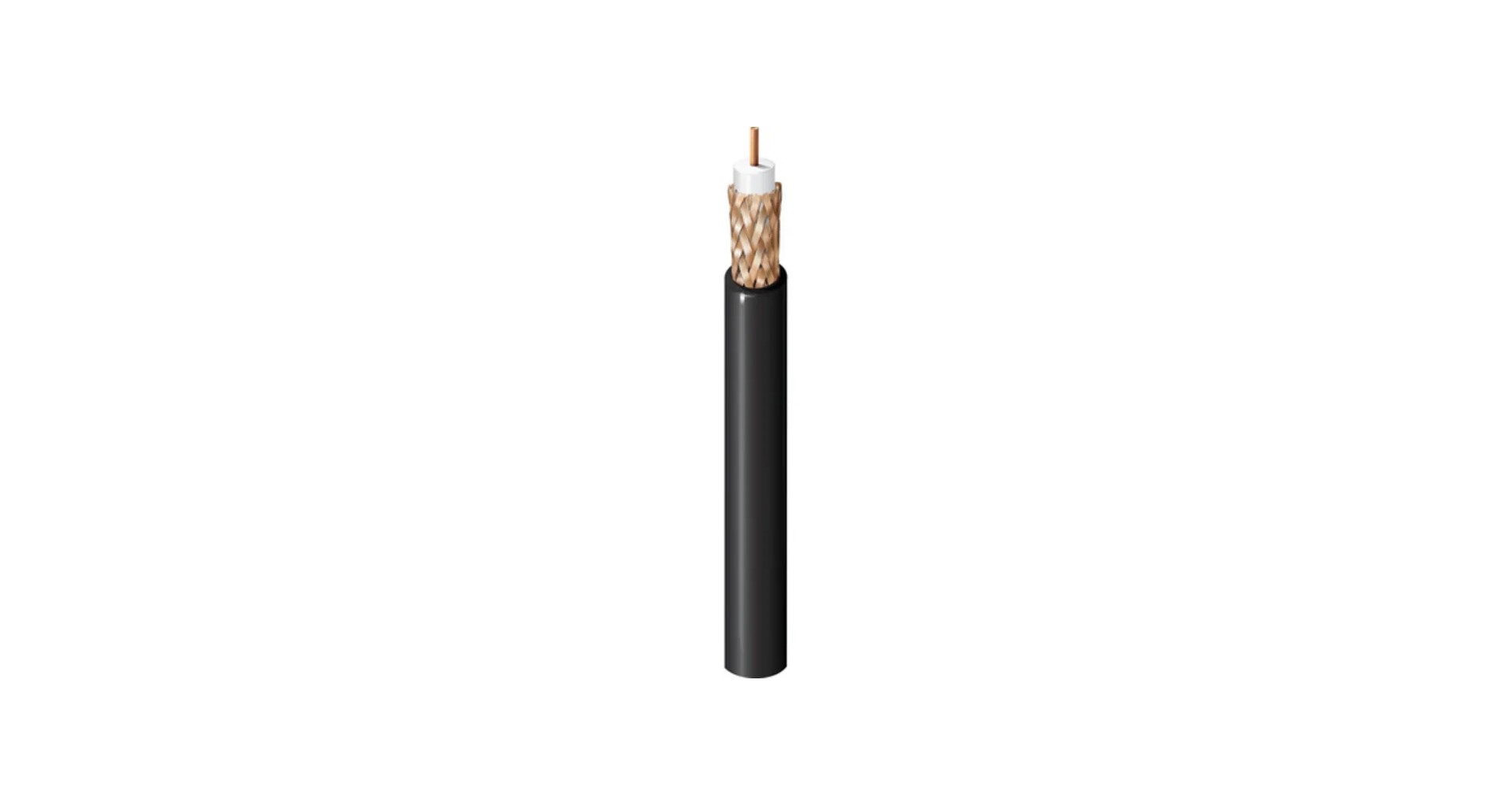

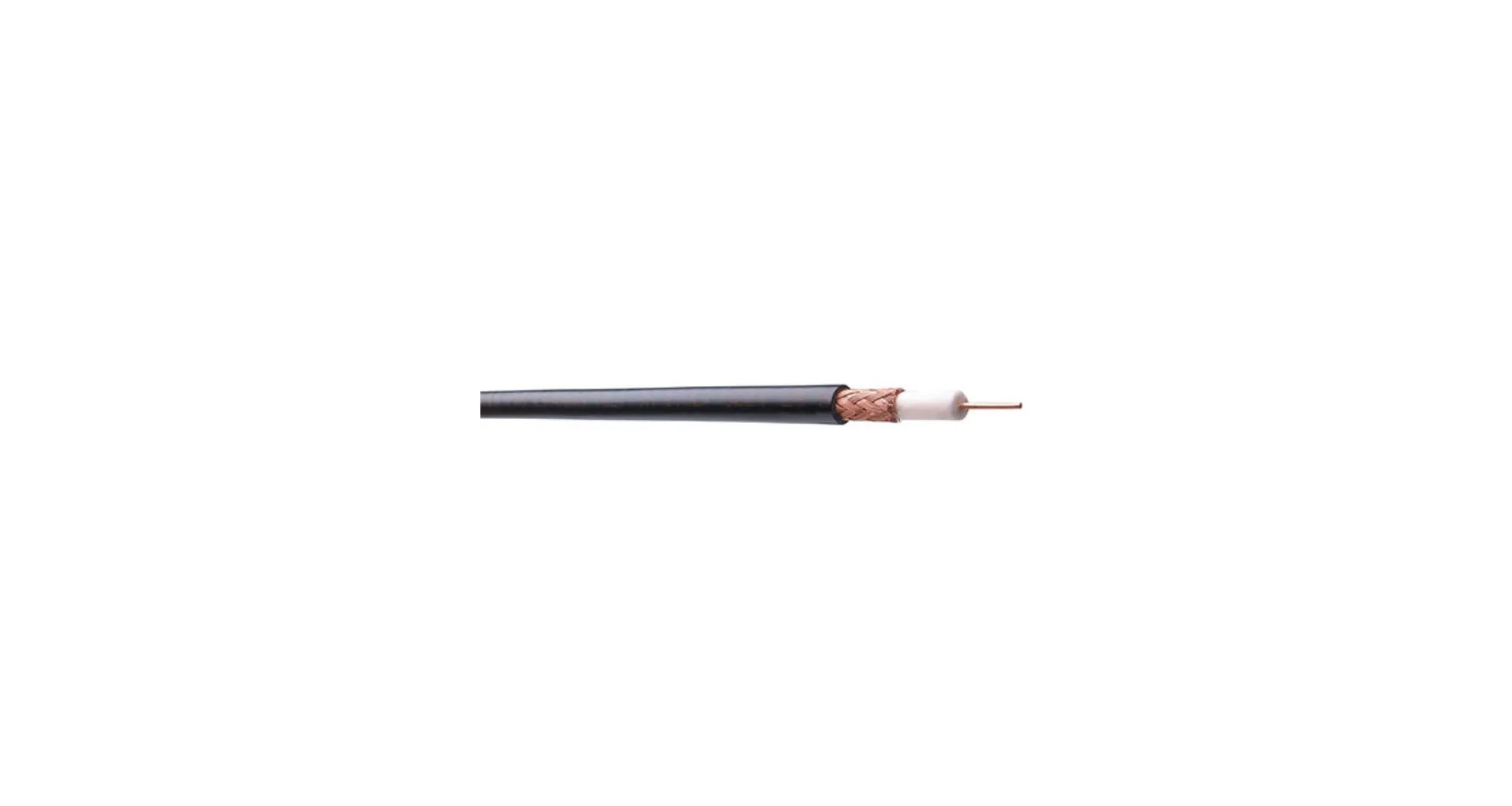

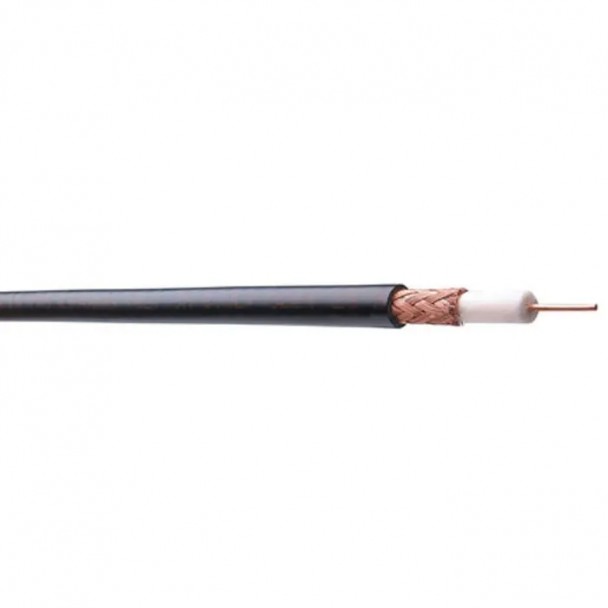

Belden Coax RG6/U

Specificatii:

• Marca produs: Belden
• Cu / fara conector: Fara
• Tip coaxial: RG6/U
• Diametru exterior: 6.76 mm
• Impedanta caracteristica: 76 ohm
• Atenuare: 4.2 dB/100 ft @ 400 MHz, 5.6 dB/100 ft @ 700 MHz, 6.4 dB/100 ft @ 900 MHz, 7 dB/100 ft @ 1 GHz
• Lungime: 152 m
• Culoare invelis: Gri
• Tip fir conductor: Solid
• Ecranare: Impletitura de sarma de aluminiu
• Fire nucleu: 1/1.02
• Capacitanta: 53.464pF/m
• Material conductor: Cupru
• Dimensiuni fire: 18 AWG
• Temperatura suportata de operare: -40 -- +75 grade celsius
• Numar de fire: 1
• Material invelis: Polyvinyl Chloride PVC
• Material izolatie: Spuma PE
• Rata velocitate: 83%
