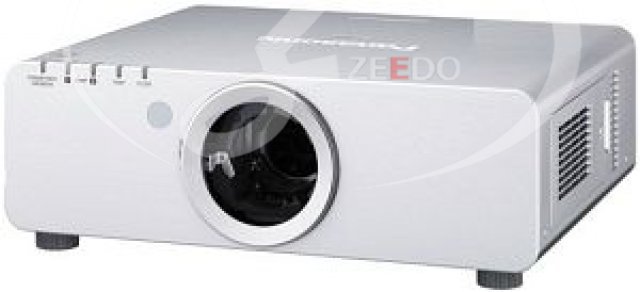

Detalii
Fara lentila, WXGA, 1280x800, 2,000:1, 6000lm, reglare optica motorizata, orizontal manual, Dual Lamp, bloc optic sigilat, sistem de racire cu lichid, 15,2KG
Specificatii tehnice
Tehnologia DLP chip x 1, DLP system
Lentile Optional
Rezolutie nativa 1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.)
Luminozitate 6,000 lumens (dual-lamp, high power mode)
Corectie Digitala Optical - Vertical: +50 % (powered), horizontal: ±10 % (powered)
Digital - Vertical: ±40° (±30° with the ET-DLE055)
Marime Imagine 50–600 inches (50–200 inches with the ET-DLE055), 16:10 aspect ratio
Sursa luminoasa 300 W UHM lamps (x 2) (dual-lamp system)
Frecvente Verticale/Orizontale Horizontal: 15–91 kHz
Vertical: 50–85 Hz
Dot clock: 162 MHz or lower
Intrari/Iesire DVI-D IN - DVI-D 24-pin
RGB 1/YPBPR IN - BNC x 5
RGB 2/YPBPR IN - D-sub HD 15-pin
VIDEO IN - BNC
S-VIDEO IN - Mini DIN 4-pin
SERIAL IN - D-sub 9-pin (RS-232C compliant)
SERIAL OUT - D-sub 9-pin
REMOTE 1 IN - M3 jack
REMOTE 1 OUT - M3 jack
REMOTE - D-sub 9-pin
LAN - RJ-45 for network connection, 10Base-T/100Base-TX, compliant with PJLink
Consum 750 W (840 VA), (Standby mode eco*1: 0.3W, Standby mode normal: 9 W. Both with fan stopped.)
Dimensiuni/Greutate 498 mm x 175 mm x 440 mm
Approx. 15.2 kg (33.5 lbs) (without lens)
