Detalii

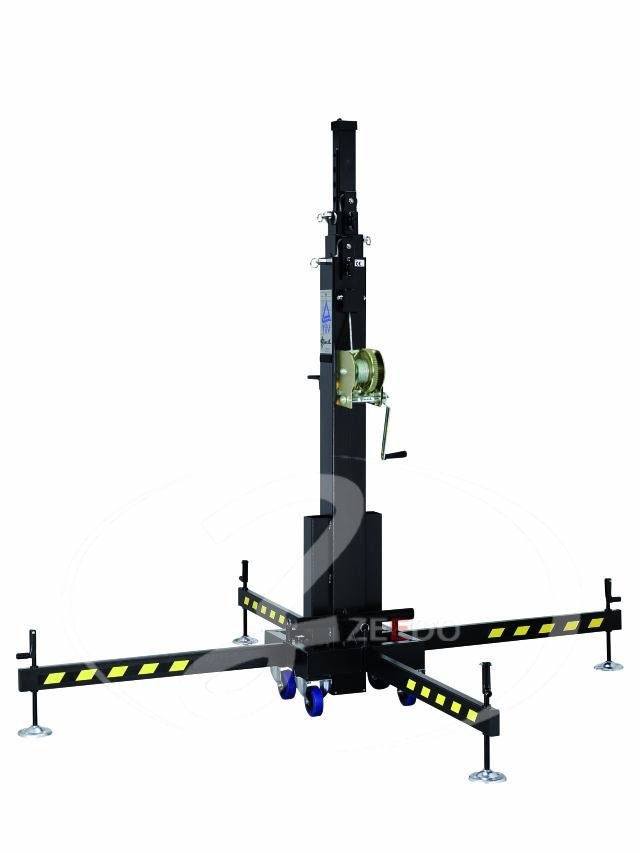

Rugged truss lifter for heavy weights
* Four-part telescopic lifter
* TÜV/GS certified, certificate available
* BGV C1 certified, certificate available
* CE certified complying with DIN EN ISO 12100-2, DIN 15560-27, certificate available

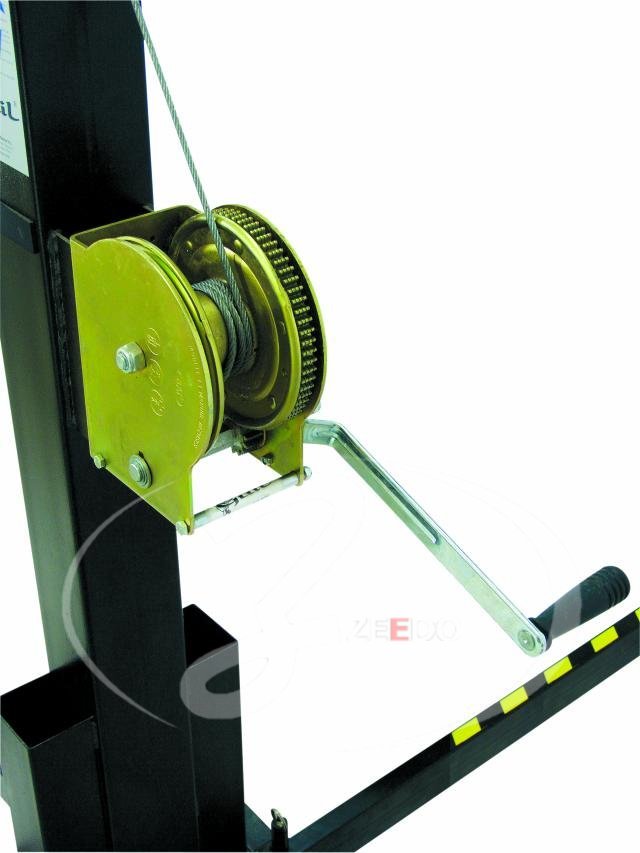

* 1-gear winch for easy lifting of the loads
* Winch tested with 497/1283 kg, TÜV approved
* 6 mm steel rope 6x37+1 complying with DIN 3066
* Automatic braking system
* Max. falling depth in case of cable breakage 20 mm due to a special Zip/Trigger safety system
* Additional steel profile with slots for highest stability instead of drilling holes into the section
* Safety-pins for mechanic locking
* Third safety device via fixation screw
* Four massive outriggers for highest stability
* Four auto-levelling, galvanized foot plates with rubber pads

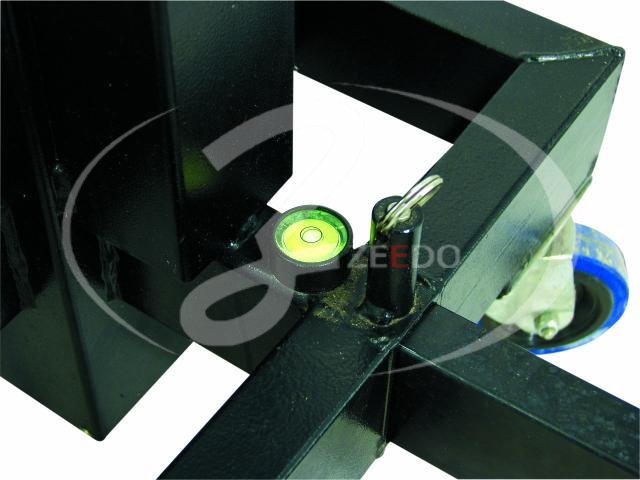

* Spirit level for exact vertical alignment
* Easy transport via 100 mm castors, 2 fixed castors, 2 swivel castors
* Base and all sections epoxy finished for highest corrosion protection
Specificatii tehnice
Type: Telescopic truss lifter
Construction: DIN 15560-27, DIN EN ISO 12100-2
Certified by: CE, TÜV/GS, BGV C1
Sections: 4 (120/100/80/60 mm)
Max. load: 225 kg
Min. load: 30 kg
Max. height: 5.20 m
Min. height: 1.70 m
Material: 3 mm steel
Steel rope: 6 mm
Adapter: 57 x 57 mm
Base area: 2.15 x 2.15 m

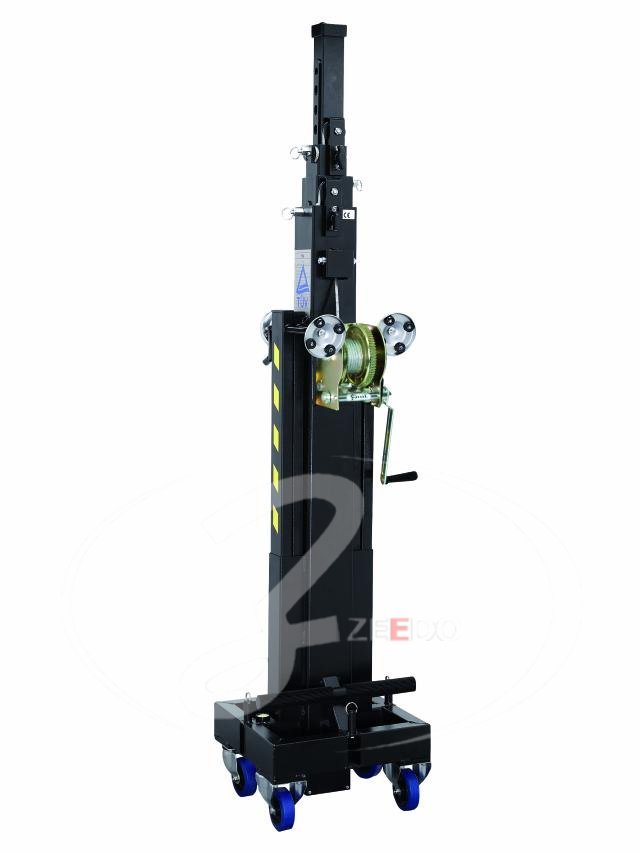

Transport dimensions: 1.70 x 0.40 x 0.40 m
Weight: 95 kg
