Detalii

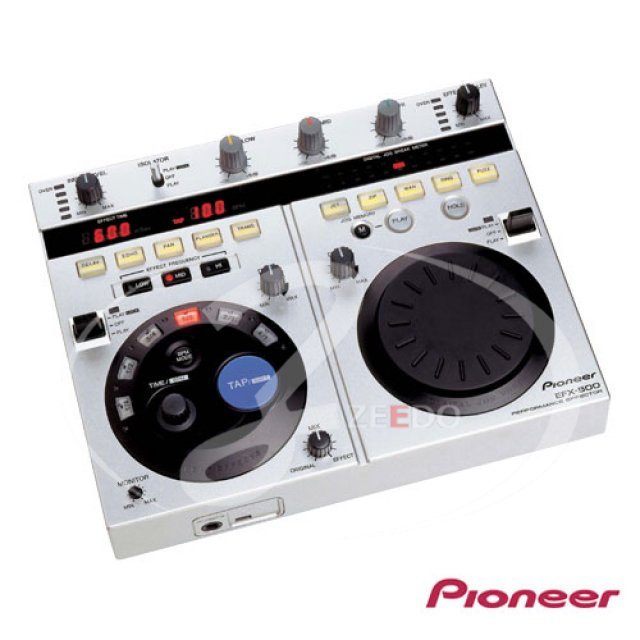

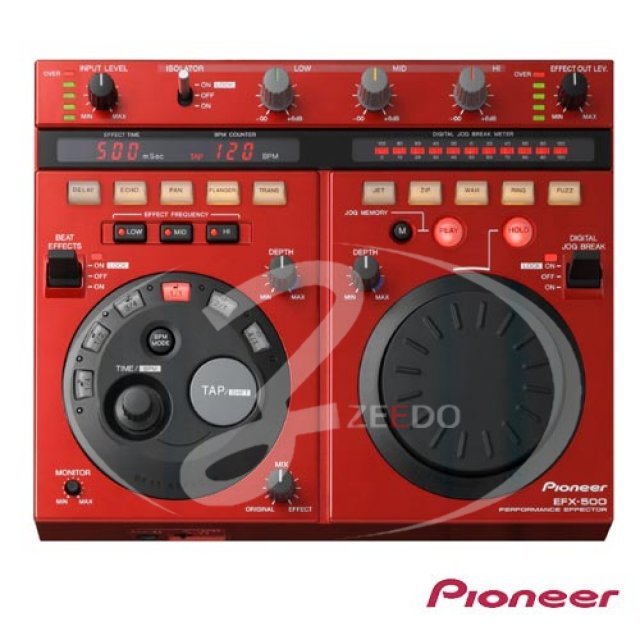

As the manufacturer of the acclaimed DJM-500 DJ Mixer with built-in effects, Pioneer has a history with DJ-oriented effects units that precedes the Kaoss Pad. Similar in scope and intent to the Roland EF-303, Pioneer's sleek and handsome EFX-500 has a 20-bit sampling rate and a 24-bit DSP engine. Its output section includes stereo RCA and stereo �-inch I/O, as well as MIDI I/O jacks. The essentially 3-tiered device features an Isolator unit, a Beat Effect unit, and a Digital Jog Break unit, which has a saucer-size dial for real-time modulation of effect parameters.
Specificatii tehnice
Features:
- 3 Band EQ
- Isolator lever switch
- Beat (BMP)-linked Effects: Delay echo, Auto pan, Flanger & Auto transformer
- Effect Frequency: Hi, Mid, Low
- Auto BPM Counter
- The Auto Beat effect button: 1/2, 1/2, 3/4, 1, 2, 4
- Time-set methods: Auto, Tap, Msec, BPM & Midi
- Effects Depth Dial
- Mix Ratio control
- Play/Play Lock On
- Jog dial effects: Jet, Zip, Wah, Ring & Fuzz
- Effect Depth dial
- Play/Play Lock On
- Hold Switch
- Jog Dial Memory
- Available in: Red, White
Technical Data:
Input Channel 1 stereo
Input Terminal 1/4
Output Terminal 1/4
MIDI Terminal In/Out
Output Level Switch +4 dBu / -10 dBu
Signal-to-Noise Ratio 80 dB or more
Frequency Response 20 Hz ~ 20 kHz
3 Band EO (Low, Mid, Hi) oo- +6 dB
Effect Monitor (Headphone) Master out, Beat effect, Digital jog break
Dimensions (W x H x D) 276 x 64 x 220 mm
Weight 2,5 kg
