High-quality DJ sound-FX tool

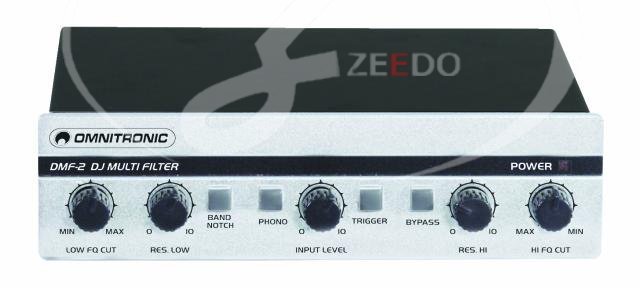

* Hi-Pass and Lo-Pass filters
* Variable Cut-Off & resonance per filter
* Filter characteristics switchable between band & notch
* Band/notch, phono, trigger and bypass switch
* Input level adjustable

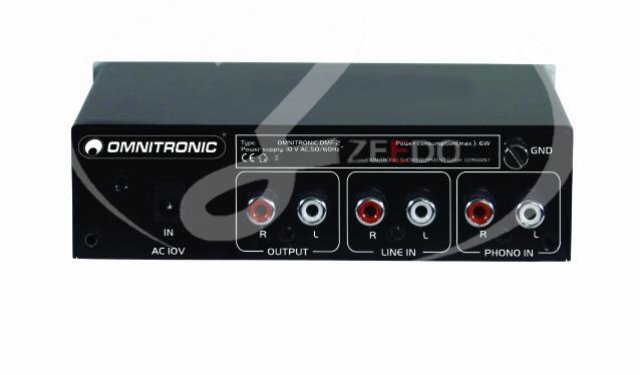

* Line & phono input
* Turntable grounding terminal
* 1/3 rack unit
Power supply: 10 V AC, 600 mA
via power unit included in the delivery
Power consumption: 6 W
Electrical:
Frequency response: 20 Hz - 20 kHz, +- 1 dB
Dynamic range: >109 dB, A-weighting
Distortion: <0.08% @ 1 kHz
Crosstalk: -90 dB
Input:
Number of channels: 2 (stereo)
Format: RCA
Frequency response: 20 Hz - 20 kHz, +- 1 dB
Distortion: < 0.01% @ 1 kHz
Nominal level: - 10 dBu
Maximum level: + 22 dBu
Impedance: 45 KOhms, unbalanced
Output:
Number of channels: 2 (stereo)
Format: RCA
Nominal level: - 10 dBu, front panel adjustable
Maximum level: + 20 dBu
Impedance: 100 KOhms
Dimensions: 145 x 134 x 34 mm
Weight: 0,5 kg
