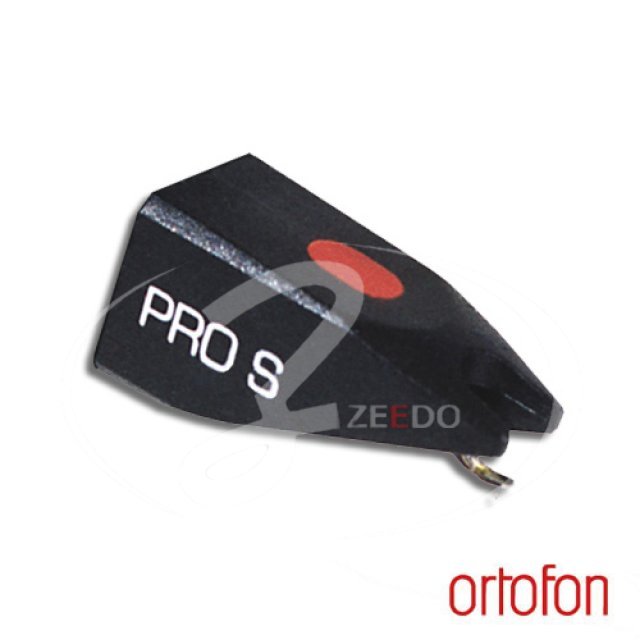

Ortofon - Stylus Pro S

---

   Replacementstylus suitable for the Ortofon PRO S cartridge.

---



---



---

   Technical Specifications

---



---

   * Output voltage at 1000 Hz, 5cm/sec. 5 mV

---

   * Channel balance at 1 kHz 2 dB

---

   * Channel separation at 1 kHz 20 dB

---

   * Channel separation at 15 kHz 15 dB

---

   * Frequency range at - 3dB 20-20.000 Hz

---

   * Frequency response 20-18.000 Hz + 3 / - 2 dB

---

   * FIM distortion at recommended tracking force DIN 45.542 < 1%

---

   * Tracking ability at 315Hz at recommended tracking force 70 µm

---

   * Compliance, dynamic, lateral 7 µm/mN

---

   * Stylus type Spherical

---

   * Stylus tip radius R 26 µm

---

   * Equivalent stylus tip mass 0,5 mg

---

   * Tracking force range 3,0-5,0 g (30-50 mN)

---

   * Tracking force, recommended 4,0 g (40 mN)

---

   * Tracking angle 20°

---

   * Internal impedance, DC resistance 750 Ohm

---

   * Internal inductance 450 mH

---

   * Recommended load resistance 47 kOhm

---

   * Recommended load capacitance 200-600 pF
