Detalii

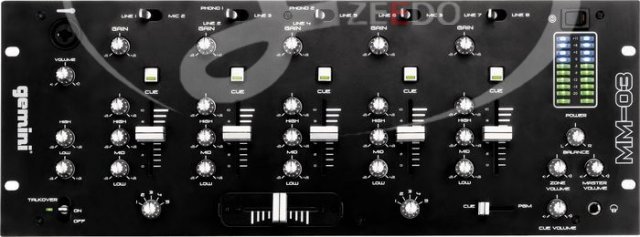

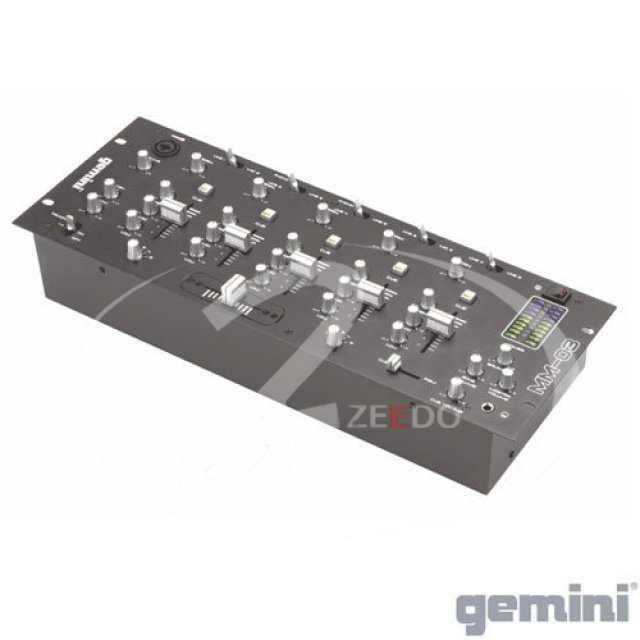

Introducing the MM-03, 4U, 19� rack mounted club mixer from Gemini. This 5 channel mixer is perfect for the versatile DJ offering the latest advancements. With 7 Line, 2 Mic, 2 Convertible Phono/Line, RCA Inputs, and mic inputs with talkover feature, the MM-03 is just the right mixer for your club setup.
Specificatii tehnice
Features:
- 5 stereo channels
- 8 line, 3 Mic, 2 convertible phono/line RCA inputs
- Master, record, & zone RCA outputs
- 1/4- balanced master outputs
- 3 band rotary EQ per channel with cut feature
- Removable, user replaceable Rail Glide cross fader
- Assignable cross fader
- Rotary gain channel control
- Rotary master, zone, balance & cue volume controls
- XLR-1/4" combo Mic input
- New: XLR output
- Inputs:
- Phono: 3 mV, 47 KOhm
- Line: 150 mV, 27 KOhm
- MIC 1 & MIC 2: 1,5 mV, 2 K Ohm symmetrisch
- Bass: - 12dB
- High: - 12dB
- Outputs:
- Verst-rker/Zone: 0 dB 1V, 400 Ohm
- Max: 20V Spitze-Spitze
- Rec: 225 mV, 5 KOhm
- Other:
Inputs:
Phono: 3 mV, 47 kOhm
Line: 150 mV, 27 kOhm
Mic1,Mic2,Mic3: 1.5 mV, 1 kOhm Balanced
Mic1 Bass: +/- 12 dB
Mic1 High: +/- 12 dB
Outputs:
Amp/Zone: 0 dB 1V 400 Ohm
Max: 20v Peak-to-Peak
Rec: 225 mV, 5 kOhm
Frequency Response: 20 Hz- 20 kHz +/- 2 dB
Distortion: < 0.02%
S/N Ratio: better than 80 dB
Talkover: Attenuation -16 dB
Headphone Impedance: 16 Ohm
Power Source: 115/230 V, 50/60 Hz, 20 W
Unit Dimensions: W 19" x H 4" x D 7.42"
(482.6 x 101.6 x 188.6 mm)
Weight: 8.84 lbs (4.01 kg)
