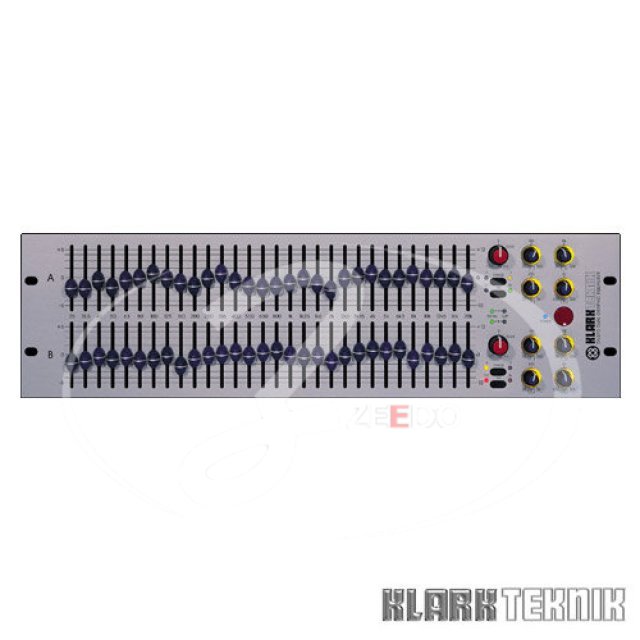

The Klark Teknik DN370 is the finest professional graphic equaliser in the world today. It also perfectly complements the existing Klark Teknik range of equalisers, both analogue and digital.
The aim is simply to provide discerning professional users with the best possible solutions for system control. The market research shows that the graphic equaliser is still the most commonly-used EQ device in fixed and mobile live sound applications, as well as many installations, mainly because the physical user interface provides instant access and controllability in even the most demanding environments.
Specificatii tehnice
Features:
Long-throw 45mm oil-damped faders with dust cover for increased accuracy and resolution
All-new proportional-Q filters provide optimum control without undesirable audio artifacts
Gain control with +6dB/-infinity range and centre detent at unity gain. Allows effective muting of channel in emergencies
Range switch selects 6dB or 12dB operation for the faders, with LED indication
Channel bypass switch with LED indication. The unit also provides automatic relay bypass in the event of power failure
Sweepable high-pass filter with 20Hz to 500Hz range sets the lower frequency limit of the system. The control incorporates a push switch to select the filter in and out, with an illuminated ring for "at a glance" status indication. Invaluable for smooth rejection of unwanted subsonic and low frequencies, particularly relevant with modern, compact wedge monitors
Sweepable low-pass filter with 2kHz to 20kHz range sets the upper frequency limit of the system. The control incorporates a push switch to select the filter in and out, with an illuminated ring for "at a glance" status indication. Provides optimum bandwidth control for vocal monitors and IEM systems
Two sweepable notch filters per channel, with overlapping frequency ranges of 20Hz to 2kHz and 200Hz to 20kHz. These allow precise removal of problem frequencies with minimal effect on the rest of the program material, and fast control of "between fader" frequencies. This gives precise control of room and loudspeaker resonance/feedback nodes with minimum loss of energy even between ISO centres. The controls each incorporate a push switch to select the filter in and out, with an illuminated ring for "at a glance" status indication.
Bypass switch with status LEDs for quick comparison of applied EQ
Power switch, fully recessed in the "on" position to avoid accidental operation
Signal present LEDs show the presence of audio signals above -40dBu
Multi point clip monitoring. Clip warning LEDs illuminate when the level exceeds +20dBu (2dB below the onset of clipping) to assist in optimum system gain setting
Electronically balanced inputs and outputs (transformer balancing is available as an option). Connections are provided on both XLRs (pin 2 hot) and Phoenix-type strip connectors for fixed installation
IEC mains inlet. The unit automatically adjusts for operation on all voltages from 100 to 240V AC
KT logo for quality engineering and reliability 3-year KT warranty for peace of mind
Frequency Response 0.5dB (20Hz-20kHz)
Distortion (THD+N) < 0.003% @1kHz, +4dBu
Dynamic Range > 114 dB (20Hz-20kHz unweighted, 12 dB range)
Technical Data:
Inputs Two
Type Electronically balanced (pin 2 hot)
Impedance (Ohm) 20k
Maximum input level +22dBu
Outputs Two
Type Electronically balanced (pin 2 hot)
Minimum load impedance 600 Ohm
Source impedance < 60 Ohm
Maximum output level +22dBu into >2kOhm
Performance
Frequency response relative to signal at 1kHz 0.5 dBu 20Hz-20kHz
EQ out 0.5 dBu
EQ in (flat) 0.5 dBu
Distortion (THD+N) < 0.003% @ 1kHz +4 dBu
Dynamic range >114dB (20Hz-20kHz unweighted, 12dB range)
Overload indicator +20 dBu
Gain - ∞ to +6dBu
Equalisation 30 Bands
Centre Frequencies To BS EN ISO 266:1997 25Hz-20kHz, 1/3 octave tolerance 5%
Maximum Boost/Cut 12dB, 6dB
High Pass Filter Slope 12 dB/octave
Low Pass Filter Slope 12 dB/octave
Notch filter attenuation >17dB
Q=32
Terminations
Audio 3-pin XLR and 6-pin Phoenix
Power 3-pin IEC
Power Requirements
Voltage 100V-240V a.c.
Consumption < 60W
Dimensions
Height 133mm (5.25 inch) (3U High)
Width 482mm (19 inch)
Depth 205mm (8 inch)
Weight
Nett 5.8kg
Shipping 7.0kg
