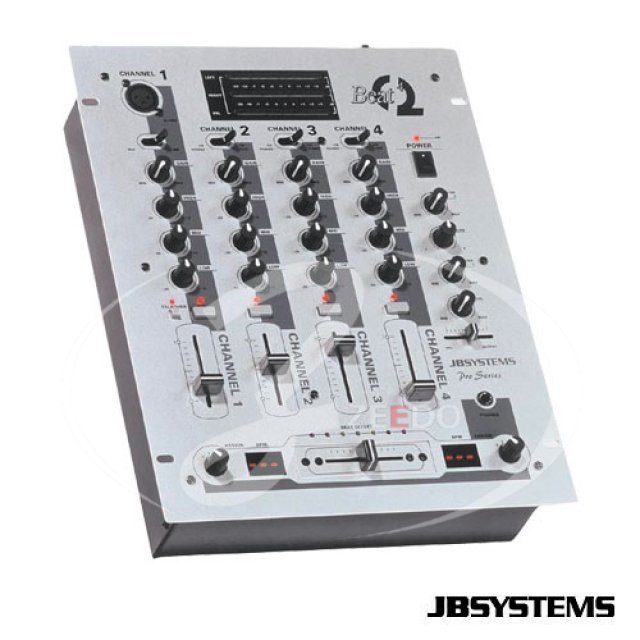

JB Systems - Beat 4

---

   Professional 4 channel DJ mixer

---

   Features

---



---

   Professional 4-channel mixer

---

   Two-display beatcounter with channel assign and synchronisation LED's

---

   3-band tone control on each channel, with kill-function

---

   3 LED-bars (Master L&R , PFL)

---

   Automatic talk-over on the DJ-mic

---

   Headphones section with PFL/Master mixing

---

   Crossfader

---

   2 separate masters

---

   Easy-glide faders

---



---

   Inputs :1 mic, 3 phono, 7 line

---

   MIC Input: 200 - 600 Ohm / Unbalanced

---

   Phono Input: 3mV / 50 kOhm

---

   Line Input: 300mV / 10 kOhm

---

   S/N Ratio: > 80dB

---

   Output: 1,0V /600 Ohm

---

   Ton Control: -26dB/+12dB

---

   Dimensions : 370 x 240 x 100mm
