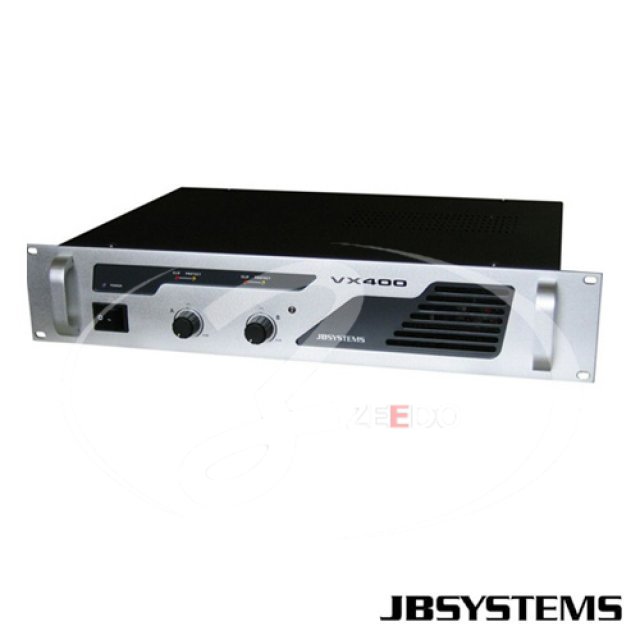

JB Systems - Amplifier VX 400

---

   A range of professional amplifiers with an exceptional price/performance relation!

---

   All amplifiers are fully protected against short circuit, DC current, high temperature, etc...

---

   The complete range has a strong aluminum front, balanced jack and XLR inputs, Speakon® and binding post speaker outputs and forced fan cooling.

---

   Features

---



---

   • Professional amplifier for all-round sound reproduction

---

   • Short Circuit protection

---

   • DC current protection

---

   • High temperature protection

---

   • Forced fan cooling

---

   • Bridge function (except on VX400)

---

   • Balanced XLR and Jack inputs

---

   • Ground/lift switch

---

   • Speakon® compatible speaker outputs

---

   • Binding post speaker outputs (screws)

---

   • Strong Aluminum 19" front

---



---

   Technical Data

---



---

   • Power stereo 4 ohm 2x 200Wrms

---

   • Power stereo 8 ohm 2x 135Wrms

---

   • Power bridge 8 ohm ***

---

   • Power parallel 2 ohm ***

---

   • Freq. Resp. (+/-1.5dB) 10 - 50000Hz

---

   • Input Sensitivity 0,77V

---

   • Input impedance 20 kohm

---

   • S/R ratio >85dB

---

   • Damping factor >150

---

   • Slew Rate 35V/uS

---

   • Cooling Force Fan cooling

---

   • Inputs Balanced XLR/Jack

---

   • Outputs Speakon/binding post

---

   • Power supply AC230V / 50Hz

---

   • Dimensions (mm) 88x483x260 (19"/2U)
