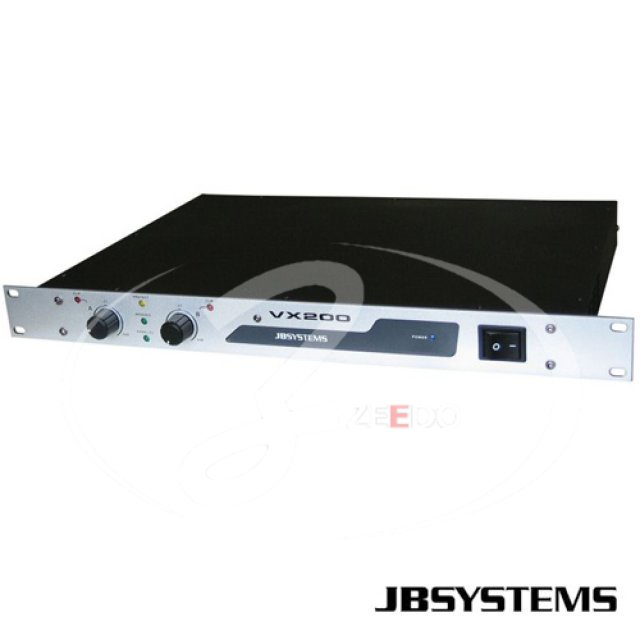

JB Systems - Amplifier VX 200

---

   A range of professional amplifiers with an exceptional price/performance relation!

---

   All amplifiers are fully protected against short circuit, DC current, high temperature, etc...

---

   The complete range has a strong aluminum front, balanced jack and XLR inputs, Speakon® and binding post speaker outputs and forced fan cooling.

---

   Features

---



---

   • Professional amplifier for all-round sound reproduction

---

   • Short Circuit protection

---

   • DC current protection

---

   • High temperature protection

---

   • Forced fan cooling

---

   • Bridge function (except on VX400)

---

   • Balanced XLR and Jack inputs

---

   • Ground/lift switch

---

   • Speakon® compatible speaker outputs

---

   • Binding post speaker outputs (screws)

---

   • Strong Aluminum 19" front

---



---

   Technical Data

---



---

   • Power stereo 4 ohm: 2x110Wrms

---

   • Power stereo 8 ohm: 2x 65Wrms

---

   • Power bridge 8 ohm: 1x 220Wrms

---

   • Power parallel 2 ohm: 1x 220Wrms

---

   • Freq. Resp. (+/-1.5dB): 10 - 50.000Hz

---

   • Input Sensitivity: 0.77V / 26dB / 1.4V

---

   • Input impedance: 20kOhm

---

   • S/R ratio: >85dB

---

   • Damping factor: >150

---

   • Slew Rate: 40V/uS

---

   • Cooling: forced fan cooling

---

   • Inputs: Balanced Jack / XLR

---

   • Outputs: Speakon / Binding post

---

   • Power supply: AC230V / 50Hz

---

   • Dimensions (mm): 44 x 483 x 320 (19"/1U)

---

   • Weight: 7,5kg
