Detalii

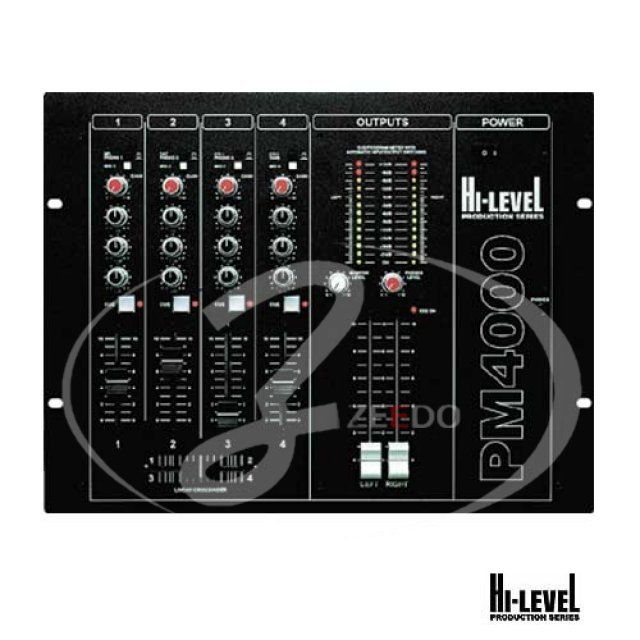

One of the best-selling 4-channel mixers ever: 12 inputs (3x Phono, 4x XLR Mic, 5x LINE) and 2 separately adjustable, symmetrical outputs on XLR sockets and 6.3mm Jack.
Specificatii tehnice
Features
-black 2mm electrolytically galvanized steel front with industrial, burnt teflon powder coating
-dark grey 1.5mm chassis for perfect screen against RF effects
-high-quality, tested components and power pack components, transformer shielded
-special high frequency compensation for outstanding resolution in the HF area
-audiophile equalizer circuits with ALPS potentiometers
-large audio bandwidth
-Gain preamp stages with 40dB range and excellent noise values
-more than 22dB headroom on all inputs and outputs
-3 inputs per channel Line/Line/Mic for unlimited applications
-modular RIAA Phono preamp plug-on cards. 3 pieces standard.
-Subsonic filter only for phono inputs for full bandwidth with CD/Line signals
-Microphone inputs A+B with 80Hz Low Cut for speech intellegibility
-60mm ALPS soft slide channel faders
-45mm ALPS PRO soft slide Long Life Crossfader for precise Mixing
-all Fader wired separately for simple service
-shielded PCB's
-Crossfader internally disconnectable
-Output voltage internally interchangable between 1,5V - 7,5V
-symmetrical microphone inputs on XLR sockets with all models
-symmetrical and asymmetrical master and monitor outputs on XLR+Cinch and 6.3mm Jack+Cinch
-large ALPS CUE push buttons
-precise 13-segment True RMS VU-Meter shows the output level as long as no CUE button is pressed
-fully automatic AUTOCUE circuit lights up CUE ON LED if CUE buttons are pressed and switch VU-Meters as well as headphone output into the Input Gain mode
-2 parallel outputs for Recording or lighting systems
-36 months warranty on all non-movable parts.
Inputs: 3 x Phono, 5 x Line, 4 x Mic
Outputs: XLR, Chinch, Record out
Dimensions: 406mm x 310mm x 90mm
Weight: 6.0kg
